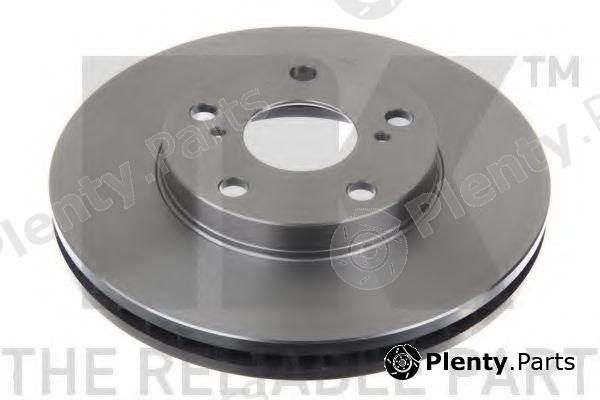

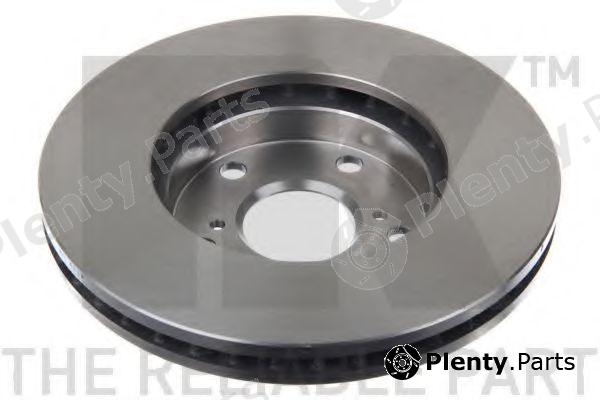

NK 204549 Brake Disc

NK part 204549 Brake Disc
NK part 204549 Brake Disc
NK part 204549 Brake Disc

NK 204549 Brake Disc

by NK

Manufacturer Part Number: 204549

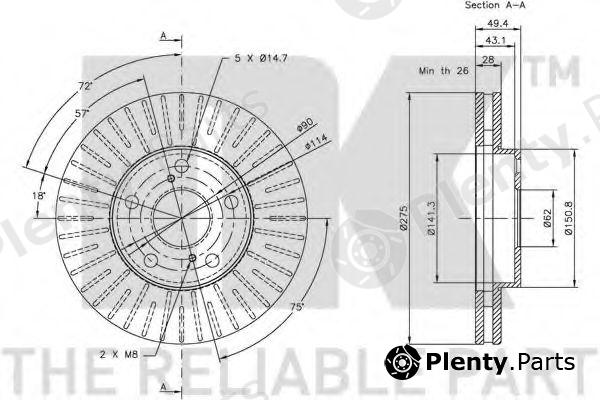

Сharacteristics:
  • Brake Disc Type: Vented
  • Rim Hole Number: 5
  • Weight [kg]: 6,73
  • Diameter [mm]: 275
  • Height [mm]: 49,5
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Centering Diameter [mm]: 62

Product Details

BrandNK
NK article (MPN)204549
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA4351206020, 4351206030, 4351207020, 4351233040, 4351233042, 4351233043, 4351233060, 435120603, 4351206031, 4351233041

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for NK 204549 Brake Disc offered by A.B.S., ADVICS / SUMITOMO, ASHIKA, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, EUROBRAKE, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, G.U.D, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JAPANPARTS, JAPKO, JP GROUP, JURID, KAGER, KORTEX, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NECTO, NK, PAGID, PATRON, PEX, PILENGA, PROFIT, QUINTON HAZELL, REMSA, ROTINGER, ROULUNDS BRAKING, SAKURA, SASIC, sbs, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16220
ADVICS / SUMITOMOA6F188
ASHIKA6002213, 6002275
ASHUKIT60125, T60125G
ATE24.0128-0115.1
BENDIX561676BC, 561676, 561676B
BLUE PRINTADT34378
BORG & BECKBBD5034
Brake ENGINEERINGDI955331
BRECOBS8067
BREMBO09.5624.10
BREMSIDBA501V
CAR142.777
CIFAM8001028
DELPHIBG2782
DENCKERMANNB130388
Dr!ve+DP1010110661
EUROBRAKE5815204549
FERODODDF5011, DDF501
FIRST LINEFBD558
FOMARFO2509
fri.tech.BD1063
FTEBS4422
GIRLING6014311
G.U.DGDB128115
HELLA8DD355104921, 8DD355104931
HELLA PAGID8DD355104-921, 8DD355104931
HERTH+BUSS JAKOPARTSJ3302075
JAPANPARTSJDI275, DI-275, DI-213
JAPKO60213, 60275
JP GROUP4863102309
JURID561676J, 561676, 561676JC
KAGER370067
KORTEXKD0161
LUCAS ELECTRICALDF1431
MAGNETI MARELLI600000087080
MAPCO45570
METELLI231028
METZGER6842.10, 6110624
MEYLE30-155210031-PD
MGAD1353
MINTEXMDC898
MOTAQUIPVBD876
NECTOWN642
NK314549
PAGID53625
PATRONPBD1431, PBD1434
PEX14.0579
PILENGAV660
PROFIT50100501
QUINTON HAZELLBDC4422
REMSABDM6876.20
ROTINGERRT2209T5, RT2209
ROULUNDS BRAKINGD2509
SAKURA604203785
SASIC6106063
sbs1815314549, 1815204549
TEMPLIN0311027570, 0311027575
TEXTAR98200077701, 92077700, 92077703
TRISCAN8120-13135, 812013135c
TRUSTINGDF381, DF1063
TRWDF1431
VALEO197166
ZIMMERMANN590255620, 590255600

Vehicle fitment / NK 204549 Brake Disc compatibility

This product fits the following models: LEXUS ES, LEXUS GS, TOYOTA AVENSIS VERSO, TOYOTA CAMRY, TOYOTA ESTIMA, TOYOTA IPSUM, TOYOTA PICNIC, TOYOTA PREVIA, TOYOTA SCEPTER, TOYOTA TARAGO, TOYOTA VERSO, etc. See all vehicles this product (NK 204549) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
LEXUSES
MCV
VZV
VCV10
F1
VZV21
F2
3.0
300
MCV10
VCV10
MCV30
MCV20
1991/09 - 2001/071MZ-FE 190 hp 140 kW 3 L Petrol
3VZ-FE 188 hp 138 kW 3 L Petrol
Rear wheel
Sedan / Saloon
LEXUSGS
JZS147
UZS161
JZS160
UZS160
300
300 T3
JZS147
JZS160
1993/03 - 2000/102JZ-GE 212 hp 156 kW 3 L Petrol
2JZ-GE 222 hp 163 kW 3 L Petrol
Rear wheel
Sedan / Saloon
TOYOTAAVENSIS VERSO
CLM2
ACM2
2.0 D-4D
2.0 VVT-i
2001/08 - 2009/111AZ-FE 150 hp 110 kW 2 L Petrol
1CD-FTV 116 hp 85 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
TOYOTACAMRY
CV1
XV1
V1
CV2
XV2
MCV3
ACV3
XV3
XV1
CV1
V10
2.2
2.5
3.0
3.0 24V
3.0 V6
3.0 VIENTA

MCV20
SXV10
SXV20
VCV10
VDV10
1991/06 - 2006/111MZ-FE 183 hp 135 kW 3 L Petrol
3VZ-FE 185 hp 136 kW 3 L Petrol
1MZ-FE 184 hp 135 kW 3 L Petrol
1MZ-FE 186 hp 137 kW 3 L Petrol
1MZ-FE 190 hp 140 kW 3 L Petrol
3VZ-FE 185 hp 136 kW 3 L Petrol
3VZ-FE 188 hp 138 kW 3 L Petrol
3VZ-FE 190 hp 140 kW 3 L Petrol
4VZ-FE 175 hp 129 kW 2.5 L Petrol
5S-FE 126 hp 93 kW 2.2 L Petrol
5S-FE 126 hp 93 kW 2.2 L Petrol
5S-FE 136 hp 100 kW 2.2 L Petrol
5S-FE 131 hp 96 kW 2.2 L Petrol
5S-FE 136 hp 100 kW 2.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
TOYOTAESTIMA
MCR3
ACR3
CLR3
2.0
2.0 D-4D
2.4
2.4 16V

ACR30
2000/08 - 2006/011CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
3S-FE 128 hp 94 kW 2 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTAIPSUM
CLM2
ACM2
2.0 D-4D
2.0 VVT-i
2001/08 - 2009/111AZ-FE 150 hp 110 kW 2 L Petrol
1CD-FTV 116 hp 85 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
TOYOTAPICNIC
CLM2
ACM2
2.0 D-4D
2.0 VVT-i
2001/08 - 2009/111AZ-FE 150 hp 110 kW 2 L Petrol
1CD-FTV 116 hp 85 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
TOYOTAPREVIA
MCR3
ACR3
CLR3
2.0
2.0 D-4D
2.4
2.4 16V

ACR30
2000/08 - 2006/011CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
3S-FE 128 hp 94 kW 2 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTASCEPTER

CV1
XV1
V1
XV1
CV1
V10
2.2
2.5
3.0

SXV10
VCV10
1991/06 - 1996/091MZ-FE 183 hp 135 kW 3 L Petrol
3VZ-FE 185 hp 136 kW 3 L Petrol
3VZ-FE 185 hp 136 kW 3 L Petrol
3VZ-FE 188 hp 138 kW 3 L Petrol
4VZ-FE 175 hp 129 kW 2.5 L Petrol
5S-FE 126 hp 93 kW 2.2 L Petrol
5S-FE 126 hp 93 kW 2.2 L Petrol
5S-FE 136 hp 100 kW 2.2 L Petrol
5S-FE 136 hp 100 kW 2.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
TOYOTATARAGO
MCR3
ACR3
CLR3
2.0
2.0 D-4D
2.4
2.4 16V

ACR30
2000/08 - 2006/011CD-FTV 116 hp 85 kW 2 L Diesel
2AZ-FE 156 hp 115 kW 2.4 L Petrol
3S-FE 128 hp 94 kW 2 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTAVERSO
CLM2
ACM2
2.0 D-4D
2.0 VVT-i
2001/08 - 2009/111AZ-FE 150 hp 110 kW 2 L Petrol
1CD-FTV 116 hp 85 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
