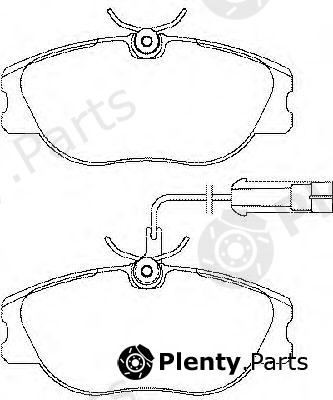

PAGID T5085 Brake Pad Set, disc brake
PAGID T5085 Brake Pad Set, disc brake
by PAGIDManufacturer Part Number: T5085
Alternative PAGID part number(s): 21147, 23168
- Width [mm]: 130
- Height [mm]: 58,7
- Thickness [mm]: 19,3
- Wear Warning Contact: with integrated wear sensor
- Supplementary Article/Info 2: with brake caliper screws
- WVA Number: 23168
- Brake System: Lucas
Product Details
| Brand | PAGID |
| PAGID article (MPN) | T5085 Alternative PAGID part number(s): 21147, 23168 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for FIAT / LANCIA / ALFA vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| FIAT / LANCIA / ALFA | 71748391, 9941872, 9944329, 9944678, 9946227, 9946750, 9950550, 71770975, 77362344 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for PAGID T5085 Brake Pad Set, disc brake offered by A.B.S., APEC braking, ATE, BENDIX, BOSCH, BREMBO, CIFAM, DELPHI, EBC BRAKES, E.T.F., FEBI BILSTEIN, FERODO, fri.tech., FTE, GALFER, GIRLING, HELLA, HELLA PAGID, HP, ICER, JURID, KAWE, LPR, MAGNETI MARELLI, METELLI, MGA, MINTEX, NECTO, NK, OPTIMAL, PROCODIS FRANCE, PROTECHNIC, QUINTON HAZELL, RAICAM, R BRAKE, REMSA, ROADHOUSE, sbs, STOP, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, VILLAR, WEEN, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 36800 |
| APEC braking | PAD672, PAD945 |
| ATE | 13046029792, 13046029872, 602987 |
| BENDIX | 571423B, 571472B, 571894B, 571365B |
| BOSCH | BP512, DB2106UL, 0986460942, 0986424374 |
| BREMBO | P23046, P23036, P23066 |
| CIFAM | 8220721 |
| DELPHI | LP856, LP1536, LP1400, LP875 |
| EBC BRAKES | DP27333, DP1109, DP37333C, DP733, DP4733R, DP2733, DP7333, DP21109, DP3733C, DP41109R |
| E.T.F. | 120863 |
| FEBI BILSTEIN | 116015, 16239 |
| FERODO | FDB994, FDB650, FDB565 |
| fri.tech. | 0741 |
| FTE | BL1222A2, BL1605A4, BL1310A2 |
| GALFER | B1G10202892, B1G10203582 |
| GIRLING | 6110581 |
| HELLA | 8DB355018181 |
| HELLA PAGID | 8DB355018181, 355018-181 |
| HP | 2729 |
| ICER | 181098700 |
| JURID | 571894J, 571365J, 571423J, 571472J |
| KAWE | 030512 |
| LPR | 05P286 |
| MAGNETI MARELLI | 363700205085, T5085MM, 363702161190, 363702160358 |
| METELLI | 2200721 |
| MGA | 455, 302 |
| MINTEX | MDB2194 |
| NECTO | FD6630A |
| NK | 221014, 222350, 222336 |
| OPTIMAL | 9678, 9913, 10054 |
| PROCODIS FRANCE | PF1244 |
| PROTECHNIC | PRP0284 |
| QUINTON HAZELL | BP740, BP665, MBP460, BP460, BP830, 2729, MBP830 |
| RAICAM | RA03526 |
| R BRAKE | RB1098700 |
| REMSA | 30502, 030502, 030512, 030572 |
| ROADHOUSE | 230502, 230512, 230572 |
| sbs | 1501222350 |
| STOP | 571472S |
| SWAG | 70916239, 74116015 |
| TEXTAR | 2316803, 2316819325 |
| TRISCAN | 811015042 |
| TRUSTING | 0741 |
| TRW | GDB1117, GDB1052, GDB1058 |
| VALEO | 540779, 540748, 540533, 540400, 598985, 598006, 598009, 598010, 597174 |
| VILLAR | 6260286 |
| WEEN | 1511602 |
| WOKING | P205312 |
| ZIMMERMANN | 231681901 |
Vehicle fitment / PAGID T5085 Brake Pad Set, disc brake compatibility
This product fits the following models: ALFA ROMEO GTV, ALFA ROMEO SPIDER, FIAT COUPE, FIAT TIPO, LANCIA DEDRA, LANCIA DEDRA SW, LANCIA DELTA , LANCIA DELTA I, LANCIA DELTA II, LANCIA DELTAII, LANCIA KAPPA, LANCIA KAPPA SW, LANCIA THEMA, LANCIA THEMA SW, etc. See all vehicles this product (PAGID T5085) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| ALFA ROMEO | GTV 916C | 2.0 T.SPARK 16V 2.0 V6 Turbo 916.C2 916C2C00 916.C2A 916C2C | 1995/06 - 2005/10 | AR16201 150 hp 110 kW 2 L Petrol AR32310 150 hp 110 kW 2 L Petrol AR16202 202 hp 148 kW 2 L Petrol AR32301 155 hp 114 kW 2 L Petrol | Front wheel | Coupe / Sports car / Grand tourer / Speedster / Roadster |
| ALFA ROMEO | SPIDER 916 916S | 3.0 V6 916S1 | 1995/04 - 2005/04 | AR16101 192 hp 141 kW 3 L Petrol AR16199 192 hp 141 kW 3 L Petrol | Front wheel | Convertible / cabrio |
| FIAT | COUPE FA/175 | 1.8 16V 2.0 16V 2.0 16V Turbo 2.0 20V | 1993/11 - 2000/08 | 175A1.000 190 hp 140 kW 2 L Petrol 182A1.000 147 hp 108 kW 2 L Petrol 182B3.000 154 hp 113 kW 2 L Petrol 183A1.000 131 hp 96 kW 1.8 L Petrol 836A3.000 139 hp 102 kW 2 L Petrol | Front wheel | Coupe / Sports car / Grand tourer / Speedster / Roadster |
| FIAT | TIPO 160 | 2.0 2.0 16V 2.0 i.e. 16V Sport 160.AV 160.EF | 1991/07 - 1995/04 | 160A8.046 146 hp 107 kW 2 L Petrol 836A3.000 139 hp 102 kW 2 L Petrol 836A3.011 141 hp 104 kW 2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| LANCIA | DEDRA 835 | 2.0 HF Integrale 2.0 i.e. Turbo 2.0 i.e. Turbo Integrale 2.0 Turbo 835AO 835AP 835AQ 835AR | 1990/05 - 1999/07 | 835A7.000 165 hp 121 kW 2 L Petrol 835A7.046 169 hp 124 kW 2 L Petrol 835A8.000 177 hp 130 kW 2 L Petrol 835A8.046 162 hp 119 kW 2 L Petrol | AWD / 4WD Front wheel | Sedan / Saloon |
| LANCIA | DEDRA SW 835 | 2.0 Integrale 835ED | 1994/07 - 1999/07 | 836A3.000 139 hp 102 kW 2 L Petrol | AWD / 4WD | Estate / Turnier / Vario / Wagon |
| LANCIA | DELTA 831AB0 | 1.6 HF Turbo 2.0 16V HF Evo Integrale 2.0 16V HF Integrale 2.0 HF Integrale 831AB.024 831AB.024S 831AB.028 831AB.026 831AB.027 | 1986/08 - 1994/01 | 166 hp 122 kW 1.6 L Petrol 831C5.000 181 hp 133 kW 2 L Petrol 831C5.046 177 hp 130 kW 2 L Petrol 831D5.000 196 hp 144 kW 2 L Petrol 831E5.000 211 hp 155 kW 2 L Petrol 831E5.046 211 hp 155 kW 2 L Petrol | AWD / 4WD Front wheel | Hatchback / Sportback / Sport hatch |
| LANCIA | DELTA I 831AB0 | 1.6 HF Turbo 2.0 16V HF Evo Integrale 2.0 16V HF Integrale 2.0 HF Integrale 831AB.024 831AB.024S 831AB.028 831AB.026 831AB.027 | 1986/08 - 1994/01 | 166 hp 122 kW 1.6 L Petrol 831C5.000 181 hp 133 kW 2 L Petrol 831C5.046 177 hp 130 kW 2 L Petrol 831D5.000 196 hp 144 kW 2 L Petrol 831E5.000 211 hp 155 kW 2 L Petrol 831E5.046 211 hp 155 kW 2 L Petrol | AWD / 4WD Front wheel | Hatchback / Sportback / Sport hatch |
| LANCIA | DELTA II 836 | 1.8 i.e. 16V GT 2.0 16V 2.0 16V Turbo 836AA 836CA 836AB 836AR 836AS | 1993/06 - 1999/08 | 175A4.000 193 hp 142 kW 2 L Petrol 183A1.000 131 hp 96 kW 1.8 L Petrol 836A2.000 186 hp 137 kW 2 L Petrol 836A3.000 139 hp 102 kW 2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| LANCIA | DELTAII 836 | 1.8 i.e. 16V GT 2.0 16V 2.0 16V Turbo 836AA 836CA 836AB 836AR 836AS | 1993/06 - 1999/08 | 175A4.000 193 hp 142 kW 2 L Petrol 183A1.000 131 hp 96 kW 1.8 L Petrol 836A2.000 186 hp 137 kW 2 L Petrol 836A3.000 139 hp 102 kW 2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| LANCIA | KAPPA 838 838A | 2.0 16V Turbo 2.0 20V 2.0 20V Turbo 2.4 20V 2.4 JTD 2.4 T.DS 3.0 24V 838AA1AA 838AB1AA 838AC1AA 838AC11A 838AD1AA 838AD11A 838XD1AA 838ZD1AA 838AE1AA 838AH1AA 838AG1AA 838AG11A 838AL1AA 838AM1AA 838CB 838CC 838CD 838CD11A 838CM | 1994/08 - 2001/10 | 175A3.000 220 hp 162 kW 2 L Petrol 838A1.000 146 hp 107 kW 2 L Petrol 838A2.000 175 hp 129 kW 2.4 L Petrol 838A2.000 175 hp 129 kW 2.4 L Petrol 838A2.027 175 hp 129 kW 2.4 L Petrol 838A3.000 124 hp 91 kW 2.4 L Diesel 838A7.000 124 hp 91 kW 2.4 L Diesel 838A4.000 205 hp 151 kW 2 L Petrol 838A6.000 155 hp 114 kW 2 L Petrol 838A8.000 136 hp 100 kW 2.4 L Diesel 838B.000 204 hp 150 kW 3 L Petrol | Front wheel | Coupe / Sports car / Grand tourer / Speedster / Roadster Sedan / Saloon |
| LANCIA | KAPPA SW 838B | 2.0 16V Turbo 2.0 20V 2.0 20V Turbo 2.4 20V 2.4 JTD 2.4 T.DS 3.0 24V 838BB1AA 838BC1AA 838BC11A 838BD11A 838BG1AA 838BH1AA 838BL1AA 838BM1AA | 1996/07 - 2001/10 | 175A3.000 220 hp 162 kW 2 L Petrol 838A2.000 175 hp 129 kW 2.4 L Petrol 838A3.000 124 hp 91 kW 2.4 L Diesel 838A7.000 124 hp 91 kW 2.4 L Diesel 838A4.000 205 hp 151 kW 2 L Petrol 838A6.000 155 hp 114 kW 2 L Petrol 838A8.000 136 hp 100 kW 2.4 L Diesel 838B.000 204 hp 150 kW 3 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon |
| LANCIA | THEMA 834 | 2000 16V 2000 16V Turbo 2000 i.e. 16V 2000 i.e. 16V Turbo 2500 Turbo DS 2850 V6 i.e. 3000 V6 8.32 834AD 834CD 834BD 834AE 834AI 834AL 834AM 834F 834FA 834FE 834LE 834FS 834GC 834FC 834GD 834FD | 1987/09 - 1994/07 | 8144.97 115 hp 85 kW 2.5 L Diesel 8144.97S 105 hp 77 kW 2.5 L Diesel 8144.97Y 116 hp 85 kW 2.5 L Diesel 834B2.246 141 hp 104 kW 2 L Petrol 834C1.246 177 hp 130 kW 2 L Petrol 834E.146 147 hp 108 kW 2.8 L Petrol 834F.000 171 hp 126 kW 3 L Petrol 834F1.000 152 hp 112 kW 2 L Petrol 834F2.000 201 hp 148 kW 2 L Petrol F105L.046 205 hp 151 kW 2.9 L Petrol F105L 215 hp 158 kW 2.9 L Petrol | Front wheel | Sedan / Saloon |
| LANCIA | THEMA SW 834 | 2000 16V 2000 i.e. 16V 2000 i.e. 16V Turbo 2000 Turbo 2000 Turbo 16V 2500 Turbo DS 3000 V6 834AE 834AI 834AL 834AM 834FA 834FE 834LE 834GC 834FC 834GD 834FD | 1988/05 - 1994/07 | 8144.97 115 hp 85 kW 2.5 L Diesel 8144.97S 105 hp 77 kW 2.5 L Diesel 8144.97Y 116 hp 85 kW 2.5 L Diesel 834B2.246 141 hp 104 kW 2 L Petrol 834C1.246 177 hp 130 kW 2 L Petrol 834C.146 150 hp 110 kW 2 L Petrol 834F.000 171 hp 126 kW 3 L Petrol 834F1.000 152 hp 112 kW 2 L Petrol 834F2.000 201 hp 148 kW 2 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon |
