PATRON PDR1196 Brake Drum

PATRON PDR1196 Brake Drum

Manufacturer Part Number: PDR1196

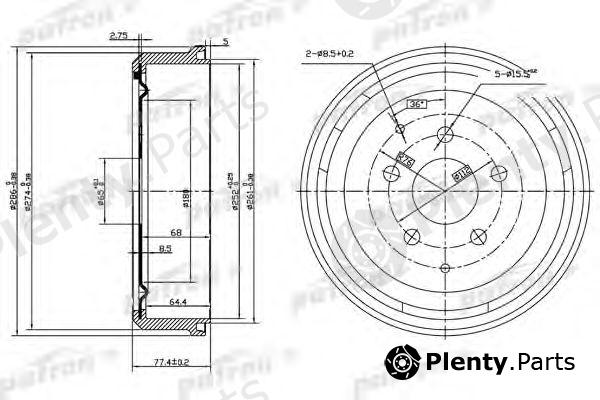

Сharacteristics:

Diameter [mm]: 252
Inner Brake Drum Height [mm]: 64
Total Br. Drum Height [mm]: 77,5
Bolt Hole Circle Ø [mm]: 65
No. of holes 1: 5
No. of holes 2: 2

Product Details

Brand	PATRON
PATRON article (MPN)	PDR1196
Vehicle subsystem	Brake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturer	OEM reference numbers
VAG	251609615

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for PATRON PDR1196 Brake Drum offered by ATE, BENDIX, BREMBO, CIFAM, DELPHI, FEBI BILSTEIN, HANS PRIES, LPR, METELLI, SWAG, TRW manufacturers

Manufacturer	Reference numbers
ATE	24.0225-2002.2
BENDIX	329131B
BREMBO	14549510
CIFAM	700-194
DELPHI	BF184F
FEBI BILSTEIN	14062
HANS PRIES	103281
LPR	7D0236
METELLI	18-0194
SWAG	32914062
TRW	DB4053

Vehicle fitment / PATRON PDR1196 Brake Drum compatibility

This product fits the following models: VW AGON III, VW CARAVELLE III, VW TRANER CARAVELLE III, VW TRANER CARAVELLEIII, VW TRANER II, VW TRANERII, VW TRANER III, VW TRANERIII, VW TRANER T2, VW TRANER T3, etc. See all vehicles this product (PATRON PDR1196) fits below to verify fitment for your vehicle.

Make	Model	Variant	Period	Engine	Drive	Body Style
VW	AGON III	1.6 1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CT 50 hp 37 kW 1.6 L Petrol CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	Passenger Van / Wagon / Minibus
VW	CARAVELLE III	1.6 1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CT 50 hp 37 kW 1.6 L Petrol CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	Passenger Van / Wagon / Minibus
VW	TRANER CARAVELLE III	1.6 1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CT 50 hp 37 kW 1.6 L Petrol CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	Passenger Van / Wagon / Minibus
VW	TRANER CARAVELLEIII	1.6 1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CT 50 hp 37 kW 1.6 L Petrol CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	Passenger Van / Wagon / Minibus
VW	TRANER II	1.6 2.0	1968/08 - 1979/07	AD 50 hp 37 kW 1.6 L Petrol AE 50 hp 37 kW 1.6 L Petrol AS 50 hp 37 kW 1.6 L Petrol AD 50 hp 37 kW 1.6 L Petrol AH 50 hp 37 kW 1.6 L Petrol AS 50 hp 37 kW 1.6 L Petrol AD 50 hp 37 kW 1.6 L Petrol AS 50 hp 37 kW 1.6 L Petrol CJ 69 hp 51 kW 2 L Petrol GD 69 hp 51 kW 2 L Petrol GE 69 hp 51 kW 2 L Petrol CJ 70 hp 51 kW 2 L Petrol GD 70 hp 51 kW 2 L Petrol GE 70 hp 51 kW 2 L Petrol	Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
VW	TRANERII	1.6 2.0	1968/08 - 1979/07	AD 50 hp 37 kW 1.6 L Petrol AE 50 hp 37 kW 1.6 L Petrol AS 50 hp 37 kW 1.6 L Petrol AD 50 hp 37 kW 1.6 L Petrol AH 50 hp 37 kW 1.6 L Petrol AS 50 hp 37 kW 1.6 L Petrol AD 50 hp 37 kW 1.6 L Petrol AS 50 hp 37 kW 1.6 L Petrol CJ 69 hp 51 kW 2 L Petrol GD 69 hp 51 kW 2 L Petrol GE 69 hp 51 kW 2 L Petrol CJ 70 hp 51 kW 2 L Petrol GD 70 hp 51 kW 2 L Petrol GE 70 hp 51 kW 2 L Petrol	Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
VW	TRANER III	1.6 1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CT 50 hp 37 kW 1.6 L Petrol CU 69 hp 51 kW 2 L Petrol CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 69 hp 51 kW 1.6 L Diesel JX 69 hp 51 kW 1.6 L Diesel JX 70 hp 51 kW 1.6 L Diesel JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
VW	TRANERIII	1.6 1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CT 50 hp 37 kW 1.6 L Petrol CU 69 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol JX 69 hp 51 kW 1.6 L Diesel JX 69 hp 51 kW 1.6 L Diesel JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	LCV / Van / Cargo With flatbed/undercarriage
VW	TRANER T2	1.6 2.0	1968/08 - 1979/07	AD 50 hp 37 kW 1.6 L Petrol AE 50 hp 37 kW 1.6 L Petrol AS 50 hp 37 kW 1.6 L Petrol AD 50 hp 37 kW 1.6 L Petrol AH 50 hp 37 kW 1.6 L Petrol AS 50 hp 37 kW 1.6 L Petrol AD 50 hp 37 kW 1.6 L Petrol AS 50 hp 37 kW 1.6 L Petrol CJ 69 hp 51 kW 2 L Petrol GD 69 hp 51 kW 2 L Petrol GE 69 hp 51 kW 2 L Petrol CJ 70 hp 51 kW 2 L Petrol GD 70 hp 51 kW 2 L Petrol GE 70 hp 51 kW 2 L Petrol	Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
VW	TRANER T3	1.6 1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CT 50 hp 37 kW 1.6 L Petrol CU 69 hp 51 kW 2 L Petrol CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 69 hp 51 kW 1.6 L Diesel JX 69 hp 51 kW 1.6 L Diesel JX 70 hp 51 kW 1.6 L Diesel JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
