QUINTON HAZELL BDC3787 Brake Disc

QUINTON HAZELL part BDC3787 Brake Disc
QUINTON HAZELL part BDC3787 Brake Disc

QUINTON HAZELL BDC3787 Brake Disc

by QUINTON HAZELL

Manufacturer Part Number: BDC3787
Alternative QUINTON HAZELL part number(s): BDC3787P

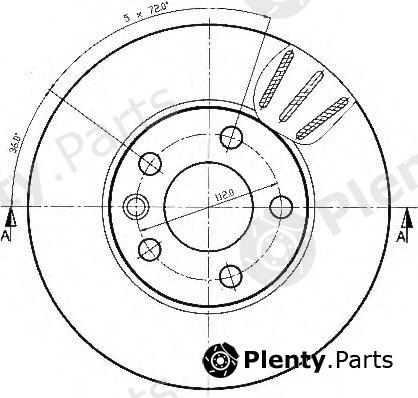

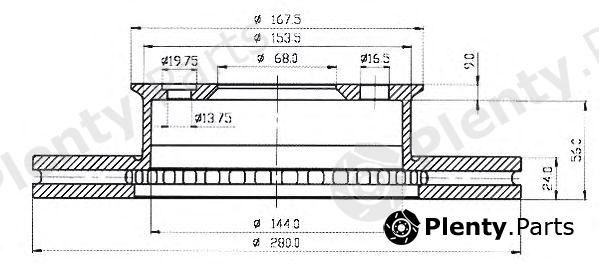

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 24
  • Minimum thickness [mm]: 20
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 65
  • Hub Bore Ø [mm]: 68

Product Details

BrandQUINTON HAZELL
QUINTON HAZELL article (MPN)BDC3787 Alternative QUINTON HAZELL part number(s): BDC3787P
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG701615301A, 701615301D

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for QUINTON HAZELL BDC3787 Brake Disc offered by A.B.S., AP, APEC braking, ATE, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, INTERBRAKE, JURID, KAGER, KAMOKA, KRAFT, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, MOTAQUIP, MOTIP, NATIONAL, NECTO, NK, OPTIMAL, PAGID, PATRON, PEX, PILENGA, RAYBESTOS, REMSA, ROTINGER, sbs, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16083
APBG717
APEC brakingDSK560
ATE24.0124-0118.1
AUTOMEGA306150301701D
BARUMBAR24118
BENDIX345182, 561610B, 561610BC
BORG & BECKBBD4963
BOSCH0986479S80, 0986478548
Brake ENGINEERINGDI955114
BREMBO09.5566.10
BREMSIDBA427V
BSF11209V
CIFAM800437
DELPHIBG2717
DENCKERMANNB130251
EUROBRAKE5815204733
FEBI BILSTEIN08072
FENOXTB217153
FERODODDF427, DDF427C1, DDF427C, DDF4271, DRF427S
FIRST LINEFBD451
FOMARFO2412
fri.tech.BD1443
FTEBS3787, BS3787B
GIRLING6015961
HANS PRIES104087
HELLA8DD355102631, 8DD355122392
HELLA PAGID8DD355122392, 8DD355102631
INTERBRAKEVW321V
JURID561610J, 8290632320, 561610JC
KAGER370195
KAMOKA103854
KRAFT6040180
LEMFÖRDER1441202, 14412
LPRV2321V
MAGNETI MARELLI360406048700, 353615822240
MAPCO15756
MAXGEAR190996
METELLI230437
METZGER1.5822.2.4, 24357, 6110484
MEYLE1155211035PD
MINTEXMDC913
MOTAQUIPLVBD897Z
MOTIPVBD897
NATIONALNBD307
NECTOWN700
NK314733, 204733
OPTIMALBS4160
PAGID53936
PATRONPBD1596
PEX14.0629
PILENGAV153
RAYBESTOS96366
REMSA6416.10
ROTINGERRT2723T5, RT2723
sbs1815204733, 1815314733
SWAG30908072
TEXTAR98200056001, 982000560, 92056000
TRISCAN812029126
TRUSTINGDF1443
TRWDF1596
VAICOV10-80060
VALEO186315
VEMA98581
ZIMMERMANN600160500, 600160552, 600160520

Vehicle fitment / QUINTON HAZELL BDC3787 Brake Disc compatibility

This product fits the following models: VW EURO CARAVELLE IV, VW EURO IV, VW TRANER CARAVELLEIV, VW TRANER CARAVELLE IV, VW TRANER IV, VW TRANERIV, VW TRANER MULTI IV, VW TRANER T4, etc. See all vehicles this product (QUINTON HAZELL BDC3787) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VWEURO CARAVELLE IV
70XB
70XC
7DB
7DW
7DK
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.5
2.5 Syncro
2.5 TDI
2.8 VR 6
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWEURO IV
70XA
1.9 D
1.9 TD
2.0
2.4 D
2.5
2.5 Syncro
2.5 TDI
1990/07 - 2003/041X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
VWTRANER CARAVELLEIV
70XB
70XC
7DB
7DW

1.8
1.9 D
1.9 TD
2.0
2.4 D
2.5
2.5 Syncro
2.5 TDI
2.8 VR 6
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER CARAVELLE IV
70XB
70XC
7DB
7DW
7D
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.5
2.5 Syncro
2.5 TDI
2.8 VR 6
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER IV
70XA
70XB
70XC
7DB
7DW
7DK
70XD
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.5
2.5 Syncro
2.5 TDI
2.8 VR 6
1990/07 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VWTRANERIV
70XA
70XD
1.9 D
1.9 TD
2.0
2.4 D
2.5
2.5 Syncro
2.5 TDI
1990/07 - 2003/041X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
With flatbed/undercarriage
VWTRANER MULTI IV
70XB
70XC
7DB
7DW
7DK
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.5
2.5 Syncro
2.5 TDI
2.8 VR 6
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER T4
70XA
70XB
70XC
7DB
7DW
7DK
70XD
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.5
2.5 Syncro
2.5 TDI
2.8 VR 6
1990/07 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
