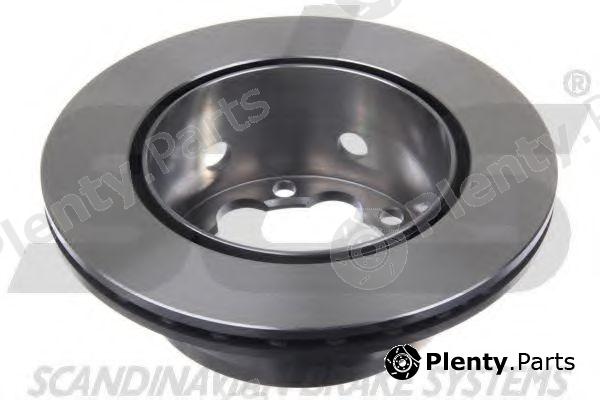

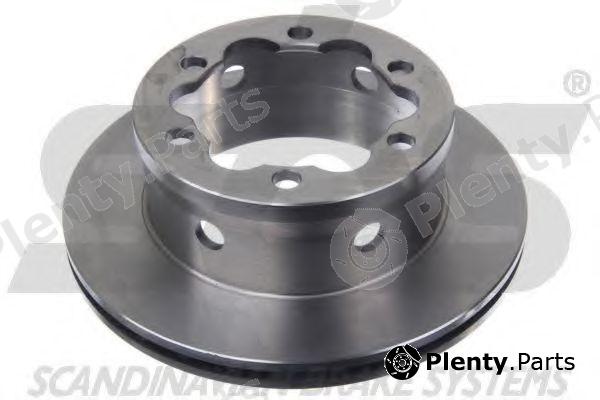

sbs 1815203344 Brake Disc

sbs part 1815203344 Brake Disc
sbs part 1815203344 Brake Disc
sbs part 1815203344 Brake Disc

sbs 1815203344 Brake Disc

by sbs

Manufacturer Part Number: 1815203344

Сharacteristics:
  • Brake Disc Type: Vented
  • Weight [kg]: 7,2
  • Rim Hole Number: 6
  • Weight [kg]: 7.195
  • Diameter [mm]: 285
  • Height [mm]: 93
  • Brake Disc Thickness [mm]: 22
  • Minimum thickness [mm]: 19
  • Centering Diameter [mm]: 120

Product Details

Brandsbs
sbs article (MPN)1815203344
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MERCEDES-BENZ, VAG vehicles

OE manufacturerOEM reference numbers
MERCEDES-BENZ9044230212, 9044230312, 05103606AA
VAG2D0615601B

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for sbs 1815203344 Brake Disc offered by A.B.S., AP, ATE, BENDIX, BERAL, BORG & BECK, BOSCH, BRECO, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, DELPHI, Dr!ve+, DURON, E.T.F., EUROBRAKE, FEBI BILSTEIN, FERODO, FIRST LINE, FREMAX, fri.tech., FTE, HANS PRIES, HELLA PAGID, JP GROUP, JURID, KAGER, KRAFT, LEMFÖRDER, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, METELLI, MEYLE, MGA, MINTEX, MOTAQUIP, NK, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, ROULUNDS BRAKING, STARLINE, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16950
AP25053V, 44062, 14811
ATE24.0122-0196.1
BENDIX567810B, 567810
BERALBCR191A
BORG & BECKBBD5725S
BOSCH0986479B38, 0986478555
BRECOBS7610, BS8649, BV8649, BS8601
BREMBO09950814, 09950811, 09.8475.10, 08772420
BREMSIDB0191V
BSF11479V
CAR142.473
CASALS55495, 55202
CIFAM800645
DELPHIBG3399
Dr!ve+DP1010110766
DURONDCR191A
E.T.F.19P6123
EUROBRAKE5815203344
FEBI BILSTEIN10639
FERODOFCR191A
FIRST LINEFBD1248
FREMAXBD-0185
fri.tech.BD0538
FTEBS4543
HANS PRIES110439
HELLA PAGID8DD355105-811
JP GROUP1163204709
JURID567810, 567810J
KAGER370189
KRAFT6051430
LEMFÖRDER2722801
LPRV2444V
LUCAS ELECTRICALDF4089
MAGNETI MARELLI360406032900, 360406033200, 360406057100
METELLI23-0645
MEYLE0155232036PD, 0155232036
MGAD1446
MINTEXMDC1079
MOTAQUIPLVBD1044Z
NK203344
PAGID52169
PEX14.0340
PILENGAV292
PROTECHNICPRD2326, PRD6123
QUINTON HAZELLBDC4543, BDC5005
ROULUNDS BRAKINGD2541
STARLINEPB20455C, PB2716C
SWAG99910639
TEMPLIN0311082585, 0311082580
TEXTAR92089800, 92089803
TRISCAN8120-23144
TRUSTINGDF538
TRWDF4089S, DF4089
VAICOV3080046
VALEO197059, 187081
VILLAR6281916, 6281782, 6282013
WAGNER LOCKHEEDWGR61911
ZIMMERMANN400360520, 400360500

Vehicle fitment / sbs 1815203344 Brake Disc compatibility

This product fits the following models: MERCEDES-BENZ , MERCEDES-BENZ SPRINTER 3-T, MERCEDES-BENZ SPRINTER 4-T, VW LT 28-35 II, VW LT 28-46 II, VW LTII, etc. See all vehicles this product (sbs 1815203344) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MERCEDES-BENZ
512 D
667.321
667.322
667.323
667.351
667.352
667.353
1996/09 - OM602.984 122 hp 90 kW 2.9 L Diesel
Rear wheel
LCV / Van / Cargo / Small truck
With flatbed/undercarriage
MERCEDES-BENZSPRINTER 3-T
903
311 CDI
311 CDI 4x4
313 CDI
313 CDI 4x4
314
314 4x4
316 CDI
316 CDI 4x4
1995/02 - 2006/05M111.984 143 hp 105 kW 2.3 L Petrol
OM611.981 109 hp 80 kW 2.1 L Diesel
OM611.981 129 hp 95 kW 2.1 L Diesel
OM612.981 156 hp 115 kW 2.7 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
MERCEDES-BENZSPRINTER 4-T
904
408 CDI
408 D
410 D
410 D 4x4
411 CDI
411 CDI 4x4
412 D
412 D 4x4
413 CDI
413 CDI 4x4
414
414 4x4
416 CDI
416 CDI 4x4
1996/02 - 2006/05M111.979 143 hp 105 kW 2.3 L Petrol
OM601.943 79 hp 58 kW 2.3 L Diesel
OM602.980 102 hp 75 kW 2.9 L Diesel
OM602.980 115 hp 85 kW 2.9 L Diesel
OM602.980 122 hp 90 kW 2.9 L Diesel
OM611.981 109 hp 80 kW 2.1 L Diesel
OM611.981 129 hp 95 kW 2.1 L Diesel
OM611.987 82 hp 60 kW 2.1 L Diesel
OM612.981 156 hp 115 kW 2.7 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VWLT 28-35 II
2DB
2DE
2DK
2.3
2.5 SDI
2.5 TDI
2.8 TDI
1996/05 - 2006/07AGL 143 hp 105 kW 2.3 L Petrol
AGX 75 hp 55 kW 2.5 L Diesel
AHD 102 hp 75 kW 2.5 L Diesel
ANJ 109 hp 80 kW 2.5 L Diesel
APA 90 hp 66 kW 2.5 L Diesel
AVR 109 hp 80 kW 2.5 L Diesel
BBE 83 hp 61 kW 2.5 L Diesel
BBF 95 hp 70 kW 2.5 L Diesel
ATA 131 hp 96 kW 2.8 L Diesel
AUH 158 hp 116 kW 2.8 L Diesel
BCQ 158 hp 116 kW 2.8 L Diesel
Rear wheel
Passenger Van / Wagon / Minibus
VWLT 28-46 II
2DA
2DD
2DH
2DC
2DF
2
2.3
2.5 SDI
2.5 TDI
2.8 TDI
1996/05 - 2006/07AGK 125 hp 92 kW 2.8 L Diesel
ATA 130 hp 96 kW 2.8 L Diesel
AUH 158 hp 116 kW 2.8 L Diesel
BCQ 158 hp 116 kW 2.8 L Diesel
AGL 143 hp 105 kW 2.3 L Petrol
AGX 75 hp 55 kW 2.5 L Diesel
AHD 102 hp 75 kW 2.5 L Diesel
ANJ 109 hp 80 kW 2.5 L Diesel
APA 90 hp 66 kW 2.5 L Diesel
AVR 109 hp 80 kW 2.5 L Diesel
BBE 83 hp 61 kW 2.5 L Diesel
BBF 95 hp 70 kW 2.5 L Diesel
Rear wheel
LCV / Van / Cargo
With flatbed/undercarriage
VWLTII
2DA
2DD
2DH
2DB
2DE
2DK
2DC
2DF
2DG

2.3
2.5 SDI
2.5 TDI
2.8 TDI
1996/05 - 2006/07AGK 125 hp 92 kW 2.8 L Diesel
ATA 130 hp 96 kW 2.8 L Diesel
AUH 158 hp 116 kW 2.8 L Diesel
BCQ 158 hp 116 kW 2.8 L Diesel
AGL 143 hp 105 kW 2.3 L Petrol
AGX 75 hp 55 kW 2.5 L Diesel
AHD 102 hp 75 kW 2.5 L Diesel
ANJ 109 hp 80 kW 2.5 L Diesel
APA 90 hp 66 kW 2.5 L Diesel
AVR 109 hp 80 kW 2.5 L Diesel
BBE 83 hp 61 kW 2.5 L Diesel
BBF 95 hp 70 kW 2.5 L Diesel
ATA 131 hp 96 kW 2.8 L Diesel
AUH 158 hp 116 kW 2.8 L Diesel
BCQ 158 hp 116 kW 2.8 L Diesel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
