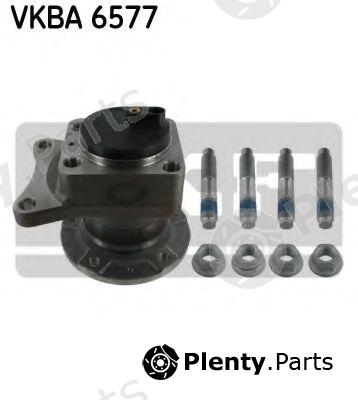

SKF VKBA6577 Wheel Bearing Kit
SKF VKBA6577 Wheel Bearing Kit
by SKFManufacturer Part Number: VKBA6577
- Rim Hole Number: 5
- Flange Ø [mm]: 128
- Supplementary Article/Info 2: with integrated ABS sensor
Product Details
| Brand | SKF |
| SKF article (MPN) | VKBA6577 |
| Vehicle subsystem | Wheel Suspension |
Original (OEM) part numbers
Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| CITROEN / PEUGEOT | 3748.95, 3748.A3, 3748.99 |
| FIAT / LANCIA / ALFA | 9403748959 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for SKF VKBA6577 Wheel Bearing Kit offered by A.B.S., AUTLOG, BENDIX, BREDA LORETT, FAG, FEBI BILSTEIN, FORMPART / OTOFORM, GKN-SPIDAN, GSP, KAGER, MOOG, NK, OPTIMAL, QUINTON HAZELL, RUVILLE, sbs, SNR, SWAG, TREVI AUTOMOTIVE manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 201193 |
| AUTLOG | RS1186 |
| BENDIX | 050534B |
| BREDA LORETT | KRT2990 |
| FAG | 713640520, 713640530 |
| FEBI BILSTEIN | 30887 |
| FORMPART / OTOFORM | 13498045S |
| GKN-SPIDAN | 27721 |
| GSP | 9400182, 9400182K |
| KAGER | 831434 |
| MOOG | PE-WB-11448 |
| NK | 763726 |
| OPTIMAL | 682761, 682757 |
| QUINTON HAZELL | QWB1397 |
| RUVILLE | 6637 |
| sbs | 1401763726 |
| SNR | R141.02 |
| SWAG | 62930887 |
| TREVI AUTOMOTIVE | WB1092 |
Vehicle fitment / SKF VKBA6577 Wheel Bearing Kit compatibility
This product fits the following models: CITROËN DISPATCH, CITROËN JUMPY, FIAT SCUDO, PEUGEOT EXPERT, PEUGEOT EXPERT TEPEE, etc. See all vehicles this product (SKF VKBA6577) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| CITROËN | DISPATCH | 1.6 HDi 90 16V 1.6 HDi 90 8V 2.0 HDi 120 2.0 HDi 120 4x4 2.0 HDi 125 2.0 HDi 140 2.0 HDi 165 2.0 HDi 95 2.0 i | 2007/01 - | 128 hp 94 kW 2 L Diesel 9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel 9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel 9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel AHY(DW10CE) 98 hp 72 kW 2 L Diesel AHZ(DW10CD) 128 hp 94 kW 2 L Diesel RFH(EW10A) 140 hp 103 kW 2 L Petrol RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel | AWD / 4WD Front wheel | LCV / Van / Cargo MPV / Van / Minivan With flatbed/undercarriage |
| CITROËN | JUMPY | 1.6 HDi 90 16V 1.6 HDi 90 8V 2.0 HDi 120 2.0 HDi 120 4x4 2.0 HDi 125 2.0 HDi 140 2.0 HDi 165 2.0 HDi 95 2.0 i | 2007/01 - | 128 hp 94 kW 2 L Diesel 9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel 9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel 9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel AHY(DW10CE) 98 hp 72 kW 2 L Diesel AHZ(DW10CD) 128 hp 94 kW 2 L Diesel RFH(EW10A) 140 hp 103 kW 2 L Petrol RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel | AWD / 4WD Front wheel | LCV / Van / Cargo MPV / Van / Minivan With flatbed/undercarriage |
| FIAT | SCUDO 272 270 | 1.6 D Multijet 2.0 D Multijet | 2007/01 - | 9HU 90 hp 66 kW 1.6 L Diesel DW10BTED4 136 hp 100 kW 2 L Diesel RHK 120 hp 88 kW 2 L Diesel RHR 136 hp 100 kW 2 L Diesel RHK 120 hp 88 kW 2 L Diesel RHR 136 hp 100 kW 2 L Diesel | Front wheel | LCV / Van / Cargo MPV / Van / Minivan With flatbed/undercarriage |
| PEUGEOT | EXPERT VF3A VF3U VF3X | 1.6 HDi 90 1.6 HDi 90 16V 1.6 HDi 90 8V 2.0 16V 2.0 HDi 100 2.0 HDi 120 2.0 HDi 120 4x4 2.0 HDi 130 2.0 HDi 130 4x4 2.0 HDi 140 2.0 HDi 165 | 2007/01 - | 98 hp 72 kW 2 L Diesel 9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel 9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel 9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel AHZ(DW10CD) 128 hp 94 kW 2 L Diesel RFH(EW10A) 140 hp 103 kW 2 L Petrol RFJ(EW10A) 140 hp 103 kW 2 L Petrol RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel | AWD / 4WD Front wheel | LCV / Van / Cargo With flatbed/undercarriage |
| PEUGEOT | EXPERT TEPEE VF3V | 1.6 HDi 90 16V 1.6 HDi 90 8V 2.0 16V 2.0 HDi 100 2.0 HDi 120 2.0 HDi 120 4x4 2.0 HDi 130 2.0 HDi 130 4x4 2.0 HDi 140 2.0 HDi 165 | 2007/01 - | 9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel 9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel 9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel AHY(DW10CE) 98 hp 72 kW 2 L Diesel AHZ(DW10CD) 128 hp 94 kW 2 L Diesel RFH(EW10A) 140 hp 103 kW 2 L Petrol RFJ(EW10A) 140 hp 103 kW 2 L Petrol RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel | AWD / 4WD Front wheel | MPV / Van / Minivan |
