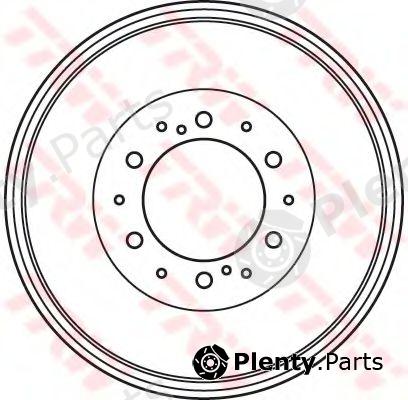

TRW DB7036 Brake Drum

TRW part DB7036 Brake Drum
TRW part DB7036 Brake Drum

TRW DB7036 Brake Drum

by TRW

Manufacturer Part Number: DB7036

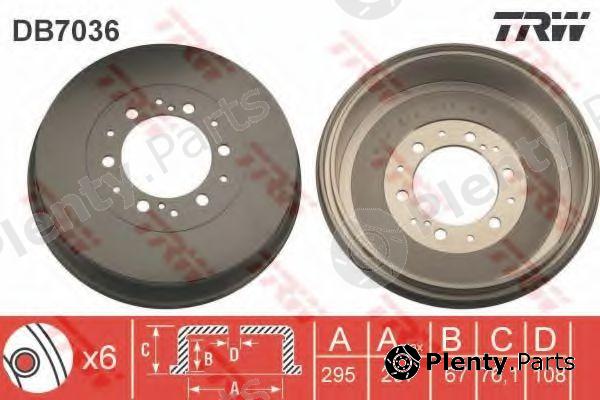

Сharacteristics:
  • Drum Diameter: 295
  • Inner Brake Drum Height [mm]: 67
  • Number of Holes: 6
  • Max.skimmed drum measure [mm]: 297
  • Bolt Hole Circle Ø [mm]: 139,7
  • Surface: Coated
  • Br. Drum outer diameter [mm]: 344,5
  • Total Br. Drum Height [mm]: 76,1
  • Centering Diameter [mm]: 108

Product Details

BrandTRW
TRW article (MPN)DB7036
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA424310K250, 424310K060, 424310K090, 424310K120, 424310K130

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DB7036 Brake Drum offered by A.B.S., ALANKO, ASHIKA, ASHUKI, ATE, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, DELPHI, HELLA, HERTH+BUSS JAKOPARTS, JAPANPARTS, JAPKO, KAVO PARTS, LPR, MAGNETI MARELLI, NIPPARTS, NK, PAGID, sbs, TEXTAR, TRISCAN manufacturers

ManufacturerReference numbers
A.B.S.2865S
ALANKO305872
ASHIKA5602219
ASHUKIT11357, T11356
ATE24022950031
BLUE PRINTADT34720, ADT34719
BORG & BECKBBR7251, BBR7227
BOSCHF026A06832
Brake ENGINEERINGDR962450
DELPHIBF536, BF537
HELLA8DT355302511
HERTH+BUSS JAKOPARTSJ3402042
JAPANPARTSTA219
JAPKO56219
KAVO PARTSBD9630
LPR7D0720
MAGNETI MARELLI600000092590
NIPPARTSN3402052
NK254526
PAGID61389
sbs1825254526
TEXTAR94038600
TRISCAN812013223, 812013219

Vehicle fitment / TRW DB7036 Brake Drum compatibility

This product fits the following models: TOYOTA FORTUNER, TOYOTA HILUX, TOYOTA HILUX II, TOYOTA HILUX III, TOYOTA SW4, TOYOTA TACOMA II, etc. See all vehicles this product (TRW DB7036) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
TOYOTAFORTUNER
TGN6
KUN6
GGN6
TGN5
LAN5
KUN5
GGN5
2.5 D-4D 4WD
2.7 VVTi
2.7 VVTi 4WD
3.0 D
3.0 D 4WD
2004/06 - 2015/051KD-FTV 163 hp 120 kW 3 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
2TR-FE 160 hp 118 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
TOYOTAHILUX
GUN1
VIGO III KUN
TGN
LAN
GGN
2.4 D 4WD
2.5 D-4D
2.5 D-4D 4WD
2.5 D 4WD
2.7
2.7 4WD
2.8 D
2.8 D 4WD
3.0 D
3.0 D-4D 4WD
3.0 D 4WD

KUN16
KUN26
2005/08 - 1GD-FTV 177 hp 130 kW 2.8 L Diesel
1KD-FTV 163 hp 120 kW 3 L Diesel
1KD-FTV 171 hp 126 kW 3 L Diesel
1KD-FTV 197 hp 145 kW 3 L Diesel
2GD-FTV 150 hp 110 kW 2.4 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 120 hp 88 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
2TR-FE 160 hp 118 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
Pickup truck / Pickup
TOYOTAHILUX II
LN8
RN5
LN6
YN6
YN5
LN5
RN6
2.5 D-4D
2001/11 - 2005/072KD-FTV 88 hp 65 kW 2.5 L Diesel
Rear wheel
Pickup truck / Pickup
TOYOTAHILUX III
KUN
TGN
LAN
GGN
2.5 D-4D
2.5 D-4D 4WD
2.5 D 4WD
2.7
2.7 4WD
3.0 D
3.0 D-4D 4WD
3.0 D 4WD

KUN16
KUN26
2005/08 - 1KD-FTV 163 hp 120 kW 3 L Diesel
1KD-FTV 171 hp 126 kW 3 L Diesel
1KD-FTV 197 hp 145 kW 3 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 120 hp 88 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
2TR-FE 160 hp 118 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
Pickup truck / Pickup
TOYOTASW4
TGN6
KUN6
GGN6
TGN5
LAN5
KUN5
GGN5
2.5 D-4D 4WD
2.7 VVTi
2.7 VVTi 4WD
3.0 D
3.0 D 4WD
2004/06 - 2015/051KD-FTV 163 hp 120 kW 3 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
2TR-FE 160 hp 118 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
TOYOTATACOMA II
LN8
RN5
LN6
YN6
YN5
LN5
RN6
2.5 D-4D
2001/11 - 2005/072KD-FTV 88 hp 65 kW 2.5 L Diesel
Rear wheel
Pickup truck / Pickup
