TRW DF1119 Brake Disc

TRW part DF1119 Brake Disc

TRW DF1119 Brake Disc

by TRW

Manufacturer Part Number: DF1119

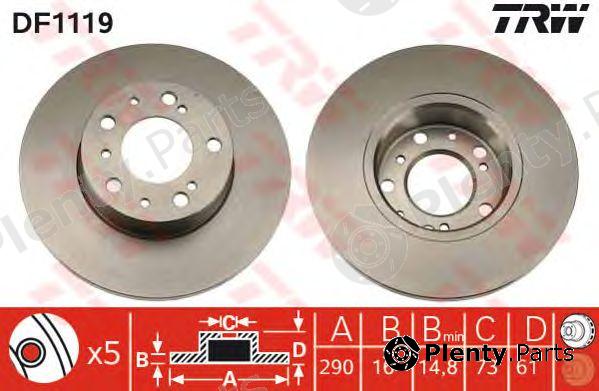

Сharacteristics:
  • Surface: Painted
  • Brake Disc Type: Solid
  • Diameter [mm]: 290
  • Brake Disc Thickness [mm]: 16
  • Minimum thickness [mm]: 14,8
  • Centering Diameter [mm]: 73
  • Height [mm]: 61
  • Number of Holes: 5
  • Thread Size: 15
  • Bolt Hole Circle Ø [mm]: 118
  • Colour: Black

Product Details

BrandTRW
TRW article (MPN)DF1119
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4246A0, 4246H3, ZF93500521, 7538682, 7583682
FIAT / LANCIA / ALFA7538682, 71739638, 93500521

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF1119 Brake Disc offered by ABEX, A.B.S., ACDelco, ALANKO, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DJ AUTO, FAG, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURID, KAGER, KAWE, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPTIMAL, PAGID, PETERS ENNEPETAL, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS RUBBER, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEXW0424
A.B.S.15046
ACDelcoAC2093D
ALANKO304113, 303570
AP14081E
APEC brakingDSK903
ATE416106, 24011601061
BENDIX338660, 561339BC, 561339B
BORG & BECKBBD4881
BOSCH986478234, 0986478234
Brake ENGINEERINGDI951780
BRECOBS7335
BREMBO08313614, 08313610
BREMSIDBA419S, DBA069S
BSF11047
CAR142177, HPD177
CIFAM800161
DELPHIBG257, BS3512, BG2257
DJ AUTOBD1468
FAGBS3512
FARCOM230759
FEBI BILSTEIN07899
FENOXTB215041
FERODODDF0691, DDF419, DDF069
FIRST LINEFBD308
FOMARFO2093
fri.tech.BD0649
FTEBS3512
GIRLING6011193
GRAFDF29161
HELLA8DD355101781
HELLA PAGID8DD355101781
HP53295
ICER78BD46952
JP GROUP4163100509
JURID561339JC, 561339J, 561368J
KAGER370039
KAWE633400
LEMFÖRDER1275101
LPRF2071P
MAGNETI MARELLI360406021300, 353611513140
MAPCO15029
METELLI230161
METZGER14081E, 6110391
MGAD961
MINTEXMDC360
MOTAQUIPLVBD443Z
NATIONALNBD182
NECTOWN424
NK319919, 209919, 202312
OPTIMALBS3340
PAGID50903
PETERS ENNEPETAL23602100A
PEX140154
PILENGA5041
PROTECHNICPRD1261
QUINTON HAZELL826100, BSF3512, 53295, BDC3512
R BRAKE78RBD24695
REMSA826100, 633400
ROADHOUSE826100, 633400
ROTINGERRT1472T5, RT1472
ROULUNDS RUBBERD2093
SASIC2464A04J
sbs1815202312, 1815319919, 1815209919
SWAG70907899
TEMPLIN0311080190
TEXTAR92042900, 89010300, 98200042901
TRISCAN812010128
TRUSTINGDF649
VALEO186136
VEMA98038
VILLAR6280819
WOKINGP633400, D633400
ZIMMERMANN230236100

Vehicle fitment / TRW DF1119 Brake Disc compatibility

This product fits the following models: CITROËN C25, FIAT DUCATO, FIAT DUCATO PANORAMA, PEUGEOT J5, TALBOT EXPRESS 1000 -1500, TALBOT EXPRESS 1000 -1800, etc. See all vehicles this product (TRW DF1119) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC25
280
290
1.9 DT
1.9 TD
2.0 E
2.5 D
2.5 DT
2.5 DT 4x4
2.5 D Turbo 4x4
1981/09 - 1994/03170A(XN1T) 79 hp 58 kW 2 L Petrol
170B(XN1T) 79 hp 58 kW 2 L Petrol
82 hp 60 kW 1.9 L Diesel
CRD93LS(U25-673) 95 hp 70 kW 2.5 L Diesel
CRD93L(U25-661) 75 hp 55 kW 2.5 L Diesel
M705 82 hp 60 kW 1.9 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
280
290
1.9 D
1.9 TD
2.0
2.5 D
2.5 TD
2.5 TD 4x4
1982/01 - 1994/03149B1.000 71 hp 52 kW 1.9 L Diesel
170D 84 hp 62 kW 2 L Petrol
280A1.000 82 hp 60 kW 1.9 L Diesel
8140.27 92 hp 68 kW 2.5 L Diesel
8140.27 95 hp 70 kW 2.5 L Diesel
8140.27 95 hp 70 kW 2.5 L Diesel
8144.21 92 hp 68 kW 2.5 L Diesel
8144.67 75 hp 55 kW 2.5 L Diesel
CRD93L(U25-661) 75 hp 55 kW 2.5 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
With flatbed/undercarriage
FIATDUCATO PANORAMA
280
290
1.9 D
2.0
2.0 4x4
2.5 D
2.5 TD
2.5 TD 4x4
1986/01 - 1994/05149B1.000 71 hp 52 kW 1.9 L Diesel
170D 86 hp 63 kW 2 L Petrol
8140.27 95 hp 70 kW 2.5 L Diesel
8144.21.220 92 hp 68 kW 2.5 L Diesel
8144.21 92 hp 68 kW 2.5 L Diesel
8144.67 75 hp 55 kW 2.5 L Diesel
8144.67 75 hp 55 kW 2.5 L Diesel
CRD93L(U25-661) 75 hp 55 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
PEUGEOTJ5
280L
280P
290L
290P
2.0
2.5 D
2.5 D 4x4
2.5 DT
2.5 DT 4x4
2.5 TD
2.5 TD 4x4
1981/09 - 1994/03170B(XN1T) 75 hp 55 kW 2 L Petrol
170(XN1T) 79 hp 58 kW 2 L Petrol
CRD93 73 hp 54 kW 2.5 L Diesel
CRD93L 95 hp 70 kW 2.5 L Diesel
CRD93L 95 hp 70 kW 2.5 L Diesel
CRD93LS(U25/673) 95 hp 70 kW 2.5 L Diesel
CRD93LS(U25/673) 95 hp 70 kW 2.5 L Diesel
CRD93(U25/661) 73 hp 54 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Front wheel
AWD / 4WD
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
TALBOTEXPRESS 1000 -1500
2.5 TD
1987/06 - 1994/10CRD93LS 95 hp 70 kW 2.5 L Diesel
Front wheel
Front wheel
AWD / 4WD
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
TALBOTEXPRESS 1000 -1800
1.8
1.9 D
2.0
2.5 D
2.5 TD
1981/07 - 1994/10CRD93 73 hp 54 kW 2.5 L Diesel
CRD93LS 95 hp 70 kW 2.5 L Diesel
XM7T 69 hp 51 kW 1.8 L Petrol
XN1TA 78 hp 57 kW 2 L Petrol
XUD9A 69 hp 51 kW 1.9 L Diesel
Front wheel
Front wheel
AWD / 4WD
LCV / Van / Cargo
