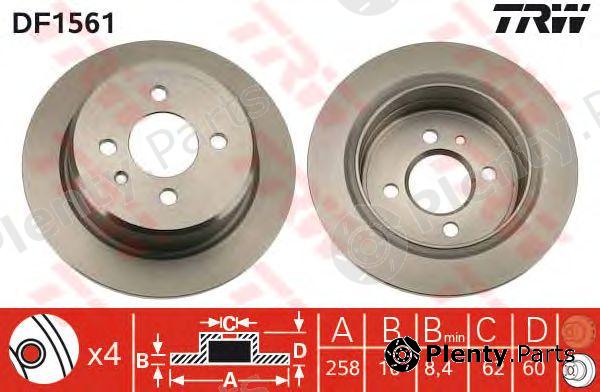

TRW DF1561 Brake Disc

TRW part DF1561 Brake Disc

TRW DF1561 Brake Disc

by TRW

Manufacturer Part Number: DF1561

Сharacteristics:
  • Brake Disc Type: Solid
  • Diameter [mm]: 258
  • Brake Disc Thickness [mm]: 10
  • Minimum thickness [mm]: 8,4
  • Centering Diameter [mm]: 62
  • Height [mm]: 60
  • Number of Holes: 4
  • Thread Size: 15
  • Bolt Hole Circle Ø [mm]: 100
  • Colour: Black
  • Surface: Painted
  • Drum Diameter: 160,4

Product Details

BrandTRW
TRW article (MPN)DF1561
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for BMW vehicles

OE manufacturerOEM reference numbers
BMW34211119581, 34211122282, 34216755407

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF1561 Brake Disc offered by ABEX, A.B.S., ACDelco, ALANKO, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DJ AUTO, EUROBRAKE, FAG, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS RUBBER, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEXW0272
A.B.S.15726
ACDelcoAC2070D
ALANKO303342
AP10111E
APEC brakingDSK553
ATE24011001501, 410150, 24111001501, 24031001501
BENDIX333141, 561362B, 561132B, 561132BC
BORG & BECKBBD5343
BOSCH986478034, F026A00939, 0986478034
Brake ENGINEERINGDI839472, 839472
BRECOBS7271
BREMBO08394720, 08.3947.24
BREMSIDBA093S
BSF11273
CARHPD111, 142111
CIFAM800084
DELPHIBG2202, 10111, DF2884, 561132J, 131336, 50407, BDC3288, 619700, 2485, 1501129, 186117, 98200019201, BG202, BS3288
DJ AUTOBD1609
EUROBRAKE5815201510
FAGBS3288
FARCOM230042
FEBI BILSTEIN04091
FENOXTB215119
FERODODDF093, DDF0931, DRF093S
FIRST LINEFBD133
FOMARFO2070
fri.tech.BD0093
FTEBS3288, BS3288B
GIRLING6015614
GRAFDF2884
HANS PRIES500557
HELLA8DD355100351
HELLA PAGID8DD355100351
HP52485
ICER78BD95812
JP GROUP1463200209
JURID561132J, 561132JC, 561362J
KAGER370322
KAMOKA103186
KAWE619700
KRAFT6052500
LEMFÖRDER1040602
LPRB2131P
MAGNETI MARELLI353610612540, 360406015200, 431602041230
MAPCO15719
METELLI230084
METZGER6110451, 10111E
MEYLE3155233001, 3155233001/PD
MGAD884
MINTEXMDC470
MOTAQUIPLVBD349
NATIONALNBD105
NECTOWN272
NK311510, 201510
OPTIMALBS1970C, BS-1970
PAGID50407
PATRONPBD1561
PEX140087
PILENGA5119
PROTECHNICPRD5131
QUINTON HAZELLBDC3288, BSF3288, 52485
R BRAKE78RBD29581
REMSA619700
ROADHOUSE619700
ROTINGERRT1048T5, RT1048
ROULUNDS RUBBERD2070
sbs1815201510, 1815311510
SWAG20904091
TEMPLIN0311011640
TEXTAR92019200, 98200019201
TRISCAN812011113
TRUCKTEC AUTOMOTIVE0834018
TRUSTINGDF093
VAICOV20-40019
VALEO186117
VEMA98188
VILLAR6281466
WOKINGP619700, D619700
ZIMMERMANN150112952, 150112900, 150112950, 150112920, 1501129

Vehicle fitment / TRW DF1561 Brake Disc compatibility

This product fits the following models: BMW 3, etc. See all vehicles this product (TRW DF1561) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
BMW3
E21
E30
316
316 i
318 i
318 is
320 i
320 is
323 i
324 d
324 td
325 e
325 e 2.7
325es 2.7
325 i

Ecotronic
1978/01 - 1994/06M10B18(184EA) 105 hp 77 kW 1.8 L Petrol
M10B18(184KA) 102 hp 75 kW 1.8 L Petrol
M40B18(184E1) 113 hp 83 kW 1.8 L Petrol
M40B18(184E1) 115 hp 85 kW 1.8 L Petrol
M10B18(184KA) 102 hp 75 kW 1.8 L Petrol
M40B16(164E1) 100 hp 73 kW 1.6 L Petrol
M40B16(164E1) 102 hp 75 kW 1.6 L Petrol
M10B18(184VC) 90 hp 66 kW 1.8 L Petrol
M10B18(184VD) 90 hp 66 kW 1.8 L Petrol
M20B20 126 hp 93 kW 2 L Petrol
M20B20(206KA) 129 hp 95 kW 2 L Petrol
M20B20(206EB) 125 hp 92 kW 2 L Petrol
M20B20(206KA) 129 hp 95 kW 2 L Petrol
M20B20(206KA) 150 hp 110 kW 2 L Petrol
M20B20(206KA) 129 hp 95 kW 2 L Petrol
M20B23(236EA) 143 hp 105 kW 2.3 L Petrol
M20B23(236EC) 139 hp 102 kW 2.3 L Petrol
M20B23(236EC) 150 hp 110 kW 2.3 L Petrol
M20B25(256E1) 170 hp 125 kW 2.5 L Petrol
M20B25(256E2) 170 hp 125 kW 2.5 L Petrol
M20B25(256E2) 171 hp 126 kW 2.5 L Petrol
M20B25(256EX) 170 hp 125 kW 2.5 L Petrol
M20B25(256K1) 170 hp 125 kW 2.5 L Petrol
M20B25(256E2) 170 hp 125 kW 2.5 L Petrol
M20B25(256E2) 171 hp 126 kW 2.5 L Petrol
M20B25(256EX) 170 hp 125 kW 2.5 L Petrol
M20B25(256K1) 170 hp 125 kW 2.5 L Petrol
M20B25(256K1) 170 hp 125 kW 2.5 L Petrol
M20B27(276KA) 122 hp 90 kW 2.7 L Petrol
M20B27(276KB) 122 hp 90 kW 2.7 L Petrol
M20B27(276KA) 122 hp 90 kW 2.7 L Petrol
M20B27(276KB) 122 hp 90 kW 2.7 L Petrol
M20B27(276KB) 129 hp 95 kW 2.7 L Petrol
M21D24(246DA) 86 hp 63 kW 2.4 L Diesel
M21D24(246TB) 115 hp 85 kW 2.4 L Diesel
M40B16(164E1) 100 hp 73 kW 1.6 L Petrol
M40B16(164E1) 102 hp 75 kW 1.6 L Petrol
M40B18(184E1) 113 hp 83 kW 1.8 L Petrol
M40B18(184E1) 115 hp 85 kW 1.8 L Petrol
M40B18(184E1) 113 hp 83 kW 1.8 L Petrol
M40B18C 140 hp 103 kW 1.8 L Petrol
M42B18(184S1) 136 hp 100 kW 1.8 L Petrol
S14B20(204EA) 192 hp 141 kW 2 L Petrol
Rear wheel
Convertible / cabrio
Estate / Turnier / Vario / Wagon
Sedan / Saloon
