TRW DF1585 Brake Disc

TRW part DF1585 Brake Disc

TRW DF1585 Brake Disc

by TRW

Manufacturer Part Number: DF1585

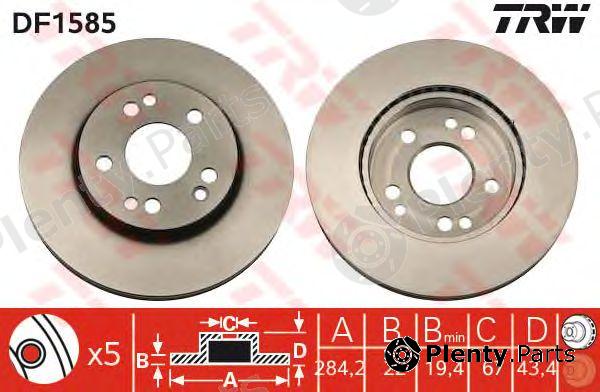

Сharacteristics:
  • Surface: Painted
  • Brake Disc Type: Vented
  • Diameter [mm]: 284
  • Brake Disc Thickness [mm]: 22
  • Minimum thickness [mm]: 19,4
  • Centering Diameter [mm]: 67
  • Height [mm]: 43,4
  • Number of Holes: 5
  • Thread Size: 15,6
  • Bolt Hole Circle Ø [mm]: 112
  • Colour: Black

Product Details

BrandTRW
TRW article (MPN)DF1585
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MERCEDES-BENZ vehicles

OE manufacturerOEM reference numbers
MERCEDES-BENZ1244212712, 1294210312, A1244211612, A1244212712, A1294210312, 1294210212, 1244211612, 124421161264, A124421161264

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF1585 Brake Disc offered by ABEX, A.B.S., ACDelco, ALANKO, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, DJ AUTO, EUROBRAKE, FAG, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, FORMPART / OTOFORM, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROFIT, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS RUBBER, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEXW0419
A.B.S.15789
ACDelcoAC2088D
ALANKO302992, 304724
AP24182E
APEC brakingDSK571
ATE24112201231, 422123, 24012201231
BENDIX338650, 561873B, 561331B, 561331BC
BORG & BECKBBD5054
BOSCH986478300, 0986479S15, 0986478186, 986478186
Brake ENGINEERING951129, DI951129
BRECOBS8310
BREMBO09486910, 09486930, 09.4869.34
BREMSIDBA181V
CARHPD466, 142466
CIFAM800167
DELPHIBS3445, 24182, 4001405, 815232301, 52117, 5051, 5077, 98200031901, 186185, DF29167, 232301V, 631410, 561331J, 98200060201, BDC3445, BG345, BG2345
DENCKERMANNB130287
DJ AUTOBD1118
EUROBRAKE5815203308
FAGBS3445
FARCOM230799
FEBI BILSTEIN05230
FENOXTB217183
FERODODRF727S, DDF181C, DDF1811, DDF181, DDF181C1
FIRST LINEFBD591, FBD205
FOMARFO2088
FORMPART / OTOFORM19615007
fri.tech.BD0241
FTEBS3445B, BS3445H, BS3445HB, BS3445
GIRLING6015851
GRAFDF29167
HANS PRIES400845
HELLA8DD355103051, 8DD355122182, 8DD355100941
HELLA PAGID8DD355103051, 8DD355122182, 8DD355100941
HP55051
ICER78BD72002
JP GROUP1363100509, 1363100500
JURID561331J, 561331JC, 561873J
KAGER370417
KAMOKA103362
KAWE631410
KRAFT6041030
LEMFÖRDER1105903
LPRM2101V
MAGNETI MARELLI353612809250, 360406031200, 431602041340, 353612809240
MAPCO15781
MAXGEAR190720
METELLI230167
METZGER6110223, 24182E
MEYLE0155212009, 0155212009/PD
MGAD967
MINTEXMDC373
MOTAQUIPLVBD466
NATIONALNBD078
NECTOWN419
NK313308, 313321, 203321, 203308
OPEN PARTSBDA129520
OPTIMALBS-3140, BS3140C
PAGID50200, 52117
PATRONPBD1585
PEX140308
PILENGAV183
PROFIT50100181
PROTECHNICPRD2134
QUINTON HAZELL818900, BSF3445, BDC3445, 55051
R BRAKE78RBD27200
REMSA631410, 818900
ROADHOUSE818900, 631410
ROTINGERRT2473T5, RT2473
ROULUNDS RUBBERD2088
SASIC9004405J
sbs1815313321, 1815203308, 1815313308, 1815203321
SWAG10905230
TEMPLIN0311020300
TEXTAR98200060201, 92060200, 98200031901, 92031900
TRISCAN812023123
TRUCKTEC AUTOMOTIVE02.35.017
TRUSTINGDF241
VAICOV30-80019
VALEO186185
VEMA98058
VILLAR6280427
WOKINGD631410, P631410
ZIMMERMANN400142800, 400142900, 400140500, 400140520, 400140552, 400142852, 400140550, 400142820, 400142850

Vehicle fitment / TRW DF1585 Brake Disc compatibility

This product fits the following models: MERCEDES-BENZ , MERCEDES-BENZ 190, MERCEDES-BENZ COUPE, MERCEDES-BENZ E-CLASS, MERCEDES-BENZ S-CLASS, MERCEDES-BENZ SL, etc. See all vehicles this product (TRW DF1585) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MERCEDES-BENZ
S124
W124
200 D
200 E
200 TE
220 E
220 TE
230 E
230 TE
250 TD Turbo
250 Turbo-D
260 E
260 E 4-matic
260 TE FGST.
280 E
280 TE
300 D 4-matic
300 E
300 E 4-matic
300 TD
300 TD T
300 TE
300 TE 4-matic
300 T Turbo-D
300 T Turbo-D 4-matic
300 Turbo-D
300 Turbo-D 4-matic

124.019
124.022
124.023
124.023 KAT
124.026
124.028
124.030
124.079
124.082
124.083
124.083 KAT
124.088
124.090
124.120
124.128
124.133
124.188
124.193
124.226
124.230
124.290
124.330
124.333
124.393
1984/12 - 1993/07M102.922 105 hp 77 kW 2 L Petrol
M102.982 132 hp 97 kW 2.3 L Petrol
M103.940 160 hp 118 kW 2.6 L Petrol
M103.940 166 hp 122 kW 2.6 L Petrol
M103.940 166 hp 122 kW 2.6 L Petrol
M103.943 160 hp 118 kW 2.6 L Petrol
M103.980 188 hp 138 kW 3 L Petrol
M103.983 188 hp 138 kW 3 L Petrol
M103.983 180 hp 132 kW 3 L Petrol
M103.983 180 hp 132 kW 3 L Petrol
M103.983 188 hp 138 kW 3 L Petrol
M103.983 188 hp 138 kW 3 L Petrol
M103.983 188 hp 138 kW 3 L Petrol
M103.985 180 hp 132 kW 3 L Petrol
M103.985 180 hp 132 kW 3 L Petrol
M104.942 197 hp 145 kW 2.8 L Petrol
M111.940 136 hp 100 kW 2 L Petrol
M111.960 150 hp 110 kW 2.2 L Petrol
OM601.912 75 hp 55 kW 2 L Diesel
OM602.962 126 hp 93 kW 2.5 L Diesel
OM603.913 109 hp 80 kW 3 L Diesel
OM603.913 113 hp 83 kW 3 L Diesel
OM603.960 136 hp 100 kW 3 L Diesel
OM603.960 143 hp 105 kW 3 L Diesel
OM603.960 147 hp 108 kW 3 L Diesel
OM603.963 143 hp 105 kW 3 L Diesel
OM603.960 143 hp 105 kW 3 L Diesel
OM603.963 143 hp 105 kW 3 L Diesel
OM603.960 143 hp 105 kW 3 L Diesel
OM603.963 143 hp 105 kW 3 L Diesel
OM603.963 147 hp 108 kW 3 L Diesel
OM603.960 147 hp 108 kW 3 L Diesel
OM603.960 147 hp 108 kW 3 L Diesel
OM603.963 143 hp 105 kW 3 L Diesel
AWD / 4WD
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
MERCEDES-BENZ190
W201
E 2.3-16
E 2.5-16

201.034
1984/04 - 1993/08M102.983 170 hp 125 kW 2.3 L Petrol
M102.983 177 hp 130 kW 2.3 L Petrol
M102.983 185 hp 136 kW 2.3 L Petrol
M102.990 204 hp 150 kW 2.5 L Petrol
M102.991 194 hp 143 kW 2.5 L Petrol
Rear wheel
Sedan / Saloon
MERCEDES-BENZCOUPE
C124
220 CE
230 CE
300 CE

124.042
124.043
124.043 KAT
124.050
1987/03 - 1993/05M102.982 132 hp 97 kW 2.3 L Petrol
M103.983 180 hp 132 kW 3 L Petrol
M103.983 188 hp 138 kW 3 L Petrol
M111.960 150 hp 110 kW 2.2 L Petrol
Rear wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
MERCEDES-BENZE-CLASS
A124
C124
S124
W124
E 200
E 200 T
E 220
E 220 T
E 250 Turbo D
E 250 Turbo-D
E 280
E 280 T
E 300 4-matic
E 300 D
E 300 T 4-matic
E 300 TD
E 300 T Turbo-D
E 300 T Turbo-D 4-matic
E 300 Turbo-D
E 300 Turbo-D 4-matic

124.019
124.022
124.028
124.029
124.040
124.060
124.062
124.079
124.082
124.088
124.128
124.131
124.133
124.191
124.193
124.230
124.290
124.333
124.393
1993/06 - 1998/03M103.985 180 hp 132 kW 3 L Petrol
M104.942 193 hp 142 kW 2.8 L Petrol
M104.942 193 hp 142 kW 2.8 L Petrol
M104.942 197 hp 145 kW 2.8 L Petrol
M104.942 197 hp 145 kW 2.8 L Petrol
M111.940 136 hp 100 kW 2 L Petrol
M111.960 150 hp 110 kW 2.2 L Petrol
OM602.962 126 hp 93 kW 2.5 L Diesel
OM603.960 147 hp 108 kW 3 L Diesel
OM603.963 147 hp 108 kW 3 L Diesel
OM606.910 136 hp 100 kW 3 L Diesel
AWD / 4WD
Rear wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
Estate / Turnier / Vario / Wagon
Sedan / Saloon
MERCEDES-BENZS-CLASS
W126
260 SE
126.020
1985/09 - 1991/06M103.941 166 hp 122 kW 2.5 L Petrol
Rear wheel
Sedan / Saloon
MERCEDES-BENZSL
R107
300 SL
420 SL
500 SL
560 SL
107.041
107.046
107.047
107.048
1985/09 - 1989/12M103.982 180 hp 132 kW 2.9 L Petrol
M103.982 188 hp 138 kW 2.9 L Petrol
M116.964 204 hp 150 kW 4.1 L Petrol
M116.964 218 hp 160 kW 4.1 L Petrol
M117.960 245 hp 180 kW 4.9 L Petrol
M117.964 223 hp 164 kW 4.9 L Petrol
M117.964 245 hp 180 kW 4.9 L Petrol
M117.967 230 hp 169 kW 5.6 L Petrol
Rear wheel
Convertible / cabrio
