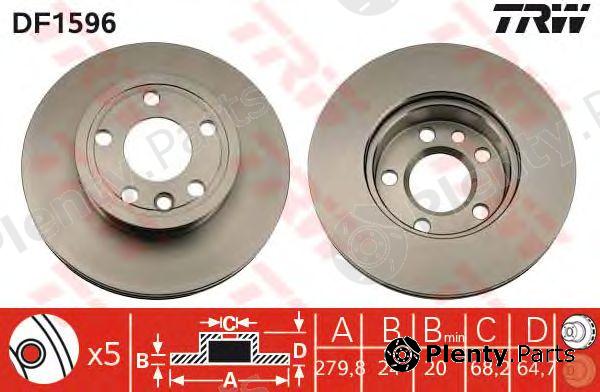

TRW DF1596 Brake Disc

TRW part DF1596 Brake Disc

TRW DF1596 Brake Disc

by TRW

Manufacturer Part Number: DF1596

Сharacteristics:
  • Brake Disc Type: Vented
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 24
  • Minimum thickness [mm]: 20
  • Centering Diameter [mm]: 68,25
  • Height [mm]: 64,7
  • Number of Holes: 5
  • Thread Size: 16,4
  • Bolt Hole Circle Ø [mm]: 112
  • Colour: Black
  • Surface: Painted

Product Details

BrandTRW
TRW article (MPN)DF1596
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG701615301A, 701615301D

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF1596 Brake Disc offered by ABEX, A.B.S., ACDelco, ALANKO, AP, APEC braking, ATE, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, DJ AUTO, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS RUBBER, sbs, SWAG, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEXW0700
A.B.S.16083
ACDelcoAC2412D
ALANKO305406, 304181
AP24357
APEC brakingDSK560
ATE424118, 24112401181, 24012401181
AUTOMEGA306150301701D
BARUMBAR24118
BENDIX561610B, 561610BC
BORG & BECKBBD4963
BOSCH986478548, 0986479S80, 0986478548
Brake ENGINEERINGDI955114
BRECOBS8053
BREMBO09556610
BREMSIDBA427V
BSF11209V
CAR142732, HPD732
CIFAM800437
DELPHI424215V, BG2717, 7109, 98200056001, BG717, 53936, 24357, 6001605
DENCKERMANNB130251
DJ AUTOBD1501
E.T.F.193014
EUROBRAKE5815204733
FARCOM230851
FEBI BILSTEIN08072
FENOXTB217153
FERODODDF427, DDF4271, DDF427C1, DDF427C
FIRST LINEFBD451
FOMARFO2412
fri.tech.BD1443
FTEBS3787, BS3787B
GIRLING6015961
HANS PRIES104087
HELLA8DD355122392, 8DD355102631
HELLA PAGID8DD355102631, 8DD355122392
HP57416
ICER78BD30142
JP GROUP1163104309, 1163104300
JURID561610J, 561610JC
KAGER370195
KAMOKA103854
KAWE641610
KRAFT6040180
LEMFÖRDER1441202
LPRV2321V
MAGNETI MARELLI353615822240, 360406048700, 431602041780
MAPCO15756
MAXGEAR190996
METELLI230437
METZGER6110484, 24357
MEYLE1155211035/PD, 1155211035
MGAD1237
MINTEXMDC913
MOTAQUIPLVBD897Z
NATIONALNBD307
NECTOWN700
NIBKRN1281
NK314733, 204733
OPEN PARTSBDR158920, BDA158920
OPTIMALBS-4160
PAGID53936
PATRONPBD1596
PEX140629
PILENGAV153
PROTECHNICPRD2120
QUINTON HAZELL57416, 641610, BDC3787, BSF3787
R BRAKE78RBD23014
REMSA641610
ROADHOUSE641610
ROTINGERRT2723T5, RT2723
ROULUNDS RUBBERD2412
sbs1815314733, 1815204733
SWAG30908072
TEXTAR92056000, 98200056001
TRISCAN812029126C, 812029126
TRUCKTEC AUTOMOTIVE0735148
TRUSTINGDF1443
VAICOV1080060
VALEO186315
VEMA98581
VILLAR6281792
WOKINGP641610, D641610
ZIMMERMANN600160500, 600160550, 600160520, 600160552, 6001605

Vehicle fitment / TRW DF1596 Brake Disc compatibility

This product fits the following models: VW , VW EURO CARAVELLE IV, VW EURO IV, VW PANEL, VW TRANER CARAVELLEIV, VW TRANER CARAVELLE IV, VW TRANER IV, VW TRANERIV, VW TRANER MULTI IV, VW TRANER T4, etc. See all vehicles this product (TRW DF1596) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VW
T2
1.6
1.8
1.9
1.9 Hybrid
1992/07 - 2000/0784 hp 62 kW 1.6 L Petrol
EZ 75 hp 55 kW 1.6 L Petrol
84 hp 62 kW 1.8 L Petrol
87 hp 64 kW 1.6 L Petrol
92 hp 68 kW 1.9 L Petrol
94 hp 69 kW 1.9 L Hybrid
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
VWEURO CARAVELLE IV
70XB
70XC
7DB
7DW
7DK
1.8
1.9 D
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
2.5 TDI
2.5 TDI Syncro
2.8 VR 6
2.8 VR6
2.8 VR6 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AET 115 hp 85 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
APL 115 hp 85 kW 2.5 L Petrol
AVT 115 hp 85 kW 2.5 L Petrol
ACV 102 hp 75 kW 2.5 L Diesel
AXL 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
AHY 151 hp 111 kW 2.5 L Diesel
AXG 151 hp 111 kW 2.5 L Diesel
AMV 204 hp 150 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWEURO IV
70XA
1.9 D
1.9 TD
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
2.5 TDI
2.5 TDI Syncro
2.8 VR6
1990/07 - 2003/041X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AET 115 hp 85 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
APL 115 hp 85 kW 2.5 L Petrol
AVT 115 hp 85 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AJT 88 hp 65 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AXG 151 hp 111 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AYY 88 hp 65 kW 2.5 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AXL 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
AMV 204 hp 150 kW 2.8 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
VWPANEL
T2
1.6
1.8
1.9
1992/07 - 2000/0784 hp 62 kW 1.6 L Petrol
EZ 75 hp 55 kW 1.6 L Petrol
84 hp 62 kW 1.8 L Petrol
92 hp 68 kW 1.9 L Petrol
Rear wheel
LCV / Van / Cargo
VWTRANER CARAVELLEIV
70XB
70XC
7DB
7DW

1.8
1.9 D
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
2.5 TDI
2.5 TDI Syncro
2.8 VR 6
2.8 VR6
2.8 VR6 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AET 115 hp 85 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
APL 115 hp 85 kW 2.5 L Petrol
AVT 115 hp 85 kW 2.5 L Petrol
ACV 102 hp 75 kW 2.5 L Diesel
AXL 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
AHY 151 hp 111 kW 2.5 L Diesel
AXG 151 hp 111 kW 2.5 L Diesel
AMV 204 hp 150 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER CARAVELLE IV
70XB
70XC
7DB
7DW
7D
1.8
1.9 D
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
2.5 TDI
2.5 TDI Syncro
2.8 VR 6
2.8 VR6
2.8 VR6 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AET 115 hp 85 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
APL 115 hp 85 kW 2.5 L Petrol
AVT 115 hp 85 kW 2.5 L Petrol
ACV 102 hp 75 kW 2.5 L Diesel
AXL 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
AHY 151 hp 111 kW 2.5 L Diesel
AXG 151 hp 111 kW 2.5 L Diesel
AMV 204 hp 150 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER IV
70XA
70XB
70XC
7DB
7DW
7DK
70XD
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
2.5 TDI
2.5 TDI Syncro
2.8
2.8 VR 6
2.8 VR6
2.8 VR6 Syncro
1990/07 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AET 115 hp 85 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
APL 115 hp 85 kW 2.5 L Petrol
AVT 115 hp 85 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AJT 88 hp 65 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AXG 151 hp 111 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AYY 88 hp 65 kW 2.5 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AJT 88 hp 65 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AYY 88 hp 65 kW 2.5 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AXL 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
AES 140 hp 103 kW 2.8 L Petrol
AMV 204 hp 150 kW 2.8 L Petrol
AHY 151 hp 111 kW 2.5 L Diesel
AXG 151 hp 111 kW 2.5 L Diesel
AMV 204 hp 150 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VWTRANERIV
70XA
70XD
1.8
1.9 D
1.9 TD
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
2.5 TDI
2.5 TDI Syncro
2.8
2.8 VR6
1990/07 - 2003/041X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AET 115 hp 85 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
APL 115 hp 85 kW 2.5 L Petrol
AVT 115 hp 85 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AJT 88 hp 65 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AXG 151 hp 111 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AYY 88 hp 65 kW 2.5 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AJT 88 hp 65 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AYY 88 hp 65 kW 2.5 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AXL 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
AES 140 hp 103 kW 2.8 L Petrol
AMV 204 hp 150 kW 2.8 L Petrol
AMV 204 hp 150 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
With flatbed/undercarriage
VWTRANER MULTI IV
70XB
70XC
7DB
7DW
7DK
1.8
1.9 D
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
2.5 TDI
2.5 TDI Syncro
2.8 VR 6
2.8 VR6
2.8 VR6 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AET 115 hp 85 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
APL 115 hp 85 kW 2.5 L Petrol
AVT 115 hp 85 kW 2.5 L Petrol
ACV 102 hp 75 kW 2.5 L Diesel
AXL 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
AHY 151 hp 111 kW 2.5 L Diesel
AXG 151 hp 111 kW 2.5 L Diesel
AMV 204 hp 150 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER T4
70XA
70XB
70XC
7DB
7DW
7DK
70XD
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
2.5 TDI
2.5 TDI Syncro
2.8
2.8 VR 6
2.8 VR6
2.8 VR6 Syncro
1990/07 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AET 115 hp 85 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
APL 115 hp 85 kW 2.5 L Petrol
AVT 115 hp 85 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AJT 88 hp 65 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AXG 151 hp 111 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AYY 88 hp 65 kW 2.5 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AJT 88 hp 65 kW 2.5 L Diesel
AUF 102 hp 75 kW 2.5 L Diesel
AYC 102 hp 75 kW 2.5 L Diesel
AYY 88 hp 65 kW 2.5 L Diesel
ACV 102 hp 75 kW 2.5 L Diesel
AXL 102 hp 75 kW 2.5 L Diesel
AES 140 hp 103 kW 2.8 L Petrol
AES 140 hp 103 kW 2.8 L Petrol
AMV 204 hp 150 kW 2.8 L Petrol
AHY 151 hp 111 kW 2.5 L Diesel
AXG 151 hp 111 kW 2.5 L Diesel
AMV 204 hp 150 kW 2.8 L Petrol
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
Effortless shopping
  • Offers Near You
  • Competitive Prices
  • Full Information
  • 40 Million Spares
  • Trusted Sellers
Information
Follow us & get in touch
Plenty.Parts © 2016 - 2025.
The best place to find auto parts for the best price.
