TRW DF1739 Brake Disc
TRW DF1739 Brake Disc
by TRWManufacturer Part Number: DF1739

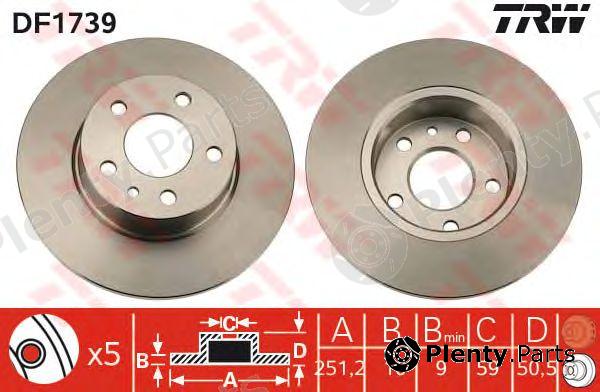

- Surface: Painted
- Brake Disc Type: Solid
- Diameter [mm]: 251,5
- Brake Disc Thickness [mm]: 10
- Minimum thickness [mm]: 9
- Centering Diameter [mm]: 59
- Height [mm]: 50,5
- Number of Holes: 5
- Thread Size: 13
- Bolt Hole Circle Ø [mm]: 98
- Colour: Black
Product Details
| Brand | TRW |
| TRW article (MPN) | DF1739 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for FIAT / LANCIA / ALFA vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| FIAT / LANCIA / ALFA | 82439939, 82440275, 0060569164, 0060653479, 0060801786, 0060801787, 0082439939, 164062610001, 60569164, 60602161, 60653479, 60658566, 60801786, 60801787, 60811787, 7789267, 60814804, 71738912, 0000060743390, 0000060814804, 0000060801787, 0000082418684, 0000082439939, 71738911, 82418684 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for TRW DF1739 Brake Disc offered by ABEX, A.B.S., ACDelco, ALANKO, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GALFER, GIRLING, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KRAFT, LEMFÖRDER, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS RUBBER, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| ABEX | W0429 |
| A.B.S. | 15952 |
| ACDelco | AC2124D |
| ALANKO | 302921 |
| AP | X14079, 14079E, 14079V |
| APEC braking | DSK743 |
| ATE | 410209, 24011001901, 24011002091, 24111002091 |
| BENDIX | 561329BC, 561340BC, 561340B, 561329B, 338662 |
| BORG & BECK | BBD4913, BBD4880 |
| BOSCH | 986478341, 0986478341, 0986479B31, F026A01157 |
| Brake ENGINEERING | 953460, DI953460 |
| BRECO | BS7337, BV7337 |
| BREMBO | 08312676, 08312620, 08.3126.24, 08312621 |
| BREMSI | DBA067S |
| BSF | 11263 |
| CAR | HPD188, 142188 |
| CIFAM | 800368 |
| DELPHI | BG386, BG2386 |
| DENCKERMANN | B130298 |
| Dr!ve+ | DP1010110181 |
| EUROBRAKE | 5815209926 |
| FARCOM | 230758 |
| FEBI BILSTEIN | 14079 |
| FERODO | DDF067, DDF0671, DDF067C1, DDF067C, DRF067 |
| FIRST LINE | FBD371 |
| FOMAR | FO2124 |
| fri.tech. | BD0648 |
| FTE | BS3504B, BS3504 |
| GALFER | B1G21001901, B1G21002091 |
| GIRLING | 6017394 |
| HELLA | 8DD355101-961, 8DD355101971 |
| HELLA PAGID | 8DD355101971, 8DD355101961 |
| HP | 53693, 57304 |
| ICER | 78BD86842 |
| JP GROUP | 3363200209 |
| JURATEK | ALF101 |
| JURID | 561329J, 561340JC, 561340J, 561329JC |
| KAGER | 370273, 370152 |
| KAMOKA | 103134, 103132 |
| KAWE | 614900 |
| KRAFT | 6053000, 6053010 |
| LEMFÖRDER | 17754 |
| LPR | A2163P |
| MAGNETI MARELLI | 361302040185, 353611511540, 353611511550, 360406021100, 431602040630 |
| MALÒ | 1110030 |
| MAPCO | 15042 |
| MAXGEAR | 190981 |
| METELLI | 230368 |
| METZGER | 6110227, 14079E, X14079, 14079V |
| MEYLE | 2155230014, 2155230001 |
| MGA | D1168 |
| MINTEX | MDC386 |
| NATIONAL | NBD338 |
| NECTO | WN429 |
| NIBK | RN1283 |
| NK | 319926, 209926 |
| OPEN PARTS | BDR113810, BDA113810 |
| OPTIMAL | BS-1490 |
| PAGID | 51804, 51804PRO |
| PATRON | PBD1739 |
| PEX | 140152 |
| PILENGA | 5026 |
| PROTECHNIC | PRD5228 |
| QUINTON HAZELL | 57304, BSF4315, BSF3504, BDC3505, BDC3504, BDC3503, BDC3442, 53693, BDC4315 |
| R BRAKE | 78RBD28684 |
| REMSA | 614900 |
| ROADHOUSE | 614900 |
| ROTINGER | RT1471T5, RT1471 |
| ROULUNDS RUBBER | D2124 |
| sbs | 1815209926, 1815209928, 1815319926 |
| STARLINE | PB1471C |
| SWAG | 74914079 |
| TEMPLIN | 0311011080, 0311011085 |
| TEXTAR | 98200046901, 92046900, 92046903 |
| TRISCAN | 812010133 |
| TRUSTING | DF648 |
| VAICO | V2440005 |
| VALEO | 186146, 186290 |
| VEMA | 98113 |
| VILLAR | 6281733 |
| WAGNER LOCKHEED | WGR00671 |
| WOKING | D614900, P614900 |
| ZIMMERMANN | 110220850, 110220800, 110220852, 1102200, 110220820 |
Vehicle fitment / TRW DF1739 Brake Disc compatibility
This product fits the following models: ALFA ROMEO 147, ALFA ROMEO 156, ALFA ROMEO 164, ALFA ROMEO 168, FIAT CROMA, LANCIA DELTA , LANCIA DELTA I, LANCIA LYBRA, LANCIA THEMA, LANCIA THEMA SW, etc. See all vehicles this product (TRW DF1739) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| ALFA ROMEO | 147 937 | 1.6 16V T.SPARK 1.6 16V T.SPARK ECO 1.9 JTD 1.9 JTD 16V 1.9 JTDM 1.9 JTDM 16V 1.9 JTDM 8V 2.0 2.0 16V T.SPARK 937AXA1A 937AXB1A 937AXC1 937AXD1A | 2001/01 - 2010/03 | 182B9.000 101 hp 74 kW 1.9 L Diesel 192A5.000 140 hp 103 kW 1.9 L Diesel 192B1.000 136 hp 100 kW 1.9 L Diesel 937A4.000 126 hp 93 kW 1.9 L Diesel 937A1.000 165 hp 121 kW 2 L Petrol 937A2.000 115 hp 85 kW 1.9 L Diesel 937A3.000 120 hp 88 kW 1.9 L Diesel 937A5.000 150 hp 110 kW 1.9 L Diesel 937A6.000 170 hp 125 kW 1.9 L Diesel 939A7.000 115 hp 85 kW 1.9 L Diesel AR32104 120 hp 88 kW 1.6 L Petrol AR32310 150 hp 110 kW 2 L Petrol AR37203 105 hp 77 kW 1.6 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| ALFA ROMEO | 156 932 | 1.6 16V T.SPARK 1.6 16V T.SPARK. 1.8 16V T.SPARK 1.9 JTD 1.9 JTD 16V Q4 2.0 16V T.SPARK 2.4 JTD 2.5 V6 24V 932A1 932A11 932A1B 932A2 932A21 932A2B 932A3 932A31 932A4 932B1 932B11 932B1B 932B2 932B21 932B2B 932B31 | 1997/09 - 2006/05 | 839A6.000 140 hp 103 kW 2.4 L Diesel 937A5.000 150 hp 110 kW 1.9 L Diesel AR32102 112 hp 82 kW 1.6 L Petrol AR32102 120 hp 88 kW 1.6 L Petrol AR32103 120 hp 88 kW 1.6 L Petrol AR32104 120 hp 88 kW 1.6 L Petrol AR67601 120 hp 88 kW 1.6 L Petrol AR32201 144 hp 106 kW 1.8 L Petrol AR32205 140 hp 103 kW 1.8 L Petrol AR32301 155 hp 114 kW 2 L Petrol AR32302 105 hp 77 kW 1.9 L Diesel AR32310 150 hp 110 kW 2 L Petrol AR32401 190 hp 140 kW 2.5 L Petrol AR32401 190 hp 140 kW 2.5 L Petrol AR32402 190 hp 140 kW 2.5 L Petrol AR32405 192 hp 141 kW 2.5 L Petrol AR32501 136 hp 100 kW 2.4 L Diesel AR37101 110 hp 81 kW 1.9 L Diesel | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| ALFA ROMEO | 164 164 | 2.0 T.S. 2.0 Turbo 2.0 Twin Spark 2.0 V6 Turbo 2.5 TD 2.5 V6 3.0 3.0 24V 3.0 24V Q4 3.0 24V QV 3.0 i.e. QV 3.0 V6 164.A 164.A1A 164.A2C 164.A2L 164.A2G 164.A2F 164.A2H 164.AD 164.AH 164.AB 164.AG 164.H1 164.H1A 164.H1B 164.K1P 164.K1 164K1M 164.K1M 164.K1C 164.K2A 164.K2B 164.K3 | 1987/06 - 1998/09 | 207 hp 152 kW 2 L Petrol AR06476 174 hp 128 kW 2 L Petrol AR06476 175 hp 129 kW 2 L Petrol AR64102 201 hp 148 kW 2 L Petrol AR06410 188 hp 138 kW 3 L Petrol AR64304 228 hp 168 kW 3 L Petrol AR64304 231 hp 170 kW 3 L Petrol AR64399 197 hp 145 kW 3 L Petrol AR66306 213 hp 157 kW 3 L Petrol AR06410 192 hp 141 kW 3 L Petrol AR06412 184 hp 135 kW 3 L Petrol AR06416 143 hp 105 kW 2 L Petrol AR06420 148 hp 109 kW 2 L Petrol AR06430 200 hp 147 kW 3 L Petrol AR64301 200 hp 147 kW 3 L Petrol AR64101 204 hp 150 kW 2 L Petrol AR64102 201 hp 148 kW 2 L Petrol AR64303 180 hp 132 kW 3 L Petrol AR64305 180 hp 132 kW 3 L Petrol AR64399 180 hp 132 kW 3 L Petrol AR66303 180 hp 132 kW 3 L Petrol AR64304 233 hp 171 kW 3 L Petrol AR64304 233 hp 171 kW 3 L Petrol AR64307 233 hp 171 kW 3 L Petrol AR64306 211 hp 155 kW 3 L Petrol AR66301 211 hp 155 kW 3 L Petrol AR66302 211 hp 155 kW 3 L Petrol AR64307 231 hp 170 kW 3 L Petrol AR64308 231 hp 170 kW 3 L Petrol AR64308 204 hp 150 kW 3 L Petrol AR66201 163 hp 120 kW 2.5 L Petrol AR66302 209 hp 154 kW 3 L Petrol VM08B 125 hp 92 kW 2.5 L Diesel VM32B 125 hp 92 kW 2.5 L Diesel VM84A 114 hp 84 kW 2.5 L Diesel | AWD / 4WD Front wheel | Sedan / Saloon |
| ALFA ROMEO | 168 164 | 2.0 T.S. 2.0 Turbo 2.0 Twin Spark 2.0 V6 Turbo 2.5 TD 2.5 V6 3.0 3.0 24V 3.0 24V Q4 3.0 24V QV 3.0 i.e. QV 3.0 V6 164.A 164.A1A 164.A2C 164.A2L 164.A2G 164.A2F 164.A2H 164.AD 164.AH 164.AB 164.AG 164.H1 164.H1A 164.H1B 164.K1P 164.K1 164K1M 164.K1M 164.K1C 164.K2A 164.K2B 164.K3 | 1987/06 - 1998/09 | 207 hp 152 kW 2 L Petrol AR06476 174 hp 128 kW 2 L Petrol AR06476 175 hp 129 kW 2 L Petrol AR64102 201 hp 148 kW 2 L Petrol AR06410 188 hp 138 kW 3 L Petrol AR64304 228 hp 168 kW 3 L Petrol AR64304 231 hp 170 kW 3 L Petrol AR64399 197 hp 145 kW 3 L Petrol AR66306 213 hp 157 kW 3 L Petrol AR06410 192 hp 141 kW 3 L Petrol AR06412 184 hp 135 kW 3 L Petrol AR06416 143 hp 105 kW 2 L Petrol AR06420 148 hp 109 kW 2 L Petrol AR06430 200 hp 147 kW 3 L Petrol AR64301 200 hp 147 kW 3 L Petrol AR64101 204 hp 150 kW 2 L Petrol AR64102 201 hp 148 kW 2 L Petrol AR64303 180 hp 132 kW 3 L Petrol AR64305 180 hp 132 kW 3 L Petrol AR64399 180 hp 132 kW 3 L Petrol AR66303 180 hp 132 kW 3 L Petrol AR64304 233 hp 171 kW 3 L Petrol AR64304 233 hp 171 kW 3 L Petrol AR64307 233 hp 171 kW 3 L Petrol AR64306 211 hp 155 kW 3 L Petrol AR66301 211 hp 155 kW 3 L Petrol AR66302 211 hp 155 kW 3 L Petrol AR64307 231 hp 170 kW 3 L Petrol AR64308 231 hp 170 kW 3 L Petrol AR64308 204 hp 150 kW 3 L Petrol AR66201 163 hp 120 kW 2.5 L Petrol AR66302 209 hp 154 kW 3 L Petrol VM08B 125 hp 92 kW 2.5 L Diesel VM32B 125 hp 92 kW 2.5 L Diesel VM84A 114 hp 84 kW 2.5 L Diesel | AWD / 4WD Front wheel | Sedan / Saloon |
| FIAT | CROMA 154 | 2000 i.e. 154.AM 154.LM | 1987/10 - 1996/08 | 154C3.046 116 hp 85 kW 2 L Petrol 834B.146 116 hp 85 kW 2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| LANCIA | DELTA 831AB0 | 1.6 HF Turbo 2.0 16V HF Evo Integrale 2.0 HF Integrale 831AB.024S 831AB.028 831AB.027 | 1986/08 - 1994/01 | 166 hp 122 kW 1.6 L Petrol 831C5.046 177 hp 130 kW 2 L Petrol 831E5.000 211 hp 155 kW 2 L Petrol 831E5.046 211 hp 155 kW 2 L Petrol | AWD / 4WD Front wheel | Hatchback / Sportback / Sport hatch |
| LANCIA | DELTA I 831AB0 | 1.6 HF Turbo 2.0 16V HF Evo Integrale 2.0 HF Integrale 831AB.024S 831AB.028 831AB.027 | 1986/08 - 1994/01 | 166 hp 122 kW 1.6 L Petrol 831C5.046 177 hp 130 kW 2 L Petrol 831E5.000 211 hp 155 kW 2 L Petrol 831E5.046 211 hp 155 kW 2 L Petrol | AWD / 4WD Front wheel | Hatchback / Sportback / Sport hatch |
| LANCIA | LYBRA 839AX | 2.4 20V | 2001/10 - 2005/10 | 192A2.000 170 hp 125 kW 2.4 L Petrol | Front wheel | Sedan / Saloon |
| LANCIA | THEMA 834 | 2000 16V Turbo 2000 i.e. 16V Turbo 2000 i.e.Turbo 2500 Turbo DS 2850 V6 i.e. 3000 V6 8.32 834AC 834AD 834CD 834BD 834AL 834AM 834CV 834FS 834GD 834FD | 1986/07 - 1994/07 | 8144.97S 105 hp 77 kW 2.5 L Diesel 834C1.000 181 hp 133 kW 2 L Petrol 834C1.246 177 hp 130 kW 2 L Petrol 834C.146 150 hp 110 kW 2 L Petrol 834E.146 147 hp 108 kW 2.8 L Petrol 834F.000 171 hp 126 kW 3 L Petrol F105L.046 205 hp 151 kW 2.9 L Petrol | Front wheel | Sedan / Saloon |
| LANCIA | THEMA SW 834 | 2000 i.e. 16V 2000 i.e. 16V Turbo 2000 Turbo 834AA 834AC 834AL | 1988/12 - 1993/03 | 834B2.000 147 hp 108 kW 2 L Petrol 834C1.000 181 hp 133 kW 2 L Petrol 834C1.246 177 hp 130 kW 2 L Petrol 834C.146 150 hp 110 kW 2 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon |
