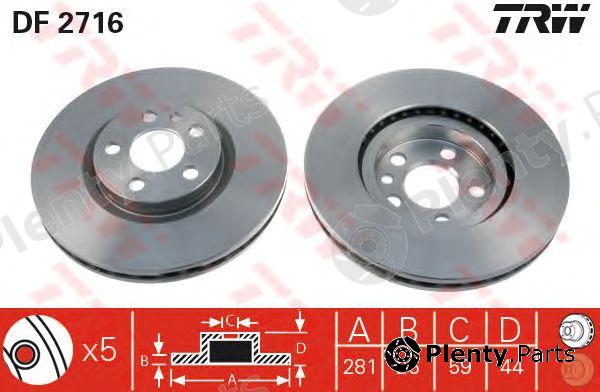

TRW DF2716 Brake Disc

TRW part DF2716 Brake Disc

TRW DF2716 Brake Disc

by TRW

Manufacturer Part Number: DF2716

Сharacteristics:
  • Surface: Painted
  • Brake Disc Type: Vented
  • Diameter [mm]: 281
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 24,2
  • Centering Diameter [mm]: 59
  • Height [mm]: 43,7
  • Number of Holes: 5
  • Thread Size: 16,5
  • Bolt Hole Circle Ø [mm]: 98
  • Colour: Black

Product Details

BrandTRW
TRW article (MPN)DF2716
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4246J3, 4246J2, E169008, 4249H5
FIAT / LANCIA / ALFA0001309392080, 1309392080, 1317651080, 71738908

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF2716 Brake Disc offered by ABEX, A.B.S., ALANKO, APEC braking, ATE, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, DJ AUTO, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, G.U.D, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURATEK, JURID, KAGER, KAWE, KLAXCAR FRANCE, KRAFT, LEMFÖRDER, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROFIT, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRICLO, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEXW0775
A.B.S.16288
ALANKO303577, 305037
APEC brakingDSK649
ATE24012601041
BARUMBAR26104
BENDIX561967BC, 561967B
BORG & BECKBBD5095, BBD4124
BOSCH0986478812, 986478812
Brake ENGINEERINGDI955523
BRECOBS8524, BS8157
BREMBO09.5180.24, 09.9609.24, 09518020
BREMSIDBA760V
BSF11172V
CARHPD408, 142408
CASALS50035, 50036, 50034, 55403, 50023, 55402, 50029
CIFAM800338
DELPHI272738V, 98200074001, 50619, 630511, BG844, 561967J, BG2844, 3259, 24513
DENCKERMANNB130064
DJ AUTOBD1531
Dr!ve+DP1010110721
E.T.F.194620
EUROBRAKE5815209942
FARCOM230727
FEBI BILSTEIN12037
FENOXTB217179
FERODODDF760, DDF760C, DDF7601, DDF760C1
FIRST LINEFBD858
FOMARFO2171
fri.tech.BD0490
FTEBS4360, BS4360B
GIRLING6027161
G.U.DGDB126104
HANS PRIES721167
HELLA8DD355104451, 8DD355104441
HELLA PAGID8DD355104451, 8DD355104441
HP57634
ICER78BD46202
JP GROUP4163100809
JURATEKCIT100
JURID561967JC, 561967J
KAGER371251
KAWE630511
KLAXCAR FRANCE25645Z
KRAFT6043200
LEMFÖRDER2283202
LPRF2161V
MAGNETI MARELLI351002120600, 360406087000, 431602042100, 360406000600
MALÒ1110166
MAPCO150432, 15043
MAXGEAR191026
METELLI230338
METZGER6110408, 24513E
MEYLE11-155210006
MGAD1138
MINTEXMDK0174, MDC827
MOTAQUIPLVBD754
NECTOWN775
NK319942, 209942
OPEN PARTSBDR101820, BDA101820
OPTIMALBS-3051
PAGID50619, 50619PRO
PATRONPBD2716
PEX140013
PILENGAV179
PROFIT50100760
PROTECHNICPRD2171
QUINTON HAZELL57634, BSF4360, BDC4360
R BRAKE78RBD24620
REMSA630511
ROADHOUSE630511
ROTINGERRT2523T5, RT2523
SASIC2464J24J
sbs1815319942, 1815209942
STARLINEPB2523C
SWAG70912037
TEMPLIN0311080220, 0311080225
TEXTAR89003600, 92074003, 98200074001, 92074000
TRICLO778319
TRISCAN812010142
TRUSTINGDF490
VAICOV4280010
VALEO186420
VEMA98090
VILLAR6280276
WAGNER LOCKHEEDWGR07601
WOKINGD630511
ZIMMERMANN180300820, 180300850, 180300800

Vehicle fitment / TRW DF2716 Brake Disc compatibility

This product fits the following models: CITROËN DISPATCH, CITROËN EVASION, CITROËN JUMPY, CITROËN SYNERGIE, FIAT SCUDO, FIAT SCUDO NATO, FIAT ULYSSE, LANCIA ZETA, PEUGEOT 806, PEUGEOT EXPERT, etc. See all vehicles this product (TRW DF2716) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNDISPATCH
BS
BT
BY
BZ
BU
BV
BW

U6U
1.9 D
1.9 TD
2.0
2.0 HDi 110
2.0 HDi 95
2.0 i 16V
1995/10 - D8B(XUD9TF) 92 hp 68 kW 1.9 L Diesel
D9B(XUD9A/U) 69 hp 51 kW 1.9 L Diesel
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFN(EW10J4) 138 hp 102 kW 2 L Petrol
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
RHX(DW10BTED) 94 hp 69 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
With flatbed/undercarriage
CITROËNEVASION
22
U6
1.9 TD
2.0
2.0 16V
2.0 HDI
2.0 HDI 16V
2.0 Turbo C.T.
2.1 TD
1994/06 - 2002/07D8B(XUD9TF) 90 hp 66 kW 1.9 L Diesel
D8B(XUD9TF) 92 hp 68 kW 1.9 L Diesel
DHX(XUD9TF/BTF) 90 hp 66 kW 1.9 L Diesel
P8C(XUD11BTE) 109 hp 80 kW 2.1 L Diesel
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFV(XU10J4R) 132 hp 97 kW 2 L Petrol
RFU(XU10J2/C) 121 hp 89 kW 2 L Petrol
RGX(XU10J2TE) 147 hp 108 kW 2 L Petrol
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
CITROËNJUMPY
BS
BT
BY
BZ
BU
BV
BW
BX
U6U
1.9 D
1.9 TD
2.0
2.0 HDi 110
2.0 HDi 95
2.0 i 16V
1995/10 - D8B(XUD9TF) 92 hp 68 kW 1.9 L Diesel
D9B(XUD9A/U) 69 hp 51 kW 1.9 L Diesel
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFN(EW10J4) 138 hp 102 kW 2 L Petrol
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
RHX(DW10BTED) 94 hp 69 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
With flatbed/undercarriage
CITROËNSYNERGIE
22
U6
1.9 TD
2.0
2.0 16V
2.0 HDI
2.0 HDI 16V
2.0 Turbo C.T.
2.1 TD
1994/06 - 2002/07D8B(XUD9TF) 90 hp 66 kW 1.9 L Diesel
D8B(XUD9TF) 92 hp 68 kW 1.9 L Diesel
DHX(XUD9TF/BTF) 90 hp 66 kW 1.9 L Diesel
P8C(XUD11BTE) 109 hp 80 kW 2.1 L Diesel
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFV(XU10J4R) 132 hp 97 kW 2 L Petrol
RFU(XU10J2/C) 121 hp 89 kW 2 L Petrol
RGX(XU10J2TE) 147 hp 108 kW 2 L Petrol
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
FIATSCUDO
220L
2.0 JTD
2.0 JTD 16V
1999/05 - 2006/12RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHX 94 hp 69 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
FIATSCUDO NATO
220P
1.9 TD Eco
2.0 16V
2.0 JTD
2.0 JTD 16V
1996/02 - 2006/12DHX(XUD9TF/L) 90 hp 66 kW 1.9 L Diesel
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHX 94 hp 69 kW 2 L Diesel
RHZ 109 hp 80 kW 2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
FIATULYSSE
220
1.9 TD
2.0
2.0 16V
2.0 JTD
2.0 JTD 16V
2.0 Turbo
2.1 TD

220.AC5
220.AD5
220AH5
1994/06 - 2002/08DHX(XUD9TF/L) 90 hp 66 kW 1.9 L Diesel
DHX(XUD9TF/L) 92 hp 68 kW 1.9 L Diesel
P8C 109 hp 80 kW 2.1 L Diesel
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFV 132 hp 97 kW 2 L Petrol
RFU(XU10J2C) 121 hp 89 kW 2 L Petrol
RGX(XU10J2CTE) 147 hp 108 kW 2 L Petrol
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHZ 109 hp 80 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
LANCIAZETA
220
2.0 16V
2.0 JTD
2.0 JTD 16V
2.0 Turbo
2.1 TD

220AD5
220CD5
220AJ5
220AL5
220AN5
220AQ5
1995/05 - 2002/09P8C 109 hp 80 kW 2.1 L Diesel
RFN 136 hp 100 kW 2 L Petrol
RFV(XU10J4R) 132 hp 97 kW 2 L Petrol
RGX(XU10J2TE) 147 hp 108 kW 2 L Petrol
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
PEUGEOT806
221
1.9 TD
2.0
2.0 16V
2.0 HDI
2.0 HDI 16V
2.0 Turbo
2.1 td 12V
1994/06 - 2002/08DHX(XUD9TE) 90 hp 66 kW 1.9 L Diesel
DHY(XUD9TE) 92 hp 68 kW 1.9 L Diesel
P8C(XUD11BTE) 109 hp 80 kW 2.1 L Diesel
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFV(XU10J4R) 132 hp 97 kW 2 L Petrol
RFU(XU10J2) 121 hp 89 kW 2 L Petrol
RGX(XU10J2TE) 147 hp 108 kW 2 L Petrol
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
PEUGEOTEXPERT
222
223
224
1.9 D
1.9 D 70
1.9 TD
2.0
2.0 HDi
2.0 HDI
2.0 HDI 16V
1995/10 - D8B(XUD9TE) 92 hp 68 kW 1.9 L Diesel
DHX(XUD9TE) 90 hp 66 kW 1.9 L Diesel
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHX(DW10BTED) 94 hp 69 kW 2 L Diesel
RHW(DW10ATED4) 109 hp 80 kW 2 L Diesel
RHX(DW10BTED) 94 hp 69 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
RHZ(DW10BTED) 109 hp 80 kW 2 L Diesel
RHZ(DW10CTED) 109 hp 80 kW 2 L Diesel
RHX(DW10BTED) 94 hp 69 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
RHZ(DW10BTED) 109 hp 80 kW 2 L Diesel
RHZ(DW10CTED) 109 hp 80 kW 2 L Diesel
WJY(DW8B) 69 hp 51 kW 1.9 L Diesel
WJZ(DW8) 69 hp 51 kW 1.9 L Diesel
WJY(DW8B) 69 hp 51 kW 1.9 L Diesel
WJZ(DW8) 69 hp 51 kW 1.9 L Diesel
XUD9TE 94 hp 69 kW 1.9 L Diesel
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
With flatbed/undercarriage
