TRW DF2758 Brake Disc

TRW part DF2758 Brake Disc

TRW DF2758 Brake Disc

by TRW

Manufacturer Part Number: DF2758

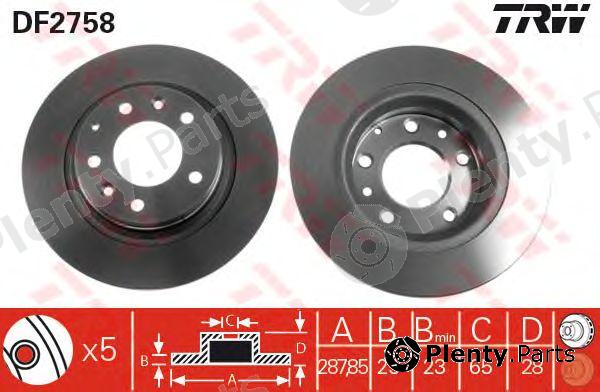

Сharacteristics:
  • Brake Disc Type: Vented
  • Diameter [mm]: 288
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Centering Diameter [mm]: 65
  • Height [mm]: 28,4
  • Number of Holes: 5
  • Thread Size: 15,7
  • Bolt Hole Circle Ø [mm]: 100
  • Machining: High-carbon
  • Colour: Black
  • Surface: Painted

Product Details

BrandTRW
TRW article (MPN)DF2758
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG3A0615301, 3A0615301A, 3AO615301, 3AO615301A

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF2758 Brake Disc offered by ABEX, A.B.S., ACDelco, ALANKO, AP, APEC braking, ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DJ AUTO, FAG, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURID, KAGER, KAWE, KRAFT, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS RUBBER, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEXW0825
A.B.S.16265
ACDelcoAC2329D
ALANKO303418
AP24586
APEC brakingDSK924
ATE525108, 24112501081, 425108, 24032501081, 24012501081
AUTOMEGA3061503013A0A
BENDIX561856BC, 561856B
BORG & BECKBBD5060
BOSCH986478619, F026A01335, 0986478619
Brake ENGINEERINGDI955485
BRECOBS8200
BREMBO09674710
BREMSIDBA706V
BSF11240V
CARHPD759, 142759
CIFAM800448
DELPHIBG2729, 24586, 98200072801, 561856J, 424236V, 53945, 649310, BS4531
DJ AUTOBD1847
FAGBS4531
FARCOM230852
FEBI BILSTEIN11205
FENOXTB217158
FERODODDF7061, DDF706, DRF706
FIRST LINEFBD800
FOMARFO2329
fri.tech.BD0413
FTEBS4531
GIRLING6027581
HANS PRIES103586
HELLA8DD355122432, 8DD355104331
HELLA PAGID8DD355122432, 8DD355104331
HP57584
ICER78BD53022
JP GROUP1163102300, 1163102309
JURID561856JC, 561856J
KAGER370529
KAWE649310
KRAFT6040117
LEMFÖRDER2139901
LPRV2311V
MAGNETI MARELLI360406009300, 351582420500
MAPCO15866
METELLI230448
METZGER6110483, 24586
MEYLE1155211026/PD, 1155211026
MGAD1248
MINTEXMDC915
MOTAQUIPLVBD890
NATIONALNBD618
NECTOWN958
NIBKRN1073
NK204753, 314753, 304753
OPEN PARTSBDA159120
OPTIMALBS-4930
PAGID53945
PEX140631
PILENGAV158
PROTECHNICPRD2217
QUINTON HAZELLBDC4531, 57584, BSF4531
R BRAKE78RBD25302
REMSA649310
ROADHOUSE649310
ROTINGERRT2264, RT2264T5
ROULUNDS RUBBERD2329
SASIC9004898J
sbs1815314753, 1815304753, 1815204753
SWAG30911205
TEMPLIN0311030090
TEXTAR92072800, 98200072801, 92072805
TRISCAN812029119
TRUCKTEC AUTOMOTIVE0735040
TRUSTINGDF413
VAICOV1080053
VALEO186521
VEMA98569
VILLAR6281793
WOKINGP649310, D649310
ZIMMERMANN600320250, 600320252, 600320200, 600320220

Vehicle fitment / TRW DF2758 Brake Disc compatibility

This product fits the following models: VW GOLF III, VW GOLFIII, VW JETTA III, VW PASSAT, VW VENTO, etc. See all vehicles this product (TRW DF2758) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VWGOLF III
1H1
1H5
1.6
2.0
2.0 GTI 16V
2.8 VR6
2.9 VR6 Syncro

1HX1
1991/11 - 1999/042E 115 hp 85 kW 2 L Petrol
ABA 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 163 hp 120 kW 2.8 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
ABF 150 hp 110 kW 2 L Petrol
ABU 75 hp 55 kW 1.6 L Petrol
AEA 75 hp 55 kW 1.6 L Petrol
AEE 75 hp 55 kW 1.6 L Petrol
AEK 101 hp 74 kW 1.6 L Petrol
AFT 101 hp 74 kW 1.6 L Petrol
AKS 101 hp 74 kW 1.6 L Petrol
ABV 190 hp 140 kW 2.9 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
VWGOLFIII
1H1
1H5
1.6
2.0
2.0 GTI 16V
2.8 VR6
2.9 VR6 Syncro

1HX1
1991/11 - 1999/042E 115 hp 85 kW 2 L Petrol
ABA 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 163 hp 120 kW 2.8 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
ABF 150 hp 110 kW 2 L Petrol
ABU 75 hp 55 kW 1.6 L Petrol
AEA 75 hp 55 kW 1.6 L Petrol
AEE 75 hp 55 kW 1.6 L Petrol
AEK 101 hp 74 kW 1.6 L Petrol
AFT 101 hp 74 kW 1.6 L Petrol
AKS 101 hp 74 kW 1.6 L Petrol
ABV 190 hp 140 kW 2.9 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
VWJETTA III
1H2
1.9 TDI
2.0
2.8 VR6
1991/11 - 1998/091Z 90 hp 66 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
ALE 90 hp 66 kW 1.9 L Diesel
2E 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 163 hp 120 kW 2.8 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
Front wheel
Sedan / Saloon
VWPASSAT
3A2
35I
3A5
35I
2.0
2.0 16V
2.8 VR6
2.9 VR6 Syncro
1988/04 - 1997/05170 hp 125 kW 2 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
ABF 150 hp 110 kW 2 L Petrol
ABV 184 hp 135 kW 2.9 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VWVENTO
1H2
1.9 TDI
2.0
2.8 VR6
1991/11 - 1998/091Z 90 hp 66 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
ALE 90 hp 66 kW 1.9 L Diesel
2E 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 163 hp 120 kW 2.8 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
Front wheel
Sedan / Saloon
