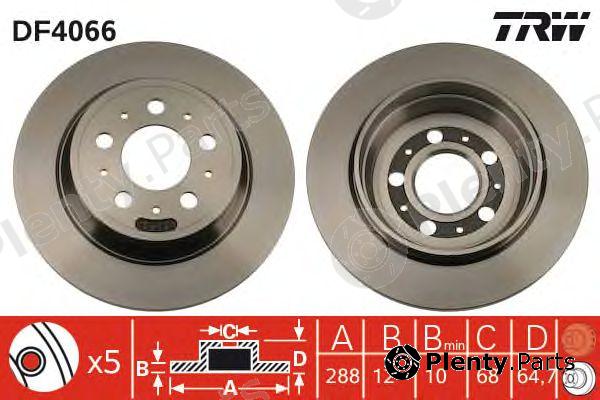

TRW DF4066 Brake Disc

TRW part DF4066 Brake Disc

TRW DF4066 Brake Disc

by TRW

Manufacturer Part Number: DF4066

Сharacteristics:
  • Brake Disc Type: Solid
  • Diameter [mm]: 288
  • Brake Disc Thickness [mm]: 12
  • Minimum thickness [mm]: 10
  • Centering Diameter [mm]: 68
  • Height [mm]: 65
  • Number of Holes: 5
  • Thread Size: 16,75
  • Bolt Hole Circle Ø [mm]: 108
  • Drum Diameter: 178
  • Colour: Black
  • Surface: Painted

Product Details

BrandTRW
TRW article (MPN)DF4066
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VOLVO vehicles

OE manufacturerOEM reference numbers
VOLVO94341674, 9434167, 94341670

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4066 Brake Disc offered by A.B.S., ACDelco, ALANKO, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, DJ AUTO, Dr!ve+, EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, G.U.D, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS RUBBER, RUVILLE, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17013
ACDelcoAC2560D
ALANKO304344, 305513
AP19080, X19080, 19080X, 19080V
APEC brakingDSK829
ATE24031201511, 24011201511, 24111201511
BENDIX562174B, 562174BC
BORG & BECKBBD4216
BOSCH0986479873, 0986478495
Brake ENGINEERINGDI955888
BRECOBV7584, BS7584
BREMBO0877651X, 08.7765.11, 08776575, 08776510
BREMSIDBB079S
BSF11879
CAR142648, HPD648
CIFAM800562C
DELPHIBG3515, BG3515C
DENCKERMANNB130280
DJ AUTOBD1835
Dr!ve+DP1010110198
EUROBRAKE5815204843
FARCOM230371
FEBI BILSTEIN18051
FERODODDF1079, DDF1079C1, DDF10791
FIRST LINEFBD1203
FOMARFO2560
fri.tech.BD0855
FTEBS4729B, BS4729
GIRLING6040664
G.U.DGDB112151
HELLA8DD355107091, 8DD355107092, 8DD355107081
HELLA PAGID8DD355107091, 8DD355107081, 8DD355107092
HP57905
ICER78BD16741
JP GROUP4963200509
JURATEKVOL128
JURID562174JC, 562174J
KAGER371167
KAMOKA1032158
KAWE662000
KEY PARTSKBD4216
KRAFT6056350
LEMFÖRDER3076001
LPRV1487P
MAGNETI MARELLI353616030540, 360406051900
MAPCO15967
METELLI230562C, 230562
METZGER19080V, 19080, 6110224
MEYLE5155235015/PD, 5155235015
MGAD1340
MINTEXMDC1434
NATIONALNBD1073
NECTOWN1123
NIBKRN1118
NK314843, 204843
OPEN PARTSBDR184710
OPTIMALBS6340C, BS-6340
PAGID50284PRO, 50284
PATRONPBD4066
PEX140670
PILENGA5263
PROTECHNICPRD5207
QUINTON HAZELL57905, BSF4729, BDC4729, 662000
R BRAKE78RBD11674
REMSA662000
ROADHOUSE662000
ROTINGERRT1500, RT1500T5
ROULUNDS RUBBERD2560
RUVILLEBRR410210
sbs1815204843, 1815314843
STARLINEPB1500C
SWAG55918051
TEMPLIN0311029700, 0311029705
TEXTAR92100703, 92100705, 92100700
TRISCAN812027131, 812027131C
TRUSTINGDF855
VAICOV9540007
VALEO186841
VEMA98605
VILLAR6281760
WOKINGD662000, P662000
ZIMMERMANN610370350, 610370300, 610370320, 610370352

Vehicle fitment / TRW DF4066 Brake Disc compatibility

This product fits the following models: VOLVO S60 I, VOLVO S70, VOLVO S80 I, VOLVO V70  , VOLVO V70 I, VOLVO V70 II, VOLVO V70II, VOLVO V70 XC, VOLVO XC70 CROSS COUNTRY, etc. See all vehicles this product (TRW DF4066) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VOLVOS60 I
2.0 T
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 T
2.4 T5
2.4 T AWD
2.5 T
2.5 T AWD
T5

CNG
LPG
2000/07 - 2010/04B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244T4 180 hp 132 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254T2 210 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T2 130 hp 96 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T6 122 hp 90 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOS70
LS
2.0
1997/01 - 2000/11B5204T4 163 hp 120 kW 2 L Petrol
Front wheel
Sedan / Saloon
VOLVOS80 I
TS
XY
2.0
2.0 T
2.3 R
2.4
2.4 Bifuel
2.4 D
2.4 D5
2.4 LTP
2.4 T
2.4 T5 AWD
2.5 T
2.5 T AWD
2.5 TDI
2.8 T6
2.9
3.0
3.0 T6

CNG
LPG
1998/05 - 2006/07B5204T3 226 hp 166 kW 2 L Petrol
B5204T5 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T4 179 hp 132 kW 2.4 L Petrol
B5254T2 210 hp 154 kW 2.5 L Petrol
B6284T 272 hp 200 kW 2.8 L Petrol
B6294S 200 hp 147 kW 2.9 L Petrol
B6304S3 204 hp 150 kW 2.9 L Petrol
B6294S2 196 hp 144 kW 3 L Petrol
B6294T 272 hp 200 kW 3 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOV70
LV
2.0
2.0 Turbo
2.0 Turbo AWD
2.3 Turbo
2.4
2.4 Bifuel
2.4 Turbo AWD
2.5
2.5 AWD
2.5 TDI
2.5 TDi AWD
2.5 Turbo AWD
1996/11 - 2000/05B5202S 126 hp 93 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
B5244T2 265 hp 195 kW 2.4 L Petrol
B5244T2 265 hp 195 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 I
LV
2.0
2.0 Turbo
2.0 Turbo AWD
2.3 Turbo
2.4
2.4 Bifuel
2.4 Turbo AWD
2.5
2.5 AWD
2.5 TDI
2.5 TDi AWD
2.5 Turbo AWD
1996/11 - 2000/05B5202S 126 hp 93 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
B5244T2 265 hp 195 kW 2.4 L Petrol
B5244T2 265 hp 195 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 II
SW
2.0 T
2.3
2.3 T5
2.4
2.4 Bifuel
2.4 D
2.4 D5
2.4 D5 AWD
2.4 T
2.4 T5
2.4 T AWD
2.5 T
2.5 T AWD
2.5 TDI

CNG
LPG
2000/03 - 2007/08B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70II
SW
2.0 T
2.3
2.3 T5
2.4
2.4 Bifuel
2.4 D
2.4 D5
2.4 D5 AWD
2.4 T
2.4 T5
2.4 T AWD
2.5 T
2.5 T AWD
2.5 TDI

CNG
LPG
2000/03 - 2007/08B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 XC
2.4 D5 AWD
2.4 D5 XC AWD
2.4 T XC AWD
2.5 T XC AWD
2000/03 - 2007/08B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
AWD / 4WD
Estate / Turnier / Vario / Wagon
VOLVOXC70 CROSS COUNTRY
2.4 D5 AWD
2.4 D5 XC AWD
2.4 T XC AWD
2.5 T XC AWD
2000/03 - 2007/08B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
AWD / 4WD
Estate / Turnier / Vario / Wagon
