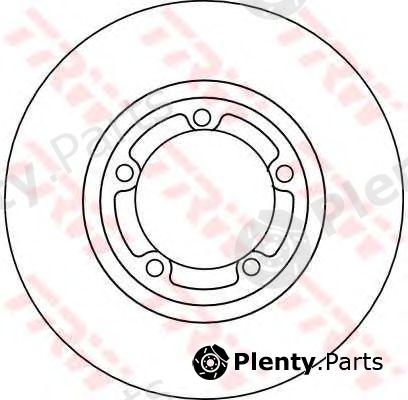

TRW DF4102 Brake Disc

TRW part DF4102 Brake Disc

TRW DF4102 Brake Disc

by TRW

Manufacturer Part Number: DF4102

Сharacteristics:
  • Surface: Painted
  • Brake Disc Type: Vented
  • Diameter [mm]: 254
  • Brake Disc Thickness [mm]: 24
  • Minimum thickness [mm]: 22,4
  • Centering Diameter [mm]: 87,6
  • Height [mm]: 40
  • Number of Holes: 5
  • Thread Size: 10,5
  • Bolt Hole Circle Ø [mm]: 108
  • Colour: Black

Product Details

BrandTRW
TRW article (MPN)DF4102
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for DONGFENG, HYUNDAI / KIA (MOBIS), MITSUBISHI vehicles

OE manufacturerOEM reference numbers
DONGFENG30MA01023
HYUNDAI / KIA (MOBIS)581294A000
MITSUBISHIMB895464

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4102 Brake Disc offered by A.B.S., ACDelco, AMD, APEC braking, ASHIKA, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DJ AUTO, E.T.F., FERODO, FOMAR, fri.tech., GIRLING, HANS PRIES, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, HP, ICER, JAPANPARTS, JAPKO, JURID, KAGER, KAVO PARTS, KAWE, KLAXCAR FRANCE, KORTEX, LPR, MAGNETI MARELLI, MAPCO, MDR, MENSAN, METELLI, MEYLE, MGA, MINTEX, NATIONAL, NIBK, NIPPARTS, NK, OPTIMAL, PAGID, PEX, PILENGA, PROFIT, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS RUBBER, sbs, TEXTAR, TRISCAN, TRUSTING, VEMA, WAGNER LOCKHEED, WOKING manufacturers

ManufacturerReference numbers
A.B.S.16670, 17035
ACDelcoAC2498D, AC2490D
AMDAMD.BD133, AMD.BD133K
APEC brakingDSK2406
ASHIKA600H003
ASHUKI09904150
ATE24012402201
BENDIX562846BC, 562800BC
BLUE PRINTADG04361
BORG & BECKBBD5254, BBD4161
BOSCH0986AB6689, 986478663, 0986478663, 0986BB4349, 0986478714
BREMBO09.9149.10, 09A14510, 9914910
BREMSIDBB404V
BSF11773V
CAR142368, 142293
CIFAM800596
DELPHIBG4098, BG3590, J3300514, 140215, 203405
DJ AUTOBD1082
E.T.F.190301
FERODODDF1404C, DDF14041, DDF1404C1, DDF1822, DDF18221, DDF1404
FOMARFO2490
fri.tech.BD0724
GIRLING6041021
HANS PRIES820515
HELLA8DD355107-141, 8DD355117-381
HELLA PAGID8DD355107141, 8DD355117381
HERTH+BUSS JAKOPARTSJ3300514, J3305039
HP57852, 57825
ICER78BD02002
JAPANPARTSDIH03, DI-583
JAPKO60H03
JURID562800JC
KAGER370714
KAVO PARTSBR3212, BR3212C, BR5747, BR5747C
KAWE663610
KLAXCAR FRANCE25064Z
KORTEXKD0072
LPRH2124V, M1603V
MAGNETI MARELLI600000085900
MAPCO25512, 45542
MDRMFD2H03
MENSAN290212
METELLI230596
MEYLE37155210024
MGAD1861
MINTEXMDC2308, MDC964
NATIONALNBD847
NIBKRN1121
NIPPARTSJ3300514, J3305039
NK203405, 313405, 203029, 313029
OPTIMALBS-7880, BS-6460
PAGID50290, 55345
PEX140369, 140215
PILENGAV621, V612
PROFIT50101404
PROTECHNICPRD2414
QUINTON HAZELLBSF5167, 57852, 663610, BSF4978, 57825, BDC4978, BDC5167
R BRAKE78RBD20200
REMSA663610, 679410
ROADHOUSE679410, 663610
ROTINGERRT2634T5, RT2634
ROULUNDS RUBBERD2498, D2490
sbs1815203029, 1815313405, 1815203405
TEXTAR92234500, 92102500
TRISCAN812042126, 812043107
TRUSTINGDF727, DF724
VEMA98865, 98913
WAGNER LOCKHEEDWGR14041
WOKINGD663610, P679410, P663610

Vehicle fitment / TRW DF4102 Brake Disc compatibility

This product fits the following models: FENGXING (DONGFENG ) LINGZHI, HYUNDAI GRACE, HYUNDAI H-1, HYUNDAI H100, HYUNDAI H100 GRACE, HYUNDAI H 150, HYUNDAI H-1 STAREX, HYUNDAI H 200, HYUNDAI HR, HYUNDAI PORTER, HYUNDAI SATELLITE, JAC REFINE M1, MITSUBISHI DELICA, MITSUBISHI L 300, MITSUBISHI L 400, MITSUBISHI L 400 SPACE GEAR, MITSUBISHI SPACE GEAR, etc. See all vehicles this product (TRW DF4102) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FENGXING (DONGFENG )LINGZHI
1.5 M3
2013/01 - 4G18S1 113 hp 83 kW 1.5 L Petrol
Rear wheel
MPV / Van / Minivan
HYUNDAIGRACE

P
2.6 TD
1993/07 - 1998/05D4BB 86 hp 63 kW 2.6 L Diesel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
HYUNDAIH-1
2.4
2.5 CRDi
2.5 D
2.5 TD
2.6 CRDi
1997/10 - 2007/12D4BB 107 hp 79 kW 2.6 L Diesel
D4BF 80 hp 59 kW 2.5 L Diesel
D4BH 101 hp 74 kW 2.5 L Diesel
D4BH 99 hp 73 kW 2.5 L Diesel
D4BH 99 hp 73 kW 2.5 L Diesel
D4CB 140 hp 103 kW 2.5 L Diesel
G4CS 112 hp 82 kW 2.4 L Petrol
Rear wheel
LCV / Van / Cargo
With flatbed/undercarriage
HYUNDAIH100

P
2.6 TD
1993/07 - 1998/05D4BB 86 hp 63 kW 2.6 L Diesel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
Pickup truck / Pickup
With flatbed/undercarriage
HYUNDAIH100 GRACE

P
2.6 TD
1993/07 - 1998/05D4BB 86 hp 63 kW 2.6 L Diesel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
HYUNDAIH 150

P
2.6 TD
1993/07 - 1998/05D4BB 86 hp 63 kW 2.6 L Diesel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
HYUNDAIH-1 STAREX
2.4
2.4 4WD
2.5 CRDi
2.5 D
2.5 TCi
2.5 TD
2.5 TD 4WD
2.6 TDiC
1997/06 - 2007/12D4BB 86 hp 63 kW 2.6 L Diesel
D4BF 78 hp 57 kW 2.5 L Diesel
D4BF 84 hp 62 kW 2.5 L Diesel
D4BF 80 hp 59 kW 2.5 L Diesel
D4BF 80 hp 59 kW 2.5 L Diesel
D4BH 101 hp 74 kW 2.5 L Diesel
D4BH 99 hp 73 kW 2.5 L Diesel
D4BH 99 hp 73 kW 2.5 L Diesel
D4CB 140 hp 103 kW 2.5 L Diesel
G4CS 112 hp 82 kW 2.4 L Petrol
AWD / 4WD
Rear wheel
MPV / Van / Minivan
HYUNDAIH 200
2.4
2.4 4WD
2.5 CRDi
2.5 D
2.5 TCi
2.5 TD
2.5 TD 4WD
2.6 CRDi
2.6 TDiC
1997/06 - 2007/12D4BB 107 hp 79 kW 2.6 L Diesel
D4BB 86 hp 63 kW 2.6 L Diesel
D4BF 78 hp 57 kW 2.5 L Diesel
D4BF 84 hp 62 kW 2.5 L Diesel
D4BF 80 hp 59 kW 2.5 L Diesel
D4BF 80 hp 59 kW 2.5 L Diesel
D4BH 101 hp 74 kW 2.5 L Diesel
D4BH 99 hp 73 kW 2.5 L Diesel
D4BH 99 hp 73 kW 2.5 L Diesel
D4CB 140 hp 103 kW 2.5 L Diesel
G4CS 112 hp 82 kW 2.4 L Petrol
AWD / 4WD
Rear wheel
LCV / Van / Cargo
MPV / Van / Minivan
HYUNDAIHR
2.5 CRDi
2004/05 - D4CB 140 hp 103 kW 2.5 L Diesel
Rear wheel
LCV / Van / Cargo
HYUNDAIPORTER
2.4
2.5 CRDi
1996/03 - D4CB 140 hp 103 kW 2.5 L Diesel
G4CS 111 hp 82 kW 2.4 L Petrol
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
Pickup truck / Pickup
HYUNDAISATELLITE
2.4
2.4 4WD
2.5 CRDi
2.5 D
2.5 TCi
2.5 TD
2.5 TD 4WD
2.6 TDiC
1997/06 - 2007/12D4BB 86 hp 63 kW 2.6 L Diesel
D4BF 78 hp 57 kW 2.5 L Diesel
D4BF 84 hp 62 kW 2.5 L Diesel
D4BF 80 hp 59 kW 2.5 L Diesel
D4BF 80 hp 59 kW 2.5 L Diesel
D4BH 101 hp 74 kW 2.5 L Diesel
D4BH 99 hp 73 kW 2.5 L Diesel
D4BH 99 hp 73 kW 2.5 L Diesel
D4CB 140 hp 103 kW 2.5 L Diesel
G4CS 112 hp 82 kW 2.4 L Petrol
AWD / 4WD
Rear wheel
MPV / Van / Minivan
JACREFINE M1
2.0
2.4
2.8 TD
2002/01 - G4JS 139 hp 102 kW 2.4 L Petrol
HFC4DA1-1A 109 hp 80 kW 2.8 L Diesel
HFC4GA3-1B 136 hp 100 kW 2 L Petrol
HFC4GA3.C 136 hp 100 kW 2 L Petrol
Rear wheel
MPV / Van / Minivan
MITSUBISHIDELICA
2.4
1995/05 - 2000/054G64(SOHC16V) 132 hp 97 kW 2.4 L Petrol
Rear wheel
Passenger Van / Wagon / Minibus
MITSUBISHIL 300
P1T
2.0
2.5 TD
P13T
P15T
1994/06 - 2000/044D56T 87 hp 64 kW 2.5 L Diesel
4G63(SOHC16V) 113 hp 83 kW 2 L Petrol
4G63(SOHC16V) 116 hp 85 kW 2 L Petrol
Rear wheel
With flatbed/undercarriage
MITSUBISHIL 400
PDW
PCW
PBV
PAW
PAV
2.0
2500 TD

PA3W
PD5W
PD5V
PA5W
PA5V
1994/12 - 2005/064D56T 87 hp 64 kW 2.5 L Diesel
4G63(SOHC16V) 113 hp 83 kW 2 L Petrol
4G63(SOHC16V) 116 hp 85 kW 2 L Petrol
Rear wheel
LCV / Van / Cargo
MITSUBISHIL 400 SPACE GEAR
PDW
PCW
PAV
PBV
PAW
2.0
2.0 16V
2.4
2500 TD
2.5 TD

PA3V/W
PB3V
PA3W
PA3W
PA5V/W
PB5V
1995/05 - 2005/064D56T 87 hp 64 kW 2.5 L Diesel
4D56TD 99 hp 73 kW 2.5 L Diesel
4G63(SOHC16V) 113 hp 83 kW 2 L Petrol
4G63(SOHC16V) 115 hp 85 kW 2 L Petrol
4G64(SOHC16V) 128 hp 94 kW 2.4 L Petrol
Rear wheel
Passenger Van / Wagon / Minibus
MITSUBISHISPACE GEAR
2.4
1995/05 - 2000/054G64(SOHC16V) 132 hp 97 kW 2.4 L Petrol
Rear wheel
Passenger Van / Wagon / Minibus
