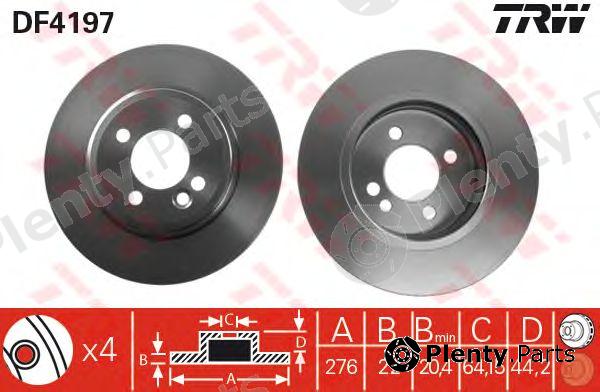

TRW DF4197 Brake Disc
TRW DF4197 Brake Disc
by TRWManufacturer Part Number: DF4197
- Brake Disc Type: Vented
- Diameter [mm]: 276
- Brake Disc Thickness [mm]: 22
- Minimum thickness [mm]: 20,4
- Centering Diameter [mm]: 64,15
- Height [mm]: 44,2
- Number of Holes: 4
- Thread Size: 15
- Bolt Hole Circle Ø [mm]: 100
- Machining: High-carbon
- Colour: Black
- Surface: Painted
Product Details
| Brand | TRW |
| TRW article (MPN) | DF4197 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for MINI vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| MINI | 34111502891, 34116774984 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for TRW DF4197 Brake Disc offered by A.B.S., ACDelco, ALANKO, AP, APEC braking, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GALFER, GIRLING, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURATEK, JURID, KAGER, KAWE, KEY PARTS, LEMFÖRDER, LPR, MAGNETI MARELLI, MALÒ, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS RUBBER, SASIC, sbs, STARLINE, STOP, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17349 |
| ACDelco | AC2576D |
| ALANKO | 303285 |
| AP | 24220, 24220X, 24220V, 25420, X24220, 25420V |
| APEC braking | DSK2060 |
| ATE | 24032202041, 24012202041, 24112202041 |
| BENDIX | 562139BC, 562139B |
| BLUE PRINT | ADG04374, ADB114315 |
| BORG & BECK | BBD4256 |
| BOSCH | 0986479B39, 0986478606, F026A01226, 0986AB6416 |
| Brake ENGINEERING | DI956134 |
| BRECO | BS9030, BS8403, BV9030, BV8403 |
| BREMBO | 09.8655.10, 09865520, 09.8655.11, 09865521, 09.8655.75, 0986551X |
| BREMSI | DBB127V |
| CAR | HPD084, 142084 |
| CIFAM | 800666C |
| DELPHI | BG3661 |
| DENCKERMANN | B130366 |
| Dr!ve+ | DP1010110791 |
| E.T.F. | 192891 |
| EUROBRAKE | 5815204016 |
| FARCOM | 231209 |
| FEBI BILSTEIN | 23115 |
| FERODO | DDF1127C1, DRF1127, DDF11271, DDF1127 |
| FIRST LINE | FBD1246 |
| FOMAR | FO2576 |
| fri.tech. | BD0825 |
| FTE | BS5312B, BS5312, BS5312HB |
| GALFER | B1G22202041 |
| GIRLING | 6041971 |
| HANS PRIES | 501014 |
| HELLA | 8DD355107791, 8DD355107781, 8DD355107792 |
| HELLA PAGID | 8DD355107781, 8DD355107792, 8DD355107791 |
| HP | 58006 |
| ICER | 78BD28912 |
| JP GROUP | 6063100100, 6063100109 |
| JURATEK | MIN101 |
| JURID | 562139JC, 562139J |
| KAGER | 371108 |
| KAWE | 662410 |
| KEY PARTS | KBD4256 |
| LEMFÖRDER | 2717801 |
| LPR | B2008V, B2008VR |
| MAGNETI MARELLI | 360406017400, 353610654240, 361302040182, 360406017401 |
| MALÒ | 1110192 |
| MAPCO | 15657 |
| METELLI | 230666C |
| METZGER | 230666, 6110207, 662410 |
| MEYLE | 3155213027/PD, 3155213027 |
| MGA | D1402 |
| MINTEX | MDC1129, MDK0182 |
| NATIONAL | NBD1125 |
| NECTO | WN1146 |
| NIBK | RN1160 |
| NK | 314016, 204016 |
| OPEN PARTS | BDA190220, BDR190220 |
| OPTIMAL | BS7450C, BS-7450 |
| PAGID | 50324PRO, 50324 |
| PEX | 140767 |
| PILENGA | V811 |
| PROTECHNIC | PRD2376 |
| QUINTON HAZELL | 662410, 58006, BDC5312, BSF5312 |
| R BRAKE | 78RBD22891 |
| REMSA | 662410 |
| ROADHOUSE | 662410 |
| ROTINGER | RT2822T5, RT2822 |
| ROULUNDS RUBBER | D2576 |
| SASIC | 9004806J |
| sbs | 1815314016, 1815204016 |
| STARLINE | PB20581C |
| STOP | 562139S |
| SWAG | 11923115 |
| TEMPLIN | 0311021495, 0311021490 |
| TEXTAR | 92107505, 92107503, 92107500, 92262405, 89006200, 92262403 |
| TRISCAN | 812011150C, 812011150 |
| TRUSTING | DF825 |
| VAICO | V2040031 |
| VALEO | 186762 |
| VEMA | 98081 |
| VILLAR | 6281822 |
| WAGNER LOCKHEED | WGR11271 |
| WOKING | D662410, P662410 |
| ZIMMERMANN | 150340052, 150340050, 150340020, 150340000 |
Vehicle fitment / TRW DF4197 Brake Disc compatibility
This product fits the following models: MINI MINI, etc. See all vehicles this product (TRW DF4197) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| MINI | MINI R50 R53 R52 | Cooper Cooper S One One D | 2001/06 - 2007/11 | 1ND 75 hp 55 kW 1.4 L Diesel 1ND-TV 88 hp 65 kW 1.4 L Diesel W10B14A 75 hp 55 kW 1.4 L Petrol W10B16A 90 hp 66 kW 1.6 L Petrol W10B16A 116 hp 85 kW 1.6 L Petrol W10B16A 90 hp 66 kW 1.6 L Petrol W11B16A 163 hp 120 kW 1.6 L Petrol W11B16A 170 hp 125 kW 1.6 L Petrol | Front wheel | Convertible / cabrio Hatchback / Sportback / Sport hatch |
