TRW DF4209S Brake Disc

TRW part DF4209S Brake Disc
TRW part DF4209S Brake Disc

TRW DF4209S Brake Disc

by TRW

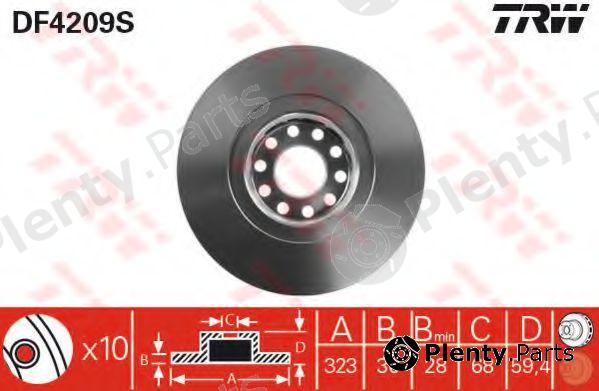

Manufacturer Part Number: DF4209S

Сharacteristics:
  • Brake Disc Type: Vented
  • Diameter [mm]: 323
  • Brake Disc Thickness [mm]: 30
  • Minimum thickness [mm]: 28
  • Centering Diameter [mm]: 68
  • Height [mm]: 59,5
  • Number of Holes: 10
  • Thread Size: 15,5
  • Bolt Hole Circle Ø [mm]: 112
  • Machining: High-carbon
  • Colour: Black
  • Surface: Painted

Product Details

BrandTRW
TRW article (MPN)DF4209S
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG3D0615301G, 4D0615301A, 4D0615301F, 4D0615301J

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4209S Brake Disc offered by A.B.S., ALANKO, AP, APEC braking, ATE, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GALFER, GIRLING, G.U.D, HELLA, HELLA PAGID, HP, JP GROUP, JURID, KAGER, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17498, 16929
ALANKO303421
AP24784V, 25073V
APEC brakingDSK2119
ATE24013001081, 24113001081, 24013001831, 24013001131, 24033001131
BARUMBAR30113
BENDIX562175B, 562175BC
BORG & BECKBBD5730S
BOSCH0986479060, 0986AB6136, 0986478575
Brake ENGINEERINGDI956026, DI956026S
BRECOBV8661, BV8411
BREMBO09.8324.11, 09991111
BREMSIDBB150V, DBB563V
CARHPD288, 1421573, 142288
CIFAM800737C
DELPHIBG3524, BG3714
DENCKERMANNB130599
FARCOM231221
FEBI BILSTEIN22964
FERODODDF1563C1, DDF1563, DDF1150, DDF1150C, DDF1150C1, DDF1563C
FIRST LINEFBD1258
FOMARFO4044
fri.tech.BD1199
FTEBS5009HB, BS5009B, BS5009
GALFERB1G23001131
GIRLING6042095
G.U.DGDB130113
HELLA8DD355106701, 8DD355121001, 8DD355109831, 8DD355106702, 8DD355106691, 8DD355118611
HELLA PAGID8DD355121001, 8DD355109831, 8DD355106691, 8DD355106702, 8DD355106701, 8DD355118611
HP57914
JP GROUP1163103209
JURID562175J, 562175JC
KAGER371325, 371171
KAWE678110, 673010
KRAFT6040470
LPRA1018V
MAGNETI MARELLI360406001700, 351013920500
MAPCO15873
METELLI230737, 230737C
METZGER24784V, 25073V, 6110557
MEYLE1155211109, 1155211109/PD
MGAD1517
MINTEXMDC1419
NATIONALNBD1049
NECTOWN1185, WN1492, WN1169
NK314791, 204791
OPEN PARTSBDR220620
OPTIMALBS7552C, BS-7552
PAGID50264PRO, 50264, 54221
PATRONPBD4209
PEX140788
PILENGAV879, V874
PROTECHNICPRD2646, PRD2305
QUINTON HAZELLBSF5009, BDC5009, 57914
REMSA673010, 678110
ROADHOUSE673010, 678110
ROTINGERRT20310T5, RT20310
sbs1815204791, 1815314791, 1815344791
SWAG30922964
TEMPLIN0311010390, 0311010395
TEXTAR92098303, 92098305, 92122103, 92098300, 92122100
TRISCAN812029186, 812029188C, 812029188
TRUSTINGDF1199
VAICOV1080011
VALEO297198, 197198
VEMA98181, 98892
WOKINGD673010, D678110
ZIMMERMANN100123820, 100123850, 100.1238.52, 100123800, 100330300, 100330350, 100.3303.52, 100330320

Vehicle fitment / TRW DF4209S Brake Disc compatibility

This product fits the following models: AUDI A6, AUDI A8, VW PHAETON, etc. See all vehicles this product (TRW DF4209S) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
AUDIA6
4A
C4
S6 Plus quattro
1996/04 - 1997/12AHK 326 hp 240 kW 4.2 L Petrol
AWD / 4WD
Estate / Turnier / Vario / Wagon
Sedan / Saloon
AUDIA8
4D2
4D8
4E
2.5 TDI
2.5 TDI quattro
2.8
2.8 quattro
3.0
3.0 quattro
3.0 TDI quattro
3.7
3.7 quattro
4.0 TDI quattro
4.2 quattro
6.0 W12 quattro
S 8 quattro
S8 quattro
1996/04 - 2010/07ACK 193 hp 142 kW 2.8 L Petrol
ALG 193 hp 142 kW 2.8 L Petrol
AMX 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
ACK 193 hp 142 kW 2.8 L Petrol
AMX 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
AFB 150 hp 110 kW 2.5 L Diesel
AKE 180 hp 132 kW 2.5 L Diesel
AKN 150 hp 110 kW 2.5 L Diesel
AFB 150 hp 110 kW 2.5 L Diesel
AKN 150 hp 110 kW 2.5 L Diesel
AHC 340 hp 250 kW 4.2 L Petrol
AKH 340 hp 250 kW 4.2 L Petrol
AQH 360 hp 265 kW 4.2 L Petrol
AVP 360 hp 265 kW 4.2 L Petrol
AKC 260 hp 191 kW 3.7 L Petrol
AQG 260 hp 191 kW 3.7 L Petrol
AQF 310 hp 228 kW 4.2 L Petrol
ARU 238 hp 175 kW 4.2 L Petrol
AUW 310 hp 228 kW 4.2 L Petrol
AUX 310 hp 228 kW 4.2 L Petrol
ASB 233 hp 171 kW 3 L Diesel
BNG 211 hp 155 kW 3 L Diesel
ASE 275 hp 202 kW 4 L Diesel
ASN 220 hp 162 kW 3 L Petrol
BBJ 218 hp 160 kW 3 L Petrol
BBJ 218 hp 160 kW 3 L Petrol
BFL 280 hp 206 kW 3.7 L Petrol
BFM 335 hp 246 kW 4.2 L Petrol
BHT 450 hp 331 kW 6 L Petrol
BSB 450 hp 331 kW 6 L Petrol
BTE 450 hp 331 kW 6 L Petrol
BSM 450 hp 331 kW 5.2 L Petrol
AWD / 4WD
Front wheel
Sedan / Saloon
VWPHAETON
3D
3.0 V6 TDI 4motion
3.2 V6
2002/04 - AYT 241 hp 177 kW 3.2 L Petrol
BKL 241 hp 177 kW 3.2 L Petrol
BMK 224 hp 165 kW 3 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
