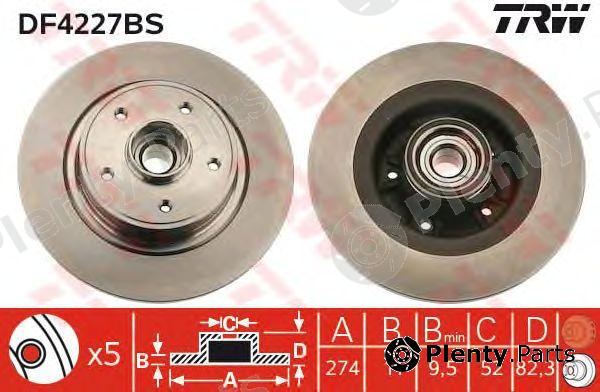

TRW DF4227BS Brake Disc

TRW part DF4227BS Brake Disc

TRW DF4227BS Brake Disc

by TRW

Manufacturer Part Number: DF4227BS

Сharacteristics:
  • Supplementary Article/Info 2: with ABS sensor ring
  • Supplementary Article/Info 2: with wheel bearing
  • Brake Disc Type: Solid
  • Diameter [mm]: 274
  • Brake Disc Thickness [mm]: 11
  • Minimum thickness [mm]: 9,5
  • Centering Diameter [mm]: 52
  • Height [mm]: 84
  • Number of Holes: 5
  • Thread Size: M12 x 1,5
  • Bolt Hole Circle Ø [mm]: 108

Product Details

BrandTRW
TRW article (MPN)DF4227BS
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for RENAULT vehicles

OE manufacturerOEM reference numbers
RENAULT7701472838, 7701713008, 8200367094, 8200655249, 8200209774

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4227BS Brake Disc offered by A.B.S., ACDelco, ALANKO, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREDA LORETT, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, GKN-SPIDAN, G.U.D, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, LPR, MABY PARTS, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS RUBBER, RUVILLE, SASIC, sbs, SKF, SNR, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TREVI AUTOMOTIVE, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17155C
ACDelcoAC2609D
ALANKO304624, 304625
AP14912Y
APEC brakingDSK2234
ATE24011101012
BENDIX051434B, 051436B, 562378B, 562184B
BORG & BECKBBD5742S
BOSCH0986478744, 0986479273
Brake ENGINEERINGDI956264S, DI956264
BRECOBY7695
BREDA LORETTKRT2770
BREMBO08.9792.10, 08979217
BREMSIDBB569S
BSF11402R
CAR142164, HPD1217, 1421217, HPD164
CIFAM800692
DELPHIBG3990, BK1306, BG3689, BG9026RSC, BG9026RS
DENCKERMANNB130380
FEBI BILSTEIN21299, 37777
FENOXTB218088
FERODODDF1569, DDF15691, DDF1364, DDF13641
FIRST LINEFBD1320
FOMARFO2609
fri.tech.BD0832
FTEBS5297L
GIRLING6042276
GKN-SPIDAN72162, 72160
G.U.DGDB111101
HELLA8DD355114971, 8DD355112351, 8DD355112361, 8DD355109311
HELLA PAGID8DD355114971, 8DD355109311, 8DD355112361, 8DD355112351
HP58019
ICER78BD22361
JP GROUP4363200609, 4363201709
JURID562184J, 562378J
KAGER371037
KAMOKA1031133
KAWE661300, 661320
LPRR1004PC, R1004PCA
MABY PARTSOBD313006, ODFS0006
MAPCO15129
METELLI230692
METZGER6110044, WMKF15581S, WMKF15581, 14912Y
MEYLE16-155230017
MGAD1669, D1669R
MINTEXMDC1709, MDC1681, MDC1534
MOTAQUIPLVBD1400Z
NATIONALNBD1299, NBD1364
NECTOWN1497
NK203931, 313963, 203963
OPEN PARTSBDA196030, BDR196010
OPTIMAL702976BS1
PAGID54422, 54422PRO, 54714, 54191, 54714PRO
PEX140718, 140956
PILENGA5749
PROTECHNICPRD5316B
QUINTON HAZELLBDC5297, 58019, BSF5297, 661300
R BRAKE78RBD12236
REMSA661320, 661300
ROADHOUSE661300, 661320
ROTINGERRT3192BS, RT3192BST5
ROULUNDS RUBBERD2609
RUVILLE5504, 5504B
SASIC4004300J
sbs1815203963, 1815313963, 1815203931
SKFVKBD1007
SNRKF15581U
STARLINEPB3192C
STELLOX60203963SX
SWAG60921299, 60937777
TEMPLIN0311025351, 0311025356
TEXTAR92171403, 92119100, 89015700, 92142203, 92142200
TREVI AUTOMOTIVEWB1834
TRISCAN812025141, 812025140
TRUSTINGDF832, DF832A
VAICOV4640013
VALEO197312, 186718, 297312, 186896
VEMA98697
WOKINGD661300, D661320, P661300
ZIMMERMANN470242100, 470.2415.00

Vehicle fitment / TRW DF4227BS Brake Disc compatibility

This product fits the following models: RENAULT GRAND SCÉNIC II, RENAULT LAGUNA II, RENAULT SCÉNIC II, etc. See all vehicles this product (TRW DF4227BS) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
RENAULTGRAND SCÉNIC II
JM0/1
2.0 dCi
JM1K
2005/09 - M9R700 150 hp 110 kW 2 L Diesel
M9R721 150 hp 110 kW 2 L Diesel
M9R722 150 hp 110 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
RENAULTLAGUNA II
BG0/1
KG0/1
1.6
1.6 16V
1.6 Bifuel
1.6 FlexFuel
1.6 LPG
1.8 16V
1.9 dCi
1.9 dCI
2.0
2.0 16V
2.0 16V IDE
2.0 16V Turbo
2.0 dCi
2.2 dCi
2.9 V6 24V
3.0 V6 24V

BG00
BG0K
BG0P
BG0W
BG01
BG02
BG0D
BG0Y
BG04
BG0B
BG0C
BG0V
BG05
BG06
BG0J
BG0M
BG08
BG0G
BG09
BG0A
BG0L
BG0B
BG0C
BG0J
BG0M
BG0V
BG0B
BG0M
BG0E
BG0F
BG0N
BG0R
BG0S
BG0Z
BG1L
BG1M
BG14
BG1S
BG1A
BG1V
BG1A
BG1W
BG1G
BG1H
BG1T
KG00
KG0K
KG0W
KG05
KG09
KG0A
KG0L
KG0B
KG0M
KG0D
KG0E
KG0E
KG0R
KG0F
KG0G
KG0J
KG0N
KG0S
KG0Z
KG1L
KG1M
KG12
KG1A
KG1W
KG1S
KG1T
KG1V
2001/03 - F4P770 116 hp 85 kW 1.8 L Petrol
F4P771 116 hp 85 kW 1.8 L Petrol
F4P773 116 hp 85 kW 1.8 L Petrol
F4P774 116 hp 85 kW 1.8 L Petrol
F4P775 116 hp 85 kW 1.8 L Petrol
F4P770 116 hp 85 kW 1.8 L Petrol
F4P771 116 hp 85 kW 1.8 L Petrol
F4P774 116 hp 85 kW 1.8 L Petrol
F4P775 116 hp 85 kW 1.8 L Petrol
F4P770 117 hp 86 kW 1.8 L Petrol
F4P770 121 hp 89 kW 1.8 L Petrol
F4P774 121 hp 89 kW 1.8 L Petrol
F4P770 117 hp 86 kW 1.8 L Petrol
F4P774 117 hp 86 kW 1.8 L Petrol
F4P770 120 hp 88 kW 1.8 L Petrol
F4P773 120 hp 88 kW 1.8 L Petrol
F4P770 121 hp 89 kW 1.8 L Petrol
F4P772 121 hp 89 kW 1.8 L Petrol
F4R712 135 hp 99 kW 2 L Petrol
F4R713 135 hp 99 kW 2 L Petrol
F4R714 135 hp 99 kW 2 L Petrol
F4R715 135 hp 99 kW 2 L Petrol
F4R713 129 hp 95 kW 2 L Petrol
F4R713 132 hp 97 kW 2 L Petrol
F4R714 133 hp 98 kW 2 L Petrol
F4R715 133 hp 98 kW 2 L Petrol
F4R784 170 hp 125 kW 2 L Petrol
F4R786 170 hp 125 kW 2 L Petrol
F4R787 170 hp 125 kW 2 L Petrol
F4R886 204 hp 150 kW 2 L Petrol
F4R887 204 hp 150 kW 2 L Petrol
F4R714 133 hp 98 kW 2 L Petrol
F4R784 170 hp 125 kW 2 L Petrol
F4R786 170 hp 125 kW 2 L Petrol
F4R787 170 hp 125 kW 2 L Petrol
F4R886 204 hp 150 kW 2 L Petrol
F4R887 204 hp 150 kW 2 L Petrol
F4R764 163 hp 120 kW 2 L Petrol
F4R765 163 hp 120 kW 2 L Petrol
F4R786 163 hp 120 kW 2 L Petrol
F4R787 163 hp 120 kW 2 L Petrol
F5R700 140 hp 103 kW 2 L Petrol
F5R701 140 hp 103 kW 2 L Petrol
F9Q650 120 hp 88 kW 1.9 L Diesel
F9Q670 120 hp 88 kW 1.9 L Diesel
F9Q674 120 hp 88 kW 1.9 L Diesel
F9Q750 120 hp 88 kW 1.9 L Diesel
F9Q664 90 hp 66 kW 1.9 L Diesel
F9Q718 107 hp 79 kW 1.9 L Diesel
F9Q750 125 hp 92 kW 1.9 L Diesel
F9Q754 107 hp 79 kW 1.9 L Diesel
F9Q664 92 hp 68 kW 1.9 L Diesel
F9Q670 120 hp 88 kW 1.9 L Diesel
F9Q674 120 hp 88 kW 1.9 L Diesel
F9Q750 120 hp 88 kW 1.9 L Diesel
F9Q674 110 hp 81 kW 1.9 L Diesel
F9Q758 110 hp 81 kW 1.9 L Diesel
F9Q718 107 hp 79 kW 1.9 L Diesel
F9Q750 116 hp 85 kW 1.9 L Diesel
F9Q750 125 hp 92 kW 1.9 L Diesel
F9Q754 107 hp 79 kW 1.9 L Diesel
F9Q752 100 hp 74 kW 1.9 L Diesel
F9Q752 105 hp 77 kW 1.9 L Diesel
F9Q754 100 hp 74 kW 1.9 L Diesel
F9Q758 116 hp 85 kW 1.9 L Diesel
F9Q759 116 hp 85 kW 1.9 L Diesel
F9Q758 130 hp 96 kW 1.9 L Diesel
F9Q759 130 hp 96 kW 1.9 L Diesel
G9T600 116 hp 85 kW 2.2 L Diesel
G9T600 140 hp 102 kW 2.2 L Diesel
G9T605 140 hp 102 kW 2.2 L Diesel
G9T706 140 hp 102 kW 2.2 L Diesel
G9T707 140 hp 102 kW 2.2 L Diesel
G9T600 140 hp 102 kW 2.2 L Diesel
G9T706 140 hp 102 kW 2.2 L Diesel
G9T707 140 hp 102 kW 2.2 L Diesel
G9T700 150 hp 110 kW 2.2 L Diesel
G9T702 150 hp 110 kW 2.2 L Diesel
G9T702 150 hp 110 kW 2.2 L Diesel
K4M710 103 hp 76 kW 1.6 L Petrol
K4M710 107 hp 79 kW 1.6 L Petrol
K4M714 107 hp 79 kW 1.6 L Petrol
K4M714 107 hp 79 kW 1.6 L Petrol
K4M716 112 hp 82 kW 1.6 L Petrol
K4M718 103 hp 76 kW 1.6 L Petrol
L7X731 207 hp 152 kW 3 L Petrol
L7X731 214 hp 157 kW 2.9 L Petrol
L7X733 214 hp 157 kW 2.9 L Petrol
M9R740 150 hp 110 kW 2 L Diesel
M9R760 173 hp 127 kW 2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
RENAULTSCÉNIC II
JM0/1
2.0 dCi
JM1K
2005/09 - M9R700 150 hp 110 kW 2 L Diesel
M9R721 150 hp 110 kW 2 L Diesel
M9R722 150 hp 110 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
