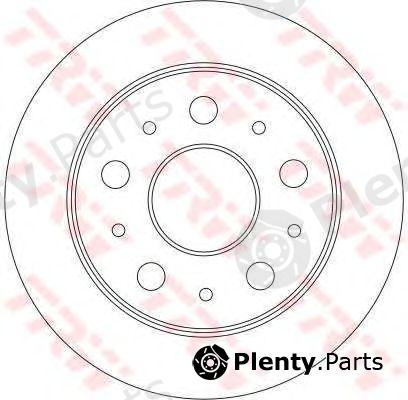

TRW DF4245 Brake Disc

TRW part DF4245 Brake Disc

TRW DF4245 Brake Disc

by TRW

Manufacturer Part Number: DF4245

Сharacteristics:
  • Surface: Painted
  • Thread Size: 17,5
  • Brake Disc Type: Solid
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 16
  • Centering Diameter [mm]: 79
  • Height [mm]: 82
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 130
  • Minimum thickness [mm]: 14,2
  • Drum Diameter: 172
  • Colour: Black

Product Details

BrandTRW
TRW article (MPN)DF4245
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4246Z1, 00004246Z1, 4246Z3, 4249K9
FIAT / LANCIA / ALFA71740117, 46833807

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4245 Brake Disc offered by A.B.S., ALANKO, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, DEXTRIM, DJ AUTO, Dr!ve+, E.T.F., FARCOM, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURATEK, JURID, KAGER, KAWE, KORTEX, LEMFÖRDER, LPR, MAGNETI MARELLI, MALÒ, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STELLOX, STOP, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17462
ALANKO303601, 305061
AP14808
APEC brakingDSK2259
ATE24011601141, 24.0116-0125.1
BENDIX562757BC
BORG & BECKBBD4405
BOSCH0986479S86, 0986479399, 0986479066, 0986479C10
Brake ENGINEERINGDI956240S, DI956240
BRECOBS7607
BREMBO08.8094.40
BREMSIDBB145S
BSF11415
CAR142212
CASALS55409, 55563
CIFAM800732
DELPHIBG3923
DENCKERMANNB130438
DEXTRIMDX8-RS504
DJ AUTOBD1529
Dr!ve+DP1010110196
E.T.F.190150
FARCOM230997
FENOXTB218200
FERODODDF1145, DDF1145C, DDF1145C1, DDF11451
FOMARFO2711
fri.tech.BD0869
FTEBS5365B, BS5365
GIRLING6042454
HANS PRIES721184
HELLA8DD355108-981, 8DD355108-971
HELLA PAGID8DD355108971, 8DD355108981
HP58129
ICER78BD46961
JP GROUP4163200509
JURATEKCIT107
JURID562757JC
KAGER371054
KAWE674100
KORTEXKD0140
LEMFÖRDER3087301
LPRC1003P
MAGNETI MARELLI353611533550, 360406023600
MALÒ1110037
MAPCO25038
METELLI230732
METZGER14808, 6110651
MEYLE2155230006
MGAD1458
MINTEXMDC1686
MOTAQUIPLVBD1200
NATIONALNBD1311
NECTOWN1166
NK313732, 203732
OPEN PARTSBDA203310
OPTIMALBS8376, BS-6760
PAGID54162, 54162PRO
PATRONPBD4245
PILENGA5046
PROTECHNICPRD5203
QUINTON HAZELLBSF5365, 58129, BDC5365
R BRAKE78RBD14696
REMSA6741.00
ROADHOUSE674100
ROTINGERRT1497, RT1497T5
SASIC2464Z34J
sbs1815203732, 1815313732
STELLOX60203732SX
STOP562757S
TEMPLIN0311081175, 0311081170, 031102600090
TEXTAR92116203, 92116200
TRISCAN812010177
TRUSTINGDF869
VAICOV2240002
VALEO197329, 297329, 186708
VEMA98227
VILLAR6281371
WOKINGD674100
ZIMMERMANN180302020, 180302000

Vehicle fitment / TRW DF4245 Brake Disc compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, etc. See all vehicles this product (TRW DF4245) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNJUMPER
230
230L
230P
244
244
Z
2.0
2.0 bivalent
2.0 HDi
2.0 HDI
2.2 HDi
2.5 D
2.5 D 4x4
2.5 TD
2.5 TDi
2.8 D
2.8 HDi
2.8 HDi 4x4
1994/02 - 4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.63(F28D) 87 hp 64 kW 2.8 L Diesel
F28TDCR 128 hp 94 kW 2.8 L Diesel
RFW(XU10J2U) 109 hp 80 kW 2 L Petrol
RHV(DW10TD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
T8A(DJ5T) 103 hp 76 kW 2.5 L Diesel
T9A(DJ5) 86 hp 63 kW 2.5 L Diesel
THX(DJ5TED) 107 hp 79 kW 2.5 L Diesel
XU10J2 110 hp 81 kW 2 L Petrol
AWD / 4WD
Front wheel
Front wheel
AWD / 4WD
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
CITROËNRELAY
230
230L
230P
244
244
Z
2.0
2.0 bivalent
2.0 HDi
2.0 HDI
2.2 HDi
2.5 D
2.5 D 4x4
2.5 TD
2.5 TDi
2.8 D
2.8 HDi
2.8 HDi 4x4
1994/02 - 4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.63(F28D) 87 hp 64 kW 2.8 L Diesel
F28TDCR 128 hp 94 kW 2.8 L Diesel
RFW(XU10J2U) 109 hp 80 kW 2 L Petrol
RHV(DW10TD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
T8A(DJ5T) 103 hp 76 kW 2.5 L Diesel
T9A(DJ5) 86 hp 63 kW 2.5 L Diesel
THX(DJ5TED) 107 hp 79 kW 2.5 L Diesel
XU10J2 110 hp 81 kW 2 L Petrol
AWD / 4WD
Front wheel
Front wheel
AWD / 4WD
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
230
230L
244
244
Z
2.0 4x4
2.0 JTD
2.0 Panorama/Combinato
2.3 JTD
2.8 D
2.8 JTD
2.8 JTD 4x4
2.8 JTD Power
2.8 TD 4x4
2.8 TDI
2.8 TDI 4x4
1994/03 - 8140.43 122 hp 90 kW 2.8 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.63 87 hp 64 kW 2.8 L Diesel
F1AE0481C 110 hp 81 kW 2.3 L Diesel
RFL 110 hp 81 kW 2 L Petrol
RFW 109 hp 80 kW 2 L Petrol
RHV(DW10) 84 hp 62 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTBOXER
230L
230P
244
244
Z
ZCT
2.0
2.0 HDi
2.0 i
2.2 HDi
2.8 D
2.8 HDi
2.8 HDI
2.8 HDi 4x4
2.8 TD
1994/06 - 4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel
8140.43(F28DT) 122 hp 90 kW 2.8 L Diesel
8140.43N 145 hp 107 kW 2.8 L Diesel
8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel
8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel
8140.63(F28D) 87 hp 64 kW 2.8 L Diesel
RFL(XU10J2U) 110 hp 81 kW 2 L Petrol
RFW(XU10J2) 109 hp 80 kW 2 L Petrol
RHV(DW10TD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
