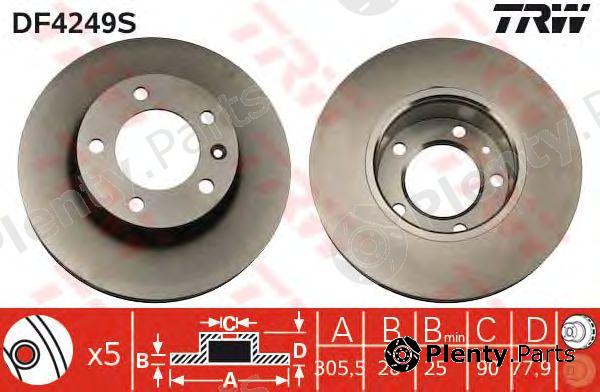

TRW DF4249S Brake Disc
TRW DF4249S Brake Disc
by TRWManufacturer Part Number: DF4249S
- Brake Disc Type: Vented
- Diameter [mm]: 305,5
- Brake Disc Thickness [mm]: 28
- Minimum thickness [mm]: 25
- Centering Diameter [mm]: 90
- Height [mm]: 77,8
- Number of Holes: 5
- Thread Size: 15.8
- Bolt Hole Circle Ø [mm]: 130
- Colour: Black
- Surface: Painted
Product Details
| Brand | TRW |
| TRW article (MPN) | DF4249S |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for MERITOR (ROR), NISSAN, OPEL, RENAULT, VAUXHALL vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| MERITOR (ROR) | MBR6015 |
| NISSAN | 7700314064, 4020600QAD |
| OPEL | 4403038, 562190, 4501421 |
| RENAULT | 7700314064 |
| VAUXHALL | 9111038, 9161721 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for TRW DF4249S Brake Disc offered by A.B.S., ALANKO, APEC braking, ASHIKA, ASHUKI, ATE, AUTOMEGA, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, DITAS, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, HP, ICER, JAPANPARTS, JAPKO, JP GROUP, JURID, KAGER, KAMOKA, KAVO PARTS, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MDR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROFIT, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STELLOX, STOP, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17159 |
| ALANKO | 303429, 304973 |
| APEC braking | DSK2092 |
| ASHIKA | 6001120 |
| ASHUKI | 09906801 |
| ATE | 24.0328-0129.1, 24012801291 |
| AUTOMEGA | 1344030038, 30770003140064, 1044030038 |
| BARUM | BAR28129 |
| BENDIX | 562190B, 562190BC |
| BLUE PRINT | ADZ94319, ADN143105 |
| BORG & BECK | BBD5722S |
| BOSCH | 0986479001, 986479001, 0986479B59, 0986478970 |
| Brake ENGINEERING | DI956166, DI956166S |
| BRECK | BR337VA100 |
| BREMBO | 09908010 |
| BREMSI | DBB217V |
| BSF | 11393V |
| CAR | 142366 |
| CASALS | 55379 |
| CIFAM | 800532C |
| DELPHI | BG3553, 98200115901, 562164J, BS5164, 562190J, BG9692 |
| DENCKERMANN | B130159 |
| DITAS | DFD1021 |
| Dr!ve+ | DP1010110824 |
| E.T.F. | 196848 |
| EUROBRAKE | 5815203644 |
| FARCOM | 230978 |
| FEBI BILSTEIN | 22240 |
| FENOX | TB219166 |
| FERODO | DDF12171, DDF1217C1, DDF1217C, DDF1217 |
| FIRST LINE | FBD1225 |
| FOMAR | FO1648 |
| fri.tech. | BD0736 |
| FTE | BS5164B, BS5164 |
| GIRLING | 6042495 |
| HANS PRIES | 207070 |
| HELLA | 8DD355108931, 8DD355108921 |
| HELLA PAGID | 8DD355108931, 8DD355108921 |
| HERTH+BUSS JAKOPARTS | J3301093 |
| HP | 58062 |
| ICER | 78BD68481 |
| JAPANPARTS | DI-120 |
| JAPKO | 60120 |
| JP GROUP | 1263103209 |
| JURID | 562190JC, 562164J, 562190J |
| KAGER | 371013 |
| KAMOKA | 1031023 |
| KAVO PARTS | BR6778C, BR6778 |
| KAWE | 664310 |
| KEY PARTS | KBD5722S |
| KRAFT | 6045415 |
| LPR | O1003V |
| MAGNETI MARELLI | 351405220500, 360406008900, 360704010900, 360406101000, 600000086730, 361302040160, 360406008903 |
| MALÒ | 1110200 |
| MAPCO | 15125, 15126 |
| MDR | MFD2120 |
| METELLI | 230532, 230532C |
| METZGER | 6110287, 24747, 24849 |
| MEYLE | 6155216031, 6155216030 |
| MGA | D1391 |
| MINTEX | MDC1505, MDK0243 |
| NECTO | WN1235 |
| NK | 313644, 203644 |
| OPEN PARTS | BDA197920 |
| OPTIMAL | BS-6540 |
| PAGID | 54159, 54159PRO |
| PEX | 140825 |
| PILENGA | V378 |
| PROFIT | 50101272 |
| QUINTON HAZELL | BDC5164, BSF5164, 58062 |
| R BRAKE | 78RBD16848 |
| REMSA | 664310 |
| ROADHOUSE | 664310 |
| ROTINGER | RT2881, RT2881T5 |
| SASIC | 4004301J |
| sbs | 1815313644, 1815203644 |
| STELLOX | 8500767SX |
| STOP | 562190S |
| SWAG | 60922240 |
| TEMPLIN | 0311083420, 0311083425 |
| TEXTAR | 92115903, 98200115901, 92115900, 89007800 |
| TRISCAN | 812010182 |
| TRUSTING | DF736 |
| VAICO | V4080044 |
| VALEO | 186868 |
| VEMA | 4444903 |
| WAGNER LOCKHEED | WGR12171 |
| WOKING | D664310 |
| ZIMMERMANN | 430260120, 430260100 |
Vehicle fitment / TRW DF4249S Brake Disc compatibility
This product fits the following models: NISSAN INTERSTAR, OPEL MOO, RENAULT MASTER II, VAUXHALL MOOI, etc. See all vehicles this product (TRW DF4249S) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| NISSAN | INTERSTAR X70 | dCi 100 dCi 120 dCi 140 dCi 150 dCi 80 dCI 90 | 2002/07 - | F9Q772 82 hp 60 kW 1.9 L Diesel G9T722 90 hp 66 kW 2.2 L Diesel G9U632 145 hp 107 kW 2.5 L Diesel G9U650 101 hp 74 kW 2.5 L Diesel G9U720 99 hp 73 kW 2.5 L Diesel G9U650 120 hp 88 kW 2.5 L Diesel G9U720 115 hp 84 kW 2.5 L Diesel G9U720 101 hp 74 kW 2.5 L Diesel G9U720 99 hp 73 kW 2.5 L Diesel G9U720 99 hp 73 kW 2.5 L Diesel ZD30 136 hp 100 kW 3 L Diesel | Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| OPEL | MOO F9 H9 J9 U9 E9 | 1.9 DTI 2.2 DTI 2.5 CDTI 2.5 D 2.5 DTi 2.5 DTI 2.8 DTI 3.0 DTi 3.0 DTI | 1998/07 - | F9Q770 80 hp 59 kW 1.9 L Diesel F9Q772 82 hp 60 kW 1.9 L Diesel F9Q774 82 hp 60 kW 1.9 L Diesel G9T720 90 hp 66 kW 2.2 L Diesel G9T722 90 hp 66 kW 2.2 L Diesel G9T750 90 hp 66 kW 2.2 L Diesel G9U632 120 hp 88 kW 2.5 L Diesel G9U632 146 hp 107 kW 2.5 L Diesel G9U650 101 hp 74 kW 2.5 L Diesel G9U650 120 hp 88 kW 2.5 L Diesel G9U650 146 hp 107 kW 2.5 L Diesel G9U720 115 hp 84 kW 2.5 L Diesel G9U724 115 hp 84 kW 2.5 L Diesel G9U750 115 hp 84 kW 2.5 L Diesel G9U754 115 hp 84 kW 2.5 L Diesel G9U720 115 hp 84 kW 2.5 L Diesel G9U724 115 hp 84 kW 2.5 L Diesel G9U750 115 hp 84 kW 2.5 L Diesel G9U754 115 hp 84 kW 2.5 L Diesel G9U754 99 hp 73 kW 2.5 L Diesel G9U720 115 hp 84 kW 2.5 L Diesel G9U724 115 hp 84 kW 2.5 L Diesel G9U754 115 hp 84 kW 2.5 L Diesel G9U754 99 hp 73 kW 2.5 L Diesel S8U770 80 hp 59 kW 2.5 L Diesel S8U772 80 hp 59 kW 2.5 L Diesel S9W700 114 hp 84 kW 2.8 L Diesel S9W702 114 hp 84 kW 2.8 L Diesel ZD3200 136 hp 100 kW 3 L Diesel ZD3202 136 hp 100 kW 3 L Diesel | Front wheel | Dump truck LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| RENAULT | MASTER II ED/HD/UD FD JD | 1.9 dCi 80 1.9 dTI 2.2 dCI 90 2.5 D 2.5 dCi 2.5 dCi 100 2.5 dCi 120 2.8 dTI 3.0 dCi 140 ED0S UD0S ED4V ED8V FD0U FD0V HD0S FD0S HD1S JD0T JDCV | 1998/07 - | F9Q770 80 hp 59 kW 1.9 L Diesel F9Q772 82 hp 60 kW 1.9 L Diesel F9Q774 82 hp 60 kW 1.9 L Diesel G9T720 90 hp 66 kW 2.2 L Diesel G9T722 90 hp 66 kW 2.2 L Diesel G9T750 90 hp 66 kW 2.2 L Diesel G9U632 146 hp 107 kW 2.5 L Diesel G9U650 101 hp 74 kW 2.5 L Diesel G9U650 120 hp 88 kW 2.5 L Diesel G9U750 114 hp 84 kW 2.5 L Diesel G9U754 101 hp 74 kW 2.5 L Diesel G9U632 146 hp 107 kW 2.5 L Diesel G9U650 120 hp 88 kW 2.5 L Diesel G9U750 114 hp 84 kW 2.5 L Diesel G9U754 101 hp 74 kW 2.5 L Diesel G9U720 115 hp 84 kW 2.5 L Diesel G9U724 115 hp 84 kW 2.5 L Diesel G9U750 115 hp 84 kW 2.5 L Diesel G9U754 115 hp 84 kW 2.5 L Diesel G9U720 115 hp 84 kW 2.5 L Diesel G9U750 115 hp 84 kW 2.5 L Diesel G9U754 115 hp 84 kW 2.5 L Diesel G9U754 99 hp 73 kW 2.5 L Diesel S8U770 80 hp 59 kW 2.5 L Diesel S9W702 114 hp 84 kW 2.8 L Diesel ZD3200 136 hp 100 kW 3 L Diesel ZD3202 136 hp 100 kW 3 L Diesel ZD3202 136 hp 100 kW 3 L Diesel | Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| VAUXHALL | MOOI A Chassis/Cab ED UD HD A Combi JD A Van FD | 1.9 DTI 2.2 DTI 2.5 CDTI 2.5 D 2.5 DTI 2.8 DTI 2.8 TDI 3.0 DTi | 1998/10 - 2010/05 | F9Q774 82 hp 60 kW 1.9 L Diesel G9T720 90 hp 66 kW 2.2 L Diesel G9T722 90 hp 66 kW 2.2 L Diesel G9T750 90 hp 66 kW 2.2 L Diesel G9T720 90 hp 66 kW 2.2 L Diesel G9T750 90 hp 66 kW 2.2 L Diesel G9U632 120 hp 88 kW 2.5 L Diesel G9U632 146 hp 107 kW 2.5 L Diesel G9U650 101 hp 74 kW 2.5 L Diesel G9U650 120 hp 88 kW 2.5 L Diesel G9U650 146 hp 107 kW 2.5 L Diesel G9U754 101 hp 74 kW 2.5 L Diesel G9U632 120 hp 88 kW 2.5 L Diesel G9U632 146 hp 107 kW 2.5 L Diesel G9U650 101 hp 74 kW 2.5 L Diesel G9U650 120 hp 88 kW 2.5 L Diesel G9U754 101 hp 74 kW 2.5 L Diesel G9U720 115 hp 84 kW 2.5 L Diesel G9U724 115 hp 84 kW 2.5 L Diesel G9U750 115 hp 84 kW 2.5 L Diesel G9U754 115 hp 84 kW 2.5 L Diesel G9U720 115 hp 84 kW 2.5 L Diesel G9U750 115 hp 84 kW 2.5 L Diesel G9U754 115 hp 84 kW 2.5 L Diesel S8U770 80 hp 59 kW 2.5 L Diesel S9W702 114 hp 84 kW 2.8 L Diesel ZD3200 136 hp 100 kW 3 L Diesel ZD3200 136 hp 100 kW 3 L Diesel ZD3202 136 hp 100 kW 3 L Diesel ZD3202 136 hp 100 kW 3 L Diesel | Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
