TRW DF4336 Brake Disc

TRW part DF4336 Brake Disc

TRW DF4336 Brake Disc

by TRW

Manufacturer Part Number: DF4336

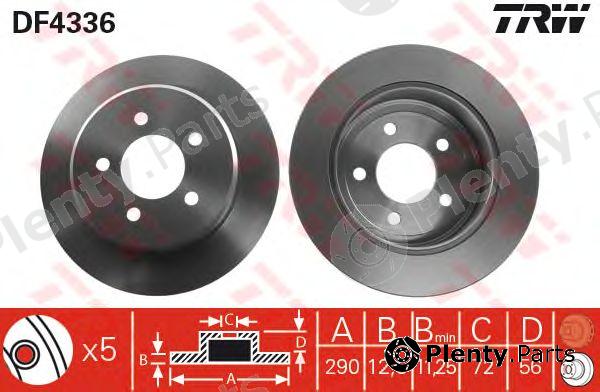

Сharacteristics:
  • Brake Disc Type: Solid
  • Diameter [mm]: 290
  • Brake Disc Thickness [mm]: 12,5
  • Minimum thickness [mm]: 11,25
  • Centering Diameter [mm]: 72
  • Height [mm]: 56
  • Number of Holes: 5
  • Thread Size: 14,6
  • Bolt Hole Circle Ø [mm]: 114,3
  • Drum Diameter: 180
  • Colour: Black
  • Surface: Painted

Product Details

BrandTRW
TRW article (MPN)DF4336
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CHRYSLER, DODGE, JEEP vehicles

OE manufacturerOEM reference numbers
CHRYSLERK04721023AD, 4721023, 4721023AF, 4721023AE, 4721023AG, 00K04721220AA, K04721023, K04721023AC, 04721023AF
DODGE4721023AG, 52128411AB, 52128411AA, 4721023AF
JEEP52128411AA, 52128411AB, V5018411AA

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4336 Brake Disc offered by A.B.S., AP, APEC braking, ASHIKA, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, DELPHI, DENCKERMANN, DJ AUTO, Dr!ve+, FARCOM, FENOX, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HP, ICER, JAPANPARTS, JAPKO, JP GROUP, JURATEK, JURID, KAGER, KAISHIN, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAPCO, MDR, METELLI, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, RUVILLE, sbs, STARLINE, STELLOX, STOP, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17034
AP14958, 14958V
APEC brakingDSK2079
ASHIKA6109905, 6109993
ASHUKIUS104327
ATE24011301961
BENDIX562646BC
BLUE PRINTADA104327, ADA104308
BORG & BECKBBD4276, BBD4734
BOSCH0986BB4308, 0986AB6105, 0986479102, 0986479205
Brake ENGINEERINGDI956148
BRECOBV7749, BS7749
BREMBO08.A351.10, 08A35111
BREMSIDBB492S
BSF11582
CARHPD337, 142337
DELPHIBG3739
DENCKERMANNB130329
DJ AUTOBD1642
Dr!ve+DP1010110130
FARCOM230975
FENOXTB218023
FERODODDF1492, DDF1492C1, DDF1492C, DDF14921
FIRST LINEFBD1276
FOMARFO2771
fri.tech.BD0158
FTEBS5426, BS5426B
GIRLING6043364
HELLA8DD355107901
HELLA PAGID8DD355107901
HP57950
ICER78BD10232
JAPANPARTSDP905, DP993
JAPKO61993, 61905
JP GROUP5063200109
JURATEKCHR103
JURID562646JC
KAGER370973
KAISHINCBR062
KAMOKA103199
KAWE674600
LPRC3005P
MAGNETI MARELLI360406100900, 360406090300
MAPCO15989
MDRMRD2993, MRD2905
METELLI231092C
MEYLE44155230003, 44-155230003/PD
MGAD1625
MINTEXMDC1553
MOTAQUIPLVBD1010Z
NATIONALNBD1155
NECTOWN1421
NK209311, 319311
OPEN PARTSBDR197210, BDA197210
OPTIMALBS-7648
PAGID50333
PATRONPBD7003
PEX140772
PILENGA5614
PROTECHNICPRD5348
QUINTON HAZELLBDC5867, 57950, BSF5426, BDC5426
R BRAKE78RBD21023
REMSA674600
ROADHOUSE674600
ROTINGERRT1508, RT1508T5
RUVILLEBRR110910
sbs1815319311, 1815209311
STARLINEPB1508C
STELLOX60209311SX
STOP562646S
TEMPLIN0311013820
TEXTAR92108403, 92108400
TRISCAN8120101012
TRUSTINGDF158
VAICOV3340003, V3340002
VALEO197022
VEMA98655
WAGNER LOCKHEEDWGR14921
WOKINGD674600
ZIMMERMANN155390400, 155390420

Vehicle fitment / TRW DF4336 Brake Disc compatibility

This product fits the following models: CHRYSLER GRAND VOYAGER III, CHRYSLER GRAND VOYAGER IV, CHRYSLER TOWN & COUNTRY IV, CHRYSLER VOYAGERII, CHRYSLER VOYAGER III, CHRYSLER VOYAGERIII, CHRYSLER VOYAGER IV, DODGE CARA, etc. See all vehicles this product (TRW DF4336) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CHRYSLERGRAND VOYAGER III
GS
2.0 i
2.4 i
2.5 TD
3.3 i
3.8
3.8 i AWD
1995/01 - 2001/03425CLIRS/X 116 hp 85 kW 2.5 L Diesel
ENC 116 hp 85 kW 2.5 L Diesel
B00 151 hp 111 kW 2.4 L Petrol
C00 133 hp 98 kW 2 L Petrol
EGH 178 hp 131 kW 3.8 L Petrol
EGH 178 hp 131 kW 3.8 L Petrol
L00 166 hp 122 kW 3.8 L Petrol
R00 158 hp 116 kW 3.3 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERGRAND VOYAGER IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERTOWN & COUNTRY IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGERII
GS
2.0 i
2.4 i
2.5 TD
3.3 i
3.8
3.8 i AWD
1995/01 - 2001/03425CLIRS/X 116 hp 85 kW 2.5 L Diesel
ENC 116 hp 85 kW 2.5 L Diesel
B00 151 hp 111 kW 2.4 L Petrol
C00 133 hp 98 kW 2 L Petrol
EGH 178 hp 131 kW 3.8 L Petrol
EGH 178 hp 131 kW 3.8 L Petrol
L00 166 hp 122 kW 3.8 L Petrol
R00 158 hp 116 kW 3.3 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGER III
GS
2.0 i
2.4 i
2.5 TD
3.3 i
3.8
3.8 i AWD
1995/01 - 2001/03425CLIRS/X 116 hp 85 kW 2.5 L Diesel
ENC 116 hp 85 kW 2.5 L Diesel
B00 151 hp 111 kW 2.4 L Petrol
C00 133 hp 98 kW 2 L Petrol
EGH 178 hp 131 kW 3.8 L Petrol
EGH 178 hp 131 kW 3.8 L Petrol
L00 166 hp 122 kW 3.8 L Petrol
R00 158 hp 116 kW 3.3 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGERIII
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGER IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
DODGECARA
RG
3.3
3.3 AWD
3.8
3.8 AWD
3.8 Turbo AWD
2000/02 - 2007/12EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 179 hp 132 kW 3.3 L Petrol
EGH 208 hp 153 kW 3.8 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
