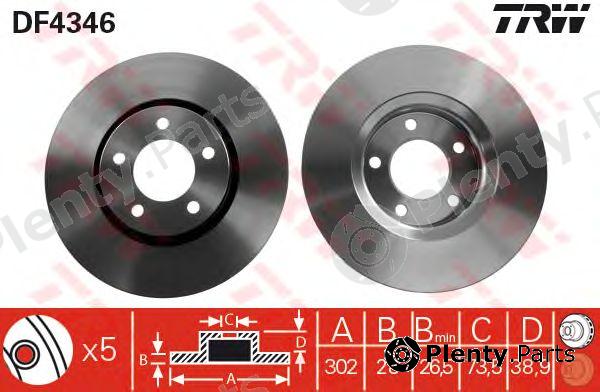

TRW DF4346 Brake Disc

TRW part DF4346 Brake Disc

TRW DF4346 Brake Disc

by TRW

Manufacturer Part Number: DF4346

Сharacteristics:
  • Surface: Painted
  • Brake Disc Type: Vented
  • Diameter [mm]: 302
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26,5
  • Centering Diameter [mm]: 73,5
  • Height [mm]: 38,9
  • Number of Holes: 5
  • Thread Size: 14
  • Bolt Hole Circle Ø [mm]: 114,3
  • Colour: Black

Product Details

BrandTRW
TRW article (MPN)DF4346
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CHRYSLER, DODGE vehicles

OE manufacturerOEM reference numbers
CHRYSLER04683918AB, 4683918, 4683918AB, 4683918AD, K04683918AA
DODGE46833918AB

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4346 Brake Disc offered by A.B.S., ALANKO, AP, APEC braking, ASHIKA, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HP, ICER, JAPANPARTS, JAPKO, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MDR, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, RUVILLE, sbs, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17354
ALANKO305686, 305229
AP24964, 24964V
APEC brakingDSK2106
ASHIKA6009992
ASHUKIUS104301
ATE24012801471
BENDIX562292B, 562292BC
BLUE PRINTADA104301
BORG & BECKBBD4275
BOSCH0986479117
Brake ENGINEERINGDI956146S, DI956146
BRECOBV8583, BS8583
BREMBO09974311, 09.9743.10
BREMSIDBB372V
BSF11445V
CARHPD336, 142336
CIFAM800780C
DELPHIBG3716
DENCKERMANNB130443
Dr!ve+DP1010110368
EUROBRAKE5815209312
FARCOM230979
FEBI BILSTEIN28171
FERODODDF1372, DDF1459, DDF13721, DDF1372C
FIRST LINEFBD1275
FOMARFO4005
fri.tech.BD0971
FTEBS5337, BS5337H
GIRLING6043461
HELLA8DD355107-881, 8DD355107861
HELLA PAGID8DD355107881, 8DD355107861
HP58043
ICER78BD39182
JAPANPARTSDI992
JAPKO60992
JP GROUP5063100409
JURATEKCHR102
JURID562292JC, 562292J
KAGER371115
KAMOKA103269
KAWE660210
KRAFT6048570
LPRC3002V
MAGNETI MARELLI360406087400
MAPCO25993
MDRMFD2992
METELLI230780, 230780C
METZGER6110622, 660210, 24964
MEYLE44-155210001
MGAD1583
MINTEXMDC1351, MDC1554
NATIONALNBD1154
NECTOWN1341
NK209312, 319312
OPEN PARTSBDA198120, BDR198120
OPTIMALBS-7650
PAGID50329, 50331, 50331PRO
PATRONPBD4346
PEX140929
PILENGAV642
PROTECHNICPRD2667, PRD2708
QUINTON HAZELLBDC5337, 58043, 660210, BSF5337
R BRAKE78RBD23918
REMSA660210
ROADHOUSE660210
ROTINGERRT20160T5, RT20160
RUVILLEBFR114410
sbs1815319312, 1815209312
STELLOX60209987SX
SWAG14928171
TEMPLIN0311013730
TEXTAR92108000, 92108203, 92108200
TRISCAN8120101011
TRUSTINGDF971
VAICOV3380003
VALEO197068, 197233
VEMA98656
VILLAR6281415
WAGNER LOCKHEEDWGR13721
WOKINGD660210, P660210
ZIMMERMANN155390220, 155390250, 155390200, 155390252

Vehicle fitment / TRW DF4346 Brake Disc compatibility

This product fits the following models: CHRYSLER GRAND VOYAGER IV, CHRYSLER TOWN & COUNTRY IV, CHRYSLER VOYAGERIII, CHRYSLER VOYAGER IV, DODGE CARA, etc. See all vehicles this product (TRW DF4346) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CHRYSLERGRAND VOYAGER IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERTOWN & COUNTRY IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGERIII
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGER IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
DODGECARA
RG
3.3
3.3 AWD
3.8
3.8 AWD
3.8 Turbo AWD
2000/02 - 2007/12EGA 174 hp 128 kW 3.3 L Petrol
EGH 208 hp 153 kW 3.8 L Petrol
EGH 209 hp 154 kW 3.8 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
