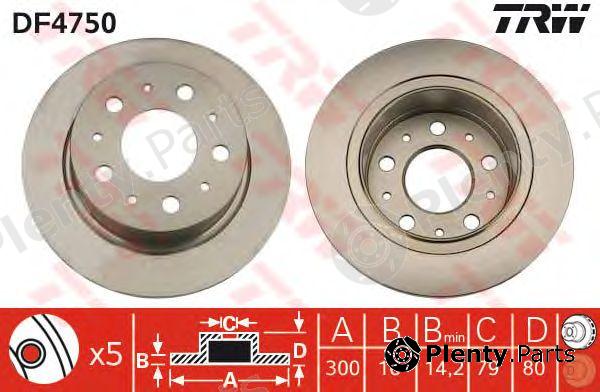

TRW DF4750 Brake Disc

TRW part DF4750 Brake Disc

TRW DF4750 Brake Disc

by TRW

Manufacturer Part Number: DF4750

Сharacteristics:
  • Minimum thickness [mm]: 14,2
  • Brake Disc Type: Solid
  • Brake Disc Thickness [mm]: 16
  • Diameter [mm]: 300
  • Number of Holes: 5
  • Height [mm]: 80
  • Thread Size: 17,5
  • Centering Diameter [mm]: 79
  • Bolt Hole Circle Ø [mm]: 130
  • Colour: Black
  • Surface: Painted

Product Details

BrandTRW
TRW article (MPN)DF4750
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT424942, 4249K6, 424941, 4249E8
FIAT / LANCIA / ALFA51740250, 51749555

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4750 Brake Disc offered by A.B.S., ALANKO, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, DEXTRIM, DJ AUTO, E.T.F., EUROBRAKE, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, HELLA, HELLA PAGID, JAPANPARTS, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, LPR, MAGNETI MARELLI, MENSAN, METELLI, METZGER, MEYLE, MGA, MILES, MINTEX, MOTAQUIP, NATIONAL, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STELLOX, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17691
ALANKO303648
AP14967
APEC brakingDSK2484
ATE24011601231
BENDIX562629BC
BORG & BECKBBD4621
BOSCH0986AB5682, 0986479317
Brake ENGINEERINGDI956677
BRECOBS7758
BREMBO08.A459.10
BREMSIDBB823S
BSF11515
CAR1421418
CASALS55563
CIFAM800911C
DELPHIBG4062
DENCKERMANNB130293
DEXTRIMDX8-RS507
DJ AUTOBD1517
E.T.F.197414
EUROBRAKE5815201946
FENOXTB215372
FERODODDF18231, DDF1823
FOMARFO2831
fri.tech.BD1165
FTEBS7167B, BS7167
GALFERB1.G216-0123.1
GIRLING6047504
HELLA8DD355113-731
HELLA PAGID8DD355113731
JAPANPARTSDP442
JP GROUP4163201009
JURATEKCIT117
JURID562629JC
KAGER370992
KAMOKA1033646
KAWE6105700
KEY PARTSKBD4621
LPRH1009P, C1039P
MAGNETI MARELLI360406089600
MENSAN300249
METELLI230911C
METZGER6110647, 230911
MEYLE2155230028
MGAD1782
MILESK011497
MINTEXMDC2058
MOTAQUIPLVBD1287
NATIONALNBD1533
NIPPARTSJ3314033
NK311946, 201946
OPEN PARTSBDA238610
OPTIMALBS-8372
PAGID54576
PILENGA5388
PROTECHNICPRD5387
QUINTON HAZELLBDC5594, BSF5594
REMSA6105700
ROADHOUSE6105700
ROTINGERRT1744T5, RT1744
SASIC6100023
sbs1815201946, 1815311946
STELLOX60209967SX
TEMPLIN031102600070
TEXTAR92157600
TRISCAN8120101004
TRUSTINGDF1165
VAICOV4240008
VALEO197105
VEMA98659
WOKINGD6105700
ZIMMERMANN230237600, 230237620

Vehicle fitment / TRW DF4750 Brake Disc compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, PEUGEOT MANAGER, etc. See all vehicles this product (TRW DF4750) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNJUMPER
2.2 HDi 100
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
CITROËNRELAY
2.2 HDi 100
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
250
290
100 Multijet 2
2 D
120 Multijet 2
3 D
130 Multijet 2
3 D
140 Natural Power
150 Multijet 2
3 D
160 Multijet 3
0 D
180 Multijet 3
0 D
2006/07 - 4HV 100 hp 74 kW 2.2 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
FPT 120 hp 88 kW 2.3 L Diesel
F1AE0481N 131 hp 96 kW 2.3 L Diesel
F1AE0481T 126 hp 93 kW 2.3 L Diesel
F1AE3481D 131 hp 96 kW 2.3 L Diesel
F1AGL411D 131 hp 96 kW 2.3 L Diesel
F1AE3481E 148 hp 109 kW 2.3 L Diesel
F1CE0441A 136 hp 100 kW 3 L Petrol
F1CE0481D 156 hp 115 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481M 158 hp 116 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481M 156 hp 115 kW 3 L Diesel
F1CE3481E 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTBOXER
2.2 HDi 100
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 120 hp 88 kW 2.2 L Diesel
146 hp 107 kW 3 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTMANAGER
2.2 HDi 100
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 120 hp 88 kW 2.2 L Diesel
146 hp 107 kW 3 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
