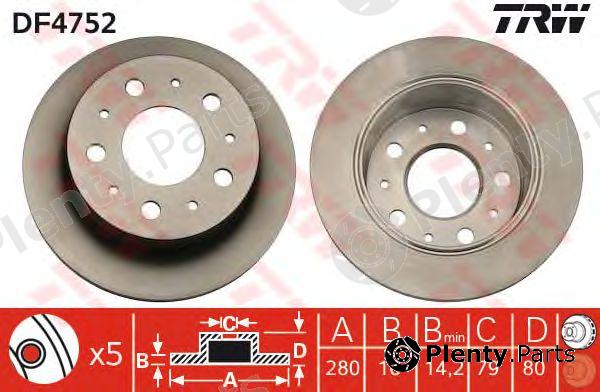

TRW DF4752 Brake Disc

TRW part DF4752 Brake Disc

TRW DF4752 Brake Disc

by TRW

Manufacturer Part Number: DF4752

Сharacteristics:
  • Minimum thickness [mm]: 14,2
  • Brake Disc Type: Solid
  • Brake Disc Thickness [mm]: 16
  • Diameter [mm]: 280
  • Number of Holes: 5
  • Centering Diameter [mm]: 79
  • Thread Size: 17,5
  • Bolt Hole Circle Ø [mm]: 130
  • Height [mm]: 80
  • Drum Diameter: 172
  • Colour: Black
  • Surface: Painted

Product Details

BrandTRW
TRW article (MPN)DF4752
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT424940, 4249K8, 424939
FIAT / LANCIA / ALFA51856411, 51740248, 51856412, 51749274, 51749275

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4752 Brake Disc offered by A.B.S., ALANKO, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, DEXTRIM, DJ AUTO, Dr!ve+, E.T.F., EUROBRAKE, FENOX, FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, JURATEK, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, LPR, MAGNETI MARELLI, MALÒ, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NK, OPEN PARTS, OPTIMAL, PAGID, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17769
ALANKO303615
AP14922, 14932
APEC brakingDSK2483, DSK2625
ATE24011601241, 24011601251
BENDIX562753BC, 562835BC, 562526BC
BORG & BECKBBD4668, BBD4405
BOSCH0986479316, 0986479C10, 0986479S86, 0986479066, 0986479399
Brake ENGINEERINGDI956667
BRECOBS7712, BS7722
BREMBO08.8094.50, 08.8094.60
BREMSIDBB574S
BSF11514
CAR1421414, HPD1414, 142213, 142212, HPD1413, 1421413
CASALS55563, 55409, 55562
CIFAM800912C
DELPHIBG4061, BG4099
DENCKERMANNB130438
DEXTRIMDX8-RS508
DJ AUTOBD1519
Dr!ve+DP1010110293
E.T.F.190358
EUROBRAKE5815201944
FENOXTB218201
FERODODDF15741, DDF1653, DDF16531, DDF1574, DDF1574C1
FIRST LINEFBD1752
FOMARFO2835
fri.tech.BD1182
FTEBS5365, BS7168, BS5365B, BS7166
GIRLING6047524
HANS PRIES722597
HELLA8DD355113721, 8DD355113711
HELLA PAGID8DD355113721
ICER78BD56251, 78BD46961
JURATEKCIT115
JURID562753JC, 562526JC
KAGER371054
KAMOKA1033148
KAWE6105600
KEY PARTSKBD4668
LPRF2015P
MAGNETI MARELLI360406065200, 360704009700, 360704009800, 360406065100, 360406072800
MALÒ1110037, 1110056
MAPCO15336
METELLI230912C
METZGER6110338, 14932, 14922
MEYLE2155230027, 2155230004
MGAD1736
MINTEXMDC1817, MDC1816
MOTAQUIPLVBD1313
NK311944, 311945, 201945, 203732, 201944, 313732
OPEN PARTSBDA238510
OPTIMALBS-8376
PAGID54575, 54574PRO, 54574
PROTECHNICPRD5354, PRD5282
QUINTON HAZELLBDC5592, BDC5610, BSF5593, BSF5592, BSF5365, BSF5610, BDC5593, BDC5365
R BRAKE78RBD14696
REMSA6105500, 6105600
ROADHOUSE6105600
ROTINGERRT1763T5, RT1763
SASIC6100022
sbs1815201945, 1815311945, 1815311944, 1815201944
STARLINEPB1743C
TEMPLIN031102600050
TEXTAR92157400, 92157500
TRISCAN812028122, 8120101004, 812010199C, 8120101003, 812010199
TRUSTINGDF1182
VAICOV2280007, V2240005, V2240002
VALEO197023, 197097, 297329, 197329
VEMA98620, 98619
VILLAR6282094, 6282038
WOKINGD6105600
ZIMMERMANN230237600, 230237500, 230237520, 230237200, 230237220

Vehicle fitment / TRW DF4752 Brake Disc compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, PEUGEOT MANAGER, etc. See all vehicles this product (TRW DF4752) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNJUMPER
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
AHN(DW10FUD) 130 hp 96 kW 2 L Diesel
AHP(DW10FUC) 163 hp 120 kW 2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
CITROËNRELAY
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
AHN(DW10FUD) 130 hp 96 kW 2 L Diesel
AHP(DW10FUC) 163 hp 120 kW 2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
244
250
290
100 Multijet 2
2 D
110 Multijet 2
3 D
115 Multijet 2
0 D
120 Multijet 2
3 D
130 Multijet 2
3 D
140 Natural Power
150 Multijet 2
3 D
150 Multijet 3
0 D
160 Multijet 3
0 D
180 Multijet 3
0 D
2.3 JTD
2006/07 - 250A1.000 116 hp 85 kW 2 L Diesel
250A2.000 116 hp 85 kW 2 L Diesel
4HV 100 hp 74 kW 2.2 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
FPT 120 hp 88 kW 2.3 L Diesel
F1AE0481N 131 hp 96 kW 2.3 L Diesel
F1AE3481D 131 hp 96 kW 2.3 L Diesel
F1AGL411D 131 hp 96 kW 2.3 L Diesel
F1AE0481T 126 hp 93 kW 2.3 L Diesel
F1AE3481D 131 hp 96 kW 2.3 L Diesel
F1AGL411D 131 hp 96 kW 2.3 L Diesel
F1AE3481E 148 hp 109 kW 2.3 L Diesel
F1AE3481G 113 hp 83 kW 2.3 L Diesel
F1CE0441A 136 hp 100 kW 3 L Petrol
F1CE0481D 156 hp 115 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481M 158 hp 116 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481M 156 hp 115 kW 3 L Diesel
F1CE3481E 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTBOXER
2.0 BlueHDi 130
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 120 hp 88 kW 2.2 L Diesel
130 hp 96 kW 2 L Diesel
146 hp 107 kW 3 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTMANAGER
2.0 BlueHDi 130
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 120 hp 88 kW 2.2 L Diesel
130 hp 96 kW 2 L Diesel
146 hp 107 kW 3 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
