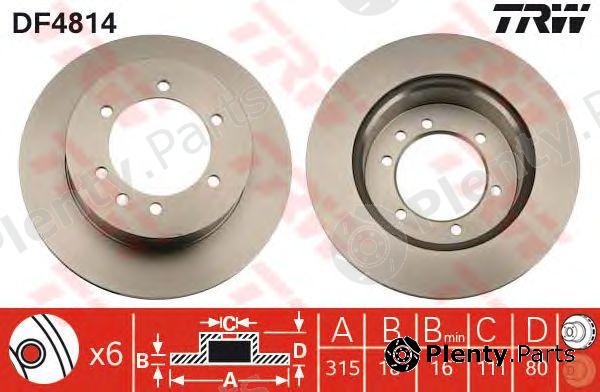

TRW DF4814 Brake Disc

TRW part DF4814 Brake Disc

TRW DF4814 Brake Disc

by TRW

Manufacturer Part Number: DF4814

Сharacteristics:
  • Surface: Painted
  • Thread Size: 12,8
  • Brake Disc Type: Vented
  • Diameter [mm]: 316
  • Brake Disc Thickness [mm]: 18
  • Minimum thickness [mm]: 16
  • Number of Holes: 6
  • Centering Diameter [mm]: 111
  • Height [mm]: 80
  • Bolt Hole Circle Ø [mm]: 139,7
  • Colour: Black

Product Details

BrandTRW
TRW article (MPN)DF4814
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for NISSAN vehicles

OE manufacturerOEM reference numbers
NISSAN4320605J03, 4320605J04, 43206VB000

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4814 Brake Disc offered by A.B.S., ALANKO, AP, APEC braking, ASHIKA, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, E.T.F., FERODO, FIRST LINE, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, HP, JAPANPARTS, JAPKO, JURID, KAVO PARTS, KAWE, MAGNETI MARELLI, MAPCO, MDR, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, TEXTAR, TRISCAN, TRUSTING, VALEO, VEMA, WOKING manufacturers

ManufacturerReference numbers
A.B.S.16022
ALANKO303656
AP25142
APEC brakingDSK341
ASHIKA6101116
ASHUKIN01391
ATE24.0118-0136.1
BENDIX562223BC, 562223B
BLUE PRINTADN14378
BORG & BECKBBD4199
BOSCH0986479S87, 0986479385, F026A00922
Brake ENGINEERINGDI955667
BRECOBS8751
BREMBO09.A451.10
BREMSIDBA976V, DBB780V
CAR142043, HPD043
CIFAM800679
DELPHIBG3117
E.T.F.190066
FERODODDF1780C, DDF1780C1, DDF976, DDF9761, DDF1780
FIRST LINEFBD1185
FOMARFO2098
fri.tech.BD0798
FTEBS4830
GIRLING6048142
HELLA8DD355110-831
HELLA PAGID8DD355110831
HERTH+BUSS JAKOPARTSJ3311016
HP53946
JAPANPARTSDP-116
JAPKO61116
JURID562452J, 562223JC, 562452JC, 562223J
KAVO PARTSBR6766C, BR6766
KAWE692610
MAGNETI MARELLI600000090220, 360406072200
MAPCO45521
MDRMRD2116
METELLI230679
METZGER1328464
MEYLE36155230039
MGAD1906
MINTEXMDC1298
NIBKRN1240
NK202255, 312255
OPEN PARTSBDA188420, BDR188420
OPTIMALBS-7902
PAGID54299
PATRONPBD4814
PEX140711
PILENGAV891
PROTECHNICPRD6187
QUINTON HAZELL53946, BSF4830, BDC4830
REMSA692610
ROADHOUSE692610
ROTINGERRT20036T5, RT20036
TEXTAR92129900
TRISCAN812014162
TRUSTINGDF798
VALEO197552
VEMA98889
WOKINGD692610

Vehicle fitment / TRW DF4814 Brake Disc compatibility

This product fits the following models: NISSAN PATROL GR  , NISSAN PATROL GRII, NISSAN PATROL GR IV, NISSAN PATROL GR V, NISSAN PATROL IV, NISSAN SAFARI IV, NISSAN SAFARI V, etc. See all vehicles this product (TRW DF4814) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
NISSANPATROL GR
Y60
GR
2.8 TD
4.2 D
4.2 Efi 4WD
4.2 KAT

Y60A
Y60GR
1988/02 - 1998/02RD28T 111 hp 82 kW 2.8 L Diesel
RD28T 116 hp 85 kW 2.8 L Diesel
TB42E 165 hp 121 kW 4.2 L Petrol
TB42E 175 hp 129 kW 4.2 L Petrol
TD42 116 hp 85 kW 4.2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
NISSANPATROL GRII
Y61
2.7 TD
2.8 TD
2.8 TDiC
3.0 DTi
3.2 D
4.8
1997/06 - RD28Ti 129 hp 95 kW 2.8 L Diesel
RD28Ti 131 hp 96 kW 2.8 L Diesel
SD33 95 hp 70 kW 3.2 L Diesel
TB48DE 245 hp 180 kW 4.8 L Petrol
TD27T 99 hp 73 kW 2.7 L Diesel
ZD30DDTi 158 hp 116 kW 3 L Diesel
ZD30DDTi 160 hp 118 kW 3 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
NISSANPATROL GR IV
Y60
GR
2.8 TD
4.2 D
4.2 Efi 4WD
4.2 KAT

Y60A
Y60GR
1988/02 - 1998/02RD28T 111 hp 82 kW 2.8 L Diesel
RD28T 116 hp 85 kW 2.8 L Diesel
TB42E 165 hp 121 kW 4.2 L Petrol
TB42E 175 hp 129 kW 4.2 L Petrol
TD42 116 hp 85 kW 4.2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
NISSANPATROL GR V
Y61
2.7 TD
2.8 TD
2.8 TDiC
3.0 DTi
3.2 D
4.8
1997/06 - RD28Ti 129 hp 95 kW 2.8 L Diesel
RD28Ti 131 hp 96 kW 2.8 L Diesel
SD33 95 hp 70 kW 3.2 L Diesel
TB48DE 245 hp 180 kW 4.8 L Petrol
TD27T 99 hp 73 kW 2.7 L Diesel
ZD30DDTi 158 hp 116 kW 3 L Diesel
ZD30DDTi 160 hp 118 kW 3 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
NISSANPATROL IV
Y60
GR
GQ
Y61
GR
GU
2.7 TD
2.8 TD
2.8 TDiC
3.0 DTi
3.2 D
4.2 D
4.2 Efi 4WD
4.2 KAT
4.8

Y60A
Y60GR
1988/02 - RD28T 111 hp 82 kW 2.8 L Diesel
RD28T 116 hp 85 kW 2.8 L Diesel
RD28Ti 129 hp 95 kW 2.8 L Diesel
RD28Ti 131 hp 96 kW 2.8 L Diesel
SD33 95 hp 70 kW 3.2 L Diesel
TB42E 165 hp 121 kW 4.2 L Petrol
TB42E 175 hp 129 kW 4.2 L Petrol
TB48DE 245 hp 180 kW 4.8 L Petrol
TD27T 99 hp 73 kW 2.7 L Diesel
TD42 116 hp 85 kW 4.2 L Diesel
ZD30DDTi 158 hp 116 kW 3 L Diesel
ZD30DDTi 160 hp 118 kW 3 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
NISSANSAFARI IV
Y60
GR
2.8 TD
4.2 D
4.2 Efi 4WD
4.2 KAT

Y60A
Y60GR
1988/02 - 1998/02RD28T 111 hp 82 kW 2.8 L Diesel
RD28T 116 hp 85 kW 2.8 L Diesel
TB42E 165 hp 121 kW 4.2 L Petrol
TB42E 175 hp 129 kW 4.2 L Petrol
TD42 116 hp 85 kW 4.2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
NISSANSAFARI V
Y61
2.7 TD
2.8 TD
2.8 TDiC
3.0 DTi
3.2 D
4.8
1997/06 - RD28Ti 129 hp 95 kW 2.8 L Diesel
RD28Ti 131 hp 96 kW 2.8 L Diesel
SD33 95 hp 70 kW 3.2 L Diesel
TB48DE 245 hp 180 kW 4.8 L Petrol
TD27T 99 hp 73 kW 2.7 L Diesel
ZD30DDTi 158 hp 116 kW 3 L Diesel
ZD30DDTi 160 hp 118 kW 3 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
