TRW DF4816 Brake Disc

TRW part DF4816 Brake Disc

TRW DF4816 Brake Disc

by TRW

Manufacturer Part Number: DF4816

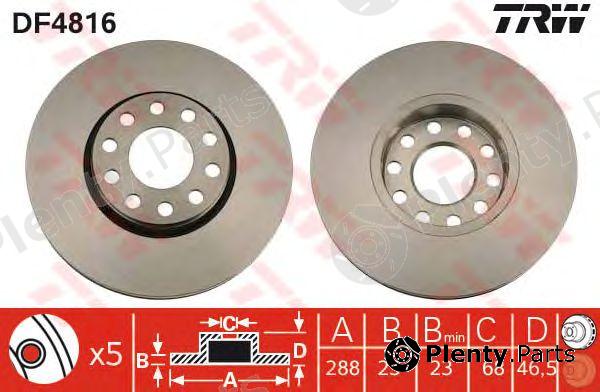

Сharacteristics:
  • Thread Size: 15,3
  • Brake Disc Type: Vented
  • Diameter [mm]: 288
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Number of Holes: 10
  • Centering Diameter [mm]: 68
  • Height [mm]: 46,5
  • Bolt Hole Circle Ø [mm]: 112
  • Colour: Black
  • Surface: Painted

Product Details

BrandTRW
TRW article (MPN)DF4816
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG4B0615301B

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW DF4816 Brake Disc offered by A.B.S., ALANKO, AP, APEC braking, ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BSG, CAR, CIFAM, DELPHI, Dr!ve+, EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, FTE, GIRLING, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JURID, KAGER, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MAPCO, METELLI, MEYLE, MGA, MINTEX, NIBK, NK, OPEN PARTS, PAGID, PATRON, PEX, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17527
ALANKO303925
AP25104V
APEC brakingDSK911
ATE24032501711, 24.0125-0171.1
AUTOMEGA1061503014B0B, 3061503014B0B
BENDIX561548B, 561548BC
BORG & BECKBBD4948
BOSCH0986479S19, 0986479157
Brake ENGINEERINGDI956802
BRECKBR336VA100
BRECOBS8713, BV8713
BREMBO09.A428.14, 09.A428.11
BSGBSG90210003
CARHPD1188, 1421188
CIFAM800745C
DELPHIBG2745C, BG2745
Dr!ve+DP1010110599
EUROBRAKE5815204743
FEBI BILSTEIN28505
FENOXTB219256
FERODODDF1677, DDF320, DDF1706, DDF1706C1
FIRST LINEFBD434
FOMARFO2679
FTEBS3825B, BS3825HB, BS3825H, BS3825
GIRLING6048161
G.U.DGDB125171
HANS PRIES110420
HELLA8DD355109611, 8DD355109622, 8DD355109621
HELLA PAGID8DD355109622, 8DD355109621, 8DD355109611
ICER78BD10682
JURID561548JC, 561548J
KAGER371420, 371035
KAWE6122710
KEY PARTSKBD4948
KRAFT6040333
LPRV2004V
MAGNETI MARELLI360406063900
MAPCO25870
METELLI230745, 230745C
MEYLE1155211120
MGAD1614
MINTEXMDC2338
NIBKRN1050
NK204743
OPEN PARTSBDRS228025, BDR228020
PAGID54210PRO, 54210
PATRONPBD4816
PEX140789
PROTECHNICPRD2483
QUINTON HAZELLBSF3825, BDC5471BD, BDC3825, BSF5471, BDC5471
R BRAKE78RBD21068
REMSA6122710
ROADHOUSE6122710
ROTINGERRT20363T5, RT20363
SASIC9004507J
sbs1815204743
SWAG30928505
TEMPLIN0311030355, 0311030350
TEXTAR92121003, 92121005, 92121000
TRISCAN812029108, 812029108C
TRUSTINGDF1604
VAICOV1080098
VALEO297222, 186271, 197222
VEMA98129
WOKINGD6122710
ZIMMERMANN600.3236.50, 600.3236.52, 600323620

Vehicle fitment / TRW DF4816 Brake Disc compatibility

This product fits the following models: SKODA SUPERB, VW PASSAT, etc. See all vehicles this product (TRW DF4816) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
SKODASUPERB
3U4
1.8 T
1.9 TDI
2.0
2001/12 - 2008/03124 hp 91 kW 2 L Petrol
AZM 115 hp 85 kW 2 L Petrol
AVB 101 hp 74 kW 1.9 L Diesel
AVF 130 hp 96 kW 1.9 L Diesel
AWX 130 hp 96 kW 1.9 L Diesel
AWT 150 hp 110 kW 1.8 L Petrol
Front wheel
Sedan / Saloon
VWPASSAT
3B2
3B3
3B5
3B6
1.6
1.8
1.8 T
1.8 T 20V
1.8 T 4motion
1.8 T Syncro
1.9 TDI
1.9 TDI 4motion
2.0
2.0 4motion
2.0 TDI
2.3 V5 4motion
2.3 VR5
2.3 VR5 4motion
2.3 VR5 Syncro/4motion
2.5 TDI
2.8 4motion
2.8 V6
2.8 V6 Syncro/4motion
1996/10 - 2005/05ACK 193 hp 142 kW 2.8 L Petrol
AHA 193 hp 142 kW 2.8 L Petrol
ALG 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
ADP 101 hp 74 kW 1.6 L Petrol
AHL 101 hp 74 kW 1.6 L Petrol
ANA 101 hp 74 kW 1.6 L Petrol
ARM 101 hp 74 kW 1.6 L Petrol
ADR 125 hp 92 kW 1.8 L Petrol
AFY 115 hp 85 kW 1.8 L Petrol
APT 125 hp 92 kW 1.8 L Petrol
ARG 125 hp 92 kW 1.8 L Petrol
AEB 150 hp 110 kW 1.8 L Petrol
AEB 150 hp 110 kW 1.8 L Petrol
ANB 150 hp 110 kW 1.8 L Petrol
APU 150 hp 110 kW 1.8 L Petrol
AFB 150 hp 110 kW 2.5 L Diesel
AKN 150 hp 110 kW 2.5 L Diesel
AFB 150 hp 110 kW 2.5 L Diesel
AKN 150 hp 110 kW 2.5 L Diesel
BDG 163 hp 120 kW 2.5 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AHH 90 hp 66 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
AJM 115 hp 85 kW 1.9 L Diesel
ATJ 115 hp 85 kW 1.9 L Diesel
AVB 101 hp 74 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
AFY 115 hp 85 kW 1.8 L Petrol
AGE 180 hp 132 kW 2.8 L Petrol
AGZ 150 hp 110 kW 2.3 L Petrol
ALT 130 hp 96 kW 2 L Petrol
AZM 115 hp 85 kW 2 L Petrol
ALT 130 hp 96 kW 2 L Petrol
AZM 115 hp 85 kW 2 L Petrol
BFF 115 hp 85 kW 2 L Petrol
ALZ 102 hp 75 kW 1.6 L Petrol
AMX 193 hp 142 kW 2.8 L Petrol
ATQ 193 hp 142 kW 2.8 L Petrol
ASU 120 hp 88 kW 2 L Petrol
ASU 120 hp 88 kW 2 L Petrol
AUZ 120 hp 88 kW 2 L Petrol
AVB 101 hp 74 kW 1.9 L Diesel
AVF 130 hp 96 kW 1.9 L Diesel
AWX 130 hp 96 kW 1.9 L Diesel
AVF 130 hp 96 kW 1.9 L Diesel
AWL 150 hp 110 kW 1.8 L Petrol
AWT 150 hp 110 kW 1.8 L Petrol
AWM 170 hp 125 kW 1.8 L Petrol
AWT 150 hp 110 kW 1.8 L Petrol
AZM 115 hp 85 kW 2 L Petrol
AZX 170 hp 125 kW 2.3 L Petrol
BGW 136 hp 100 kW 2 L Diesel
BHW 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
