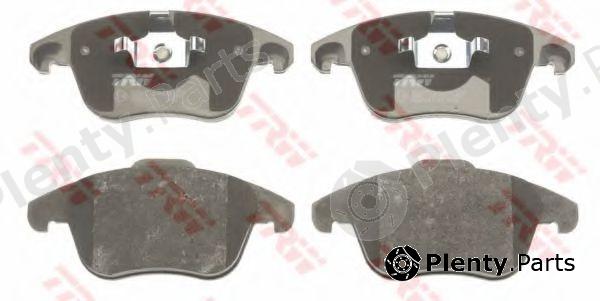

TRW GDB1691 Brake Pad Set, disc brake

TRW part GDB1691 Brake Pad Set, disc brake
TRW part GDB1691 Brake Pad Set, disc brake

TRW GDB1691 Brake Pad Set, disc brake

by TRW

Manufacturer Part Number: GDB1691

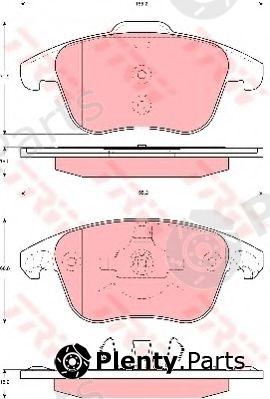

Сharacteristics:
  • Length [mm]: 155,2
  • Manufacturer Restriction: ATE
  • Height 1 [mm]: 71,9
  • Height 2 [mm]: 66,8
  • Thickness/Strength 1 [mm]: 19
  • Thickness/Strength 2 [mm]: 18,2
  • Wear Warning Contact: not prepared for wear indicator
  • Inspection Tag: E9 90R - 01107/751

Product Details

BrandTRW
TRW article (MPN)GDB1691
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT425477, 425362, 425397

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW GDB1691 Brake Pad Set, disc brake offered by A.B.S., ALANKO, APEC braking, ASIMCO, ASVA, ATE, AYWIPARTS, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, CIFAM, COBREQ, DELPHI, DENCKERMANN, DEXTRIM, DJ AUTO, Dr!ve+, DURON, E.T.F., FEBI BILSTEIN, FERODO, FIT, FOMAR, fri.tech., FTE, GALFER, GIRLING, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, LYNX, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, MOTAQUIP, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PROTECHNIC, QUINTON HAZELL, RAICAM, R BRAKE, REMSA, ROADHOUSE, sbs, STELLOX, STOP, SWAG, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.37599
ALANKO300652, 301856
APEC brakingPAD1534
ASIMCOKD6781W
ASVAAKD-13101
ATE13047072302, 13046072302
AYWIPARTSAW1810110, AW1810090
BENDIX573193B
BLUE PRINTADP154206
BORG & BECKBBP2046, BBP2383
BOSCH0986494324, 0986424825, 0986TB2950
Brake ENGINEERINGPA1687
BREMBOP61117, P61086
BREMSIBP3330
BSF10845
CIFAM8226753
COBREQN1186
DELPHILP2100
DENCKERMANNB111077
DEXTRIMDX7-FD519
DJ AUTOBP2341
Dr!ve+DP1010100514
DURONDBP341972
E.T.F.121330
FEBI BILSTEIN16714
FERODOFDB1972, FSL1972
FITFP2333
FOMARFO930481
fri.tech.6913
FTEBL2552A1
GALFERB1G10207922
GIRLING6116912
HANS PRIES722833
HELLA8DB355015561, 8DB355013351
HELLA PAGID8DB355015561, 8DB355013351
HP7796
ICER181866
JP GROUP1163609719
JURATEKJCP1972
JURID573193JC, 573193J
KAGER351082
KAMOKAJQ101219
KAWE124900
KRAFT6005918
LPR05P1480
LYNXBD-2225
MAGNETI MARELLI363700202013, 363700201702, 323700029300, 363916060644
MALÒ1050255
MAPCO6613
MAXGEAR191550
METELLI2206753
METZGER124800, 1170638, 124900
MEYLE0252455719
MINTEXMDB2891, MDB3122
MOTAQUIPLVXL1373
NECTOFD7297A
NIBKPN0348W, PN0398
NK221956
OPEN PARTSBPA124900
OPTIMAL12506
PAGIDT1702, T2013
PEX7921S
PROTECHNICPRP11883M, PRP1188
QUINTON HAZELLBP1563, 7796
RAICAMRA08900
R BRAKERB1866
REMSA124900
ROADHOUSE2124900
sbs1501221956, 221956
STELLOX000090B-SX, 000090SX
STOP573193S
SWAG64916714
TEXTAR2455701, 2455801
TRISCAN811038006, 8105241598
TRUSTING691.3
VAICOV220062
VALEO598715, 598998
VEMA838900
WAGNER LOCKHEEDWBP24557A
WOKINGP1349300
ZIMMERMANN245571901

Vehicle fitment / TRW GDB1691 Brake Pad Set, disc brake compatibility

This product fits the following models: CITROËN C4 GRAND PICASSO I, CITROËN C4 II, CITROËN C4 PICASSO I, CITROËN DS4, CITROËN DS5, DS DS 4 DS 4 CROSSBACK, DS DS5, DS (CAPSA) DS 5, PEUGEOT 3008, PEUGEOT 5008, etc. See all vehicles this product (TRW GDB1691) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC4 GRAND PICASSO I
UA
1.6 16V
1.6 THP 155
2.0 HDi 138
2.0 HDi 150
2.0 HDi 165
2.0 i 16V
2006/10 - 5FT(EP6DT) 140 hp 103 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHJ(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
CITROËNC4 II
B7
1.6 THP 155
2.0 BlueHDi 150
2009/11 - 5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNC4 PICASSO I
UD
1.6 16V
1.6 THP 140
1.6 THP 155
2.0 HDi 138
2.0 HDi 150
2.0 HDi 165
2.0 i 16V
2007/02 - 2013/085FT(EP6DT) 140 hp 103 kW 1.6 L Petrol
5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHJ(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
CITROËNDS4
1.6 THP 150
1.6 THP 155
1.6 THP 160
1.6 THP 165
2.0 BlueHDi 150
2.0 BlueHDi 180
2.0 HDi 135
2.0 HDi 165
2011/04 - 2015/075FE(EP6CDTMD) 150 hp 110 kW 1.6 L Petrol
5FM(EP6DT) 163 hp 120 kW 1.6 L Petrol
5FM(EP6DT) 165 hp 121 kW 1.6 L Petrol
5GZ(EP6FDT) 165 hp 121 kW 1.6 L Petrol
5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
AHW(DW10FC) 180 hp 133 kW 2 L Diesel
AHX(DW10FD) 150 hp 110 kW 2 L Diesel
RHE(DW10CTED4) 136 hp 100 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNDS5
1.6 BlueHDi 120
1.6 HDi
1.6 HDi 110
1.6 HDi 115
1.6 THP 150
1.6 THP 155
1.6 THP 165
1.6 THP 200
2.0 BlueHDi 150
2.0 BlueHDi 180
2.0 HDi 135
2.0 HDi 165
2011/11 - 2015/075FE(EP6CDTMD) 150 hp 110 kW 1.6 L Petrol
5FM(EP6DT) 165 hp 121 kW 1.6 L Petrol
5GZ(EP6FDT) 165 hp 121 kW 1.6 L Petrol
5FU(EP6DTX) 200 hp 147 kW 1.6 L Petrol
5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
9HD(DV6C) 114 hp 84 kW 1.6 L Diesel
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
AHW(DW10FC) 180 hp 133 kW 2 L Diesel
AHX(DW10FD) 150 hp 110 kW 2 L Diesel
BHX(DV6FC) 115 hp 85 kW 1.6 L Diesel
BHZ(DV6FC) 120 hp 88 kW 1.6 L Diesel
RHD(DW10CB) 136 hp 100 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
DSDS 4 DS 4 CROSSBACK
1.6 THP 165
2.0 BlueHDi 150
2.0 BlueHDi 180
2015/07 - 150 hp 110 kW 2 L Diesel
165 hp 121 kW 1.6 L Petrol
180 hp 133 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
DSDS5
1.6 BlueHDi 120
1.6 THP 165
1.6 THP 210
2.0 BlueHDi 150
2.0 BlueHDi 180
2015/04 - 120 hp 88 kW 1.6 L Diesel
150 hp 110 kW 2 L Diesel
165 hp 121 kW 1.6 L Petrol
180 hp 133 kW 2 L Diesel
210 hp 155 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
DS (CAPSA)DS 5
1.6 THP 160
2013/09 - 5F06 163 hp 120 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
PEUGEOT3008
2.0 HDi Hybrid4
2011/02 - RHC(DW10CTED4) 165 hp 120 kW 2 L Hybrid
AWD / 4WD
MPV / Van / Minivan
PEUGEOT5008
1.2
1.6
1.6 16V
1.6 BlueHDi 120
1.6 THP 150
1.6 THP 165
2.0 HDi
2.0 HDi 136 / BlueHDi 136
2.0 HDi 150 / BlueHDi 150
2009/06 - 150 hp 110 kW 1.6 L Petrol
5GZ(EP6FDT) 163 hp 120 kW 1.6 L Petrol
5GZ(EP6FDT) 165 hp 121 kW 1.6 L Petrol
AHV(DW10FD) 136 hp 100 kW 2 L Diesel
RHD(DW10CTED4) 136 hp 100 kW 2 L Diesel
AHX(DW10FD) 150 hp 110 kW 2 L Diesel
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
BHZ(DV6FC) 120 hp 88 kW 1.6 L Diesel
EP6CDT 156 hp 115 kW 1.6 L Petrol
HNY(EB2DTS) 131 hp 96 kW 1.2 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
