TRW GDB1719 Brake Pad Set, disc brake

TRW part GDB1719 Brake Pad Set, disc brake
TRW part GDB1719 Brake Pad Set, disc brake

TRW GDB1719 Brake Pad Set, disc brake

by TRW

Manufacturer Part Number: GDB1719
Alternative TRW part number(s): 24595

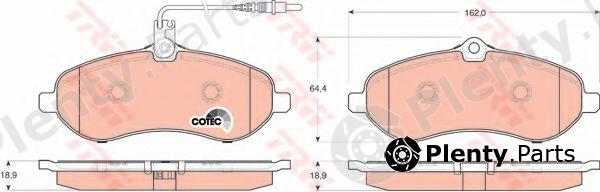

Сharacteristics:
  • Manufacturer Restriction: TRW
  • Length [mm]: 162
  • Height [mm]: 64,4
  • Thickness [mm]: 18,9
  • Wear Warning Contact: incl. wear warning contact
  • Number of wear indicators [per axle]: 1
  • Warning Contact Length [mm]: 325
  • Supplementary Article/Info 2: with brake caliper screws
  • Supplementary Article/Supplementary Info: with accessories
  • Inspection Tag: E9 90R - 01107/2142

Product Details

BrandTRW
TRW article (MPN)GDB1719 Alternative TRW part number(s): 24595
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA, MERITOR (ROR), TOYOTA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT425364, 425366, 425365, 4254A2
FIAT / LANCIA / ALFA9467548988, 71770048, 77364512, 9467548987
MERITOR (ROR)MVP2006
TOYOTASU001A1067

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW GDB1719 Brake Pad Set, disc brake offered by A.B.S., ALANKO, APEC braking, ATE, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BREMBO, BREMSI, CIFAM, DELPHI, DENCKERMANN, DEXTRIM, DITAS, DURON, E.T.F., FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, HELLA, HELLA PAGID, HP, ICER, JURATEK, JURID, KAGER, KAMOKA, KEY PARTS, KLAXCAR FRANCE, KRAFT, LPR, LYNX, MAGNETI MARELLI, MALÒ, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PROCODIS FRANCE, PROFIT, PROTECHNIC, QUINTON HAZELL, RAICAM, R BRAKE, REMSA, STOP, SWAG, TEXTAR, TRISCAN, TRUSTING, VAICO, VALEO, VEMA, WAGNER LOCKHEED, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.37589
ALANKO300653, 301857
APEC brakingPAD1539
ATE13046027382
BARUMBA2329
BENDIX573280B
BLUE PRINTADT342207
BORG & BECKBBP2030
BOSCH0986494163, 0986TB3015, 0986TB3037
Brake ENGINEERINGPA1908
BRECK245950070100
BREMBOP61096
BREMSIBP3283
CIFAM8227070
DELPHILP1995
DENCKERMANNB110950
DEXTRIMDX7-FD552
DITASDFB2934
DURONDBP341771
E.T.F.121283
FEBI BILSTEIN16830
FERODOFSL1771, FVR1771
FOMARFO931081
fri.tech.7230
FTEBL2063A4
GALFERB1.G102-0937.2
GIRLING6117191
HELLA8DB355013411
HELLA PAGID8DB355013411
HP7849
ICER141802
JURATEKJCP149
JURID573280J
KAGER351065
KAMOKAJQ1013542
KEY PARTSKBP2030
KLAXCAR FRANCE24145Z
KRAFT6005671
LPR05P1348
LYNXBD-2227
MAGNETI MARELLI363700201708, 363916060193, 363702161503, 363710201708
MALÒ1050242
METELLI2207070
METZGER1170228, 129201
MEYLE0252459518W
MGA878
MINTEXMDB2901, MDK0236
MOTAQUIPLVXL1342
NATIONALNP2115
NECTOFD7316V
NIBKPN0531W
NK221961
OPEN PARTSBPA129201
OPTIMAL12337
PAGIDT1708
PROCODIS FRANCEPF1483
PROFIT50001771
PROTECHNICPRP1229, PRP12293M
QUINTON HAZELLBP1572, 7849
RAICAMRA09110
R BRAKERB1802
REMSA129211, 129201
STOP573280S
SWAG62916830
TEXTAR2459501
TRISCAN8105101647, 811010574
TRUSTING7230
VAICOV420097
VALEO598899, 872595
VEMAK426900, 839110
WAGNER LOCKHEEDWBP24595A
ZIMMERMANN245951851, 245951852

Vehicle fitment / TRW GDB1719 Brake Pad Set, disc brake compatibility

This product fits the following models: CITROËN DISPATCH, CITROËN JUMPY, FIAT SCUDO, PEUGEOT EXPERT, PEUGEOT EXPERT TEPEE, TOYOTA PROACE, etc. See all vehicles this product (TRW GDB1719) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNDISPATCH
1.6 HDi 90 16V
1.6 HDi 90 8V
2.0 HDi 120
2.0 HDi 120 4x4
2.0 HDi 125
2.0 HDi 140
2.0 HDi 165
2.0 HDi 95
2.0 i
2007/01 - 128 hp 94 kW 2 L Diesel
9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
AHY(DW10CE) 98 hp 72 kW 2 L Diesel
AHZ(DW10CD) 128 hp 94 kW 2 L Diesel
RFH(EW10A) 140 hp 103 kW 2 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
With flatbed/undercarriage
CITROËNJUMPY
1.6 HDi 90 16V
1.6 HDi 90 8V
2.0 HDi 120
2.0 HDi 120 4x4
2.0 HDi 125
2.0 HDi 140
2.0 HDi 165
2.0 HDi 95
2.0 i
2007/01 - 128 hp 94 kW 2 L Diesel
9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
AHY(DW10CE) 98 hp 72 kW 2 L Diesel
AHZ(DW10CD) 128 hp 94 kW 2 L Diesel
RFH(EW10A) 140 hp 103 kW 2 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
With flatbed/undercarriage
FIATSCUDO
272
270
1.6 D Multijet
2.0 D Multijet
2.0 D Multijet 4x4
2007/01 - 9H07(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9H07(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU 90 hp 66 kW 1.6 L Diesel
DW10BTED4 136 hp 100 kW 2 L Diesel
RH02 128 hp 94 kW 2 L Diesel
RH02 163 hp 120 kW 2 L Diesel
RHH 163 hp 120 kW 2 L Diesel
RHK 120 hp 88 kW 2 L Diesel
RHR 136 hp 100 kW 2 L Diesel
RH02 128 hp 94 kW 2 L Diesel
RH02 163 hp 120 kW 2 L Diesel
RHH 163 hp 120 kW 2 L Diesel
RHK 120 hp 88 kW 2 L Diesel
RHR 136 hp 100 kW 2 L Diesel
RH02 128 hp 94 kW 2 L Diesel
RHK 120 hp 88 kW 2 L Diesel
RHK 120 hp 88 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
With flatbed/undercarriage
PEUGEOTEXPERT

222
VF3A
VF3U
VF3X
1.6 HDi 90
1.6 HDi 90 16V
1.6 HDi 90 8V
2.0
2.0 16V
2.0 HDi 100
2.0 HDi 120
2.0 HDi 120 4x4
2.0 HDi 130
2.0 HDi 140
2.0 HDi 165
2002/09 - 98 hp 72 kW 2 L Diesel
9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
AHZ(DW10CD) 128 hp 94 kW 2 L Diesel
RFH(EW10A) 140 hp 103 kW 2 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
With flatbed/undercarriage
PEUGEOTEXPERT TEPEE
VF3V
1.6 HDi 90 16V
1.6 HDi 90 8V
2.0 16V
2.0 HDi 100
2.0 HDi 120
2.0 HDi 120 4x4
2.0 HDi 130
2.0 HDi 140
2.0 HDi 165
2007/01 - 9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
AHY(DW10CE) 98 hp 72 kW 2 L Diesel
AHZ(DW10CD) 128 hp 94 kW 2 L Diesel
RFH(EW10A) 140 hp 103 kW 2 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
TOYOTAPROACE
1.6 D-4D
2.0 D-4D
2013/06 - 3WZ-TV 90 hp 66 kW 1.6 L Diesel
4WZ-FHV 163 hp 120 kW 2 L Diesel
4WZ-FTV 128 hp 94 kW 2 L Diesel
Front wheel
LCV / Van / Cargo / Small truck
