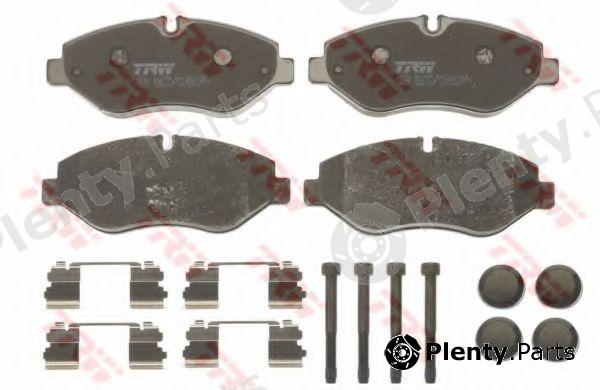

TRW GDB1747 Brake Pad Set, disc brake
TRW GDB1747 Brake Pad Set, disc brake
by TRWManufacturer Part Number: GDB1747
Alternative TRW part number(s): 29192, 29229
- Manufacturer Restriction: BREMBO

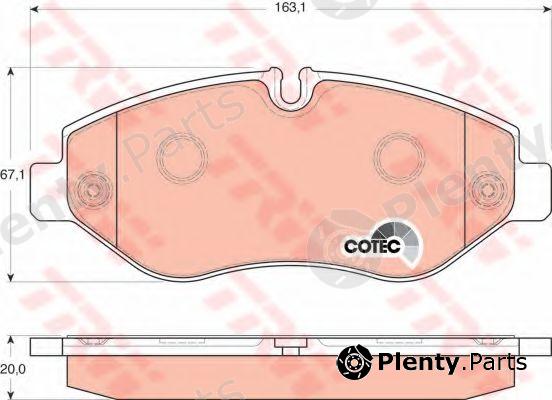

- Length [mm]: 163,1
- Height [mm]: 67,1
- Thickness [mm]: 20
- Wear Warning Contact: prepared for wear indicator
- Supplementary Article/Info 2: with brake caliper screws
- Supplementary Article/Supplementary Info: with accessories
- Inspection Tag: E9 90R - 01107/1674
Product Details
| Brand | TRW |
| TRW article (MPN) | GDB1747 Alternative TRW part number(s): 29192, 29229 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for IVECO, MERITOR (ROR) vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| IVECO | 42561355, 42555881 |
| MERITOR (ROR) | MVP2012 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for TRW GDB1747 Brake Pad Set, disc brake offered by A.B.S., ALANKO, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BREMBO, BREMSI, BSF, CASALS, CIFAM, COBREQ, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, HELLA, HELLA PAGID, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, KUJIWA, LEX, LPR, LYNX, MAGNETI MARELLI, MALÒ, MAPCO, MARKON, METELLI, METZGER, MEYLE, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PROCODIS FRANCE, PROTECHNIC, QUATTRO FRENI, QUINTON HAZELL, RAICAM, R BRAKE, REMSA, ROADHOUSE, ROULUNDS BRAKING, sbs, STARLINE, STELLOX, TEMPLIN, TEXTAR, TRICLO, TRISCAN, TRUSTING, VALEO, VEMA, WAGNER LOCKHEED, WINNARD, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 37633 |
| ALANKO | 300674 |
| APEC braking | PAD1597 |
| ATE | 13046048302 |
| BENDIX | 573511B |
| BORG & BECK | BBP2021 |
| BOSCH | 0986495113, 0986494582, 0986TB3005, 0986494293 |
| Brake ENGINEERING | PA1786 |
| BRECK | 292290070300 |
| BREMBO | P50085, PA6026 |
| BREMSI | BP3324 |
| BSF | 10890 |
| CASALS | BKM115, 55496 |
| CIFAM | 8226711 |
| COBREQ | N744 |
| DELPHI | LP2039 |
| DENCKERMANN | B111040 |
| Dr!ve+ | DP1010100915 |
| E.T.F. | 121324 |
| EUROBRAKE | 5502222382 |
| FENOX | BP43091 |
| FERODO | FVR4036, FSL4036 |
| FOMAR | FO929381 |
| fri.tech. | 6871 |
| FTE | BL2163A1 |
| GALFER | B1.G102-0828.2 |
| GIRLING | 6117479 |
| HELLA | 8DB355005511, 8DB355005521 |
| HELLA PAGID | 8DB355005511, 8DB355005521 |
| ICER | 141832 |
| JP GROUP | 1163601710, 1163601719 |
| JURATEK | JCP014 |
| JURID | 2919209560, 2922909560 |
| KAGER | 351079 |
| KAMOKA | JQ101156 |
| KAWE | WS0280A, 124510, WS0245A |
| KEY PARTS | KBP2021 |
| KRAFT | 6003487 |
| KUJIWA | KUF0410 |
| LEX | 29229 |
| LPR | 05P1297 |
| LYNX | BD2832 |
| MAGNETI MARELLI | 363700036024, 363710036024, 363916060649, 363702161494, 323700029500 |
| MALÒ | 1050102 |
| MAPCO | 6865 |
| MARKON | 16900200 |
| METELLI | 2206712, 2206711 |
| METZGER | 124510, 1170271 |
| MEYLE | 0252922920PD, 0252922920 |
| MINTEX | MDB2907, MDB2803 |
| MOTAQUIP | LVXL1378 |
| NATIONAL | NP2525 |
| NECTO | FD7328V |
| NK | 222382 |
| OPEN PARTS | BPA124510 |
| OPTIMAL | 12301 |
| PAGID | C6024, C6023 |
| PATRON | PBP009 |
| PEX | 7931S |
| PROCODIS FRANCE | PF1586 |
| PROTECHNIC | PRP1176 |
| QUATTRO FRENI | QF66900 |
| QUINTON HAZELL | MBP1631, BP1631 |
| RAICAM | RA09060 |
| R BRAKE | RB1832 |
| REMSA | 124510 |
| ROADHOUSE | 2124510 |
| ROULUNDS BRAKING | 867881 |
| sbs | 1501222382 |
| STARLINE | BDS456 |
| STELLOX | 001093B-SX, 001093LSX |
| TEMPLIN | 031208700135 |
| TEXTAR | 2919270, 2922921414T4136, 2919202, 2919201, 2922970, 2922921414, 2922901 |
| TRICLO | 882003 |
| TRISCAN | 811515002, 8105101656, 811515003, 811015053 |
| TRUSTING | 687.1 |
| VALEO | 541734, 872229, 301027 |
| VEMA | K402301 |
| WAGNER LOCKHEED | WBP29229A |
| WINNARD | WP229 |
| WOKING | P1345310 |
| ZIMMERMANN | 292292101 |
Vehicle fitment / TRW GDB1747 Brake Pad Set, disc brake compatibility
This product fits the following models: IVECO DAILY III, IVECO DAILY IV, IVECO DAILY V, IVECO DAILY VI, etc. See all vehicles this product (TRW GDB1747) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| IVECO | DAILY III | 35 S 10 ANJA41A1 ANJA42A2 ANJA42AB ANJA43A ANJAV1A... | 2002/09 - 2007/07 | F1AE0481A 95 hp 70 kW 2.3 L Diesel | Rear wheel | LCV / Van / Cargo / Small truck |
| IVECO | DAILY IV | 29L10 29L10 V 29L12 29L12 V 29L12 V/P 29L14 29L14 C 29L14 C/P 29L14 V 29L14 V/P 35C10 35S10 35C10 K 35C11 35S11 35S11 D 35S11 /P 35C11 K 35C11 DK 35S11 K 35S11 DK 35C11 V 35S11 V 35C12 35C12 35S12 35C12 V 35C12 V/P 35S12 V 35S12 V/P 35C13 35C13 /P 35S13 D 35S13 35S13 /P 35C13 K 35C13 DK 35S13 K 35S13 DK 35C13 V 35C13 V/P 35S13 V 35S13 V/P 35C14 35C14 /P 35S14 35S14 /P 35S14 D 35S14 D/P 35C14 35S14 35S14 /P 35C14 G 35C14 G/P 35S14 G 35S14 G/P 35C14 GD 35S14 GD 35C14 GV 35C14 GV/P 35S14 GV 35S14 GV/P 35C14 K 35C14 DK 35S14 K 35S14 DK 35C14 V 35C14 V/P 35S14 V 35S14 V/P 35C15 35C15 V 35C15 V/P 35C17 35C17 /P 35S17 35S17 /P 35S17 D 35C17 K 35C17 DK 35S17 K 35S17 DK 35C17 V 35C17 V/P 35S17 V 35S17 V/P 35C18 35C18 35S18 35C18 V 35C18 V/P 35S18 V 35S18 V/P 35S14 35S14 /P 35S14 C 35S14 C/P 35S14 V 35S14 V/P 35C14 V 35C14 V/P 35S14 G 35S14 K 35S14 DK 35S15 40C10 40C10 V 40C11 40C11 D 40C11 V 40C12 40C12 V 40C14 V/P 40C13 40C13 /P 40C13 V 40C13 V/P 40C14 40C14 /P 40C14 G 40C14 G/P 40C14 GV 40C14 GV/P 40C14 K 40C14 DK 40C14 V 40C14 V/P 40C15 40C15 V 40C15 V/P 40C17 40C17 /P 40C17 K 40C17 DK 40C17 V 40C17 V/P 40C18 40C18 V 40C18 V/P 45C14 45C14 /P 45C15 45C15 V 45C17 45C17 /P 45C17 V 45C17 V/P 45C18 45C18 45C18 /P 45C18 D 45C18 D/P 50C14 50C14 /P 50C14 G 50C14 G/P 50C14 GD 50C14 GD/P 50C14 GV 50C14 GV/P 50C14 K 50C14 DK 50C14 V 50C14 V/P 50C15 50C15 V 50C15 V/P 50C17 50C17 /P 50C17 K 50C17 DK 50C17 V 50C17 V/P 50C18 50C18 V 50C18 V/P 55C17 60C15 60C15 60C15 /P 60C15 D 60C15 D/P 60C15 V 60C18 65C14 K 65C14 DK 65C15 65C15 65C15 /P 65C15 D 65C15 D/P 65C18 70C15 | 2006/05 - 2012/03 | F1AE0481FA 106 hp 78 kW 2.3 L Diesel F1AE0481FA 95 hp 70 kW 2.3 L Diesel F1AE0481GA 116 hp 85 kW 2.3 L Diesel F1AE0481GA 126 hp 93 kW 2.3 L Diesel F1AE0481HA 136 hp 100 kW 2.3 L Diesel F1CE0441A 136 hp 100 kW 3 L Petrol F1CE0481FA 146 hp 107 kW 3 L Diesel F1CE0481HA 170 hp 125 kW 3 L Diesel F1CE0481HA 176 hp 130 kW 3 L Diesel F1CE0481HC 176 hp 130 kW 3 L Diesel F1CE0481L 150 hp 110 kW 3 L Diesel F1CE3481C 170 hp 125 kW 3 L Diesel F1CE3481LC 140 hp 103 kW 3 L Diesel | Rear wheel | Dump truck LCV / Van / Cargo / Small truck Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| IVECO | DAILY V | 26L11 26L11D 35C11D 35S11 40C11 29L11 V 35C11 V 35S11 V 40C11 V 29L13 29L13D 35C13D 40C13 29L13 V 35C13 V 35S13 V 40C13 V 40S13 V 29L15 V 35C15L V 40C15L V 50C15L V 35C11K 35S11DKP 35C13K 35C13DKP 35C15 35C15D 35S15 40C15 45C15 50C15 60C15 70C15 35C15K 35S15DKP 50C15K 60C15K 65C15DK 70C15K 35C15 V 40C15 V 35C17 35C17D 35S17 40C17 45C17 50C17 60C17 70C17 35C17K 35S17DKP 50C17K 65C17DK 70C17K 35C17 V 35S17 V 40C17 V 45C17 V 50C17 V 60C17 V 35C21 35S21 40C21 45C21 50C21 60C21 70C21 35C21 V 35S21 V 40C21 V 45C21 V 50C21 V 50 C Electric | 2011/09 - 2014/02 | 109 hp 80 kW L Electric F1AE3481A 106 hp 78 kW 2.3 L Diesel F1AE3481B 126 hp 93 kW 2.3 L Diesel F1AE3481C 146 hp 107 kW 2.3 L Diesel F1CE3481C 170 hp 125 kW 3 L Diesel F1CE3481K 170 hp 125 kW 3 L Diesel F1CE3481D 204 hp 150 kW 3 L Diesel F1CE3481D 205 hp 150 kW 3 L Diesel F1CE3481J 146 hp 107 kW 3 L Diesel F1CE3481L 146 hp 107 kW 3 L Diesel F1CE3481L 146 hp 107 kW 3 L Diesel | Rear wheel | Dump truck LCV / Van / Cargo / Small truck With flatbed/undercarriage |
| IVECO | DAILY VI | 3.0 Natural Power 35S14 35C14 40C14 50C14 65C14 70C14 33S11 35S11 35C11 33S13 35S13 35C13 33S15 35S15 35C15 35S15 35C15 40C15 50C15 65C15 70C15 35S17 35C17 40C17 50C17 65C17 70C17 35S21 35C21 40C21 50C21 65C21 70C21 Natural Power 35S14 35C14 40C14 50C14 65C14 70C14 | 2014/03 - | F1AE3481A 106 hp 78 kW 2.3 L Diesel F1AFL411A 106 hp 78 kW 2.3 L Diesel F1AE3481B 126 hp 93 kW 2.3 L Diesel F1AFL411B 126 hp 93 kW 2.3 L Diesel F1AE3481C 146 hp 107 kW 2.3 L Diesel F1AFL411C 146 hp 107 kW 2.3 L Diesel F1AFL411B 126 hp 93 kW 2.3 L Diesel F1CE3481D 205 hp 150 kW 3 L Diesel F1CFL411G 205 hp 150 kW 3 L Diesel F1CE3481J 146 hp 107 kW 3 L Diesel F1CFL411E 146 hp 107 kW 3 L Diesel F1CFL411J 146 hp 107 kW 3 L Diesel F1CE3481K 170 hp 125 kW 3 L Diesel F1CFL411F 170 hp 125 kW 3 L Diesel F1CFL411H 170 hp 125 kW 3 L Diesel F1CFA401A 136 hp 100 kW 3 L Petrol F1CFA401A 136 hp 100 kW 3 L Petrol F1CFA401B 136 hp 100 kW 3 L Petrol | Rear wheel | LCV / Van / Cargo / Small truck With flatbed/undercarriage |
