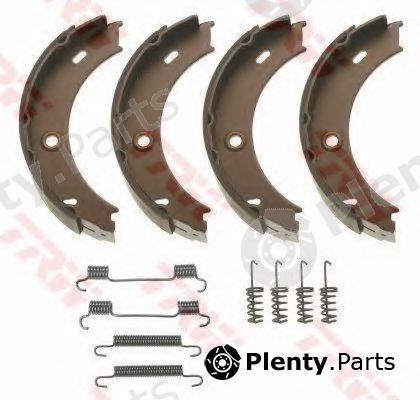

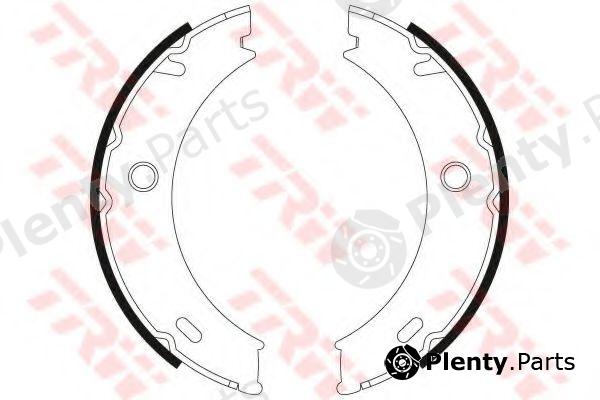

TRW GS8466 Brake Shoe Set, parking brake

TRW part GS8466 Brake Shoe Set, parking brake
TRW part GS8466 Brake Shoe Set, parking brake

TRW GS8466 Brake Shoe Set, parking brake

by TRW

Manufacturer Part Number: GS8466

Сharacteristics:
  • Manufacturer Restriction: ATE
  • Diameter [mm]: 170
  • Width [mm]: 40
  • Inspection Tag: E9-90R-01713/014

Product Details

BrandTRW
TRW article (MPN)GS8466
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MERCEDES-BENZ, VAG vehicles

OE manufacturerOEM reference numbers
MERCEDES-BENZ9044200420, 0024205920, 9044200220, A0024205920, 9044200320
VAG2D0698525A, 2D0609525A, 2D0609538A

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW GS8466 Brake Shoe Set, parking brake offered by A.B.S., ALANKO, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, E.T.F., FEBI BILSTEIN, FERODO, FIT, FOMAR, fri.tech., FTE, GIRLING, G.U.D, HANS PRIES, HELLA, HELLA PAGID, HP, JURID, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NK, OPEN PARTS, PAGID, PEX, PROFIT, PROTECHNIC, QUINTON HAZELL, RAICAM, REMSA, sbs, SWAG, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, VAICO, VALEO, WEEN, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.9022
ALANKO302429
APEC brakingSHU645
ATE03-0137-4015-2, 03.0137-0410.2
BENDIX362420B
BORG & BECKBBS6328
BOSCH0986487611
Brake ENGINEERINGSH2606
BREMBOS50513, S50512
BREMSIGF0307
BSF01744K, 01744
CIFAM153240
DELPHILS1917
DENCKERMANNB120129
E.T.F.090594
FEBI BILSTEIN23190, 23191
FERODOFSB625
FITFT1062
FOMARFO9022
fri.tech.1052.127
FTEBB1295A6
GIRLING5184662
G.U.DGBS471001
HANS PRIES110456
HELLA8DA355050461
HELLA PAGID8DA355050461
HP1775
JURID362420J
KAWE07970
KRAFT6029075
LPR07970
MAGNETI MARELLI360219198331
MAPCO8855
MAXGEAR190304
METELLI530240
METZGERKR956
MEYLE0140420402, 0140420402/S
MGAM805R
MINTEXMFR498
NECTON1672
NIBKFN0576
NK2733678
OPEN PARTSBSA219600
PAGIDH9470
PEX6213
PROFIT50010625
PROTECHNICPRS0266, PRS0265
QUINTON HAZELL1775, BS1129
RAICAM28841, RA28841, RA28840, 2884
REMSA4714.01, 471001
sbs18492733678
SWAG10923190, 10923191
TEXTAR91057900
TRISCAN810023025, 8105102586
TRUCKTEC AUTOMOTIVE02.35.052
TRUSTING052127
VAICOV306138
VALEO128901
WEEN1522127
ZIMMERMANN10990.128.8, 109901289

Vehicle fitment / TRW GS8466 Brake Shoe Set, parking brake compatibility

This product fits the following models: MERCEDES-BENZ , MERCEDES-BENZ SPRINTER 3-T, MERCEDES-BENZ SPRINTER 4-T, VW LT 28-46 II, VW LTII, etc. See all vehicles this product (TRW GS8466) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MERCEDES-BENZ
512 D
667.321
667.322
667.323
667.351
667.352
667.353
1996/09 - OM602.984 122 hp 90 kW 2.9 L Diesel
Rear wheel
LCV / Van / Cargo / Small truck
With flatbed/undercarriage
MERCEDES-BENZSPRINTER 3-T
903
2.3 D 4x4
310 D
314
314 4x4
314 NGT
316 CDI
316 CDI 4x4

903.371
903.372
903.373
1995/02 - 2006/05125 hp 92 kW 2.3 L Petrol
M111.979 143 hp 105 kW 2.3 L Petrol
M111.984 143 hp 105 kW 2.3 L Petrol
M111.984 143 hp 105 kW 2.3 L Petrol
OM601.943 79 hp 58 kW 2.3 L Diesel
OM602.980 102 hp 75 kW 2.9 L Diesel
OM612.981 156 hp 115 kW 2.7 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
MERCEDES-BENZSPRINTER 4-T
904
2.3 D 4x4
408 CDI
408 D
410 D
410 D 4x4
411 CDI
411 CDI 4x4
412 D
412 D 4x4
413 CDI
413 CDI 4x4
414
414 4x4
414 D 4x4
416 CDI
416 CDI 4x4
1996/02 - 2006/05M111.979 143 hp 105 kW 2.3 L Petrol
OM601.943 79 hp 58 kW 2.3 L Diesel
OM602.980 102 hp 75 kW 2.9 L Diesel
OM602.980 115 hp 85 kW 2.9 L Diesel
OM602.980 122 hp 90 kW 2.9 L Diesel
OM602.980 122 hp 90 kW 2.9 L Diesel
OM611.981 109 hp 80 kW 2.1 L Diesel
OM611.981 129 hp 95 kW 2.1 L Diesel
OM611.987 82 hp 60 kW 2.1 L Diesel
OM612.981 156 hp 115 kW 2.7 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VWLT 28-46 II
2DA
2DD
2DH
2DC
2DF
2
2.3
2.5 SDI
2.5 TDI
2.8 TDI
1996/05 - 2006/07AGK 125 hp 92 kW 2.8 L Diesel
ATA 130 hp 96 kW 2.8 L Diesel
AUH 158 hp 116 kW 2.8 L Diesel
BCQ 158 hp 116 kW 2.8 L Diesel
AGL 143 hp 105 kW 2.3 L Petrol
AGX 75 hp 55 kW 2.5 L Diesel
AHD 102 hp 75 kW 2.5 L Diesel
ANJ 109 hp 80 kW 2.5 L Diesel
APA 90 hp 66 kW 2.5 L Diesel
AVR 109 hp 80 kW 2.5 L Diesel
BBE 83 hp 61 kW 2.5 L Diesel
BBF 95 hp 70 kW 2.5 L Diesel
Rear wheel
LCV / Van / Cargo
With flatbed/undercarriage
VWLTII
2DA
2DD
2DH
2DC
2DF
2DG

2.3
2.5 SDI
2.5 TDI
2.8 TDI
1996/05 - 2006/07AGK 125 hp 92 kW 2.8 L Diesel
ATA 130 hp 96 kW 2.8 L Diesel
AUH 158 hp 116 kW 2.8 L Diesel
BCQ 158 hp 116 kW 2.8 L Diesel
AGL 143 hp 105 kW 2.3 L Petrol
AGX 75 hp 55 kW 2.5 L Diesel
AHD 102 hp 75 kW 2.5 L Diesel
ANJ 109 hp 80 kW 2.5 L Diesel
APA 90 hp 66 kW 2.5 L Diesel
AVR 109 hp 80 kW 2.5 L Diesel
BBE 83 hp 61 kW 2.5 L Diesel
BBF 95 hp 70 kW 2.5 L Diesel
Rear wheel
LCV / Van / Cargo
With flatbed/undercarriage
