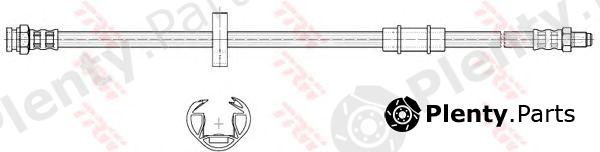

TRW PHB226 Brake Hose

TRW PHB226 Brake Hose

Manufacturer Part Number: PHB226

Сharacteristics:

Length [mm]: 459
Thread Measurement 1: M10x1
Thread Type: Inner Thread
Thread Measurement 2: M10x1
Thread Type: Outer Thread

Product Details

Brand	TRW
TRW article (MPN)	PHB226
Vehicle subsystem	Brake System

Original (OEM) part numbers

Suitable for FIAT / LANCIA / ALFA, VAG vehicles

OE manufacturer	OEM reference numbers
FIAT / LANCIA / ALFA	5959715, 5985827, 7569592, 0000004424684, 0000004484463, 71736949
VAG	141744400B, SE141744400B

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for TRW PHB226 Brake Hose offered by A.B.S., ALANKO, APEC braking, ATE, BENDIX, BOSCH, Brake ENGINEERING, BREMBO, BSF, CAR, CEF, CORTECO, DELPHI, FERODO, FIRST LINE, FTE, GIRLING, GKN-SPIDAN, HELLA, HELLA PAGID, HP, JURID, KAWE, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MALÒ, MAPCO, METZGER, MGA, NK, ORIGINAL IMPERIUM, PAGID, PEX, QUINTON HAZELL, REMSA, ROADHOUSE, SASIC, sbs, STOP, TEXTAR, TRW, VILLAR, WOKING manufacturers

Manufacturer	Reference numbers
A.B.S.	SL3238
ALANKO	309095
APEC braking	HOS3352
ATE	24511204333
BENDIX	171307B, 171639B, 171306B
BOSCH	1987476239
Brake ENGINEERING	BH772095
BREMBO	T85011
BSF	18064
CAR	TF353X
CEF	517056
CORTECO	19018121
DELPHI	43540410, BFH4412, LH2095
FERODO	FHY2132
FIRST LINE	FBH6102
FTE	43540410
GIRLING	9002226
GKN-SPIDAN	39324, 39488, 39382
HELLA	8AH355461841
HELLA PAGID	8AH355461841
HP	BH15806
JURID	171306J
KAWE	517056
LPR	6T46228
LUCAS ELECTRICAL	GHP913, PHB226
MAGNETI MARELLI	440019018121
MALÒ	8353
MAPCO	3855, 3986
METZGER	4112095
MGA	F5056
NK	852355, 852354
ORIGINAL IMPERIUM	23118
PAGID	71100
PEX	32918
QUINTON HAZELL	HBS4412, BFH4412, BH15806
REMSA	190114
ROADHOUSE	190114
SASIC	SBH6304
sbs	1330852354, 1330852355
STOP	171306S
TEXTAR	40066800
TRW	GHP913
VILLAR	6184173
WOKING	G190114

Vehicle fitment / TRW PHB226 Brake Hose compatibility

This product fits the following models: FIAT PANDA, LANCIA Y10, SEAT MARBELLA, SEAT TERRA, etc. See all vehicles this product (TRW PHB226) fits below to verify fitment for your vehicle.

Make	Model	Variant	Period	Engine	Drive	Body Style
FIAT	PANDA 141 141A	0.9 Fire S 1000 1000 4x4 1000 i.e. KAT 650 750 800 900 141AA 141AI 141AM KAT	1980/10 - 2004/07	100GL3.000 45 hp 33 kW 0.9 L Petrol 146A.000 45 hp 33 kW 0.9 L Petrol 100GL6.000 34 hp 25 kW 0.8 L Petrol 141A.000 30 hp 22 kW 0.65 L Petrol 141B.000 34 hp 25 kW 0.8 L Petrol 141B.000 34 hp 25 kW 0.8 L Petrol 156A4.000 34 hp 25 kW 0.8 L Petrol 156A4.048 34 hp 25 kW 0.8 L Petrol 141C2.000 45 hp 33 kW 1 L Petrol 156A2.100 44 hp 32 kW 1 L Petrol 156A2.246 45 hp 33 kW 1 L Petrol 156A3.000 50 hp 37 kW 1 L Petrol 156A3.100 44 hp 32 kW 1 L Petrol 141C2.000 45 hp 33 kW 1 L Petrol 156A2.246 45 hp 33 kW 1 L Petrol 146A.048 45 hp 33 kW 0.9 L Petrol 156A2.100 44 hp 32 kW 1 L Petrol 156A3.000 50 hp 37 kW 1 L Petrol 156A2.100 44 hp 32 kW 1 L Petrol 156A3.100 44 hp 32 kW 1 L Petrol 156A4.048 34 hp 25 kW 0.8 L Petrol	AWD / 4WD Front wheel Front wheel AWD / 4WD	Hatchback / Sportback / Sport hatch LCV / Van / Cargo
LANCIA	Y10 156	1.0 Fire 156B 156AD	1985/06 - 1991/06	156A2.100 44 hp 32 kW 1 L Petrol	AWD / 4WD Front wheel	Hatchback / Sportback / Sport hatch
SEAT	MARBELLA 028A 28	0.8 0.9 0.9 KAT	1986/08 - 1998/10	08NCA 34 hp 25 kW 0.8 L Petrol 08NCB 41 hp 30 kW 0.9 L Petrol 09NCB 40 hp 29 kW 0.9 L Petrol 100GL7000 40 hp 29 kW 0.9 L Petrol 08NCB 44 hp 32 kW 0.9 L Petrol 09NCA 40 hp 29 kW 0.9 L Petrol 100GL7000 40 hp 29 kW 0.9 L Petrol 09NCA 40 hp 29 kW 0.9 L Petrol 09NCB 40 hp 29 kW 0.9 L Petrol	Front wheel	Hatchback / Sportback / Sport hatch LCV / Van / Cargo
SEAT	TERRA 024A 24	0.9 0.9 KAT 1.3 D 1.4 D	1987/01 - 1996/12	09NCA 40 hp 29 kW 0.9 L Petrol 09NCB 40 hp 29 kW 0.9 L Petrol 1W 48 hp 35 kW 1.4 L Diesel MN 45 hp 33 kW 1.3 L Diesel	Front wheel	Estate / Turnier / Vario / Wagon LCV / Van / Cargo
