ZIMMERMANN 100.1232.20 (100123220) Brake Disc

ZIMMERMANN part 100.1232.20 (100123220) Brake Disc

ZIMMERMANN 100.1232.20 (100123220) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 100.1232.20 (100123220)

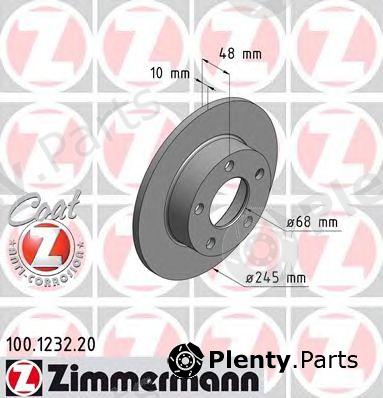

Сharacteristics:
  • Brake Disc Type: Solid
  • Surface: Coated
  • Outer diameter [mm]: 245
  • Thickness [mm]: 10
  • Minimum thickness [mm]: 8
  • Height [mm]: 48
  • Hole Arrangement / Number: 5/5
  • Weight [kg]: 4,9
  • Bolt Hole Circle Ø 1 [mm]: 112
  • Hub Bore Ø [mm]: 68

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)100.1232.20 (100123220)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG8D0615601A, 8E0615601A

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 100.1232.20 (100123220) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, AUTOMEGA, BARUM, BENDIX, BOSCH, BRECO, BREMBO, CAR, CIFAM, DELPHI, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FREMAX, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, QH International, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROULUNDS BRAKING, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC4009ABE
A.B.S.16442, 16442S
ACDelcoAC2245D
AP14704
ATE24.0110-0224.1, 24.0310-0224.1
AUTOMEGA3061506018D0A
BARUMBAR10224
BENDIX562005BC, 562005B
BOSCH0986478888
BRECOBS7603
BREMBO08.8408.10
CARHPD762, 142.762
CIFAM800-531C
DELPHIBG3381
E.T.F.19-5312
FARCOM230028
FEBI BILSTEIN11398
FERODODDF952
FIRST LINEFBD822
FREMAXBD-2746
fri.tech.DF641
FTEBS4532
GIRLING6040264
GRAFDF29531C
HANS PRIES109525
HELLA8DD355105681, 8DD355105682, 8DD355105671
HELLA PAGID8DD355105681, 8DD355105682, 8DD355105671
JP GROUP615650002ALT
JURID562005J, 562005JC
KAGER37-1150
KAWEBDR1045.10, 651300
LPRA1501P
MAGNETI MARELLI360406012800
MAPCO15867
METELLI23-0531C
METZGER14704
MEYLE1155211050, 1155211050/PD
MINTEXMDC831
NK204763
OPEN PARTSBDR1045.10
OPTIMALBS-5130
PAGID53952PRO, 53952
PEX14.0045N, 14.0045
PILENGA5872
QH InternationalHP57690
QUINTON HAZELLBDC4532, HP57690
RAMEDERT0620665
REMSA6513.00
ROADHOUSE6513.00
ROULUNDS BRAKINGD2245
sbs1815204763
SWAG99990010
TEMPLIN0311010305, 01.04.06.120522, 0311010300
TEXTAR92088505, 92088503, 92088500
TRISCAN812029183
TRUSTINGDF641
TRWDF4026, DF4026BP
VAICOV10-40068
ZIMMERMANN100.1232.52, 100.1232.00, 100.1232.50

Vehicle fitment / ZIMMERMANN 100.1232.20 (100123220) Brake Disc compatibility

This product fits the following models: AUDI A4, VW PASSAT, etc. See all vehicles this product (ZIMMERMANN 100.1232.20 (100123220)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
AUDIA4
8D2
B5
8D5
B5
1.8 quattro
1.8 T quattro
1.9 TDI quattro
2.4 quattro
2.5 TDI quattro
2.6 quattro
2.7 Bi Turbo quattro
2.7 Turbo quattro
2.8 quattro
S4 quattro
1995/01 - 2001/09AAH 174 hp 128 kW 2.8 L Petrol
ACK 193 hp 142 kW 2.8 L Petrol
AHA 193 hp 142 kW 2.8 L Petrol
ALG 193 hp 142 kW 2.8 L Petrol
AMX 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
ABC 150 hp 110 kW 2.6 L Petrol
ADR 125 hp 92 kW 1.8 L Petrol
AFY 115 hp 85 kW 1.8 L Petrol
APT 125 hp 92 kW 1.8 L Petrol
ARG 125 hp 92 kW 1.8 L Petrol
AEB 150 hp 110 kW 1.8 L Petrol
AJL 180 hp 132 kW 1.8 L Petrol
ANB 150 hp 110 kW 1.8 L Petrol
APU 150 hp 110 kW 1.8 L Petrol
ARK 150 hp 110 kW 1.8 L Petrol
AWT 150 hp 110 kW 1.8 L Petrol
AFB 150 hp 110 kW 2.5 L Diesel
AKN 150 hp 110 kW 2.5 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AJM 115 hp 85 kW 1.9 L Diesel
ATJ 115 hp 85 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AJM 116 hp 85 kW 1.9 L Diesel
ATJ 116 hp 85 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
AGA 165 hp 121 kW 2.4 L Petrol
ALF 165 hp 121 kW 2.4 L Petrol
AML 165 hp 121 kW 2.4 L Petrol
APS 165 hp 121 kW 2.4 L Petrol
APZ 163 hp 120 kW 2.4 L Petrol
ARJ 165 hp 121 kW 2.4 L Petrol
AGB 265 hp 195 kW 2.7 L Petrol
AZB 265 hp 195 kW 2.7 L Petrol
AJK 230 hp 169 kW 2.7 L Petrol
APB 254 hp 187 kW 2.7 L Petrol
AWD / 4WD
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VWPASSAT
3B3
3B5
3B6
1.8 4motion
1.8 Syncro/4motion
1.8 T 4motion
1.9 TDI 4motion
1.9 TDI Syncro/4motion
2.0 4motion
2.3 V5 4motion
2.3 VR5 4motion
2.3 VR5 Syncro/4motion
2.5 TDI 4motion
2.5 TDI Syncro/4motion
2.8 4motion
2.8 V6 Syncro/4motion
1997/06 - 2005/05ACK 193 hp 142 kW 2.8 L Petrol
AHA 193 hp 142 kW 2.8 L Petrol
ALG 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
ADR 125 hp 92 kW 1.8 L Petrol
APT 125 hp 92 kW 1.8 L Petrol
ARG 125 hp 92 kW 1.8 L Petrol
AFB 150 hp 110 kW 2.5 L Diesel
AKN 150 hp 110 kW 2.5 L Diesel
AFB 150 hp 110 kW 2.5 L Diesel
AKN 150 hp 110 kW 2.5 L Diesel
BAU 180 hp 132 kW 2.5 L Diesel
BDH 180 hp 132 kW 2.5 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
AGZ 150 hp 110 kW 2.3 L Petrol
AMX 193 hp 142 kW 2.8 L Petrol
ATQ 193 hp 142 kW 2.8 L Petrol
ASU 120 hp 88 kW 2 L Petrol
AUZ 120 hp 88 kW 2 L Petrol
ATJ 115 hp 85 kW 1.9 L Diesel
AVF 130 hp 96 kW 1.9 L Diesel
AWM 170 hp 125 kW 1.8 L Petrol
AZM 115 hp 85 kW 2 L Petrol
AZX 170 hp 125 kW 2.3 L Petrol
AWD / 4WD
Estate / Turnier / Vario / Wagon
Sedan / Saloon
