ZIMMERMANN 100.3331.20 (100333120) Brake Disc

ZIMMERMANN part 100.3331.20 (100333120) Brake Disc

ZIMMERMANN 100.3331.20 (100333120) Brake Disc

by ZIMMERMANN

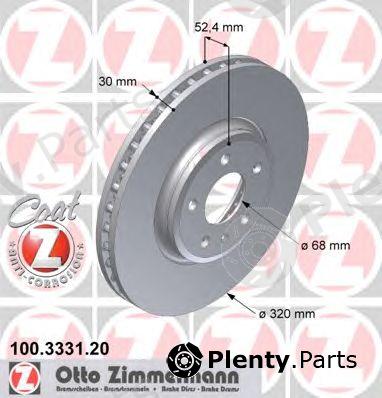

Manufacturer Part Number: 100.3331.20 (100333120)

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Outer diameter [mm]: 320
  • Thickness [mm]: 30
  • Minimum thickness [mm]: 28
  • Height [mm]: 52,4
  • Hole Arrangement / Number: 6/5
  • Weight [kg]: 9,9
  • Bolt Hole Circle Ø 1 [mm]: 112
  • Hub Bore Ø [mm]: 68

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)100.3331.20 (100333120)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG8K0615301A

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 100.3331.20 (100333120) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, COMLINE, DELPHI, Dr!ve+, E.T.F., FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, SIMER, STARLINE, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3A033ABE
A.B.S.17777S, 17777
ACDelcoAC2676D
AP25213, 25213V
ATE24.0130-0193.1, 24033001931
BENDIX562511BC
BLUE PRINTADV184312
BORG & BECKBBD5819S
BOSCH0986479468, 0986479382
Brake ENGINEERINGDI956723S
BRECOBV8823, BS8823
BREMBO09.A758.10, 09.A758.11, FD.219.000
BREMSIDBB664V
CAR142.1309, HPD1309
CIFAM800-1031C
COMLINEADC1477V
DELPHIBG4080
Dr!ve+DP1010110561
E.T.F.19-1116
FEBI BILSTEIN36231
FERODODDF16641, DDF1664
FIRST LINEFBD1773
FOMARFO4119
FREMAXBD-6076
fri.tech.BD1235, DF1235
FTEBS7699, BS7699B
GIRLING6060155
HANS PRIES113010
HELLA8DD355113912, 8DD355113-901, 8DD355113911, 8DD355121401
HELLA PAGID54600PRO, 8DD355113901, 8DD355113912, 8DD355113911, 8DD355121401
HPHP58997
ICER78BD60762
JP GROUP1163107509
JURATEKVAG194
JURID562511JC
KAGER370902, 370576, 371324
KAMOKA1031055
KAWE6111010
LPRA1033V
MAGNETI MARELLI360406081500
MAPCO25880
METELLI23-1031C
METZGER61110.10, 6110425
MEYLE1155211117, 1155211117/PD
MINTEXMDC2001
NATIONALNBD1517
NK3147127, 2047127
OPEN PARTSBDR2412.20, BDRS2412.25
OPTIMALBS-8504C, BS-8504
PAGID54600
PATRONPBD6015
PILENGAV847
PROTECHNICPRD6112
QUINTON HAZELLHP58997, BDC5710
R BRAKE78RBD26076
REMSA61110.10
ROADHOUSE61110.10
ROTINGERRT20724, RT20724T5
ROULUNDS BRAKINGWD01571
SASIC6106173
sbs18153147127, 18152047127
SIMERD2180
STARLINEPB20724C
SWAG30936231
TEMPLIN0311010575, 01.06.06.127612, 0311010570
TEXTAR92160000, 92160005, 92160003
TRISCAN8120291017, 8120291017C
TRUCKTEC AUTOMOTIVE0735251
TRUSTINGDF1235
TRWDF6015S
VAICOV10-80089
VALEO197196
WAGNER LOCKHEEDWGR1664-1
WOKINGD61110.10
ZIMMERMANN100.3331.00, 100.3331.50, 100.3331.52

Vehicle fitment / ZIMMERMANN 100.3331.20 (100333120) Brake Disc compatibility

This product fits the following models: AUDI A4, AUDI A4 ALLROAD, AUDI A5, AUDI Q5, etc. See all vehicles this product (ZIMMERMANN 100.3331.20 (100333120)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
AUDIA4
8K2
B8
8K5
B8
1.8 TFSI
1.8 TFSI quattro
2.0 TDI
2.0 TDI quattro
2.0 TFSi
2.0 TFSI
2.0 TFSI flexible fuel
2.0 TFSI flexible fuel quattro
2.0 TFSI quattro
2.7 TDI
3.0 TDI quattro
3.2 FSI
3.2 FSI quattro
S4 quattro
2007/11 - 2015/12CABA 120 hp 88 kW 1.8 L Petrol
CABB 160 hp 118 kW 1.8 L Petrol
CDHA 120 hp 88 kW 1.8 L Petrol
CDHB 160 hp 118 kW 1.8 L Petrol
CABB 160 hp 118 kW 1.8 L Petrol
CDHA 120 hp 88 kW 1.8 L Petrol
CDHB 160 hp 118 kW 1.8 L Petrol
CAEA 180 hp 132 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CFKA 180 hp 132 kW 2 L Petrol
CAEA 180 hp 132 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CFKA 180 hp 132 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CPMA 211 hp 155 kW 2 L Petrol
CAGA 143 hp 105 kW 2 L Diesel
CAGB 136 hp 100 kW 2 L Diesel
CAGC 120 hp 88 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CJCC 120 hp 88 kW 2 L Diesel
CMEA 143 hp 105 kW 2 L Diesel
CMFA 143 hp 105 kW 2 L Diesel
CNHC 163 hp 120 kW 2 L Diesel
CSUB 136 hp 100 kW 2 L Diesel
CAGA 143 hp 105 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CAKA 333 hp 245 kW 3 L Petrol
CCBA 333 hp 245 kW 3 L Petrol
CGWC 333 hp 245 kW 3 L Petrol
CGXC 333 hp 245 kW 3 L Petrol
CREC 333 hp 245 kW 3 L Petrol
CTUB 333 hp 245 kW 3 L Petrol
CALA 265 hp 195 kW 3.2 L Petrol
CAMA 190 hp 140 kW 2.7 L Diesel
CAMB 163 hp 120 kW 2.7 L Diesel
CGKA 190 hp 140 kW 2.7 L Diesel
CGKB 163 hp 120 kW 2.7 L Diesel
CAPA 240 hp 176 kW 3 L Diesel
CCLA 240 hp 176 kW 3 L Diesel
CCWA 240 hp 176 kW 3 L Diesel
CCWB 211 hp 155 kW 3 L Diesel
CDHB 160 hp 118 kW 1.8 L Petrol
CFKA 180 hp 132 kW 2 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
AUDIA4 ALLROAD
8KH
B8
2.0 TDI quattro
2.0 TFSI quattro
3.0 TDI quattro
2009/04 - CAGA 143 hp 105 kW 2 L Diesel
CAGB 136 hp 100 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CNHC 163 hp 120 kW 2 L Diesel
CSUB 136 hp 100 kW 2 L Diesel
CCWA 240 hp 176 kW 3 L Diesel
CDNC 211 hp 155 kW 2 L Petrol
CPMA 211 hp 155 kW 2 L Petrol
AWD / 4WD
Estate / Turnier / Vario / Wagon
AUDIA5
8F7
8T3
8TA
1.8 TFSI
2.0 TDI
2.0 TDI quattro
2.0 TFSI
2.0 TFSI quattro
2.7 TDI
3.0 TDI quattro
3.2 FSI
3.2 FSI quattro
S5 quattro
2007/06 - CABD 170 hp 125 kW 1.8 L Petrol
CDHB 160 hp 118 kW 1.8 L Petrol
CJEB 170 hp 125 kW 1.8 L Petrol
CAEA 180 hp 132 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CAGA 143 hp 105 kW 2 L Diesel
CAGB 136 hp 100 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CMEA 143 hp 105 kW 2 L Diesel
CMFA 143 hp 105 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CAKA 333 hp 245 kW 3 L Petrol
CCBA 333 hp 245 kW 3 L Petrol
CGWC 333 hp 245 kW 3 L Petrol
CGXC 333 hp 245 kW 3 L Petrol
CREC 333 hp 245 kW 3 L Petrol
CTDA 333 hp 245 kW 3 L Petrol
CTUB 333 hp 245 kW 3 L Petrol
CAKA 333 hp 245 kW 3 L Petrol
CGWC 333 hp 245 kW 3 L Petrol
CGXC 333 hp 245 kW 3 L Petrol
CREC 333 hp 245 kW 3 L Petrol
CTDA 333 hp 245 kW 3 L Petrol
CTUB 333 hp 245 kW 3 L Petrol
CALA 265 hp 195 kW 3.2 L Petrol
CAMA 190 hp 140 kW 2.7 L Diesel
CAMB 163 hp 120 kW 2.7 L Diesel
CGKA 190 hp 140 kW 2.7 L Diesel
CGKB 163 hp 120 kW 2.7 L Diesel
CAPA 240 hp 176 kW 3 L Diesel
CCWA 240 hp 176 kW 3 L Diesel
CCWB 211 hp 155 kW 3 L Diesel
CAUA 354 hp 260 kW 4.2 L Petrol
CCWA 240 hp 176 kW 3 L Diesel
CDHB 160 hp 118 kW 1.8 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CGKA 190 hp 140 kW 2.7 L Diesel
CGKB 163 hp 120 kW 2.7 L Diesel
AWD / 4WD
Front wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
Hatchback / Sportback / Sport hatch
AUDIQ5
8R
2.0 TDI
2.0 TDI quattro
2.0 TFSI hybrid quattro
2.0 TFSI quattro
3.0 TDI quattro
3.0 TFSI quattro
3.2 FSI quattro
2008/11 - CAEB 211 hp 155 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CNCB 180 hp 132 kW 2 L Petrol
CNCD 224 hp 165 kW 2 L Petrol
CPMA 211 hp 155 kW 2 L Petrol
CAGA 143 hp 105 kW 2 L Diesel
CAGB 136 hp 100 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLA 163 hp 120 kW 2 L Diesel
CGLB 170 hp 125 kW 2 L Diesel
CGLC 177 hp 130 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CMGA 170 hp 125 kW 2 L Diesel
CMGB 177 hp 130 kW 2 L Diesel
CNHC 163 hp 120 kW 2 L Diesel
CSUB 136 hp 100 kW 2 L Diesel
CALB 270 hp 199 kW 3.2 L Petrol
CCWA 240 hp 176 kW 3 L Diesel
CCWB 211 hp 155 kW 3 L Diesel
CDUD 245 hp 180 kW 3 L Diesel
CPNB 240 hp 176 kW 3 L Diesel
CTBC 250 hp 184 kW 3 L Diesel
CHJA 211 hp 155 kW 2 L Hybrid
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CSUB 136 hp 100 kW 2 L Diesel
CTUC 272 hp 200 kW 3 L Petrol
CTVA 272 hp 200 kW 3 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
