ZIMMERMANN 100333220 Brake Disc

ZIMMERMANN part 100333220 Brake Disc

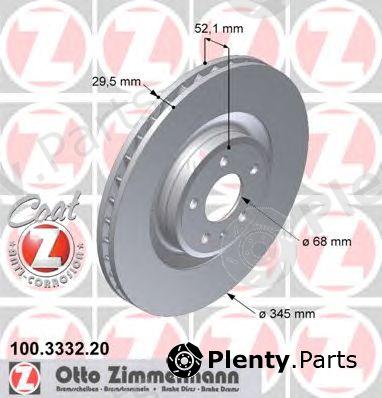

ZIMMERMANN 100333220 Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 100333220

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Outer diameter [mm]: 345
  • Thickness [mm]: 29,5
  • Minimum thickness [mm]: 28
  • Height [mm]: 52
  • Hole Arrangement / Number: 6/5
  • Weight [kg]: 10,8
  • Bolt Hole Circle Ø 1 [mm]: 112
  • Hub Bore Ø [mm]: 68

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)100333220
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG8K0615301E, 8K0615301K, 8K0615301B, 8K0615301M

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 100333220 Brake Disc offered by A.B.S., ACDelco, AP, ATE, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, COMLINE, DELPHI, DENCKERMANN, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QH International, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17822S, 17822
ACDelcoAC2677D
AP25214, 25214X, 25214V
ATE24.0129-0102.1
BLUE PRINTADV184316
BORG & BECKBBD5807S
BOSCH0986479590
Brake ENGINEERINGDI956664S
BRECOBS8824, BV8824
BREMBO09.B039.11, 09.B039.10, 09B0391X
BREMSIDBB665V
CAR142.1308, HPD1308
CIFAM8001247C
COMLINEADC1479V
DELPHIBG9052
DENCKERMANNB130477
FEBI BILSTEIN36236
FERODODDF1665C, DDF1665C1, DDF1665-1, DDF1665
FIRST LINEFBD1709
FOMARFO4120
FREMAXBD-6078
fri.tech.DF1236, BD1236
FTEBS7700B, BS7700
GIRLING6060145
HANS PRIES113008
HELLA8DD355113-941, 8DD355121411, 8DD355113-951, 8DD355122882
HELLA PAGID8DD355121411, 8DD355113941, 8DD355122882, 8DD355113951
ICER78BD60782
KAMOKA103297
KAWE6111110
LPRA1034V
MAGNETI MARELLI360406081600
METELLI231247C
METZGER6110613, 61111.10
MEYLE1155211118/PD
MINTEXMDC2002
NATIONALNBD1518
NK2047128, 3147128
OPEN PARTSBDR2486.20
OPTIMALBS8508C, BS-8508
PAGID54602
PATRONPBD6014
PILENGAV846
PROTECHNICPRD2501
QH InternationalHP59010
QUINTON HAZELLHP59010
R BRAKE78RBD26078
REMSA61111.10
ROADHOUSE61111.10
ROTINGERRT20726T5, RT20726
ROULUNDS BRAKINGWD01573
sbs18152047128, 18153147128
SWAG30936236
TEXTAR92160203, 92160200, 92160205
TRISCAN8120291019, 8120291019C
TRUCKTEC AUTOMOTIVE0735253
TRUSTINGDF1236
TRWDF6014S
VAICOV10-80094
WOKINGD61111.10
ZIMMERMANN100.3332.50, 100.3332.52, 100.3332.00

Vehicle fitment / ZIMMERMANN 100333220 Brake Disc compatibility

This product fits the following models: AUDI A4, AUDI A5, AUDI Q5, etc. See all vehicles this product (ZIMMERMANN 100333220) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
AUDIA4
8K2
B8
8K5
B8
1.8 TFSI
1.8 TFSI quattro
2.0 TDI
2.0 TDI quattro
2.0 TFSi
2.0 TFSI
2.0 TFSI flexible fuel
2.0 TFSI flexible fuel quattro
2.0 TFSI quattro
2.7 TDI
3.0 TDI quattro
3.2 FSI
3.2 FSI quattro
S4 quattro
2007/11 - 2015/12CABA 120 hp 88 kW 1.8 L Petrol
CABB 160 hp 118 kW 1.8 L Petrol
CDHA 120 hp 88 kW 1.8 L Petrol
CDHB 160 hp 118 kW 1.8 L Petrol
CABB 160 hp 118 kW 1.8 L Petrol
CDHA 120 hp 88 kW 1.8 L Petrol
CDHB 160 hp 118 kW 1.8 L Petrol
CAEA 180 hp 132 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CFKA 180 hp 132 kW 2 L Petrol
CAEA 180 hp 132 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CFKA 180 hp 132 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CPMA 211 hp 155 kW 2 L Petrol
CAGA 143 hp 105 kW 2 L Diesel
CAGB 136 hp 100 kW 2 L Diesel
CAGC 120 hp 88 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CJCC 120 hp 88 kW 2 L Diesel
CMEA 143 hp 105 kW 2 L Diesel
CMFA 143 hp 105 kW 2 L Diesel
CNHC 163 hp 120 kW 2 L Diesel
CSUB 136 hp 100 kW 2 L Diesel
CAGA 143 hp 105 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CAKA 333 hp 245 kW 3 L Petrol
CCBA 333 hp 245 kW 3 L Petrol
CGWC 333 hp 245 kW 3 L Petrol
CGXC 333 hp 245 kW 3 L Petrol
CREC 333 hp 245 kW 3 L Petrol
CTUB 333 hp 245 kW 3 L Petrol
CALA 265 hp 195 kW 3.2 L Petrol
CAMA 190 hp 140 kW 2.7 L Diesel
CAMB 163 hp 120 kW 2.7 L Diesel
CGKA 190 hp 140 kW 2.7 L Diesel
CGKB 163 hp 120 kW 2.7 L Diesel
CAPA 240 hp 176 kW 3 L Diesel
CCLA 240 hp 176 kW 3 L Diesel
CCWA 240 hp 176 kW 3 L Diesel
CCWB 211 hp 155 kW 3 L Diesel
CDHB 160 hp 118 kW 1.8 L Petrol
CFKA 180 hp 132 kW 2 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
AUDIA5
8F7
8T3
8TA
1.8 TFSI
2.0 TDI
2.0 TDI quattro
2.0 TFSI
2.0 TFSI quattro
2.7 TDI
3.0 TDI quattro
3.2 FSI
3.2 FSI quattro
S5 quattro
2007/06 - CABD 170 hp 125 kW 1.8 L Petrol
CDHB 160 hp 118 kW 1.8 L Petrol
CJEB 170 hp 125 kW 1.8 L Petrol
CAEA 180 hp 132 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CAGA 143 hp 105 kW 2 L Diesel
CAGB 136 hp 100 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CMEA 143 hp 105 kW 2 L Diesel
CMFA 143 hp 105 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CAKA 333 hp 245 kW 3 L Petrol
CCBA 333 hp 245 kW 3 L Petrol
CGWC 333 hp 245 kW 3 L Petrol
CGXC 333 hp 245 kW 3 L Petrol
CREC 333 hp 245 kW 3 L Petrol
CTDA 333 hp 245 kW 3 L Petrol
CTUB 333 hp 245 kW 3 L Petrol
CAKA 333 hp 245 kW 3 L Petrol
CGWC 333 hp 245 kW 3 L Petrol
CGXC 333 hp 245 kW 3 L Petrol
CREC 333 hp 245 kW 3 L Petrol
CTDA 333 hp 245 kW 3 L Petrol
CTUB 333 hp 245 kW 3 L Petrol
CALA 265 hp 195 kW 3.2 L Petrol
CAMA 190 hp 140 kW 2.7 L Diesel
CAMB 163 hp 120 kW 2.7 L Diesel
CGKA 190 hp 140 kW 2.7 L Diesel
CGKB 163 hp 120 kW 2.7 L Diesel
CAPA 240 hp 176 kW 3 L Diesel
CCWA 240 hp 176 kW 3 L Diesel
CCWB 211 hp 155 kW 3 L Diesel
CAUA 354 hp 260 kW 4.2 L Petrol
CCWA 240 hp 176 kW 3 L Diesel
CDHB 160 hp 118 kW 1.8 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CGKA 190 hp 140 kW 2.7 L Diesel
CGKB 163 hp 120 kW 2.7 L Diesel
AWD / 4WD
Front wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
Hatchback / Sportback / Sport hatch
AUDIQ5
8R
2.0 TDI
2.0 TDI quattro
2.0 TFSI hybrid quattro
2.0 TFSI quattro
3.0 TDI quattro
3.2 FSI quattro
2008/11 - CAEB 211 hp 155 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CNCB 180 hp 132 kW 2 L Petrol
CPMA 211 hp 155 kW 2 L Petrol
CAGA 143 hp 105 kW 2 L Diesel
CAGB 136 hp 100 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLA 163 hp 120 kW 2 L Diesel
CGLB 170 hp 125 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CMGA 170 hp 125 kW 2 L Diesel
CNHC 163 hp 120 kW 2 L Diesel
CSUB 136 hp 100 kW 2 L Diesel
CALB 270 hp 199 kW 3.2 L Petrol
CCWA 240 hp 176 kW 3 L Diesel
CCWB 211 hp 155 kW 3 L Diesel
CPNB 240 hp 176 kW 3 L Diesel
CHJA 211 hp 155 kW 2 L Hybrid
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CSUB 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
