ZIMMERMANN 100.3334.20 (100333420) Brake Disc

ZIMMERMANN part 100.3334.20 (100333420) Brake Disc

ZIMMERMANN 100.3334.20 (100333420) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 100.3334.20 (100333420)

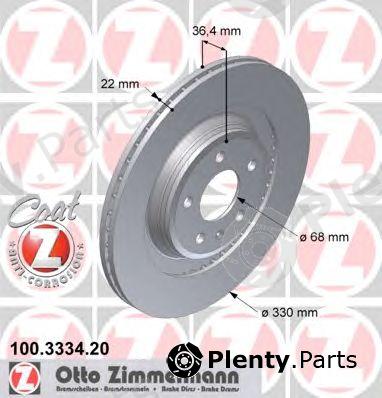

Сharacteristics:
  • Brake Disc Type: Externally Vented
  • Surface: Coated
  • Outer diameter [mm]: 330
  • Thickness [mm]: 22
  • Minimum thickness [mm]: 20
  • Height [mm]: 36,4
  • Hole Arrangement / Number: 6/5
  • Weight [kg]: 7,8
  • Bolt Hole Circle Ø 1 [mm]: 112
  • Hub Bore Ø [mm]: 68

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)100.3334.20 (100333420)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG8K0615601C

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 100.3334.20 (100333420) Brake Disc offered by ABE, A.B.S., AP, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, COMLINE, DELPHI, DENCKERMANN, E.T.F., FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, HP, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC4A023ABE
A.B.S.17823, 17823OE
AP25215V, 25215X, 25215
ATE24.0122-0250.1
BENDIX562645BC
BLUE PRINTADV184304
BORG & BECKBBD4690
BOSCH0986479C86, 0986479522
Brake ENGINEERINGDI956753
BRECOBS8825, BV8825
BREMBORD.224.000, 09.B040.11, 09B0401X, 09.B040.10
BREMSIDBB667V
CAR142.1310, HPD1310
CIFAM8001339C
COMLINEADC1486V
DELPHIBG4078
DENCKERMANNB130290
E.T.F.19-1117
FEBI BILSTEIN36454
FERODODDF1667, DDF1667-1
FIRST LINEFBD1774
FOMARFO4126
FREMAXBD-6079
fri.tech.BD1317, DF1317
FTEBS7701B, BS7701
GIRLING6048605
HANS PRIES113012
HELLA8DD355113-971, 8DD355113972, 8DD355113961
HELLA PAGID8DD355113971, 8DD355113-961, 8DD355113972
HPHP59011
JURID562645JC
KAGER370903
KAMOKA103235
KAWE6126710
LPRA1040V
MAGNETI MARELLI360406081700
METELLI231339C
METZGER61267.10, 6110616
MEYLE1155211119, 1155230002/PD
MINTEXMDC2004
NATIONALNBD1520
NK2047130, 3147130
OPEN PARTSBDR2487.20
OPTIMALBS-8582C, BS-8582
PAGID54603
PATRONPBD4860
PILENGAV845
PROTECHNICPRD6192
QUINTON HAZELLHP59011, BDC5712
REMSA61267.10
ROADHOUSE61267.10
ROTINGERRT20755T5, RT20725T5, RT20725, RT20755
ROULUNDS BRAKINGWD01574
sbs18152047130
SWAG30936454
TEMPLIN01.06.06.127343
TEXTAR92160300, 92160305, 92160303
TRISCAN8120291020, 8120291020C
TRUSTINGDF1317
TRWDF4860S
VAICOV10-80104, V10-80101
WOKINGD61267.10
ZIMMERMANN100.3334.52, 100.3334.50, 100.3334.00

Vehicle fitment / ZIMMERMANN 100.3334.20 (100333420) Brake Disc compatibility

This product fits the following models: AUDI A4, AUDI A5, AUDI Q5, etc. See all vehicles this product (ZIMMERMANN 100.3334.20 (100333420)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
AUDIA4
8K2
B8
8K5
B8
1.8 TFSI
1.8 TFSI quattro
2.0 TDI
2.0 TDI quattro
2.0 TFSi
2.0 TFSI
2.0 TFSI flexible fuel
2.0 TFSI flexible fuel quattro
2.0 TFSI quattro
2.7 TDI
3.0 TDI quattro
3.2 FSI
3.2 FSI quattro
S4 quattro
2007/11 - 2015/12CABA 120 hp 88 kW 1.8 L Petrol
CABB 160 hp 118 kW 1.8 L Petrol
CDHA 120 hp 88 kW 1.8 L Petrol
CDHB 160 hp 118 kW 1.8 L Petrol
CABB 160 hp 118 kW 1.8 L Petrol
CDHA 120 hp 88 kW 1.8 L Petrol
CDHB 160 hp 118 kW 1.8 L Petrol
CAEA 180 hp 132 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CFKA 180 hp 132 kW 2 L Petrol
CAEA 180 hp 132 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CFKA 180 hp 132 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CPMA 211 hp 155 kW 2 L Petrol
CAGA 143 hp 105 kW 2 L Diesel
CAGB 136 hp 100 kW 2 L Diesel
CAGC 120 hp 88 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CJCC 120 hp 88 kW 2 L Diesel
CMEA 143 hp 105 kW 2 L Diesel
CMFA 143 hp 105 kW 2 L Diesel
CNHC 163 hp 120 kW 2 L Diesel
CSUB 136 hp 100 kW 2 L Diesel
CAGA 143 hp 105 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CAKA 333 hp 245 kW 3 L Petrol
CCBA 333 hp 245 kW 3 L Petrol
CGWC 333 hp 245 kW 3 L Petrol
CGXC 333 hp 245 kW 3 L Petrol
CREC 333 hp 245 kW 3 L Petrol
CTUB 333 hp 245 kW 3 L Petrol
CALA 265 hp 195 kW 3.2 L Petrol
CAMA 190 hp 140 kW 2.7 L Diesel
CAMB 163 hp 120 kW 2.7 L Diesel
CGKA 190 hp 140 kW 2.7 L Diesel
CGKB 163 hp 120 kW 2.7 L Diesel
CAPA 240 hp 176 kW 3 L Diesel
CCLA 240 hp 176 kW 3 L Diesel
CCWA 240 hp 176 kW 3 L Diesel
CCWB 211 hp 155 kW 3 L Diesel
CDHB 160 hp 118 kW 1.8 L Petrol
CFKA 180 hp 132 kW 2 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
AUDIA5
8F7
8T3
8TA
1.8 TFSI
2.0 TDI
2.0 TDI quattro
2.0 TFSI
2.0 TFSI quattro
2.7 TDI
3.0 TDI quattro
3.2 FSI
3.2 FSI quattro
S5 quattro
2007/06 - CABD 170 hp 125 kW 1.8 L Petrol
CDHB 160 hp 118 kW 1.8 L Petrol
CJEB 170 hp 125 kW 1.8 L Petrol
CAEA 180 hp 132 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CAEB 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CAGA 143 hp 105 kW 2 L Diesel
CAGB 136 hp 100 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CMEA 143 hp 105 kW 2 L Diesel
CMFA 143 hp 105 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CAKA 333 hp 245 kW 3 L Petrol
CCBA 333 hp 245 kW 3 L Petrol
CGWC 333 hp 245 kW 3 L Petrol
CGXC 333 hp 245 kW 3 L Petrol
CREC 333 hp 245 kW 3 L Petrol
CTDA 333 hp 245 kW 3 L Petrol
CTUB 333 hp 245 kW 3 L Petrol
CAKA 333 hp 245 kW 3 L Petrol
CGWC 333 hp 245 kW 3 L Petrol
CGXC 333 hp 245 kW 3 L Petrol
CREC 333 hp 245 kW 3 L Petrol
CTDA 333 hp 245 kW 3 L Petrol
CTUB 333 hp 245 kW 3 L Petrol
CALA 265 hp 195 kW 3.2 L Petrol
CAMA 190 hp 140 kW 2.7 L Diesel
CAMB 163 hp 120 kW 2.7 L Diesel
CGKA 190 hp 140 kW 2.7 L Diesel
CGKB 163 hp 120 kW 2.7 L Diesel
CAPA 240 hp 176 kW 3 L Diesel
CCWA 240 hp 176 kW 3 L Diesel
CCWB 211 hp 155 kW 3 L Diesel
CAUA 354 hp 260 kW 4.2 L Petrol
CCWA 240 hp 176 kW 3 L Diesel
CDHB 160 hp 118 kW 1.8 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CGKA 190 hp 140 kW 2.7 L Diesel
CGKB 163 hp 120 kW 2.7 L Diesel
AWD / 4WD
Front wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
Hatchback / Sportback / Sport hatch
AUDIQ5
8R
2.0 TDI
2.0 TDI quattro
2.0 TFSI hybrid quattro
2.0 TFSI quattro
3.0 TDI quattro
3.0 TFSI quattro
3.2 FSI quattro
2008/11 - CAEB 211 hp 155 kW 2 L Petrol
CDNB 180 hp 132 kW 2 L Petrol
CDNC 211 hp 155 kW 2 L Petrol
CNCB 180 hp 132 kW 2 L Petrol
CNCD 224 hp 165 kW 2 L Petrol
CPMA 211 hp 155 kW 2 L Petrol
CAGA 143 hp 105 kW 2 L Diesel
CAGB 136 hp 100 kW 2 L Diesel
CAHA 170 hp 125 kW 2 L Diesel
CAHB 163 hp 120 kW 2 L Diesel
CGLA 163 hp 120 kW 2 L Diesel
CGLB 170 hp 125 kW 2 L Diesel
CGLC 177 hp 130 kW 2 L Diesel
CGLD 163 hp 120 kW 2 L Diesel
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CMGA 170 hp 125 kW 2 L Diesel
CMGB 177 hp 130 kW 2 L Diesel
CNHC 163 hp 120 kW 2 L Diesel
CSUB 136 hp 100 kW 2 L Diesel
CALB 270 hp 199 kW 3.2 L Petrol
CCWA 240 hp 176 kW 3 L Diesel
CCWB 211 hp 155 kW 3 L Diesel
CDUD 245 hp 180 kW 3 L Diesel
CPNB 240 hp 176 kW 3 L Diesel
CTBC 250 hp 184 kW 3 L Diesel
CHJA 211 hp 155 kW 2 L Hybrid
CJCA 143 hp 105 kW 2 L Diesel
CJCB 136 hp 100 kW 2 L Diesel
CSUB 136 hp 100 kW 2 L Diesel
CTUC 272 hp 200 kW 3 L Petrol
CTVA 272 hp 200 kW 3 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
