ZIMMERMANN 150.1288.20 (150128820) Brake Disc
ZIMMERMANN 150.1288.20 (150128820) Brake Disc
by ZIMMERMANNManufacturer Part Number: 150.1288.20 (150128820)
- Brake Disc Type: Internally Vented
- Machining: High-carbon
- Surface: Coated

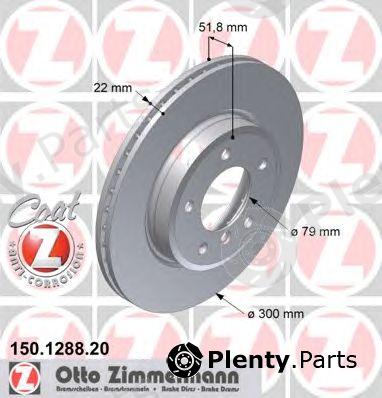

- Outer diameter [mm]: 300
- Thickness [mm]: 22
- Minimum thickness [mm]: 20,4
- Height [mm]: 51,9
- Hole Arrangement / Number: 6/5
- Weight [kg]: 6,78
- Bolt Hole Circle Ø 1 [mm]: 120
- Hub Bore Ø [mm]: 79
Product Details
| Brand | ZIMMERMANN |
| ZIMMERMANN article (MPN) | 150.1288.20 (150128820) |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for BMW vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| BMW | 34116766224, 34116794302, 34116855152, 34111164539, 34116757526 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ZIMMERMANN 150.1288.20 (150128820) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GALFER, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, HP, JP GROUP, JURID, KAGER, KAWE, KEY PARTS, KRAFT, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| ABE | C3B005ABE |
| A.B.S. | 17023S, 17023 |
| ACDelco | AC2410D |
| AP | 24746V, X24746 |
| ATE | 24.0322-0160.1, 24.0122-0160.1 |
| BARUM | BAR22160 |
| BENDIX | 562090, 562090B, 562090BC |
| BORG & BECK | BBD4127 |
| BOSCH | 0986479S32, 0986478571 |
| Brake ENGINEERING | DI955915S |
| BRECO | BV8327 |
| BREMBO | 09.7701.11, 09.7701.75, 09.7701.10 |
| CAR | 142.094, HPD094 |
| CIFAM | 800-515C |
| DELPHI | BG3527 |
| DENCKERMANN | B130317 |
| E.T.F. | 19-4539 |
| FARCOM | 231186 |
| FEBI BILSTEIN | 12323 |
| FERODO | DDF1066 |
| FIRST LINE | FBD1081 |
| FOMAR | FO2410 |
| FREMAX | BD-4539-50, BD-4539 |
| fri.tech. | DF549, BD0549 |
| FTE | BS146, BS5146B, BS5146HB, BS5146 |
| GALFER | B1G22201601 |
| GIRLING | 6040551 |
| GRAF | DF29515C |
| G.U.D | GDB122160 |
| HANS PRIES | 500572 |
| HELLA | 8DD355106552, 8DD355106551, 8DD355106541 |
| HELLA PAGID | 8DD355106552, 8DD355106541, 8DD355106551 |
| HP | HP57882 |
| JP GROUP | 8834111164539ALT, 8834111164539 |
| JURID | 562090J, 562090JC |
| KAGER | 371337, 37-1067 |
| KAWE | 658910, BDRS1757.25 |
| KEY PARTS | KBD4127 |
| KRAFT | 6042611 |
| LEMFÖRDER | 2283002 |
| LPR | B2546VR, B2546V |
| MAGNETI MARELLI | 360406016700 |
| MAPCO | 15654 |
| MAXGEAR | 191016 |
| METELLI | 23-0515C |
| METZGER | 6589.10, X24746, 24746V |
| MEYLE | 3155213020, 3155213020/PD |
| MINTEX | MDC1383 |
| NATIONAL | NBD976 |
| NK | 301540, 201540, 341540 |
| OPEN PARTS | BDRS1757.25, BDR1757.20 |
| OPTIMAL | BS5890C, BS-5890 |
| PAGID | 50448, 50448PRO |
| PATRON | PBD4055 |
| PEX | 14.0113.N, 14.0113 |
| PILENGA | V128 |
| QUINTON HAZELL | HP57882, BDC5146 |
| RAMEDER | T0620091 |
| REMSA | 6589.10 |
| ROADHOUSE | 6589.10 |
| ROTINGER | RT2788HP, RT2788, RT2788HPT5, RT2788T5 |
| ROULUNDS BRAKING | D2410 |
| SASIC | 9004910J |
| sbs | 1815201540, 1815341540, 1815301540 |
| SWAG | 20912323 |
| TEMPLIN | 0311011990, 01.02.34.101210, 0311011995 |
| TEXTAR | 92097203, 92097200, 92097205, 98200097201 |
| TRISCAN | 812011137, 812011137C |
| TRUCKTEC AUTOMOTIVE | 08.34.044 |
| TRUSTING | DF549 |
| TRW | DF4055 |
| VAICO | V20-80043 |
| VALEO | 186815 |
| VEMA | 98122 |
| VILLAR | 628.1391 |
| WOKING | D6589.10 |
| ZIMMERMANN | 150.1288.52, 150.1288.70, 150.1288.00, 150.1288.75, 150.1288.50 |
Vehicle fitment / ZIMMERMANN 150.1288.20 (150128820) Brake Disc compatibility
This product fits the following models: BMW 3, BMW Z3, BMW Z4, etc. See all vehicles this product (ZIMMERMANN 150.1288.20 (150128820)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| BMW | 3 E46 | 318 d 318 i 320 Cd 320 Ci 320 d 320 i 320 td 323 Ci 323 i 323 ti 325 Ci 325 i 325 ti 325 xi 328 Ci 328 i 328i | 1998/02 - 2007/12 | M43B19(194E1) 116 hp 85 kW 1.9 L Petrol M43B19(194E1) 118 hp 87 kW 1.9 L Petrol N42B20A 143 hp 105 kW 2 L Petrol N46B20A 143 hp 105 kW 2 L Petrol M43B19(194E1) 118 hp 87 kW 1.9 L Petrol N42B20A 143 hp 105 kW 2 L Petrol N46B20A 143 hp 105 kW 2 L Petrol M47D20(204D1) 115 hp 85 kW 2 L Diesel M47D20(204D4) 116 hp 85 kW 2 L Diesel M47D20(204D1) 136 hp 100 kW 2 L Diesel M47D20(204D4) 150 hp 110 kW 2 L Diesel M47D20(204D4) 150 hp 110 kW 2 L Diesel M52B20(206S4) 150 hp 110 kW 2 L Petrol M54B22(226S1) 170 hp 125 kW 2.2 L Petrol M52B25(256S4) 170 hp 125 kW 2.5 L Petrol M52B28(286S2) 193 hp 142 kW 2.8 L Petrol M54B22(226S1) 163 hp 120 kW 2.2 L Petrol M54B22(226S1) 170 hp 125 kW 2.2 L Petrol M54B25(256S5) 192 hp 141 kW 2.5 L Petrol | AWD / 4WD Rear wheel | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch Sedan / Saloon |
| BMW | Z3 E36 | 3.0 | 2000/06 - 2003/06 | M54B30(306S3) 231 hp 170 kW 3 L Petrol | Rear wheel | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster |
| BMW | Z4 E85 | 2.5 si 3.0 i | 2003/02 - 2009/02 | M54B30(306S3) 231 hp 170 kW 3 L Petrol N52B25A 218 hp 160 kW 2.5 L Petrol | Rear wheel | Convertible / cabrio |
