ZIMMERMANN 150.3400.20 (150340020) Brake Disc
ZIMMERMANN 150.3400.20 (150340020) Brake Disc
by ZIMMERMANNManufacturer Part Number: 150.3400.20 (150340020)
- Brake Disc Type: Internally Vented
- Machining: High-carbon
- Surface: Coated

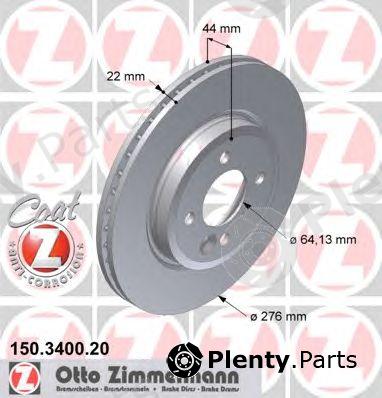

- Outer diameter [mm]: 276
- Thickness [mm]: 22
- Minimum thickness [mm]: 20,4
- Height [mm]: 44
- Hole Arrangement / Number: 5/4
- Weight [kg]: 5,4
- Bolt Hole Circle Ø 1 [mm]: 100
- Hub Bore Ø [mm]: 64,13
Product Details
| Brand | ZIMMERMANN |
| ZIMMERMANN article (MPN) | 150.3400.20 (150340020) |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for BMW vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| BMW | 34111502891, 34116774984 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ZIMMERMANN 150.3400.20 (150340020) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GALFER, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HERZOG GERMANY, HP, JURATEK, JURID, KAGER, KAWE, KEY PARTS, KWP, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NK, NPS, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| ABE | C3K014ABE |
| A.B.S. | 17349S, 17349 |
| ACDelco | AC2576D |
| AP | 24220X, 25420V, 24220, 25420, 24220V, X24220 |
| ATE | 24.0122-0204.1, 24112202041, 24.0322-0204.1 |
| BENDIX | 562139B, 562139BC |
| BLUE PRINT | ADG04374, ADB114315 |
| BORG & BECK | BBD4256 |
| BOSCH | 0986478606, 0986479B39, 0986AB6416 |
| Brake ENGINEERING | DI956134 |
| BRECO | BV8403, BS8403, BV9030, BS9030 |
| BREMBO | 09.8655.75, 09.8655.10, 09865520, 09865521, 0986551X, 09.8655.11 |
| CAR | 142.084, HPD084 |
| CIFAM | 800666C, 800-666 |
| DELPHI | BG3661 |
| DENCKERMANN | B130366 |
| E.T.F. | 19-2891 |
| FARCOM | 231209 |
| FEBI BILSTEIN | 23115 |
| FENOX | TB219148 |
| FERODO | DDF1127 |
| FIRST LINE | FBD1246 |
| FOMAR | FO2576 |
| FREMAX | BD-2891, BD-2891-50 |
| fri.tech. | DF825, BD0825 |
| FTE | BS5312HB, BS5312B, BS5312 |
| GALFER | B1G22202041 |
| GIRLING | 6041971 |
| GRAF | DF29666 |
| HANS PRIES | 501014 |
| HELLA | 8DD355107781, 8DD355107791, 8DD355107792 |
| HELLA PAGID | 8DD355107792, 8DD355107791, 8DD355107781 |
| HERZOG GERMANY | 201324 |
| HP | 58006, HP58006 |
| JURATEK | MIN101 |
| JURID | 562139J |
| KAGER | 37-1108 |
| KAWE | BDRS1902.25, 662410, 38346 |
| KEY PARTS | KBD4256 |
| KWP | 129666 |
| LEMFÖRDER | 2717801, 27178 |
| LPR | B2008VR, B2008V |
| MAGNETI MARELLI | 360406017400, 353610654240, 360406017401 |
| MAPCO | 15657 |
| METELLI | 230666C, 23-0666 |
| METZGER | 23-0666, 3155213027 |
| MEYLE | 3155213027, 3155213027/PD |
| MINTEX | MDC1129, MDK0182 |
| NK | 304016, 204016 |
| NPS | T330A30 |
| OPEN PARTS | BDR1902.20, BDRS1902.25, BDA1902.20 |
| OPTIMAL | BS-7450 |
| PAGID | 50324PRO, 50324 |
| PEX | 14.0767 |
| PILENGA | V811 |
| QUINTON HAZELL | HP58006, BDC5312 |
| RAMEDER | T0620140 |
| REMSA | 662410, 6624.11 |
| ROADHOUSE | 6624.10 |
| ROTINGER | RT2822T5, RT2822 |
| ROULUNDS BRAKING | D2576 |
| SASIC | 9004806J |
| sbs | 1815204016, 1815304016 |
| STARLINE | PB20581C |
| SWAG | 11923115 |
| TEMPLIN | 0311021490, 0311021495, 01.33.34.121037 |
| TEXTAR | 92107505, 92107503, 89006200, 98200107501, 92107500 |
| TRISCAN | 812011150 |
| TRUCKTEC AUTOMOTIVE | 08.34.113 |
| TRUSTING | DF825 |
| TRW | DF4197 |
| VAICO | V20-40031 |
| VALEO | 186762 |
| WOKING | D6624.10 |
| ZIMMERMANN | 150.3400.52, 150.3400.50, 150.3400.00 |
Vehicle fitment / ZIMMERMANN 150.3400.20 (150340020) Brake Disc compatibility
This product fits the following models: MINI MINI, etc. See all vehicles this product (ZIMMERMANN 150.3400.20 (150340020)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| MINI | MINI R50 R53 R52 | Cooper Cooper S One One D | 2001/06 - 2007/11 | 1ND 75 hp 55 kW 1.4 L Diesel 1ND-TV 88 hp 65 kW 1.4 L Diesel W10B14A 75 hp 55 kW 1.4 L Petrol W10B16A 90 hp 66 kW 1.6 L Petrol W10B16A 116 hp 85 kW 1.6 L Petrol W10B16A 90 hp 66 kW 1.6 L Petrol W11B16A 163 hp 120 kW 1.6 L Petrol W11B16A 170 hp 125 kW 1.6 L Petrol | Front wheel | Convertible / cabrio Hatchback / Sportback / Sport hatch |
