ZIMMERMANN 150.3467.20 (150346720) Brake Disc

ZIMMERMANN part 150.3467.20 (150346720) Brake Disc

ZIMMERMANN 150.3467.20 (150346720) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 150.3467.20 (150346720)

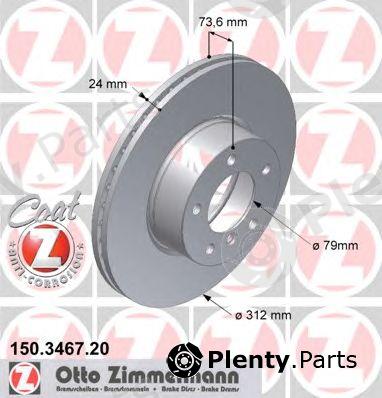

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Machining: High-carbon
  • Surface: Coated
  • Outer diameter [mm]: 312
  • Thickness [mm]: 24
  • Minimum thickness [mm]: 22,4
  • Height [mm]: 73,6
  • Hole Arrangement / Number: 6/5
  • Weight [kg]: 8,9
  • Bolt Hole Circle Ø 1 [mm]: 120
  • Hub Bore Ø [mm]: 79
  • Bolt Ø [mm]: 14,5

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)150.3467.20 (150346720)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for BMW vehicles

OE manufacturerOEM reference numbers
BMW34116774875, 34116855006

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 150.3467.20 (150346720) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, CIFAM, COMLINE, DELPHI, DENCKERMANN, E.T.F., FEBI BILSTEIN, FERODO, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUCKTECHNIC, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3B035ABE
A.B.S.17937
ACDelcoAC3600D
AP25283X, 25283V
ASHUKI501712
ATE24032402031, 24.0124-0203.1
BENDIX562618BC
BLUE PRINTADB114308
BORG & BECKBBD4782
BOSCH0986479381
Brake ENGINEERINGDI956769
BRECOBV8893
BREMBO09B3372X, 09.B337.21
CARHPD1523, 142.1523
CIFAM800-986C
COMLINEADC1762V
DELPHIBG4172
DENCKERMANNB130485
E.T.F.19-1122
FEBI BILSTEIN30541
FERODODDF1717, DDF1717-1
FOMARFO2965
FREMAXBD-1972
fri.tech.DF1276
FTEBS7234HB, BS7234
GIRLING6048075
GRAFDF29986C
G.U.DGDB124203
HANS PRIES501712
HELLA8DD355115-381, 8DD355123002
HELLA PAGID8DD355123002, 8DD355115381
ICER78BD19722, 78BD1972
JP GROUP1463102409
JURATEKBMW161
JURID562618JC
KAGER371340, 370668
KAMOKA1031024
KAWE6119410
KRAFT6042784
LPRB2049V
MAPCO25763
METELLI23-0986C
METZGER6110395, 6119410
MEYLE3155210003/PD
MINTEXMDC1912
NATIONALNBD1747
NK311582, 201582
OPEN PARTSBDRS2429.25, BDR2429.20
OPTIMALBS-8208C, BS-8208
PAGID54761, 54761PRO
PATRONPBD4807
PILENGAV464
PROTECHNICPRD2744
QUINTON HAZELLBDC5812
R BRAKE78RBD21972
REMSA61194.10
ROADHOUSE61194.10
ROTINGERRT4513, RT4513T5
ROULUNDS BRAKINGWD01562
SASIC6106141
sbs1815201582, 1815311582
SWAG20930541
TEMPLIN0311012641, 0311012646
TEXTAR92176103, 92176105
TRISCAN812011190C, 812011190
TRUCKTEC AUTOMOTIVE0834138
TRUCKTECHNIC08.34.138
TRUSTINGDF1276
TRWDF4807S
VAICOV20-80066
VALEO197159
WAGNER LOCKHEEDWGR1717-1
WOKINGD61194.10
ZIMMERMANN150.3467.52, 150.3467.00, 150.3467.50

Vehicle fitment / ZIMMERMANN 150.3467.20 (150346720) Brake Disc compatibility

This product fits the following models: BMW 1, BMW 2, BMW 3, BMW 4, BMW 4 GRAN COUPE, BMW X1, etc. See all vehicles this product (ZIMMERMANN 150.3467.20 (150346720)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
BMW1
F20
F21
114 d
114 i
116 d
116 i
118 d
118 d xDrive
118 i
120 d
120 d xDrive
120 i
125 d
125 i
2010/11 - B37D15A 116 hp 85 kW 1.5 L Diesel
N47D16A 116 hp 85 kW 1.6 L Diesel
N47D20C 116 hp 85 kW 2 L Diesel
B37D15A 95 hp 70 kW 1.5 L Diesel
B37D15A 95 hp 70 kW 1.5 L Diesel
N47D16A 95 hp 70 kW 1.6 L Diesel
B38B15A 109 hp 80 kW 1.5 L Petrol
N13B16A 136 hp 100 kW 1.6 L Petrol
B38B15A 136 hp 100 kW 1.5 L Petrol
N13B16A 136 hp 100 kW 1.6 L Petrol
N13B16A 170 hp 125 kW 1.6 L Petrol
B47D20A 150 hp 110 kW 2 L Diesel
N47D20C 136 hp 100 kW 2 L Diesel
N47D20C 143 hp 105 kW 2 L Diesel
B47D20A 150 hp 110 kW 2 L Diesel
N47D20C 143 hp 105 kW 2 L Diesel
B47D20A 190 hp 140 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
N47D20C 200 hp 147 kW 2 L Diesel
B47D20A 190 hp 140 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
N47D20C 200 hp 147 kW 2 L Diesel
B47D20B 224 hp 165 kW 2 L Diesel
N47D20D 211 hp 155 kW 2 L Diesel
N47D20D 218 hp 160 kW 2 L Diesel
N13B16A 102 hp 75 kW 1.6 L Petrol
N13B16A 177 hp 130 kW 1.6 L Petrol
N20B20A 218 hp 160 kW 2 L Petrol
N20B20A 238 hp 175 kW 2 L Petrol
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 200 hp 147 kW 2 L Diesel
AWD / 4WD
Rear wheel
Hatchback / Sportback / Sport hatch
BMW2
F22
F87
F23
220 d
220 d xDrive
220 i
225 d
2013/10 - B47D20A 163 hp 120 kW 2 L Diesel
B47D20A 190 hp 140 kW 2 L Diesel
B47D20A 163 hp 120 kW 2 L Diesel
B47D20A 190 hp 140 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
N47D20C 200 hp 147 kW 2 L Diesel
B47D20B 224 hp 165 kW 2 L Diesel
B47D20B 224 hp 165 kW 2 L Diesel
N47D20D 218 hp 160 kW 2 L Diesel
N20B20B 184 hp 135 kW 2 L Petrol
AWD / 4WD
Rear wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
BMW3
E90
E91
E92
E93
318 d
318 i
320 d
320 d xDrive
320 i
320 xd
323 i
325 i
325 i xDrive
325 xi
328 i
328i
328 i xDrive
328xi
2005/01 - 2013/12N43B20A 143 hp 105 kW 2 L Petrol
N43B20A 143 hp 105 kW 2 L Petrol
N46B20B 129 hp 95 kW 2 L Petrol
N46B20B 136 hp 100 kW 2 L Petrol
N43B20A 163 hp 120 kW 2 L Petrol
N43B20A 170 hp 125 kW 2 L Petrol
N46B20A 149 hp 110 kW 2 L Petrol
N46B20B 156 hp 115 kW 2 L Petrol
N43B20A 170 hp 125 kW 2 L Petrol
N46B20A 150 hp 110 kW 2 L Petrol
N46B20C 150 hp 110 kW 2 L Petrol
N43B20A 170 hp 125 kW 2 L Petrol
N46B20B 156 hp 115 kW 2 L Petrol
N46B20C 156 hp 115 kW 2 L Petrol
N46B20CC 156 hp 115 kW 2 L Petrol
N46B20CD 156 hp 115 kW 2 L Petrol
N46B20E 156 hp 115 kW 2 L Petrol
N47D20A 143 hp 105 kW 2 L Diesel
N47D20C 143 hp 105 kW 2 L Diesel
N47D20A 177 hp 130 kW 2 L Diesel
N47D20A 177 hp 130 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
N47D20A 177 hp 130 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
N47D20A 177 hp 130 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
N47D20A 177 hp 130 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
N52B25A 177 hp 130 kW 2.5 L Petrol
N52B25A 177 hp 130 kW 2.5 L Petrol
N52B25A 190 hp 140 kW 2.5 L Petrol
N52NB25A 177 hp 130 kW 2.5 L Petrol
N52B25A 218 hp 160 kW 2.5 L Petrol
N52B25A 218 hp 160 kW 2.5 L Petrol
N53B30A 211 hp 155 kW 3 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
N52B25A 218 hp 160 kW 2.5 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
N52NB25A 177 hp 130 kW 2.5 L Petrol
N52NB30A 254 hp 187 kW 3 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
N53B30A 211 hp 155 kW 3 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
N53B30A 218 hp 160 kW 3 L Petrol
AWD / 4WD
Rear wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
Estate / Turnier / Vario / Wagon
Sedan / Saloon
BMW4
F32
F82
F33
F83
420 d
420 d xDrive
420 i
420 i xDrive
428 i
430 d
2013/07 - B47D20A 163 hp 120 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
N47D20C 200 hp 147 kW 2 L Diesel
N20B20A 163 hp 120 kW 2 L Petrol
N20B20A 184 hp 135 kW 2 L Petrol
N20B20B 163 hp 120 kW 2 L Petrol
N20B20B 184 hp 135 kW 2 L Petrol
N20B20A 245 hp 180 kW 2 L Petrol
N26B20A 245 hp 180 kW 2 L Petrol
N47D20C 184 hp 135 kW 2 L Diesel
N47D20C 200 hp 147 kW 2 L Diesel
N57D30A 258 hp 190 kW 3 L Diesel
N57D30A 286 hp 210 kW 3 L Diesel
AWD / 4WD
Rear wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
BMW4 GRAN COUPE
F36
420 d
420 d xDrive
420 i
420 i xDrive
2014/03 - B47D20A 190 hp 140 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
N20B20B 184 hp 135 kW 2 L Petrol
AWD / 4WD
Rear wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
BMWX1
E84
sDrive 16 d
sDrive 18 d
sDrive 18 i
sDrive 20 d
sDrive 20 i
xDrive 18 d
xDrive 20 d
xDrive 20 i
2009/03 - 2015/06N20B20A 184 hp 135 kW 2 L Petrol
N46B20B 136 hp 100 kW 2 L Petrol
N46B20B 150 hp 110 kW 2 L Petrol
N47D20C 116 hp 85 kW 2 L Diesel
N47D20C 136 hp 100 kW 2 L Diesel
N47D20C 143 hp 105 kW 2 L Diesel
N47D20C 163 hp 120 kW 2 L Diesel
N47D20C 177 hp 130 kW 2 L Diesel
N47D20C 184 hp 135 kW 2 L Diesel
AWD / 4WD
Rear wheel
Estate / Turnier / Vario / Wagon
