ZIMMERMANN 180.3019.20 (180301920) Brake Disc

ZIMMERMANN part 180.3019.20 (180301920) Brake Disc

ZIMMERMANN 180.3019.20 (180301920) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 180.3019.20 (180301920)

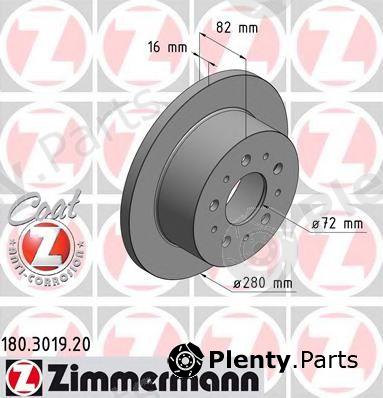

Сharacteristics:
  • Brake Disc Type: Solid
  • Surface: Coated
  • Outer diameter [mm]: 280
  • Thickness [mm]: 16
  • Minimum thickness [mm]: 14,2
  • Height [mm]: 82,1
  • Hole Arrangement / Number: 10/5
  • Weight [kg]: 7,42
  • Bolt Hole Circle Ø 1 [mm]: 118
  • Hub Bore Ø [mm]: 72

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)180.3019.20 (180301920)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4246.Y7, 4246.Y9, 4249.L0
FIAT / LANCIA / ALFA46833806

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 180.3019.20 (180301920) Brake Disc offered by A.B.S., AP, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, CASALS, CIFAM, DELPHI, E.T.F., FARCOM, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, JURID, KAGER, KAWE, KEY PARTS, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, QUINTON HAZELL, REMSA, ROADHOUSE, ROULUNDS BRAKING, SASIC, sbs, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17461
AP14807
ATE24.0116-0115.1
BENDIX562215B
BORG & BECKBBD4404
BOSCH0986479065
Brake ENGINEERINGDI956239S
BRECOBS7606
BREMBO08.8094.30
CAR142.213
CASALS55408
CIFAM800-731
DELPHIBG3853
E.T.F.19-4032
FARCOM231050
FIRST LINEFBD1436
FOMARFO2791
FREMAXBD-3806
fri.tech.DF114
FTEBS5364
GIRLING6044814
GRAFDF29731
HANS PRIES721183
HELLA8DD355108961
HELLA PAGID8DD355108961
JURID562215J
KAGER37-1053
KAWE6115510, 6112000, 38465
KEY PARTSKBD4404
LPRC1006P
MAGNETI MARELLI360406023500
MAPCO15416/2, 15416
METELLI23-0731
METZGER14807
MEYLE2155230012
MINTEXMDC1650
NK203731
OPEN PARTSBDA2176.10, BDR2176.10
OPTIMALBS8374, BS6750
PAGID54161
PEX14.0889
PILENGA5042
QUINTON HAZELLBDC5364, HP58974
REMSA61155.10
ROADHOUSE61120.00, 61155.10
ROULUNDS BRAKINGWD00745
SASIC2464Y94J
sbs1815203731
TEMPLIN01.18.42.121162
TEXTAR92116100, 92116103
TRISCAN812010176
TRUSTINGDF114
TRWDF4481S, DF4481
VAICOV42-40006
VILLAR628.1848
WOKINGD61120.00, D61155.10
ZIMMERMANN180.3019.52, 180.3019.50, 180.3019.00

Vehicle fitment / ZIMMERMANN 180.3019.20 (180301920) Brake Disc compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, etc. See all vehicles this product (ZIMMERMANN 180.3019.20 (180301920)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNJUMPER
244
244
Z
2.0
2.0 bivalent
2.0 HDi
2.2 HDi
2.8 HDi
2.8 HDi 4x4
2002/04 - 4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
RHV(DW10TD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
XU10J2 110 hp 81 kW 2 L Petrol
AWD / 4WD
Front wheel
Front wheel
AWD / 4WD
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
CITROËNRELAY
244
244
Z
2.0
2.0 bivalent
2.0 HDi
2.2 HDi
2.8 HDi
2.8 HDi 4x4
2002/04 - 4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
RHV(DW10TD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
XU10J2 110 hp 81 kW 2 L Petrol
AWD / 4WD
Front wheel
Front wheel
AWD / 4WD
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
244
244
Z
2.0
2.0 4x4
2.0 Bipower
2.0 JTD
2.3 JTD
2.8 JTD
2.8 JTD 4x4
2.8 JTD Power
2002/04 - 8140.43N 145 hp 107 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
F1AE0481C 110 hp 81 kW 2.3 L Diesel
RFL 110 hp 81 kW 2 L Petrol
RHV(DW10) 84 hp 62 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTBOXER
244
244
Z
2.0
2.0 HDi
2.2 HDi
2.8 HDi
2.8 HDi 4x4
2002/04 - 4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel
8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel
RFL(XU10J2U) 110 hp 81 kW 2 L Petrol
RHV(DW10TD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
