ZIMMERMANN 230.2363.20 (230236320) Brake Disc

ZIMMERMANN part 230.2363.20 (230236320) Brake Disc

ZIMMERMANN 230.2363.20 (230236320) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 230.2363.20 (230236320)

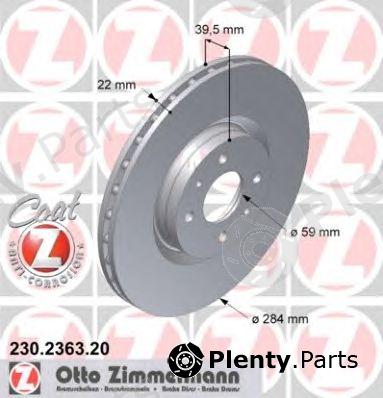

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Surface: Coated
  • Outer diameter [mm]: 284
  • Thickness [mm]: 22
  • Minimum thickness [mm]: 20,2
  • Height [mm]: 39,5
  • Hole Arrangement / Number: 6/4
  • Weight [kg]: 6,38
  • Bolt Hole Circle Ø 1 [mm]: 98
  • Hub Bore Ø [mm]: 59

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)230.2363.20 (230236320)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
FIAT / LANCIA / ALFA46427947, 46403958, 60811890, 60812037, 60812067, 82462136, 46427949

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 230.2363.20 (230236320) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, CIFAM, DELPHI, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, HP, JURID, KAGER, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3F006ABE
A.B.S.16153, 16153S
ACDelcoAC2226D
AP24273E, X24273
ATE24.0122-0107.1, 422107
BENDIX561508BC, 561508B
BORG & BECKBBD4981
BOSCH0986478786
Brake ENGINEERINGDI955186
BRECOBS7997
BREMBO09.5058.75, 09.5058.10, 09.5058.14
CARHPD412, 142.412
CIFAM800-298
DELPHIBG2617
E.T.F.19-7947
FARCOM231155
FEBI BILSTEIN12133
FERODODDF252
FIRST LINEFBD476
FOMARFO2226
FREMAXBD-7947
fri.tech.DF546
FTEBS3854
GIRLING6017571
GRAFDF29298
HELLA8DD355102521, 8DD355102531
HELLA PAGID8DD355102531, 8DD355102521
HPHP57446
JURID561508J
KAGER37-0426
KAWE631510
KRAFT6043220
LPRL2081V
MAGNETI MARELLI360406028800, 360406028803
MAPCO15040
METELLI23-0298
METZGER24273E
MEYLE2155210010
MINTEXMDC808
NK202327
OPEN PARTSBDA1231.20, BDRS1231.25, BDR1231.20
OPTIMALBS-3150
PAGID50914PRO, 50914
PATRONPBD1757
PILENGAV036
QUINTON HAZELLHP57446, BDC3854
RAMEDERT0620314
REMSA6315.10
ROADHOUSE6315.10
ROTINGERRT2761, RT2761T5
ROULUNDS BRAKINGD2226
SASIC9004815J
sbs1815202327
SWAG70912133
TEMPLIN0311015625, 01.10.42.121067, 0311015620
TEXTAR982000552, 92055203, 92055200
TRISCAN812015110, 812015110C
TRUSTINGDF546
TRWDF1757
VAICOV24-80004
VALEO186297
VEMA98094
WOKINGD6315.10
ZIMMERMANN230.2363.52, 230.2363.50, 230.2363.00

Vehicle fitment / ZIMMERMANN 230.2363.20 (230236320) Brake Disc compatibility

This product fits the following models: ALFA ROMEO 145, ALFA ROMEO 146, FIAT COUPE, FIAT MULTIPLA, FIAT PUNTO, FIAT TIPO, LANCIA DEDRA, LANCIA DEDRA SW, LANCIA DELTA II, LANCIA DELTAII, etc. See all vehicles this product (ZIMMERMANN 230.2363.20 (230236320)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
ALFA ROMEO145
930
1.8 i.e. 16V
1.8 i.e. 16V T.S.
2.0 16V Quadrifoglio
2.0 16V T.S.
1995/10 - 2001/01AR32201 144 hp 106 kW 1.8 L Petrol
AR32301 155 hp 114 kW 2 L Petrol
AR38401 140 hp 103 kW 1.8 L Petrol
AR67106 140 hp 103 kW 1.8 L Petrol
AR67199 140 hp 103 kW 1.8 L Petrol
AR67204 150 hp 110 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
ALFA ROMEO146
930
1.8 i.e. 16V T.S.
2.0 16V Quadrifoglio
2.0 16V T.S.
1995/10 - 2001/01AR32201 144 hp 106 kW 1.8 L Petrol
AR38401 140 hp 103 kW 1.8 L Petrol
AR67106 140 hp 103 kW 1.8 L Petrol
AR32301 155 hp 114 kW 2 L Petrol
AR67204 150 hp 110 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
FIATCOUPE
FA/175
1.8 16V
2.0 16V
2.0 20V
1993/11 - 2000/08182A1.000 147 hp 108 kW 2 L Petrol
182B3.000 154 hp 113 kW 2 L Petrol
183A1.000 131 hp 96 kW 1.8 L Petrol
836A3.000 139 hp 102 kW 2 L Petrol
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
FIATMULTIPLA
186
1.6
1.6 100 16V
1.6 16V
1.6 16V Bipower
1.6 16V Blupower
1.9 JTD
1.9 JTD 105
1.9 JTD 110
1.9 JTD 115

186AGB1A
186AMA1A
186AMB1A
186AXA1A
186AXB1A
186AXC1A
186AXE1A
1999/04 - 2010/06182A4.000 103 hp 76 kW 1.6 L Petrol
182B4.000 105 hp 77 kW 1.9 L Diesel
182B6.000 101 hp 74 kW 1.6 L Petrol
182B6.000 92 hp 68 kW 1.6 L Petrol
182B6.000 103 hp 76 kW 1.6 L Petrol
182B6.000 95 hp 70 kW 1.6 L Petrol
186A3.000 95 hp 70 kW 1.6 L Petrol
186A4.000 103 hp 76 kW 1.6 L Petrol
186A6.000 110 hp 81 kW 1.9 L Diesel
186A8.000 115 hp 85 kW 1.9 L Diesel
186A9.000 120 hp 88 kW 1.9 L Diesel
Front wheel
MPV / Van / Minivan
FIATPUNTO
188
1.9 JTD
2003/06 - 188B2.000 101 hp 74 kW 1.9 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
FIATTIPO
160
2.0 16V
2.0 i.e. 16V Sport
160.AV
160.EF
1991/07 - 1995/04160A8.046 146 hp 107 kW 2 L Petrol
836A3.000 139 hp 102 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
LANCIADEDRA
835
2.0 HF Integrale
2.0 i.e. Turbo
2.0 i.e. Turbo Integrale
2.0 Turbo
835AO
835AP
835AQ
835AR
1990/05 - 1999/07835A7.000 165 hp 121 kW 2 L Petrol
835A7.046 169 hp 124 kW 2 L Petrol
835A8.000 177 hp 130 kW 2 L Petrol
835A8.046 162 hp 119 kW 2 L Petrol
AWD / 4WD
Front wheel
Sedan / Saloon
LANCIADEDRA SW
835
1.8 GT 16V
2.0 Integrale
835ED
835EH
1994/07 - 1999/07183A1.000 131 hp 96 kW 1.8 L Petrol
836A3.000 139 hp 102 kW 2 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
LANCIADELTA II
836
1.8 i.e. 16V GT
2.0 16V
836AA
836CA
836AR
1993/06 - 1999/08183A1.000 131 hp 96 kW 1.8 L Petrol
836A3.000 139 hp 102 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
LANCIADELTAII
836
1.8 i.e. 16V GT
2.0 16V
836AA
836CA
836AR
1993/06 - 1999/08183A1.000 131 hp 96 kW 1.8 L Petrol
836A3.000 139 hp 102 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
