ZIMMERMANN 250.1338.00 (250133800) Brake Disc

ZIMMERMANN part 250.1338.00 (250133800) Brake Disc

ZIMMERMANN 250.1338.00 (250133800) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 250.1338.00 (250133800)

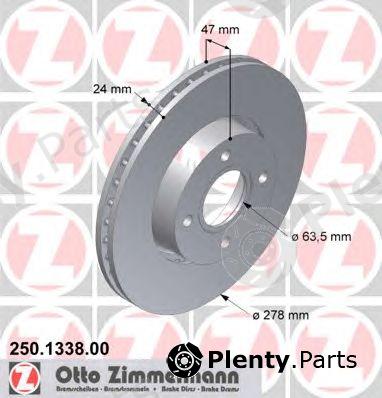

Сharacteristics:
  • Brake Disc Type: Externally Vented
  • Outer diameter [mm]: 278
  • Thickness [mm]: 24
  • Minimum thickness [mm]: 22,2
  • Height [mm]: 47
  • Hole Arrangement / Number: 4/4
  • Weight [kg]: 6,2
  • Bolt Hole Circle Ø 1 [mm]: 108
  • Hub Bore Ø [mm]: 63,5

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)250.1338.00 (250133800)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD vehicles

OE manufacturerOEM reference numbers
FORD4056031, 4070864, 5026785, 6676462

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 250.1338.00 (250133800) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, COMLINE, DELPHI, DENCKERMANN, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HP, JP GROUP, JURID, KAGER, KAWE, KRAFT, KÜHLER SCHNEIDER, LEMFÖRDER, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3G004ABE
A.B.S.16371
ACDelcoAC2425D
AP24579
ATE24.0124-0149.1
AUTOMEGA30500260785
BENDIX561986BC, 561986, 561986B
BORG & BECKBBD5078
BOSCH0986478427, 0986479864
Brake ENGINEERINGDI955488
BRECOBS8204
BREMBO09.6766.10
BREMSIDBA801V
CAR142.260, HPD260
CIFAM800-498
COMLINEADC1218V
DELPHIBG3056
DENCKERMANNB130072
E.T.F.19-6785
EUROBRAKE5815202542
FARCOM230782
FEBI BILSTEIN10706
FENOXTB217275
FERODODDF8011, DDF801
FIRST LINEFBD830
FOMARFO2425
FREMAXBD-6785
fri.tech.BD0501, DF501
FTEBS4528, BS4528B
GIRLING6027511
GRAFDF29498
HANS PRIES300266
HELLA8DD355104641
HELLA PAGID8DD355104641
HPHP57701
JP GROUPBS9306.2
JURID561986, 561986J, 561986JC
KAGER37-0061
KAWE6469.10
KRAFT6042125
KÜHLER SCHNEIDER6031651
LEMFÖRDER2722601
LPRF1541V
LUCAS ELECTRICALDF2751
MAGNETI MARELLI360406025600, 353611748240
MAPCO15817
MAXGEAR191001
METELLI23-0498
METZGER24579
MEYLE7155217027
MINTEXMDC843
NATIONALNBD760
NECTOWN962
NK312542, 202541, 202542
OPEN PARTSBDA1190.20, BDR1190.20
OPTIMALBS-4690
PAGID51035
PATRONPBD2751
PEX14.0206
PILENGAV275
PROTECHNICPRD2150
QUINTON HAZELLBDC4528, HP57701
RAMEDERT0620601
REMSA6469.10
ROADHOUSE6469.10
ROTINGERRT2534T5, RT2534
ROULUNDS BRAKINGD2425
sbs1815312542, 1815202542
SWAG50910706
TEMPLIN01.11.42.121023
TEXTAR92075400, 92075403, 982000754
TRISCAN812016132
TRUSTINGDF501
TRWDF2751
VAICOV25-80013
VEMA98043
VILLAR628.1580
WOKINGD6469.10
ZIMMERMANN250.1338.52, 250.1338.50, 250.1338.20

Vehicle fitment / ZIMMERMANN 250.1338.00 (250133800) Brake Disc compatibility

This product fits the following models: FORD COUGAR, FORD MONDEO  , FORD MONDEO I, FORD MONDEO I CLIPPER, FORD MONDEO II, FORD MONDEOII, FORD MONDEO II CLIPPER, FORD MONDEO I RURAL, FORD SCORPIO II, FORD SCORPIOII, etc. See all vehicles this product (ZIMMERMANN 250.1338.00 (250133800)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDCOUGAR
EC
2.5 ST 200
2.5 V6 24V
1998/08 - 2001/12LCBA 170 hp 125 kW 2.5 L Petrol
LCBB 170 hp 125 kW 2.5 L Petrol
LCBC 170 hp 125 kW 2.5 L Petrol
LCBE 170 hp 125 kW 2.5 L Petrol
SGA 205 hp 151 kW 2.5 L Petrol
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
FORDMONDEO
BNP
GBP
2.0 i 16V 4x4
2.5 i 24V
1994/07 - 1996/08NGA 132 hp 97 kW 2 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDMONDEO I
BNP
GBP
2.0 i 16V 4x4
2.5 i 24V
1994/07 - 1996/08NGA 132 hp 97 kW 2 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDMONDEO I CLIPPER
BNP
2.5 i 24V
1994/07 - 1996/08SEA 170 hp 125 kW 2.5 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
FORDMONDEO II
BAP
BFP
BNP
1.8 i
2.0 i
2.5 24V
2.5 ST 200
1996/08 - 2000/09LCBD 170 hp 125 kW 2.5 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
SEB 170 hp 125 kW 2.5 L Petrol
SEC 170 hp 125 kW 2.5 L Petrol
NGA 131 hp 96 kW 2 L Petrol
NGB 131 hp 96 kW 2 L Petrol
NGC 131 hp 96 kW 2 L Petrol
NGD 131 hp 96 kW 2 L Petrol
RKB 115 hp 85 kW 1.8 L Petrol
RKF 115 hp 85 kW 1.8 L Petrol
RKH 115 hp 85 kW 1.8 L Petrol
RKJ 115 hp 85 kW 1.8 L Petrol
RKK 115 hp 85 kW 1.8 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
SEB 170 hp 125 kW 2.5 L Petrol
SEC 170 hp 125 kW 2.5 L Petrol
SGA 205 hp 151 kW 2.5 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDMONDEOII
BAP
BFP
BNP
1.8 i
2.0 i
2.5 24V
2.5 ST 200
1996/08 - 2000/09LCBD 170 hp 125 kW 2.5 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
SEB 170 hp 125 kW 2.5 L Petrol
SEC 170 hp 125 kW 2.5 L Petrol
NGA 131 hp 96 kW 2 L Petrol
NGB 131 hp 96 kW 2 L Petrol
NGC 131 hp 96 kW 2 L Petrol
NGD 131 hp 96 kW 2 L Petrol
RKB 115 hp 85 kW 1.8 L Petrol
RKF 115 hp 85 kW 1.8 L Petrol
RKH 115 hp 85 kW 1.8 L Petrol
RKJ 115 hp 85 kW 1.8 L Petrol
RKK 115 hp 85 kW 1.8 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
SEB 170 hp 125 kW 2.5 L Petrol
SEC 170 hp 125 kW 2.5 L Petrol
SGA 205 hp 151 kW 2.5 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDMONDEO II CLIPPER
BNP
1.8 i
2.0 i
2.5 24V
2.5 ST 200
1996/08 - 2000/09NGA 131 hp 96 kW 2 L Petrol
NGB 131 hp 96 kW 2 L Petrol
NGC 131 hp 96 kW 2 L Petrol
NGD 131 hp 96 kW 2 L Petrol
RKB 115 hp 85 kW 1.8 L Petrol
RKF 115 hp 85 kW 1.8 L Petrol
RKH 115 hp 85 kW 1.8 L Petrol
RKJ 115 hp 85 kW 1.8 L Petrol
RKK 115 hp 85 kW 1.8 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
SEB 170 hp 125 kW 2.5 L Petrol
SEC 170 hp 125 kW 2.5 L Petrol
SGA 205 hp 151 kW 2.5 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
FORDMONDEO I RURAL
BNP
2.5 i 24V
1994/07 - 1996/08SEA 170 hp 125 kW 2.5 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
FORDSCORPIO II
GFR
GGR
GNR
GGR
2.9 i 24V
1994/10 - 1998/08BOB 207 hp 152 kW 2.9 L Petrol
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
FORDSCORPIOII
GFR
GGR
GNR
GGR
2.9 i 24V
1994/10 - 1998/08BOB 207 hp 152 kW 2.9 L Petrol
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
