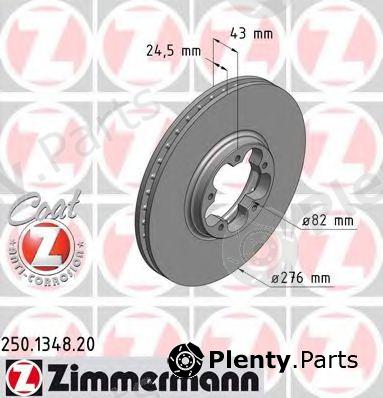

ZIMMERMANN 250.1348.20 (250134820) Brake Disc

ZIMMERMANN part 250.1348.20 (250134820) Brake Disc

ZIMMERMANN 250.1348.20 (250134820) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 250.1348.20 (250134820)

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Surface: Coated
  • Outer diameter [mm]: 276
  • Thickness [mm]: 24,5
  • Minimum thickness [mm]: 22,1
  • Height [mm]: 43
  • Hole Arrangement / Number: 5/5
  • Weight [kg]: 6,16
  • Bolt Hole Circle Ø 1 [mm]: 100
  • Hub Bore Ø [mm]: 82

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)250.1348.20 (250134820)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD vehicles

OE manufacturerOEM reference numbers
FORD1738807, 4041427, 4395257

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 250.1348.20 (250134820) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSG, CAR, CASALS, CIFAM, COMLINE, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, JURID, KAWE, KEY PARTS, LPR, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PETERS ENNEPETAL, PEX, PILENGA, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3G034ABE
A.B.S.17356
ACDelcoAC2613D
AP24829
ATE24.0124-0167.1
AUTOMEGA30107380807
BENDIX562141B
BORG & BECKBBD4241
BOSCH0986478299
Brake ENGINEERINGDI956077
BRECOBS8390
BREMBO09.8960.10
BSGBSG30-210-006
CARHPD229, 142.229
CASALS55254
CIFAM800-714
COMLINEADC1214V
DELPHIBG3676
DENCKERMANNB130152
E.T.F.19-5612
FARCOM230965
FEBI BILSTEIN19514
FERODODDF1113
FIRST LINEFBD1230
FOMARFO2613
FREMAXBD-5612
fri.tech.DF723
FTEBS5342
GIRLING6042161
GRAFDF29714
HANS PRIES302334
HELLA8DD355108-111, 8DD355108-121
HELLA PAGID8DD355108-121, 8DD355108-111
JURID562141J
KAWE660910
KEY PARTSKBD4241
LPRF1003V
MAGNETI MARELLI360704012900, 360406026200
METELLI23-0714
METZGER23-0714
MEYLE7155217022
MINTEXMDC1527, MDK0125
NK202554
OPEN PARTSBDA1947.20
OPTIMALBS-6170
PAGID50349, 50349PRO
PETERS ENNEPETAL116.008-00A
PEX14.0744
PILENGAV253
QUINTON HAZELLHP57993, BDC5342
RAMEDERT0620126
REMSA6609.10
ROADHOUSE6609.10
ROTINGERRT2591, RT2591T5
ROULUNDS BRAKINGD2613
SASIC9004909J
sbs1815202554
SWAG50919514
TEMPLIN01.11.42.121083
TEXTAR92110003, 92110000, 89006600
TRISCAN812016140, 812016140C
TRUSTINGDF723
TRWDF4216
VAICOV25-80014
VALEO186709
VEMA98282
VILLAR628.0298
WOKINGD6609.10
ZIMMERMANN250.1348.00, 250.1348.52, 250.1348.50

Vehicle fitment / ZIMMERMANN 250.1348.20 (250134820) Brake Disc compatibility

This product fits the following models: FORD TRANSIT, etc. See all vehicles this product (ZIMMERMANN 250.1348.20 (250134820)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDTRANSIT
FA
FD
FB
FS
FZ
FC
FM
FN
2.0 DI
2.0 TDCi
2.3
2.3 16V
2.3 16V [RWD]
2.4 DI
2.4 DI [RWD]
2.4 TD
2.4 TDCi
2.4 TDdi
2.4 TDE

FAA
FAB
FAC
FAA
FAB
FAC
FAD
FAE
FAF
FAG
FA
FB
FC
FD
FB
FC
FB
FC
FA
FC
FB
FA
FE
FF
FE
FF
FG
FF
FE
FG
2000/01 - 2006/05ABFA 100 hp 74 kW 2 L Diesel
D3FA 75 hp 55 kW 2 L Diesel
F3FA 86 hp 63 kW 2 L Diesel
D2FA 90 hp 66 kW 2.4 L Diesel
D2FB 90 hp 66 kW 2.4 L Diesel
D2FE 90 hp 66 kW 2.4 L Diesel
D2FA 90 hp 66 kW 2.4 L Diesel
D2FB 90 hp 66 kW 2.4 L Diesel
D2FE 90 hp 66 kW 2.4 L Diesel
D4FA 120 hp 88 kW 2.4 L Diesel
F4FA 75 hp 55 kW 2.4 L Diesel
D2FE 90 hp 66 kW 2.4 L Diesel
D4FA 120 hp 88 kW 2.4 L Diesel
D4FA 120 hp 88 kW 2.4 L Diesel
F4FA 75 hp 55 kW 2.4 L Diesel
DOFA 125 hp 92 kW 2.4 L Diesel
DOFA 125 hp 92 kW 2.4 L Diesel
FXFA 115 hp 85 kW 2.4 L Diesel
E5FA 145 hp 107 kW 2.3 L Petrol
E5FA 145 hp 107 kW 2.3 L Petrol
E5FC 143 hp 105 kW 2.3 L Petrol
E5FA 146 hp 107 kW 2.3 L Petrol
E5FC 146 hp 107 kW 2.3 L Petrol
F4FA 75 hp 55 kW 2.4 L Diesel
FIFA 125 hp 92 kW 2 L Diesel
FXFA 115 hp 85 kW 2.4 L Diesel
H9FA 137 hp 101 kW 2.4 L Diesel
Front wheel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
