ZIMMERMANN 250.1349.20 (250134920) Brake Disc

ZIMMERMANN part 250.1349.20 (250134920) Brake Disc

ZIMMERMANN 250.1349.20 (250134920) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 250.1349.20 (250134920)

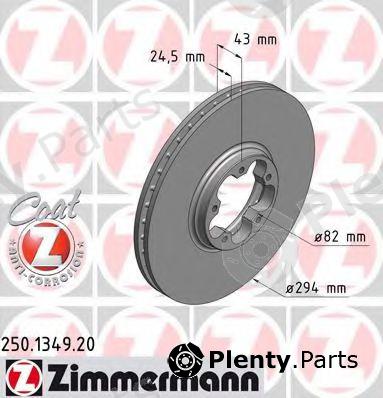

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Surface: Coated
  • Outer diameter [mm]: 294
  • Thickness [mm]: 24,5
  • Minimum thickness [mm]: 22,1
  • Height [mm]: 43
  • Hole Arrangement / Number: 5/5
  • Weight [kg]: 7,12
  • Bolt Hole Circle Ø 1 [mm]: 100
  • Hub Bore Ø [mm]: 82

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)250.1349.20 (250134920)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD vehicles

OE manufacturerOEM reference numbers
FORD1520373, 1568640, 1738815, 4041428

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 250.1349.20 (250134920) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSG, CAR, CASALS, CIFAM, COMLINE, DELPHI, DENCKERMANN, DITAS, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAWE, KEY PARTS, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3G033ABE
A.B.S.17115
ACDelcoAC2614D
AP24806E
ATE24.0124-0168.1
AUTOMEGA30107380815
BENDIX562140B
BORG & BECKBBD4221
BOSCH0986478303
Brake ENGINEERINGDI956008
BRECOBS8430
BREMBO09.8837.14
BSGBSG30-210-005
CARHPD228, 142.228
CASALS55256
CIFAM800-702
COMLINEADC1213V
DELPHIBG3504
DENCKERMANNB130153
DITASDFD1014
E.T.F.19-5613
FARCOM230964
FEBI BILSTEIN19515
FERODODDF1112
FIRST LINEFBD1208
FOMARFO2614
FREMAXBD-5613
fri.tech.DF810
FTEBS5214
GIRLING6042171
GRAFDF29702
HANS PRIES302087
HELLA8DD355107-301, 8DD355107-311
HELLA PAGID8DD355107-311, 8DD355107-301
JP GROUPBS2306, BS2306ALT
JURID562140J
KAGER37-0202
KAWE660810
KEY PARTSKBD4221
LPRF1002V
MAGNETI MARELLI360704001100, 360406026300
MAPCO15819
METELLI23-0702
METZGER24806E
MEYLE7155217021
MINTEXMDK0117, MDC1082
NK202544
OPEN PARTSBDA1946.20
OPTIMALBS-6040
PAGID54038, 54038PRO
PATRONPBD4217
PEX14.0741
PILENGAV252
QUINTON HAZELLHP57944, BDC5214
RAMEDERT0620125
REMSA6608.10
ROADHOUSE6608.10
ROTINGERRT2711, RT2711T5
ROULUNDS BRAKINGD2614
SASIC9004827J
sbs1815202544
SWAG50919515
TEMPLIN01.11.42.121082
TEXTAR92103803, 92103800, 89007200
TRISCAN812016137
TRUCKTEC AUTOMOTIVE18.35.005
TRUSTINGDF810
TRWDF4217
VAICOV25-80015
VALEO186710
VEMA98279
VILLAR628.0300
WOKINGD6608.10
ZIMMERMANN250.1349.00, 250.1349.52

Vehicle fitment / ZIMMERMANN 250.1349.20 (250134920) Brake Disc compatibility

This product fits the following models: FORD TRANSIT, etc. See all vehicles this product (ZIMMERMANN 250.1349.20 (250134920)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDTRANSIT
FA
FD
FB
FS
FZ
FC
FM
FN
2.0 DI
2.0 TDCi
2.3
2.3 16V
2.3 16V [RWD]
2.4 DI
2.4 DI [RWD]
2.4 TD
2.4 TDCi
2.4 TDdi
2.4 TDE

FAA
FAB
FAC
FAA
FAB
FAC
FAD
FAE
FAF
FAG
FA
FB
FC
FD
FB
FC
FB
FC
FA
FC
FB
FA
FE
FF
FE
FF
FG
FF
FE
FG
2000/01 - 2006/05ABFA 100 hp 74 kW 2 L Diesel
D3FA 75 hp 55 kW 2 L Diesel
F3FA 86 hp 63 kW 2 L Diesel
D2FA 90 hp 66 kW 2.4 L Diesel
D2FB 90 hp 66 kW 2.4 L Diesel
D2FE 90 hp 66 kW 2.4 L Diesel
D2FA 90 hp 66 kW 2.4 L Diesel
D2FB 90 hp 66 kW 2.4 L Diesel
D2FE 90 hp 66 kW 2.4 L Diesel
D4FA 120 hp 88 kW 2.4 L Diesel
F4FA 75 hp 55 kW 2.4 L Diesel
D2FE 90 hp 66 kW 2.4 L Diesel
D4FA 120 hp 88 kW 2.4 L Diesel
D4FA 120 hp 88 kW 2.4 L Diesel
F4FA 75 hp 55 kW 2.4 L Diesel
DOFA 125 hp 92 kW 2.4 L Diesel
DOFA 125 hp 92 kW 2.4 L Diesel
FXFA 115 hp 85 kW 2.4 L Diesel
E5FA 145 hp 107 kW 2.3 L Petrol
E5FA 145 hp 107 kW 2.3 L Petrol
E5FC 143 hp 105 kW 2.3 L Petrol
E5FA 146 hp 107 kW 2.3 L Petrol
E5FC 146 hp 107 kW 2.3 L Petrol
F4FA 75 hp 55 kW 2.4 L Diesel
FIFA 125 hp 92 kW 2 L Diesel
FXFA 115 hp 85 kW 2.4 L Diesel
H9FA 137 hp 101 kW 2.4 L Diesel
Front wheel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
