ZIMMERMANN 290.2265.20 (290226520) Brake Disc

ZIMMERMANN part 290.2265.20 (290226520) Brake Disc

ZIMMERMANN 290.2265.20 (290226520) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 290.2265.20 (290226520)

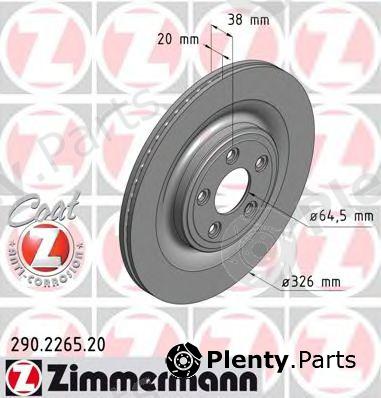

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Surface: Coated
  • Outer diameter [mm]: 326
  • Thickness [mm]: 20
  • Minimum thickness [mm]: 18
  • Height [mm]: 38
  • Hole Arrangement / Number: 5/5
  • Weight [kg]: 6,9
  • Bolt Hole Circle Ø 1 [mm]: 108
  • Hub Bore Ø [mm]: 64,5

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)290.2265.20 (290226520)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for JAGUAR vehicles

OE manufacturerOEM reference numbers
JAGUARC2C25339, C2D26352

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 290.2265.20 (290226520) Brake Disc offered by A.B.S., ACDelco, AP, ATE, BLUE PRINT, BORG & BECK, BOSCH, BRECO, BREMBO, CAR, COMLINE, DELPHI, FERODO, GIRLING, HELLA, HELLA PAGID, KAWE, LPR, MEYLE, MINTEX, NATIONAL, NK, OPEN PARTS, PAGID, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROULUNDS BRAKING, sbs, TEXTAR, TRISCAN, TRUCKTECHNIC, TRW, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.18090
ACDelcoAC3650D
AP25312V
ATE420238, 24.0120-0238.1
BLUE PRINTADJ134303
BORG & BECKBBD5826S
BOSCH0986479628
BRECOBV8922
BREMBO09.B312.11
CAR142.1643
COMLINEADC1246V
DELPHIBG4202
FERODODDF1703-1
GIRLING6062952
HELLA8DD355115-581, 8DD355115582
HELLA PAGID8DD355115582, 54780PRO, 8DD355115581
KAWE6137510
LPRJ1007V
MEYLE18155230003PD
MINTEXMDC1937
NATIONALNBD1516
NK201221, 311221
OPEN PARTSBDR2578.20
PAGID54780
PILENGAV242
PROTECHNICPRD6199
QUINTON HAZELLBDC5874
REMSA61375.10
ROADHOUSE61375.10
ROULUNDS BRAKINGWD01377
sbs1815311221, 1815201221
TEXTAR92178003, 92178005
TRISCAN812010161C
TRUCKTECHNIC22.35.030
TRWDF6295
WOKINGD61375.10
ZIMMERMANN290.2265.52

Vehicle fitment / ZIMMERMANN 290.2265.20 (290226520) Brake Disc compatibility

This product fits the following models: JAGUAR S-TYPE, JAGUAR XF, JAGUAR XF BRAKE, JAGUAR XJ, JAGUAR XK, etc. See all vehicles this product (ZIMMERMANN 290.2265.20 (290226520)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
JAGUARS-TYPE
CCX
2.5 V6
2.7 D
3.0 V6
4.0 V8
4.2 V8
R 4
2 V8
1999/01 - 2007/10200 hp 147 kW 2.5 L Petrol
AJ8FT 298 hp 219 kW 4.2 L Petrol
AJ8FT 396 hp 291 kW 4.2 L Petrol
AJD 207 hp 152 kW 2.7 L Diesel
AJ-V6 238 hp 175 kW 3 L Petrol
FB 238 hp 175 kW 3 L Petrol
AJ-V8 276 hp 203 kW 4 L Petrol
AJ-V8 284 hp 209 kW 4 L Petrol
Rear wheel
Sedan / Saloon
JAGUARXF
J05
CC9
2.0
2.2 D
2.7 D
3.0
3.0 AWD
3.0 D
4.2
4.2 Kompressor
5.0
2008/03 - 2015/04204PT 241 hp 177 kW 2 L Petrol
224DT 163 hp 120 kW 2.2 L Diesel
224DT 190 hp 140 kW 2.2 L Diesel
224DT 200 hp 147 kW 2.2 L Diesel
306DT 241 hp 177 kW 3 L Diesel
306DT 275 hp 202 kW 3 L Diesel
AJV6D 211 hp 155 kW 3 L Diesel
AJV6D 241 hp 177 kW 3 L Diesel
AJV6D 275 hp 202 kW 3 L Diesel
508PN 385 hp 283 kW 5 L Petrol
AJ126 340 hp 250 kW 3 L Petrol
AJ126 340 hp 250 kW 3 L Petrol
AJ6WG 238 hp 175 kW 3 L Petrol
FB 243 hp 179 kW 3 L Petrol
AJD 207 hp 152 kW 2.7 L Diesel
SV82G 298 hp 219 kW 4.2 L Petrol
SV8TS 416 hp 306 kW 4.2 L Petrol
AWD / 4WD
Rear wheel
Sedan / Saloon
JAGUARXF BRAKE
CC9
2.2 D
3.0 D
2012/09 - 2014/04224DT 163 hp 120 kW 2.2 L Diesel
224DT 200 hp 147 kW 2.2 L Diesel
306DT 241 hp 177 kW 3 L Diesel
306DT 275 hp 202 kW 3 L Diesel
AJV6D 241 hp 177 kW 3 L Diesel
AJV6D 275 hp 202 kW 3 L Diesel
Rear wheel
Estate / Turnier / Vario / Wagon
JAGUARXJ
N3
X350
X358
NNA
X35
J12
J24
2.0
2
7 D
3.0
3.0 AWD
3.0 D
3.5
4.2
5.0 V 8
5.0 V8
R 4.2
2003/05 - 204PT 241 hp 177 kW 2 L Petrol
258 hp 190 kW 3.5 L Petrol
508PN 385 hp 283 kW 5 L Petrol
508PS 471 hp 346 kW 5 L Petrol
508PS 510 hp 375 kW 5 L Petrol
AJ126 340 hp 250 kW 3 L Petrol
AJ126 340 hp 250 kW 3 L Petrol
AJ-V6 238 hp 175 kW 3 L Petrol
AJ8FT 298 hp 219 kW 4.2 L Petrol
AJ8FT 395 hp 291 kW 4.2 L Petrol
AJD 207 hp 152 kW 2.7 L Diesel
AJ-V6 238 hp 175 kW 3 L Petrol
AJ-V6 243 hp 179 kW 3 L Petrol
AJV6D 275 hp 202 kW 3 L Diesel
AWD / 4WD
Rear wheel
Sedan / Saloon
JAGUARXK
QQ6
J43
3.5
3.6
4.2 XK8
4.2 XKR
5.0 XKR
2006/03 - 2014/07258 hp 190 kW 3.5 L Petrol
258 hp 190 kW 3.6 L Petrol
508PS 510 hp 375 kW 5 L Petrol
AJ8FT 298 hp 219 kW 4.2 L Petrol
AJ8FT 396 hp 291 kW 4.2 L Petrol
SV8TS 416 hp 306 kW 4.2 L Petrol
SV8TS 416 hp 306 kW 4.2 L Petrol
Rear wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
