ZIMMERMANN 430.1470.00 (430147000) Brake Disc

ZIMMERMANN part 430.1470.00 (430147000) Brake Disc

ZIMMERMANN 430.1470.00 (430147000) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 430.1470.00 (430147000)

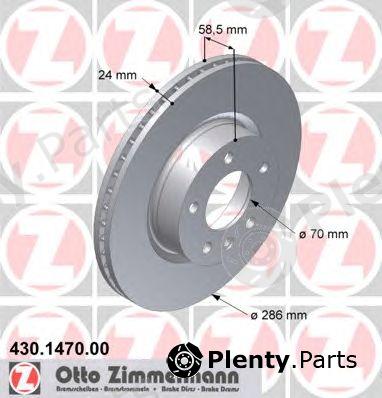

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Outer diameter [mm]: 286
  • Thickness [mm]: 24
  • Minimum thickness [mm]: 21
  • Height [mm]: 58,5
  • Hole Arrangement / Number: 6/5
  • Weight [kg]: 6,9
  • Bolt Hole Circle Ø 1 [mm]: 110
  • Hub Bore Ø [mm]: 70

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)430.1470.00 (430147000)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for GENERAL MOTORS, OPEL vehicles

OE manufacturerOEM reference numbers
GENERAL MOTORS90487103
OPEL569015, 569053

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 430.1470.00 (430147000) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HP, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LEMFÖRDER, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3X015ABE
A.B.S.16263
ACDelcoAC2273D
AP24509
ATE24.0124-0119.1
AUTOMEGA3105690053
BENDIX561869, 561869BC, 561869B
BORG & BECKBBD5056
BOSCH0986478594
Brake ENGINEERINGDI955483
BRECOBS8155
BREMBO09.5889.10
BREMSIDBA697V
BSF11237V
CARHPD511, 142.511
CIFAM800-446
DELPHIBG2908
DENCKERMANNB130030
E.T.F.19-9054
FARCOM230184
FEBI BILSTEIN02494
FENOXTB217069
FERODODDF6971, DDF697
FIRST LINEFBD596
FOMARFO2273
FREMAXBD-9054
fri.tech.BD0500, DF500
FTEBS4640
GIRLING6027201
GRAFDF29446
HANS PRIES200941
HELLA8DD355103711, 8DD355103721
HELLA PAGID8DD355103711, 8DD355103721
HPHP57603
JP GROUP880569053ALT
JURID561869J, 561869JC, 561869
KAGER37-0013
KAMOKA1031394
KAWE649010
KRAFT6041525
LEMFÖRDER2139803
LPRO1301V
LUCAS ELECTRICALDF2720
MAGNETI MARELLI360406037900, 353613423240, 36046037900
MAPCO15846, 15846/2
MAXGEAR190797MAX, 190797
METELLI23-0446
METZGER24509
MEYLE6155216010
MINTEXMDC866
NATIONALNBD599
NECTOWN794
NK203620, 313620
OPEN PARTSBDR1419.20
OPTIMALBS-4900
PAGID52425PRO, 52425
PATRONPBD2720
PEX14.0436
PILENGAV069
PROTECHNICPRD2146
QUINTON HAZELLBDC4579, BDC4640, HP57603
RAMEDERT0620552
REMSA6490.10
ROADHOUSE6490.10
ROTINGERRT2533T5, RT2533
ROULUNDS BRAKINGD2273
sbs1815203620, 1815313620
SWAG40902494
TEMPLIN0311024035, 01.17.42.106995, 0311024030
TEXTAR92066900, 92066903, 982000669
TRISCAN812024118
TRUSTINGDF500
TRWDF2720
VAICOV40-80019
VEMA98463
VILLAR628.1062
WOKINGD6490.10
ZIMMERMANN430.1470.52, 430.1470.20, 430.1470.50

Vehicle fitment / ZIMMERMANN 430.1470.00 (430147000) Brake Disc compatibility

This product fits the following models: OPEL OMEGA B, etc. See all vehicles this product (ZIMMERMANN 430.1470.00 (430147000)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
OPELOMEGA B
21
22
23
25
26
27
2.0
2.0 16V
1994/03 - 1999/09X20SE 116 hp 85 kW 2 L Petrol
X20XEV 136 hp 100 kW 2 L Petrol
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
