ZIMMERMANN 430.1488.20 (430148820) Brake Disc
ZIMMERMANN 430.1488.20 (430148820) Brake Disc
by ZIMMERMANNManufacturer Part Number: 430.1488.20 (430148820)

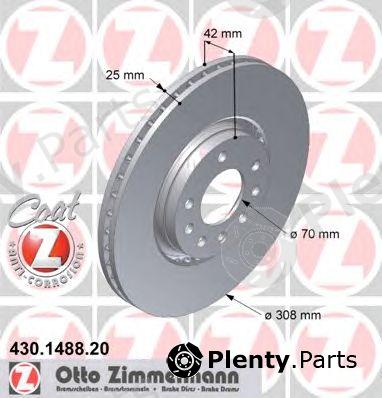

- Brake Disc Type: Externally Vented
- Machining: Alloyed / High-carbon
- Surface: Coated
- Outer diameter [mm]: 308
- Thickness [mm]: 25
- Minimum thickness [mm]: 22
- Height [mm]: 42
- Hole Arrangement / Number: 8/5
- Weight [kg]: 8,15
- Bolt Hole Circle Ø 1 [mm]: 110
- Hub Bore Ø [mm]: 70
Product Details
| Brand | ZIMMERMANN |
| ZIMMERMANN article (MPN) | 430.1488.20 (430148820) |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for OPEL, SAAB vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| OPEL | 5055389, 5391560, 9194477, 569061, 9184405 |
| SAAB | 5084769 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ZIMMERMANN 430.1488.20 (430148820) Brake Disc offered by ABE, A.B.S., AP, ATE, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GALFER, GIRLING, GRAF, G.U.D, HELLA, HELLA PAGID, HP, ICER, JURATEK, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| ABE | C3X034ABE |
| A.B.S. | 17063, 17150, 17150S |
| AP | 24927, 24927V |
| ATE | 24112501421, 24.0325-0142.1, 24.0125-0142.1 |
| BARUM | BAR25142 |
| BENDIX | 562240BC, 562240B |
| BLUE PRINT | ADW194310 |
| BORG & BECK | BBD4436 |
| BOSCH | 0986479113, 0986479947 |
| Brake ENGINEERING | DI956212 |
| BRECO | BS8546, BV8546 |
| BREMBO | 09.9369.10, 09.9369.11 |
| CAR | HPD030, 142.030 |
| CIFAM | 800-826 |
| DELPHI | BG3770 |
| DENCKERMANN | B130445 |
| E.T.F. | 19-0037 |
| FARCOM | 231326 |
| FEBI BILSTEIN | 23559 |
| FERODO | DDF1261C, DDF1261 |
| FIRST LINE | FBD1475 |
| FOMAR | FO2693 |
| FREMAX | BD-9061 |
| fri.tech. | BD1087, DF1087 |
| FTE | BS5276, BS5276B, BS5276HB |
| GALFER | B1G22501421 |
| GIRLING | 6042461 |
| GRAF | DF29826 |
| G.U.D | GDB125142 |
| HELLA | 8DD355108221, 8DD355108232, 8DD355108231 |
| HELLA PAGID | 8DD355108221, 8DD355108232, 8DD355108231 |
| HP | HP58032, 58032 |
| ICER | 78BD9061 |
| JURATEK | VAU131 |
| JURID | 562240JC, 562240J |
| KAGER | 37-1128, 371384 |
| KAMOKA | 103253 |
| KAWE | 672910 |
| KEY PARTS | KBD4436 |
| KRAFT | 6041750 |
| LPR | O1015V, O1015VR |
| LUCAS ELECTRICAL | DF4246 |
| MAGNETI MARELLI | 360704013700, 360406039700 |
| MAPCO | 25709/2, 25709 |
| MAXGEAR | 191019, 191019MAX |
| METELLI | 23-0826 |
| METZGER | 24927, 24927V |
| MEYLE | 6155216036, 6155216036/PD |
| MINTEX | MDK0241, MDC1500 |
| NATIONAL | NBD1127 |
| NK | 203654 |
| OPEN PARTS | BDR2301.20, BDA2301.20, BDRS2301.25 |
| OPTIMAL | BS-7924, BS7924C |
| PAGID | 50358 |
| PATRON | PBD4246 |
| PILENGA | V380 |
| PROTECHNIC | PRD2555 |
| QUINTON HAZELL | BDC5276, BDC5276BD, HP58032 |
| REMSA | 6729.10 |
| ROADHOUSE | 6729.10 |
| ROTINGER | RT20143, RT20143T5 |
| ROULUNDS BRAKING | WD00661 |
| sbs | 1815203654 |
| SWAG | 40923559 |
| TEMPLIN | 0311024200, 0311024205 |
| TEXTAR | 98200110901, 92110903, 92110900 |
| TRISCAN | 812024142 |
| TRUSTING | DF1087 |
| TRW | DF4246 |
| VAICO | V40-80046 |
| VALEO | 197244 |
| WOKING | D6729.10 |
| ZIMMERMANN | 430.1488.00, 430.1488.52, 430.1488.50 |
Vehicle fitment / ZIMMERMANN 430.1488.20 (430148820) Brake Disc compatibility
This product fits the following models: OPEL ADAM, OPEL ASTRA G, OPEL ASTRA H, OPEL ASTRA H GTC, OPEL CORSA D, OPEL CORSA E, OPEL MERIVA, OPEL MERIVA B, OPEL VECTRA B, OPEL ZAFIRA A, OPEL ZAFIRA B, SAAB 9-3, SAAB 9-5, VAUXHALL ADAM, VAUXHALL ASTRAIV, VAUXHALL ASTRA V, VAUXHALL ASTRAV, VAUXHALL CORSAIII, VAUXHALL MERIVAI, VAUXHALL MERIVAII, VAUXHALL ZAFIRAI, VAUXHALL ZAFIRAII, etc. See all vehicles this product (ZIMMERMANN 430.1488.20 (430148820)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| OPEL | ADAM | 1.0 1.2 1.4 1.4 LPG 1.4 S | 2012/10 - | 68 hp 50 kW 1 L Petrol B10XFL 90 hp 66 kW 1 L Petrol B10XFT 115 hp 85 kW 1 L Petrol 94 hp 69 kW 1.2 L Petrol A12XEL 69 hp 51 kW 1.2 L Petrol B12XEL 69 hp 51 kW 1.2 L Petrol A14XEL 87 hp 64 kW 1.4 L Petrol A14XER 101 hp 74 kW 1.4 L Petrol B14XEL 87 hp 64 kW 1.4 L Petrol B14XER 101 hp 74 kW 1.4 L Petrol A14XEL 87 hp 64 kW 1.4 L Petrol B14XEL 87 hp 64 kW 1.4 L Petrol B14NEH 150 hp 110 kW 1.4 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| OPEL | ASTRA G F07 F35 F48 F08 F67 | 2.0 16V OPC 2.0 16V Turbo 2.0 OPC | 1999/11 - 2005/10 | X20XER 160 hp 118 kW 2 L Petrol Z20LET 190 hp 140 kW 2 L Petrol Z20LET 192 hp 141 kW 2 L Petrol Z20LET 200 hp 147 kW 2 L Petrol Z20LET 192 hp 141 kW 2 L Petrol Z20LET 192 hp 141 kW 2 L Petrol Z20LET 200 hp 147 kW 2 L Petrol Z20LET 200 hp 147 kW 2 L Petrol | Front wheel | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch |
| OPEL | ASTRA H L08 L35 L48 L67 | 1.6 Turbo 1.7 CDTI 1.9 CDTi 1.9 CDTI 1.9 CDTi 16V 1.9 CDTI 16V 2.0 Turbo | 2004/03 - | A17DTR 125 hp 92 kW 1.7 L Diesel A17DTR 125 hp 92 kW 1.7 L Diesel Z17DTR 125 hp 92 kW 1.7 L Diesel Z16LET 180 hp 132 kW 1.6 L Petrol Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DTL 100 hp 74 kW 1.9 L Diesel Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTL 101 hp 74 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DTJ 120 hp 88 kW 1.9 L Diesel Z20LEL 170 hp 125 kW 2 L Petrol Z20LER 200 hp 147 kW 2 L Petrol | Front wheel | Convertible / cabrio Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch |
| OPEL | ASTRA H GTC L08 | 1.6 Turbo 1.7 CDTI 1.9 CDTi 1.9 CDTI 1.9 CDTi 16V 2.0 Turbo | 2005/03 - | A17DTR 125 hp 92 kW 1.7 L Diesel Z16LET 180 hp 132 kW 1.6 L Petrol Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTL 101 hp 74 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DTJ 120 hp 88 kW 1.9 L Diesel Z20LEL 170 hp 125 kW 2 L Petrol Z20LER 200 hp 147 kW 2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| OPEL | CORSA D | 1.6 Turbo | 2007/02 - | A16LEL 150 hp 110 kW 1.6 L Petrol A16LER 192 hp 141 kW 1.6 L Petrol A16LES 211 hp 155 kW 1.6 L Petrol B16LER 192 hp 141 kW 1.6 L Petrol B16LES 211 hp 155 kW 1.6 L Petrol Z16LEL 150 hp 110 kW 1.6 L Petrol Z16LER 192 hp 141 kW 1.6 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| OPEL | CORSA E | 1.0 1.2 1.3 CDTI 1.4 1.4 LPG 1.4 Turbo 1.6 Turbo | 2014/09 - | B10XFL 90 hp 66 kW 1 L Petrol B10XFT 115 hp 85 kW 1 L Petrol B12XEL 69 hp 51 kW 1.2 L Petrol B13DTC 75 hp 55 kW 1.3 L Diesel B13DTE 95 hp 70 kW 1.3 L Diesel B13DTR 95 hp 70 kW 1.3 L Diesel B14NEH 150 hp 110 kW 1.4 L Petrol B14NEJ 101 hp 74 kW 1.4 L Petrol B14XEJ 75 hp 55 kW 1.4 L Petrol B14XEL 90 hp 66 kW 1.4 L Petrol B14XEL 90 hp 66 kW 1.4 L Petrol B16LES 207 hp 152 kW 1.6 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch LCV / Van / Cargo |
| OPEL | MERIVA | 1.6 Turbo | 2005/09 - 2010/05 | Z16LET 180 hp 132 kW 1.6 L Petrol | Front wheel | MPV / Van / Minivan |
| OPEL | MERIVA B | 1.3 CDTI 1.4 1.4 LPG 1.4 T 1.6 CDTi 1.6 CDTI 1.7 CDTI | 2010/06 - | A13DTC 75 hp 55 kW 1.3 L Diesel A13DTE 95 hp 70 kW 1.3 L Diesel A14NEL 120 hp 88 kW 1.4 L Petrol A14NET 140 hp 103 kW 1.4 L Petrol A14XER 100 hp 74 kW 1.4 L Petrol B14NEL 120 hp 88 kW 1.4 L Petrol B14NET 140 hp 103 kW 1.4 L Petrol B14XER 100 hp 74 kW 1.4 L Petrol A14NEL 120 hp 88 kW 1.4 L Petrol B14NEL 120 hp 88 kW 1.4 L Petrol A17DT 100 hp 74 kW 1.7 L Diesel A17DTC 110 hp 81 kW 1.7 L Diesel A17DTI 110 hp 81 kW 1.7 L Diesel A17DTS 131 hp 96 kW 1.7 L Diesel B16DTC 95 hp 70 kW 1.6 L Diesel B16DTE 110 hp 81 kW 1.6 L Diesel B16DTL 110 hp 81 kW 1.6 L Diesel B16DTN 110 hp 81 kW 1.6 L Diesel B16DTH 136 hp 100 kW 1.6 L Diesel | Front wheel | MPV / Van / Minivan |
| OPEL | VECTRA B 31 36 | i 500 2.5 | 1998/05 - 2000/09 | X25XE 194 hp 143 kW 2.5 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| OPEL | ZAFIRA A F75 | 2.0 OPC | 2001/09 - 2005/06 | Z20LER 200 hp 147 kW 2 L Petrol Z20LET 192 hp 141 kW 2 L Petrol Z20LET 200 hp 147 kW 2 L Petrol | Front wheel | MPV / Van / Minivan |
| OPEL | ZAFIRA B A05 | 1.6 CNG 1.6 CNG Turbo 1.7 CDTI 1.8 1.9 CDTI 2.0 2.2 | 2005/07 - | A16XNT 150 hp 110 kW 1.6 L Petrol Z16XNT 150 hp 110 kW 1.6 L Petrol A17DTJ 110 hp 81 kW 1.7 L Diesel A17DTR 125 hp 92 kW 1.7 L Diesel Z17DTJ 110 hp 81 kW 1.7 L Diesel A18XER 140 hp 103 kW 1.8 L Petrol Z18XER 140 hp 103 kW 1.8 L Petrol Z16YNG 94 hp 69 kW 1.6 L Petrol Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DTL 100 hp 74 kW 1.9 L Diesel Z20LER 200 hp 147 kW 2 L Petrol Z22YH 150 hp 110 kW 2.2 L Petrol | Front wheel | LCV / Van / Cargo MPV / Van / Minivan |
| SAAB | 9-3 YS3D | 2.3 2.3 Turbo | 1998/10 - 2003/08 | B235R 224 hp 165 kW 2.3 L Petrol B235R 230 hp 169 kW 2.3 L Petrol | Front wheel | Convertible / cabrio Hatchback / Sportback / Sport hatch |
| SAAB | 9-5 YS3E | 1.9 TiD 2.0 t 2.0 t Biopower 2.0 t BioPower 2.0 Turbo SE 2.2 TiD 2.3 t 2.3 Turbo 3.0 TiD 3.0 V6t | 1997/09 - 2009/12 | B204R 192 hp 141 kW 2 L Petrol B205E 150 hp 110 kW 2 L Petrol B205L 185 hp 136 kW 2 L Petrol B205E 150 hp 110 kW 2 L Petrol B205E 150 hp 110 kW 2 L Petrol B205L 185 hp 136 kW 2 L Petrol B205E 179 hp 132 kW 2 L Petrol B205E 192 hp 141 kW 2 L Petrol B235E 170 hp 125 kW 2.3 L Petrol B235E 185 hp 136 kW 2.3 L Petrol B235L 220 hp 162 kW 2.3 L Petrol B235R 230 hp 169 kW 2.3 L Petrol B235R 250 hp 184 kW 2.3 L Petrol B235R 260 hp 191 kW 2.3 L Petrol B235R 305 hp 224 kW 2.3 L Petrol B308E 200 hp 147 kW 3 L Petrol D223L 120 hp 88 kW 2.2 L Diesel D308L 177 hp 130 kW 3 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel | Front wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| VAUXHALL | ADAM | 1.0 1.2 1.4 1.4 LPG 1.4 S | 2012/10 - | A12XEL 69 hp 51 kW 1.2 L Petrol B12XEL 69 hp 51 kW 1.2 L Petrol A14XEL 87 hp 64 kW 1.4 L Petrol A14XEL 87 hp 64 kW 1.4 L Petrol A14XER 101 hp 74 kW 1.4 L Petrol B10XFT 116 hp 85 kW 1 L Petrol B14NEH 150 hp 110 kW 1.4 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| VAUXHALL | ASTRAIV G G F67 G | 2.0 16V Turbo 2.0 SRI Turbo 2.0 Turbo | 2000/09 - 2005/10 | Z20LET 190 hp 140 kW 2 L Petrol Z20LET 192 hp 141 kW 2 L Petrol | Front wheel | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster Hatchback / Sportback / Sport hatch |
| VAUXHALL | ASTRA V H | 1.6 1.9 CDTi 2.0 2.0 Turbo | 2006/01 - 2010/11 | Z16LET 179 hp 132 kW 1.6 L Petrol Z19DTH 150 hp 110 kW 1.9 L Diesel Z20LEL 170 hp 125 kW 2 L Petrol Z20LER 200 hp 147 kW 2 L Petrol | Front wheel | Convertible / cabrio |
| VAUXHALL | ASTRAV H Sport Hatch H H | 1.6 1.9 CDTi 1.9 CDTI 1.9 CDTI 16V 2.0 Turbo | 2004/01 - 2010/11 | Z16LET 180 hp 132 kW 1.6 L Petrol Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DTL 100 hp 74 kW 1.9 L Diesel Z19DTJ 120 hp 88 kW 1.9 L Diesel Z20LEH 240 hp 177 kW 2 L Petrol Z20LEL 170 hp 125 kW 2 L Petrol Z20LER 200 hp 147 kW 2 L Petrol Z20LEL 170 hp 125 kW 2 L Petrol Z20LEL 170 hp 125 kW 2 L Petrol Z20LER 200 hp 147 kW 2 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch |
| VAUXHALL | CORSAIII D L8 | 1.6 VXR | 2007/02 - 2014/08 | A16LER 192 hp 141 kW 1.6 L Petrol Z16LER 192 hp 141 kW 1.6 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| VAUXHALL | MERIVAI A | 1.6 Turbo | 2006/05 - 2010/06 | Z16LET 180 hp 132 kW 1.6 L Petrol | Front wheel | MPV / Van / Minivan |
| VAUXHALL | MERIVAII B | 1.4 1.7 CDTi 1.7 CDTI | 2010/06 - | A14NET 140 hp 103 kW 1.4 L Petrol B14NET 140 hp 103 kW 1.4 L Petrol A17DT 101 hp 74 kW 1.7 L Diesel A17DTC 110 hp 81 kW 1.7 L Diesel A17DTI 110 hp 81 kW 1.7 L Diesel A17DTS 131 hp 96 kW 1.7 L Diesel | Front wheel | MPV / Van / Minivan |
| VAUXHALL | ZAFIRAI A F75 | 2.0 GSI Turbo | 2001/09 - 2005/06 | Z20LET 192 hp 141 kW 2 L Petrol | Front wheel | MPV / Van / Minivan |
| VAUXHALL | ZAFIRAII B M75 | 1.6 CNG 1.6 CNG Turbo 1.9 CDTI 2.2 | 2005/07 - 2014/11 | A16XNT 150 hp 110 kW 1.6 L Petrol Z16XNT 150 hp 110 kW 1.6 L Petrol Z16YNG 94 hp 69 kW 1.6 L Petrol Z19DT 120 hp 88 kW 1.9 L Diesel Z22YH 150 hp 110 kW 2.2 L Petrol | Front wheel | MPV / Van / Minivan |
