ZIMMERMANN 430.1498.20 (430149820) Brake Disc

ZIMMERMANN part 430.1498.20 (430149820) Brake Disc

ZIMMERMANN 430.1498.20 (430149820) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 430.1498.20 (430149820)

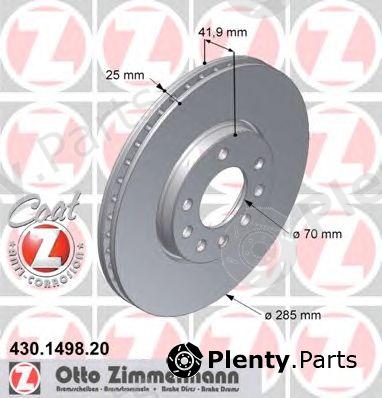

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Machining: High-carbon
  • Surface: Coated
  • Outer diameter [mm]: 285
  • Thickness [mm]: 25
  • Minimum thickness [mm]: 22
  • Height [mm]: 42
  • Hole Arrangement / Number: 8/5
  • Weight [kg]: 6,67
  • Bolt Hole Circle Ø 1 [mm]: 110
  • Hub Bore Ø [mm]: 70

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)430.1498.20 (430149820)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FIAT / LANCIA / ALFA, OPEL, SAAB vehicles

OE manufacturerOEM reference numbers
FIAT / LANCIA / ALFA71772553, 46844071, 51819733, 46836491
OPEL93171497, 569003
SAAB9156807

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 430.1498.20 (430149820) Brake Disc offered by ABE, A.B.S., AP, ATE, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GALFER, GIRLING, GK, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, HEPU, HP, ICER, JP GROUP, JURATEK, JURID, KAGER, KAWE, KEY PARTS, KRAFT, KWP, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WAGNER LOCKHEED, WILMINK GROUP, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3X032ABE
A.B.S.17368, 17368S
AP24846V, 24846
ATE24112501411, 24.0125-0141.1, 24.0325-0141.1
AUTOMEGA3105690003
BARUMBAR25141
BENDIX562216B, 562216BC
BORG & BECKBBD4318
BOSCH0986479946, 0986479107
Brake ENGINEERINGDI956243
BRECOBS8470, BV8470
BREMBO09.9165.14, 09.9165.11, 09.9165.10
BREMSIDBB678V, DBB191V
CAR142.031, HPD031
CIFAM800608C, 800-608
DELPHIBG3713
DENCKERMANNB130273
E.T.F.19.9003
FARCOM231238
FEBI BILSTEIN23549
FENOXTB219090
FERODODDF1191C, DDF1678, DDF11911, DDF1191C1, DDF1191, DDF16781
FIRST LINEFBD1328
FOMARFO2686
FREMAXBD-9003
fri.tech.DF974, BD0974
FTEBS5412B, BS5412HB, BS5412
GALFERB1G22501411
GIRLING6042931
GK980452
GRAFDF29608
G.U.DGDB125141
HANS PRIES206511
HELLA8DD355109241, 8DD355109231, 8DD355122552
HELLA PAGID8DD355109231, 8DD355109241, 8DD355122552
HEPUP166
HPHP58082, 58082
ICER78BD9003
JP GROUP880569003ALT
JURATEKVAU128
JURID562216J, 562216JC
KAGER37-1099, 371391
KAWEBDRS1991.25, 38461, 668910
KEY PARTSKBD4318
KRAFT6041731
KWP129608
LEMFÖRDER2962001, 29620
LPRO1009V, O1009VR
MAGNETI MARELLI360704007000, 360406008300, 351344620500
MAPCO25708, 25708/2
MAXGEAR190812, 190812MAX
METELLI230608C, 23-0608
METZGER24846V, 24846
MEYLE6155216024, 6155216024/PD
MINTEXMDK0193, MDC1632
NECTOWN1218
NK203645, 343645
OPEN PARTSBDR1991.20, BDRS1991.25
OPTIMALBS-7908, BS7908C
PAGID54187PRO, 54187
PATRONPBD4293
PEX14.0774
PILENGAV764
QUINTON HAZELLHP58082, BDC5412
RAMEDERT0620204
REMSA6689.10
ROADHOUSE6689.10
ROTINGERRT20163T5, RT20163
ROULUNDS BRAKINGWD00703
SASIC9004888J
sbs1815203645, 1815343645
SWAG40923549
TEMPLIN01.17.42.116643, 0311024220, 0311024225
TEXTAR92118700, 89016500, 92118703
TRISCAN812024143
TRUSTINGDF974
TRWDF4293
VAICOV4080048
VALEO186881
VEMA98763
WAGNER LOCKHEEDWGR16781, WGR11911
WILMINK GROUPWG1237041
WOKINGD6689.10
ZIMMERMANN430.1498.00, 430.1498.50, 430.1498.52

Vehicle fitment / ZIMMERMANN 430.1498.20 (430149820) Brake Disc compatibility

This product fits the following models: FIAT CROMA, OPEL SIGNUM, OPEL VECTRA C, OPEL VECTRA C GTS, SAAB 9-3, VAUXHALL SIGNUM, VAUXHALL VECTRAII, etc. See all vehicles this product (ZIMMERMANN 430.1498.20 (430149820)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FIATCROMA
194
1.8 16V
1.9 D Multijet
2.2 16V
2005/06 - 194A1.000 147 hp 108 kW 2.2 L Petrol
939A1.000 120 hp 88 kW 1.9 L Diesel
939A7.000 115 hp 85 kW 1.9 L Diesel
939A8.000 136 hp 100 kW 1.9 L Diesel
939A4.000 140 hp 103 kW 1.8 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
OPELSIGNUM
1.8
1.9 CDTI
2.0 DTI
2.0 Turbo
2.2 direct
2.2 DTI
2003/05 - Y20DTH 100 hp 74 kW 2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 100 hp 74 kW 1.9 L Diesel
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z20NET 175 hp 129 kW 2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
OPELVECTRA C
1.6
1.6 16V
1.8
1.8 16V
1.9 CDTI
2.0 DTI
2.0 DTI 16V
2.2 16V
2.2 direct
2.2 DTI
2.2 DTI 16V
2002/04 - Y20DTH 100 hp 74 kW 2 L Diesel
Y20DTH 101 hp 74 kW 2 L Diesel
Y22DTR 117 hp 86 kW 2.2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Z16XE 100 hp 74 kW 1.6 L Petrol
Z16XEP 105 hp 77 kW 1.6 L Petrol
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z18XEL 110 hp 81 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 100 hp 74 kW 1.9 L Diesel
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z19DTL 100 hp 74 kW 1.9 L Diesel
Z22SE 147 hp 108 kW 2.2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
OPELVECTRA C GTS
1.6
1.8
1.8 16V
1.9 CDTI
2.0 DTI 16V
2.2 16V
2.2 direct
2.2 DTI 16V
2002/08 - Y20DTH 101 hp 74 kW 2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Z16XE 100 hp 74 kW 1.6 L Petrol
Z16XEP 105 hp 77 kW 1.6 L Petrol
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z19DTL 100 hp 74 kW 1.9 L Diesel
Z22SE 147 hp 108 kW 2.2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
SAAB9-3
YS3F
1.8 i
1
8t
1.8t 2.0
1
8t BioPower
1.9 TiD
1.9 TTiD
2.0 t
2.0 t Bio Power
2.0 t BioPower
2.0 t Bio Power XWD
2.0 t BioPower XWD
2.0 Turbo XWD
2.0 t XWD
2.2 TiD
2.8 Turbo V6
2.8 Turbo V6 XWD
2002/09 - A19DTR 130 hp 96 kW 1.9 L Diesel
A19DTR 160 hp 118 kW 1.9 L Diesel
A19DTR 180 hp 132 kW 1.9 L Diesel
Z19DTR 180 hp 132 kW 1.9 L Diesel
A19DTR 130 hp 96 kW 1.9 L Diesel
A19DTR 160 hp 118 kW 1.9 L Diesel
Z19DTR 180 hp 132 kW 1.9 L Diesel
A20NFT 220 hp 162 kW 2 L Petrol
B207E 150 hp 110 kW 2 L Petrol
B207G 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207M 200 hp 147 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207E 150 hp 110 kW 2 L Petrol
B207H 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207R 197 hp 145 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207G 163 hp 120 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207G 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207G 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
B207R 241 hp 177 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207G 163 hp 120 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207H 163 hp 120 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207H 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207M 200 hp 147 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207H 163 hp 120 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
B207E 150 hp 110 kW 2 L Petrol
B207E 150 hp 110 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207H 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207M 200 hp 147 kW 2 L Petrol
B207R 197 hp 145 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
B207M 200 hp 147 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
B284L 256 hp 188 kW 2.8 L Petrol
B284L 276 hp 203 kW 2.8 L Petrol
LP9 230 hp 169 kW 2.8 L Petrol
LP9 250 hp 184 kW 2.8 L Petrol
B284L 256 hp 188 kW 2.8 L Petrol
B284R 276 hp 203 kW 2.8 L Petrol
B284R 280 hp 206 kW 2.8 L Petrol
LP9 230 hp 169 kW 2.8 L Petrol
LP9 250 hp 184 kW 2.8 L Petrol
B284L 256 hp 188 kW 2.8 L Petrol
B284R 276 hp 203 kW 2.8 L Petrol
LP9 230 hp 169 kW 2.8 L Petrol
LP9 250 hp 184 kW 2.8 L Petrol
B284R 280 hp 206 kW 2.8 L Petrol
D223L 125 hp 92 kW 2.2 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
AWD / 4WD
Front wheel
Convertible / cabrio
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VAUXHALLSIGNUM
1.9 CDTI
1.9 CDTI 16V
2.0 DTI
2.2 DTI
2.2 i
2.8 V6 Turbo
3.0 CDTi
3.0 V6 CDTI
3.2 V6
2003/05 - 2008/06Y20DTH 100 hp 74 kW 2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Y30DT 177 hp 130 kW 3 L Diesel
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z22YH 155 hp 114 kW 2.2 L Petrol
Z28NEL 230 hp 169 kW 2.8 L Petrol
Z30DT 184 hp 135 kW 3 L Diesel
Z32SE 211 hp 155 kW 3.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
VAUXHALLVECTRAII
C
C GTS
C
1.8
1.8 16V
1.8 16V Dualfuel
1.9 CDTI
1.9 CDTI 16V
2.0 DTI 16V
2.2 16V
2.2 direct
2.2 DTI 16V
2002/01 - 2008/10Y20DTH 101 hp 74 kW 2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z22SE 147 hp 108 kW 2.2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
