ZIMMERMANN 430.2601.20 (430260120) Brake Disc

ZIMMERMANN part 430.2601.20 (430260120) Brake Disc

ZIMMERMANN 430.2601.20 (430260120) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 430.2601.20 (430260120)

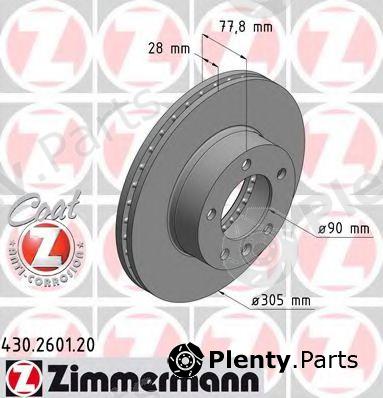

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Machining: High-carbon
  • Surface: Coated
  • Outer diameter [mm]: 305
  • Thickness [mm]: 28
  • Minimum thickness [mm]: 25
  • Height [mm]: 78
  • Hole Arrangement / Number: 6/5
  • Weight [kg]: 9,87
  • Bolt Hole Circle Ø 1 [mm]: 130
  • Hub Bore Ø [mm]: 90

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)430.2601.20 (430260120)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for GENERAL MOTORS, MERITOR (ROR), NISSAN, OPEL, RENAULT vehicles

OE manufacturerOEM reference numbers
GENERAL MOTORS9111038
MERITOR (ROR)MDR6015
NISSAN40206-00QAD
OPEL4403038
RENAULT7700314064

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 430.2601.20 (430260120) Brake Disc offered by ABE, A.B.S., AP, ASHUKI, ATE, AUTOMEGA, BARUM, BENDIX, BLUE PRINT, BOSCH, BRECO, BREMBO, CAR, CASALS, CIFAM, COMLINE, DELPHI, DENCKERMANN, DITAS, DJ AUTO, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FREMAX, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JP GROUP, JURID, KAGER, KAISHIN, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, QUINTON HAZELL, REMSA, ROADHOUSE, ROULUNDS BRAKING, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3R032ABE
A.B.S.17159OE, 17159
AP24849
ASHUKI09906801, N013-43
ATE24.0128-0129.1, 24.0328-0129.1
AUTOMEGA1044030038
BARUMBAR28129
BENDIX562190B
BLUE PRINTADN143105
BOSCH0986478970, 0986479001
BRECOBS8473
BREMBO09.9080.10
CARHPD366, 142.366
CASALS55379
CIFAM800532C, 800-532
COMLINEADC1125V
DELPHIBG9692
DENCKERMANNB130159
DITASDFD1021
DJ AUTOBD2171
E.T.F.19-6848
EUROBRAKE5815203644
FARCOM230978
FEBI BILSTEIN22240
FERODODDF1217, DDF1217C
FIRST LINEFBD1225
FREMAXBD-6848
fri.tech.DF736
FTEBS5164
GIRLING6042495
GRAFDF29532
HANS PRIES207070
HELLA8DD355108-931, 8DD355108-921
HELLA PAGID8DD355108-931, 8DD355108-921
HERTH+BUSS JAKOPARTSJ3301093
ICER78BD6848
JP GROUP1263103209
JURID562190J, 562190JC
KAGER37-1013
KAISHINCBR139
KAVO PARTSBR-6778
KAWE664310
LPRO1003V
MAGNETI MARELLI360704010900, 360406008900
MAPCO15126
METELLI230532C, 23-0532
METZGER24849
MEYLE6155216031PD, 6155216031
MINTEXMDC1505, MDK0243
NK203644
OPEN PARTSBDA1979.20
OPTIMALBS-6540
PAGID54159
PEX14.0825
PILENGAV378
QUINTON HAZELLBDC5164, HP58062
REMSA6643.10
ROADHOUSE6643.10
ROULUNDS BRAKINGD1648
SASIC4004301J
sbs1815203644
SWAG60922240
TEMPLIN01.17.42.116637
TEXTAR89007800, 92115903, 92115900
TRISCAN812010182
TRUSTINGDF736
TRWDF4249S
VAICOV40-80044
VALEO186868
VILLAR628.1037
WOKINGD6643.10
ZIMMERMANN430.2601.00, 430.2601.50, 430.2601.52

Vehicle fitment / ZIMMERMANN 430.2601.20 (430260120) Brake Disc compatibility

This product fits the following models: NISSAN INTERSTAR, OPEL MOO, RENAULT MASTER II, VAUXHALL MOOI, etc. See all vehicles this product (ZIMMERMANN 430.2601.20 (430260120)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
NISSANINTERSTAR

X70
dCi 100
dCi 120
dCi 140
dCi 150
dCi 80
dCI 90
2002/07 - F9Q772 82 hp 60 kW 1.9 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9U632 145 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U720 99 hp 73 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U720 101 hp 74 kW 2.5 L Diesel
G9U720 99 hp 73 kW 2.5 L Diesel
G9U720 99 hp 73 kW 2.5 L Diesel
ZD30 136 hp 100 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
OPELMOO
F9
H9
J9
U9
E9
1.9 DTI
2.2 DTI
2.5 CDTI
2.5 D
2.5 DTi
2.5 DTI
2.8 DTI
3.0 DTi
3.0 DTI
1998/07 - F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q772 82 hp 60 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S8U772 80 hp 59 kW 2.5 L Diesel
S9W700 114 hp 84 kW 2.8 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
Front wheel
Dump truck
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
RENAULTMASTER II
ED/HD/UD
FD
JD
1.9 dCi 80
1.9 dTI
2.2 dCI 90
2.5 D
2.5 dCi
2.5 dCi 100
2.5 dCi 120
2.8 dTI
3.0 dCi 120
3.0 dCi 140
3.0 dCi 160

ED0S
UD0S
ED4V
ED8V
FD0U
FD0V
HD0S
FD0S
HD1S
JD0T
JDCV
1998/07 - F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q772 82 hp 60 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U750 114 hp 84 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U750 114 hp 84 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
ZD3600 116 hp 85 kW 3 L Diesel
ZD3A604 156 hp 115 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VAUXHALLMOOI
A Chassis/Cab ED
UD
HD
A Combi JD
A Van FD
1.9 DTI
2.2 DTI
2.5 D
2.5 DTI
2.8 DTI
2.8 TDI
1998/10 - 2010/05F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
