ZIMMERMANN 430.2609.20 (430260920) Brake Disc
ZIMMERMANN 430.2609.20 (430260920) Brake Disc

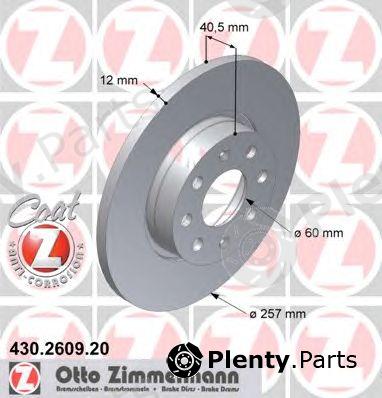

by ZIMMERMANNManufacturer Part Number: 430.2609.20 (430260920)
- Brake Disc Type: Solid
- Surface: Coated
- Outer diameter [mm]: 257
- Thickness [mm]: 12
- Minimum thickness [mm]: 10
- Height [mm]: 40,5
- Hole Arrangement / Number: 8/4
- Weight [kg]: 4
- Bolt Hole Circle Ø 1 [mm]: 100
- Hub Bore Ø [mm]: 60
Product Details
| Brand | ZIMMERMANN |
| ZIMMERMANN article (MPN) | 430.2609.20 (430260920) |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for FIAT / LANCIA / ALFA, GENERAL MOTORS, OPEL vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| FIAT / LANCIA / ALFA | 55700398, 51806099, 51806103, 55700918 |
| GENERAL MOTORS | 93188916, 931889916 |
| OPEL | 569022 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ZIMMERMANN 430.2609.20 (430260920) Brake Disc offered by ABE, A.B.S., ACDelco, ALANKO, AP, ATE, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, COMLINE, DELPHI, E.T.F., FERODO, FOMAR, FREMAX, fri.tech., FTE, GALFER, GIRLING, GRAF, HELLA, HELLA PAGID, HP, ICER, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MALÒ, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| ABE | C3F031ABE |
| A.B.S. | 17710, 17710S, 17919, 17919OE |
| ACDelco | AC3172D |
| ALANKO | 304018 |
| AP | 14952V, 14952E |
| ATE | 24.0112-0184.1 |
| BARUM | BAR12184 |
| BENDIX | 562304BC, 562304B |
| BORG & BECK | BBD4715, BBD4553 |
| BOSCH | 0986479C11, 0986479402 |
| Brake ENGINEERING | DI956403, DI956695 |
| BRECO | BS7743 |
| BREMBO | 08.5086.21, 08.5086.24 |
| BREMSI | DBB784S |
| CAR | HPD1412, 142.1412 |
| CIFAM | 800-858 |
| COMLINE | ADC1140 |
| DELPHI | BG4155 |
| E.T.F. | 19-2523 |
| FERODO | DDF1784, DDF1784C1, DDF17841, DDF1784C |
| FOMAR | FO2842 |
| FREMAX | BD-0918, BD-0920, BD-0920-50 |
| fri.tech. | BD0508, DF1278 |
| FTE | BS7135B |
| GALFER | B1G21201841 |
| GIRLING | 6047961 |
| GRAF | DF29858 |
| HELLA | 8DD355114-351 |
| HELLA PAGID | 54646PRO, 8DD355114351 |
| HP | HP58360 |
| ICER | 78BD0918-2 |
| JURID | 562304J |
| KAGER | 370811 |
| KAMOKA | 1033568 |
| KAWE | 698110, 6120900, 6120910 |
| LPR | F2000V |
| MAGNETI MARELLI | 360406024300 |
| MALÒ | 1110059 |
| MAPCO | 25715 |
| METELLI | 23-0858 |
| METZGER | 6110246, 23-0858, 24980E, 6120900 |
| MEYLE | 6155210003 |
| MINTEX | MDK0226, MDC1838 |
| NK | 202363, 202348, 312363 |
| OPEN PARTS | BDR2258.20, BDR244410, BDA2444.10, BDRS2258.25 |
| OPTIMAL | BS-8462 |
| PAGID | 54646 |
| PATRON | PBD4796 |
| PILENGA | 5832 |
| PROTECHNIC | PRD2534 |
| QUINTON HAZELL | BDC5745, BDC5744, HP58360 |
| REMSA | 6981.10, 61209.00 |
| ROADHOUSE | 61209.00, 6981.10 |
| ROTINGER | RT1791T5, RT1791 |
| ROULUNDS BRAKING | WD01240 |
| sbs | 1815312363, 1815202363, 1815202348 |
| TEMPLIN | 0311015735, 0311015730 |
| TEXTAR | 92164605, 92164603, 92164600 |
| TRISCAN | 812010195, 812024151C, 812024151 |
| TRUSTING | DF1278, DF508 |
| TRW | DF4796 |
| VAICO | V40-80015, V4040034 |
| VALEO | 197028 |
| WAGNER LOCKHEED | WGR1784-1 |
| WOKING | D61209.00, D6981.10 |
| ZIMMERMANN | 430.2609.70, 430.2609.50, 430.2609.52, 430.2609.75, 430.2609.00 |
Vehicle fitment / ZIMMERMANN 430.2609.20 (430260920) Brake Disc compatibility
This product fits the following models: FIAT GRANDE PUNTO, FIAT PUNTO, FIAT PUNTO EVO, OPEL CORSA D, etc. See all vehicles this product (ZIMMERMANN 430.2609.20 (430260920)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| FIAT | GRANDE PUNTO 199 | 1.2 1.2 LPG 1.4 1.4 LPG 1.4 Natural Power | 2005/10 - | 169A4.000 69 hp 51 kW 1.2 L Petrol 199A4.000 65 hp 48 kW 1.2 L Petrol 199A4.000 69 hp 51 kW 1.2 L Petrol 199A7.000 75 hp 55 kW 1.4 L Petrol 350A1.000 78 hp 57 kW 1.4 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| FIAT | PUNTO 199 | 1.2 1.2 LPG 1.4 1.4 LPG 1.4 Natural Power | 2005/10 - | 169A4.000 69 hp 51 kW 1.2 L Petrol 199A4.000 65 hp 48 kW 1.2 L Petrol 199A4.000 69 hp 51 kW 1.2 L Petrol 199A7.000 75 hp 55 kW 1.4 L Petrol 350A1.000 78 hp 57 kW 1.4 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| FIAT | PUNTO EVO 199 | 1.2 | 2009/10 - 2012/02 | 199A4.000 65 hp 48 kW 1.2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| OPEL | CORSA D | 1.0 | 2006/07 - | Z10XEP 60 hp 44 kW 1 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
